iiyama OPC51204BC-1
iiyama OPC51204BC-1
Intel® Core™ i5-12450H, 256 GB SSD, 8 GB DDR4, 802.11 a/b/g/n/ac/ax (Wifi 6), BT 5.2
- Mini PC Black
- Intel® Core™ i5 i5-12450H
- 8 GB DDR4-SDRAM 3200 MHz
- 256 GB SSD
- Intel® UHD Graphics
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 6 (802.11ax) 5.2
- Windows 11 IoT Enterprise 64-bit
- SKU:4948570033331
- GTIN/EAN:4948570033331
- MPN:OPC51204BC-1

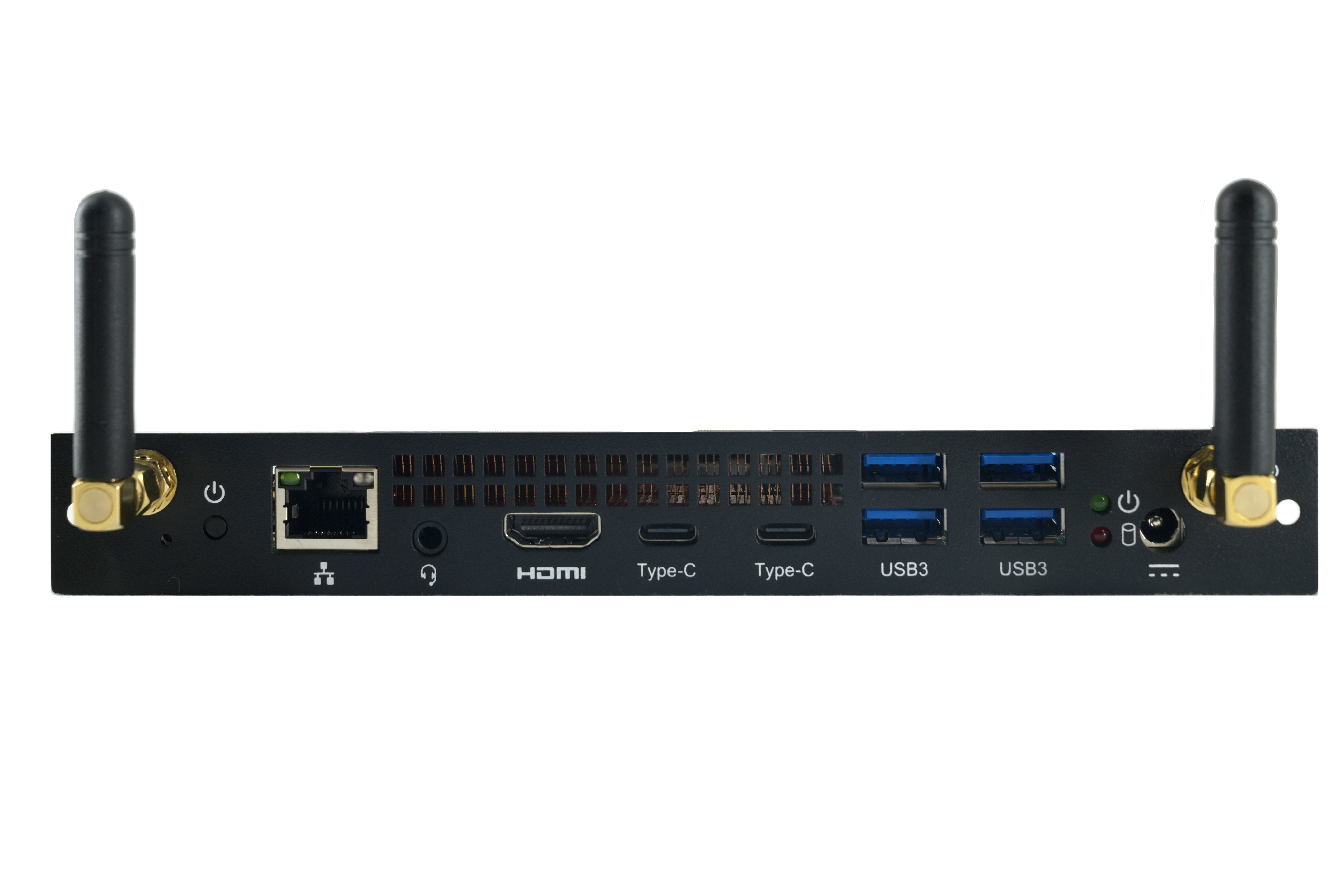

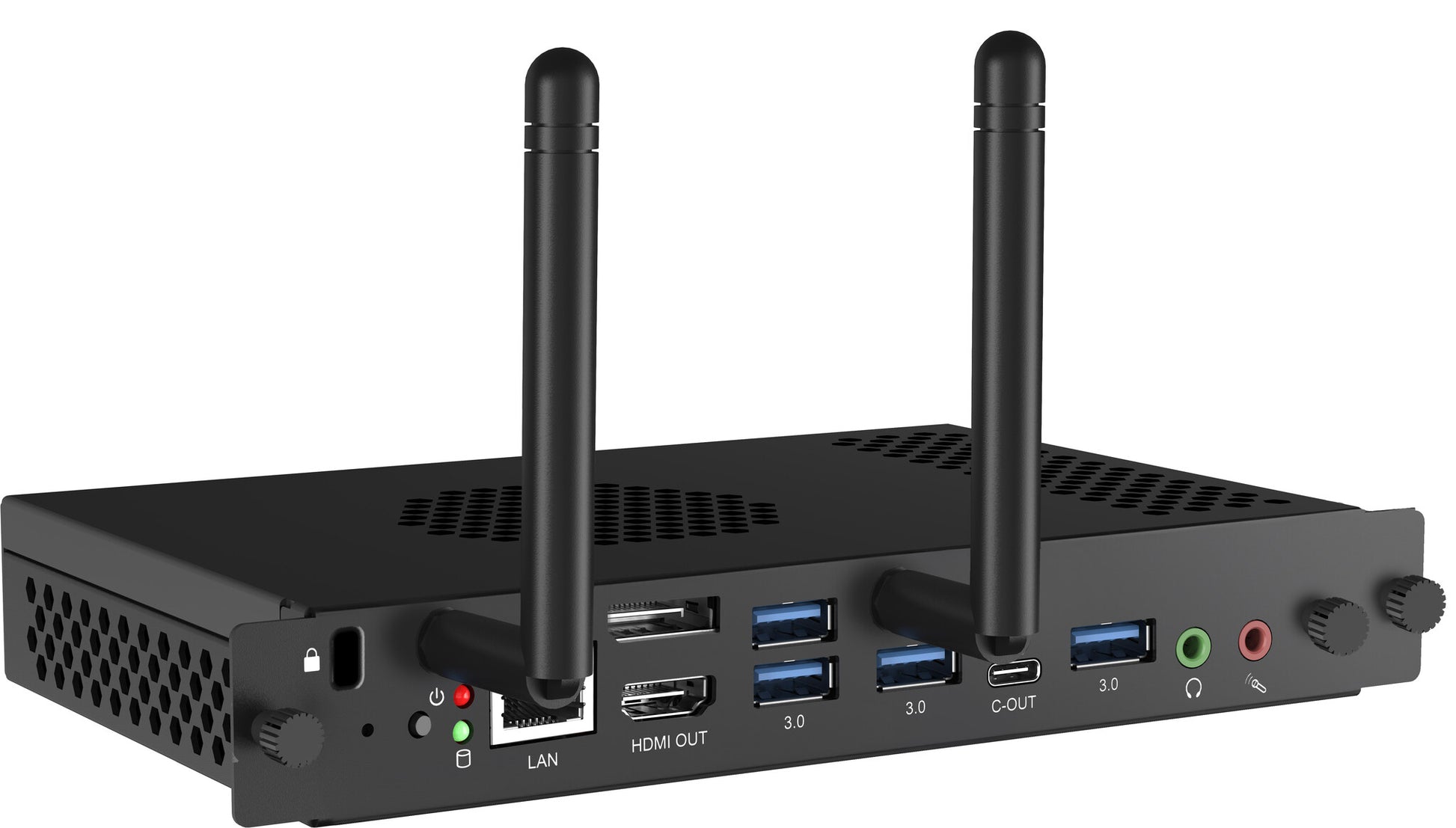

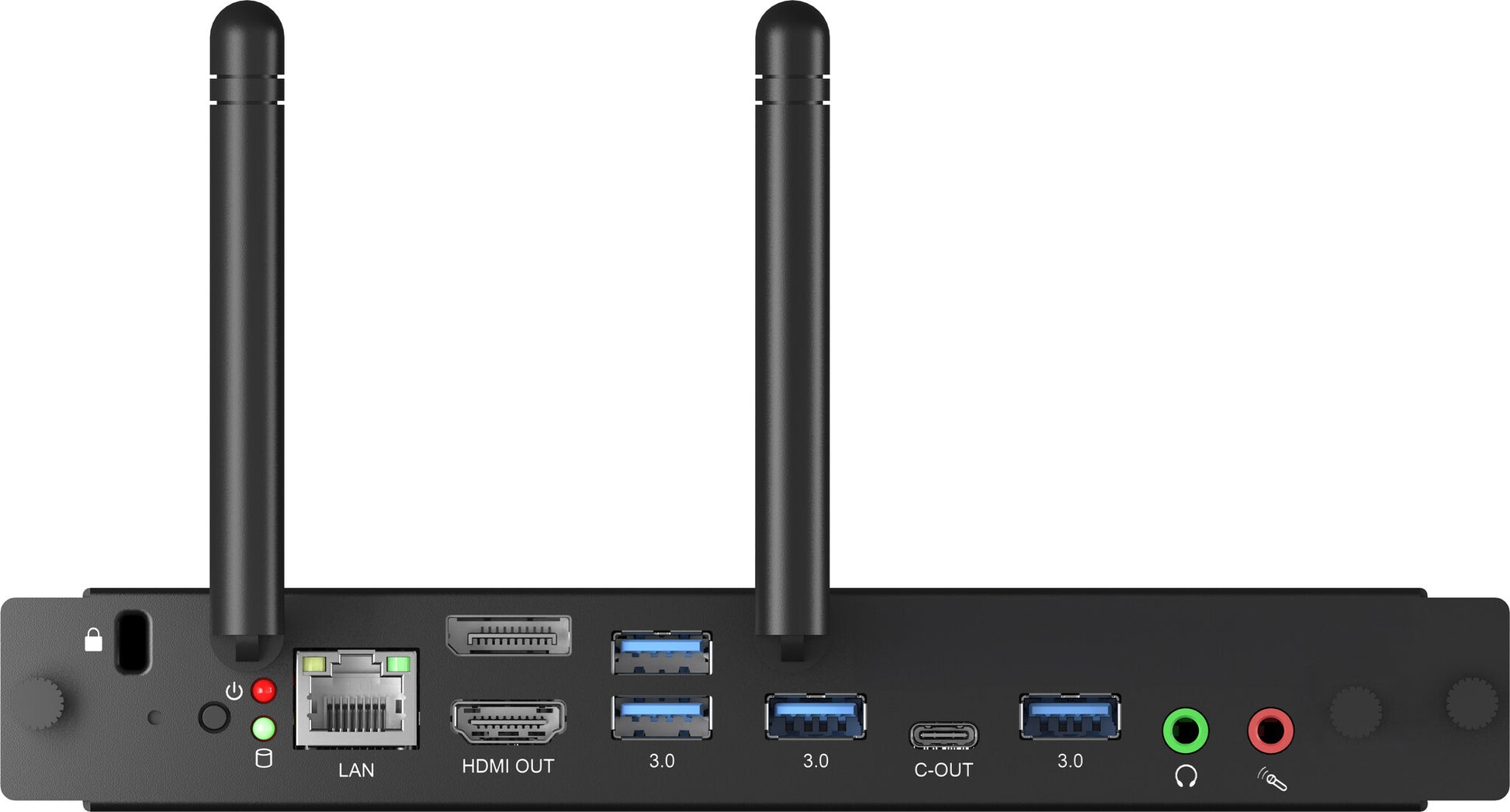

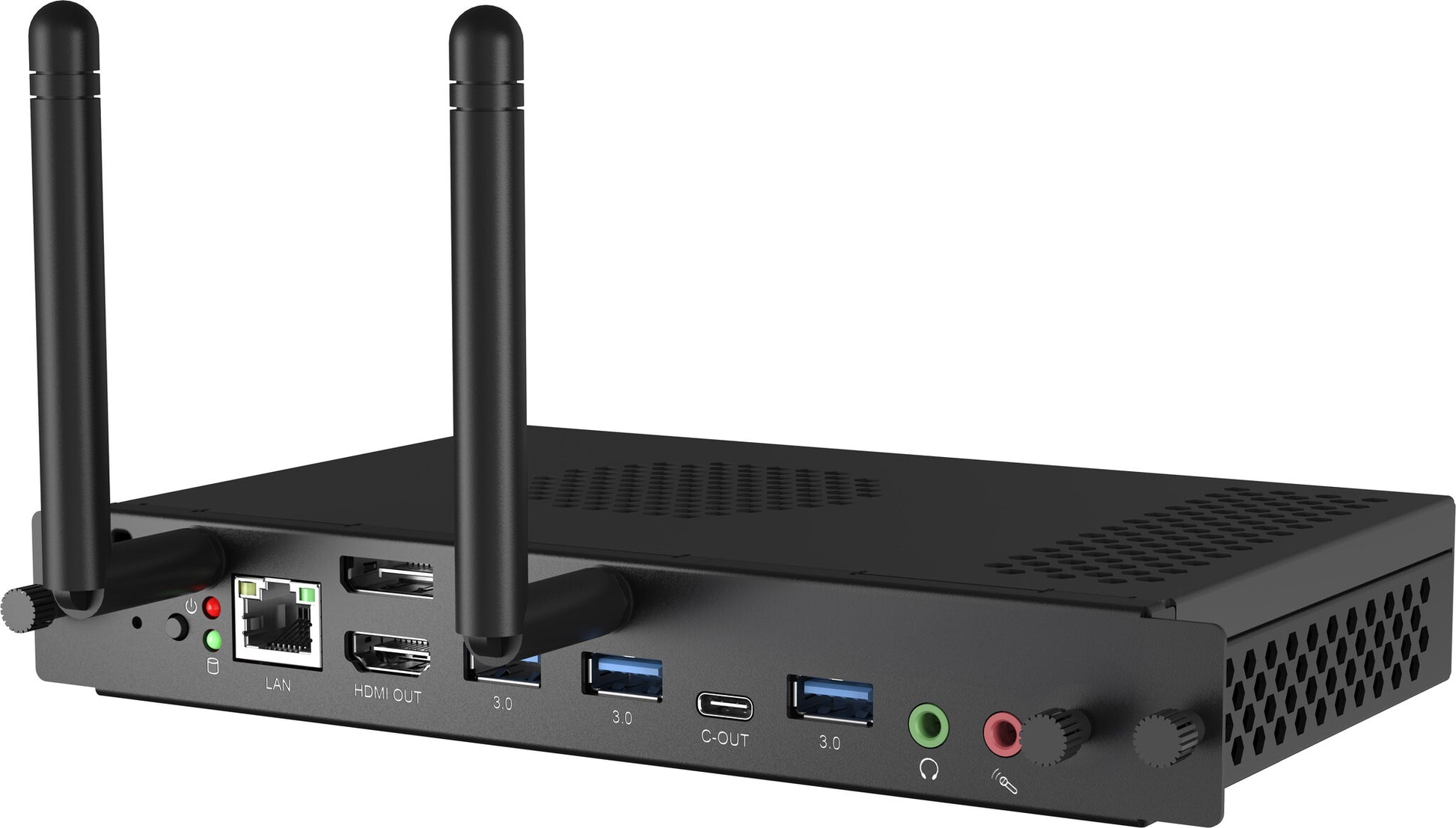

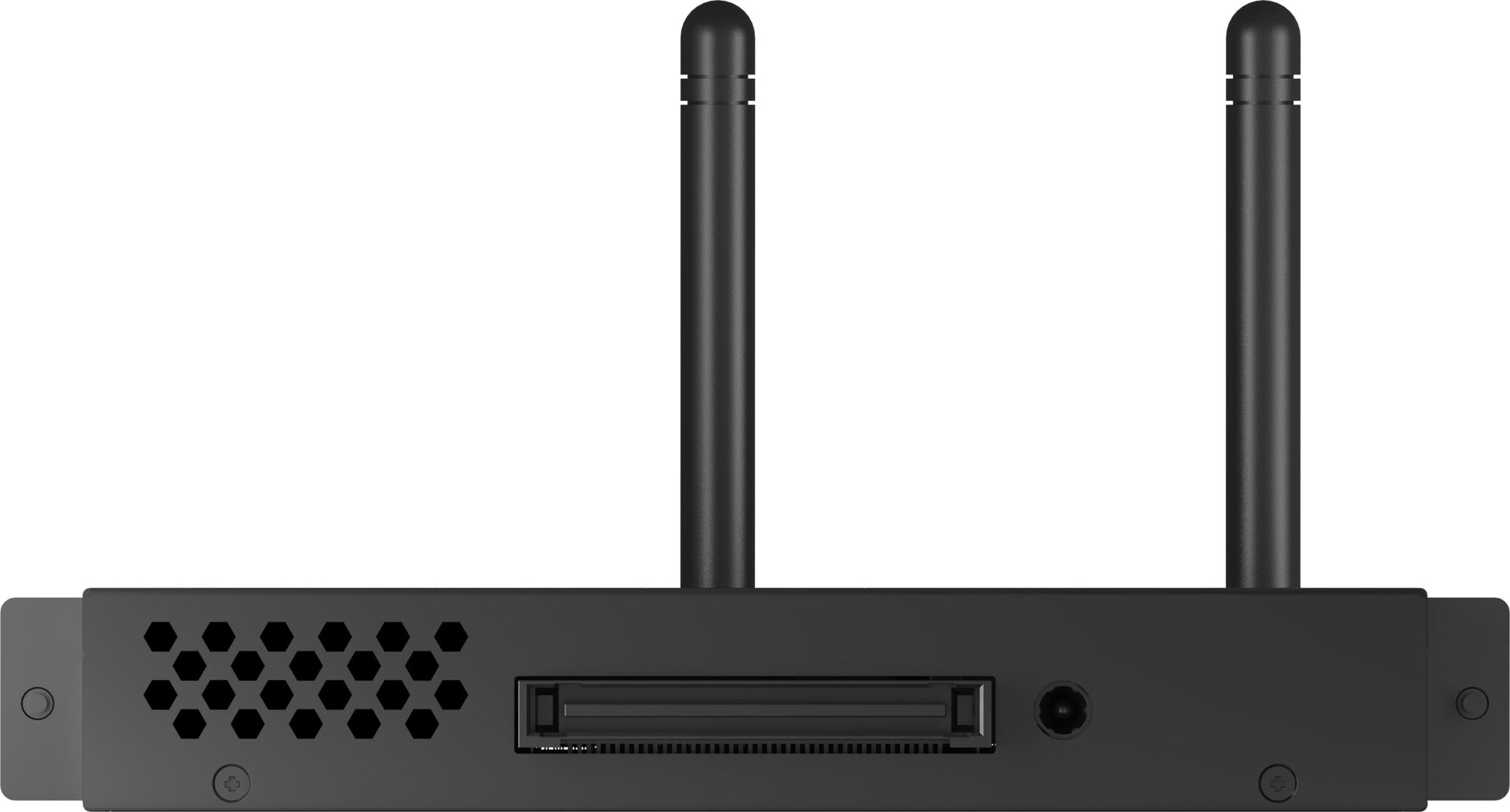

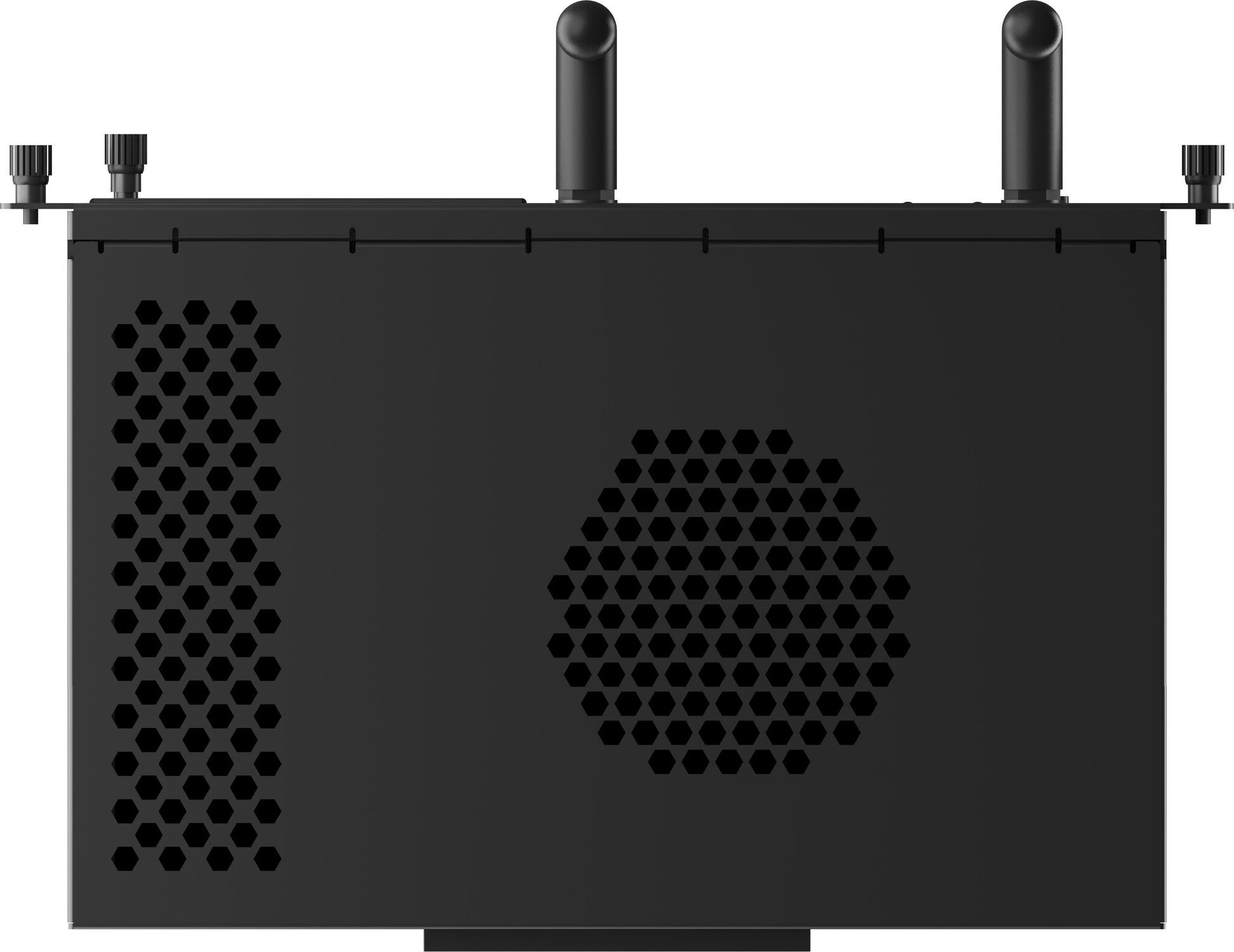

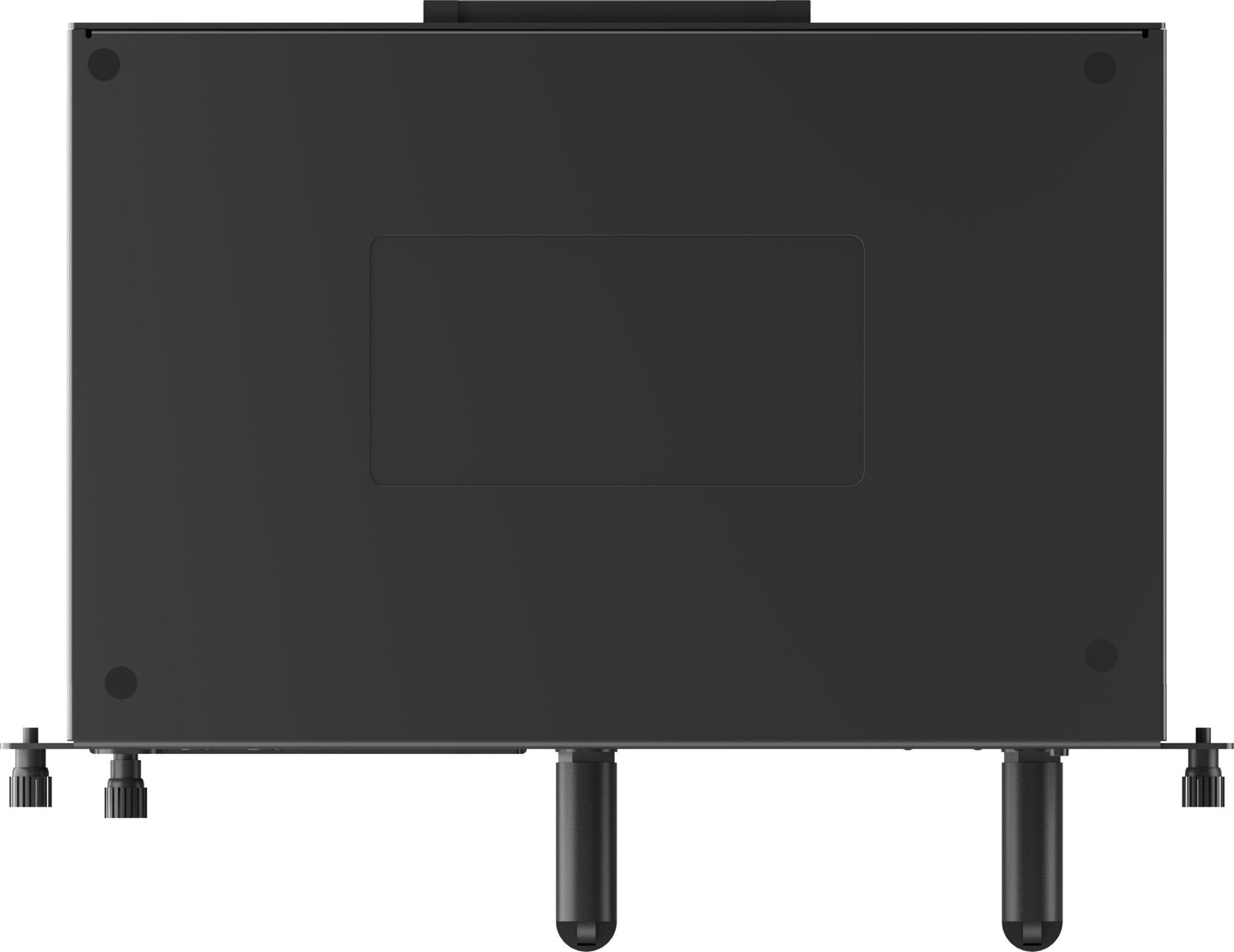

This mini OPS PC with Intel® Core™ i5 inside turns your iiyama (interactive) large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. The OPC51204BC-1 is also very quiet with a noise level below 34dB at 100% CPU load at 1 meter distance. Simply slide in the iiyama OPS slot PC and get started right away.
Processor base power
45 W
Maximum turbo power
95 W
Processor cache type
Smart Cache
Processor cache
12 MB
Processor cores
8
Efficient-core Max Turbo Frequency
3.3 GHz
Performance-core Max Turbo Frequency
4.4 GHz
Efficient cores
4
Performance cores
4
Processor model
i5-12450H
Processor generation
12th gen Intel® Core™ i5
Processor family
Intel® Core™ i5
Processor manufacturer
Intel
Memory clock speed
3200 MHz
Internal memory type
DDR4-SDRAM
Maximum internal memory
32 GB
Internal memory
8 GB
SSD form factor
M.2
SSD interface
PCI Express
SSD capacity
256 GB
Number of SSDs installed
1
Total SSDs capacity
256 GB
Storage media
SSD
Optical drive type
No
Total storage capacity
256 GB
On-board graphics card model
Intel® UHD Graphics
On-board graphics card family
Intel® UHD Graphics
On-board GPU manufacturer
Intel
Discrete graphics card model
Not available
On-board graphics card
Yes
Discrete graphics card
No
Bluetooth version
5.2
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN
Yes
Headphone outputs
1
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
DisplayPort version
1.4
DisplayPorts quantity
1
HDMI version
2.0
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Product colour
Black
Chassis type
Mini PC
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Product type
Mini PC
Operating system architecture
64-bit
Operating system installed
Windows 11 IoT Enterprise
Power consumption (typical)
80.7 W
Power consumption (standby)
2.9 W
Storage relative humidity (H-H)
10 - 95%
Operating relative humidity (H-H)
10 - 95%
Storage temperature (T-T)
-10 - 50 °C
Operating temperature (T-T)
0 - 45 °C
Package weight
957 g
Package height
192 mm
Package depth
72 mm
Package width
260 mm
Weight
600 g
Height
30 mm
Depth
180 mm
Width
119 mm
Display included
No
