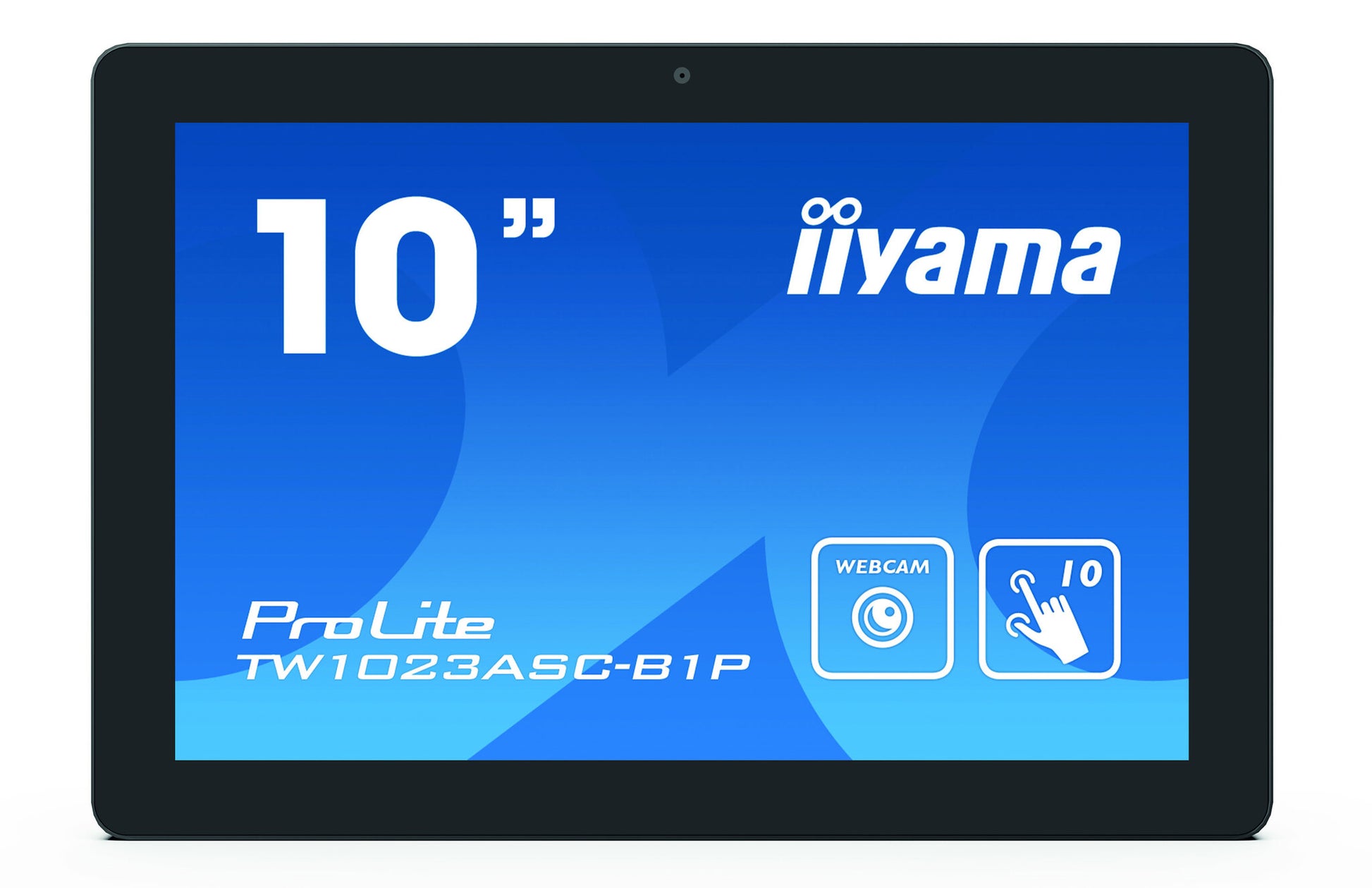

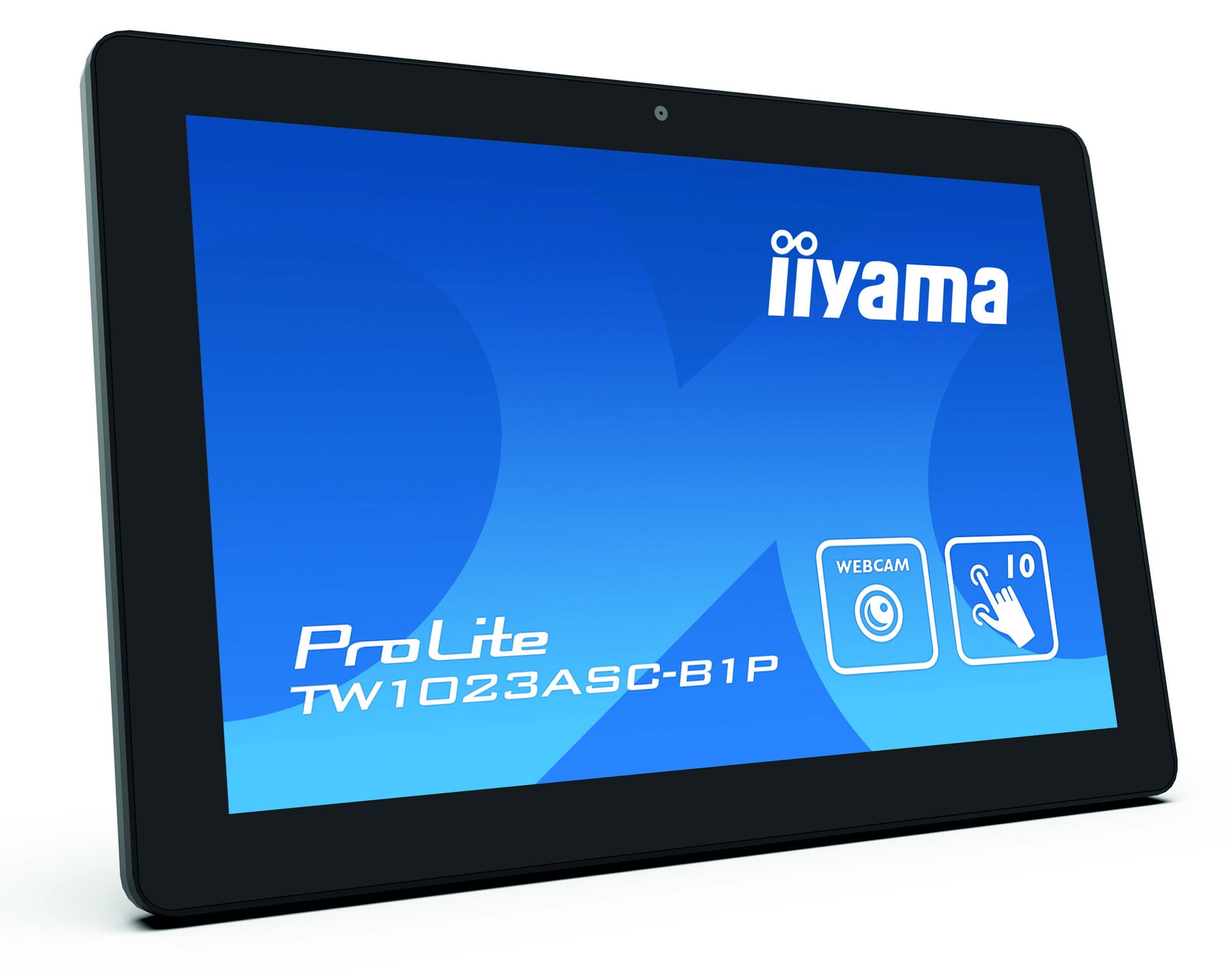

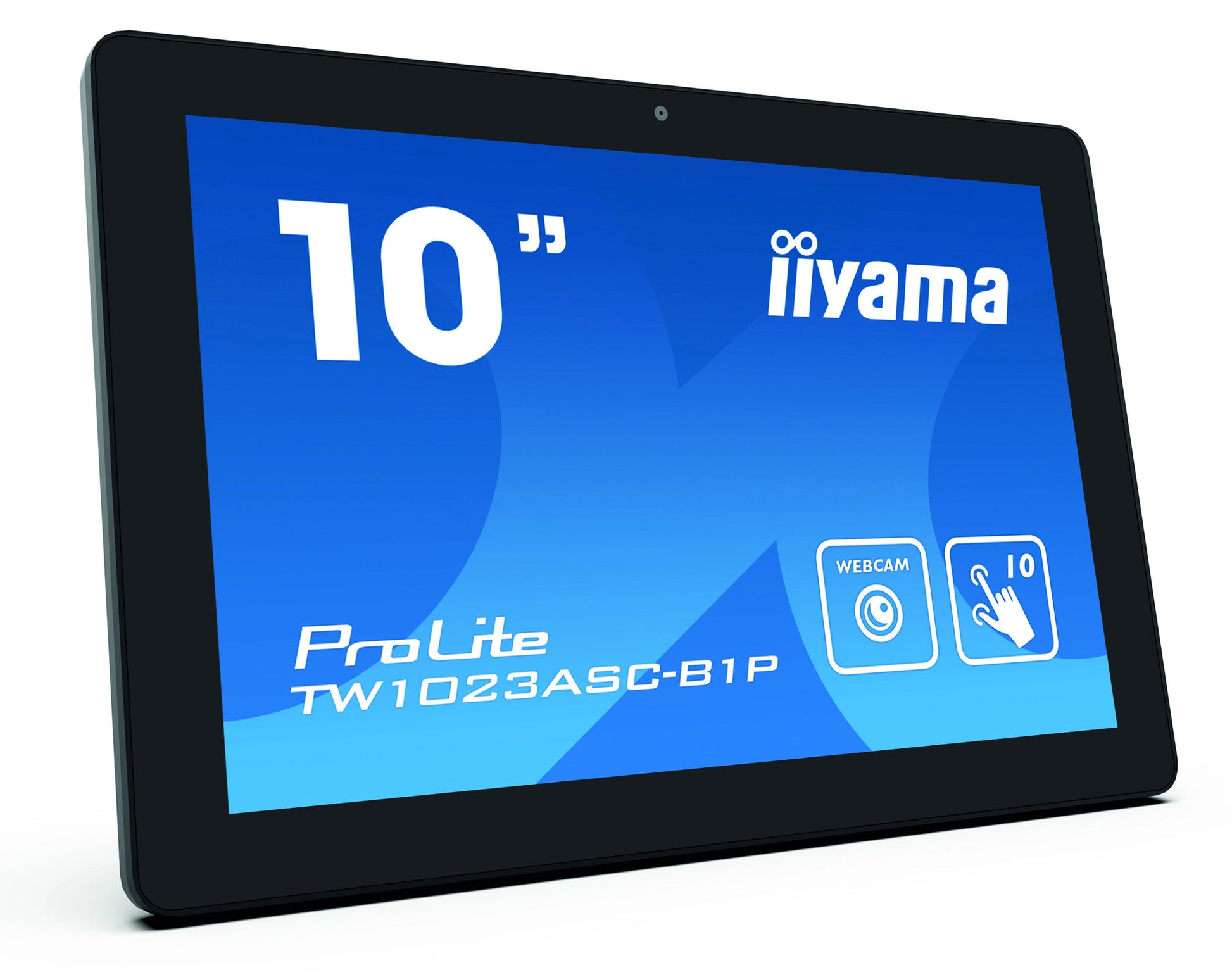

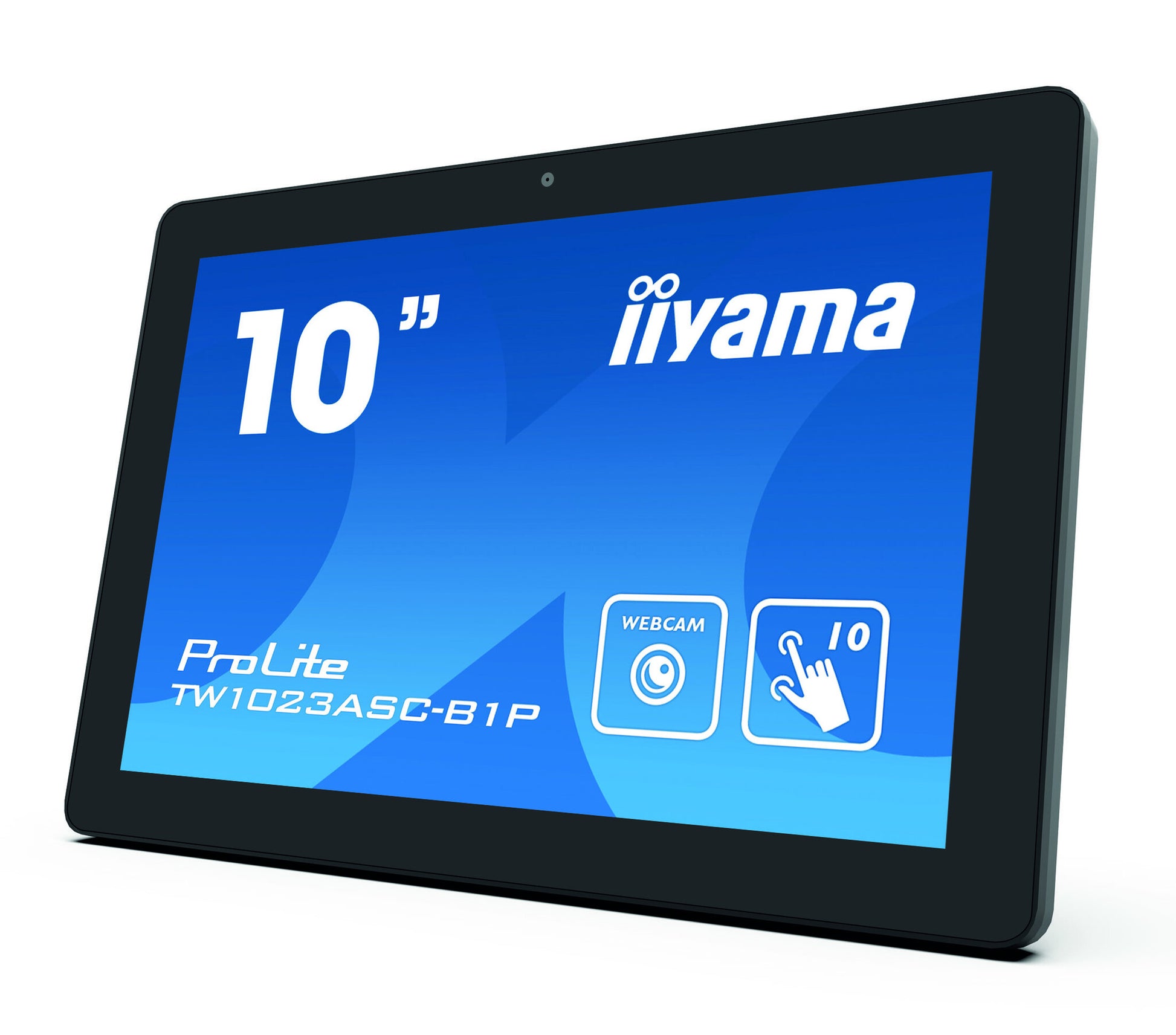

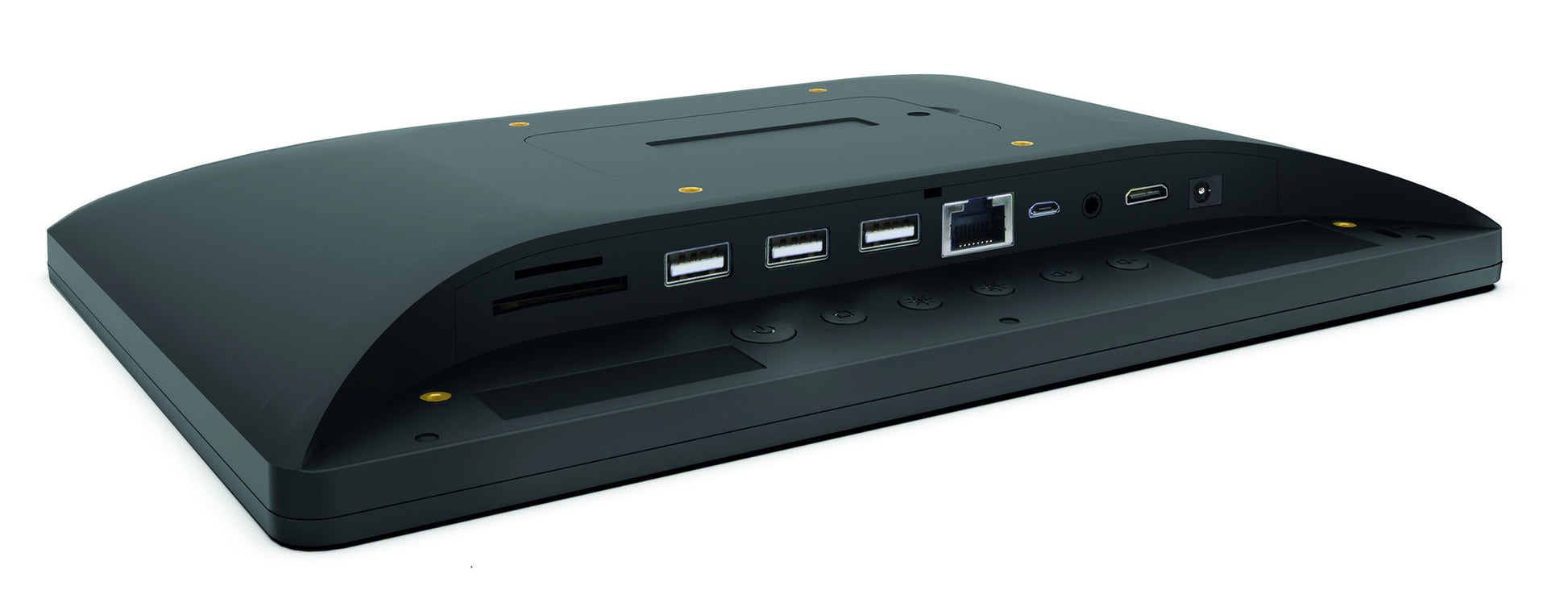

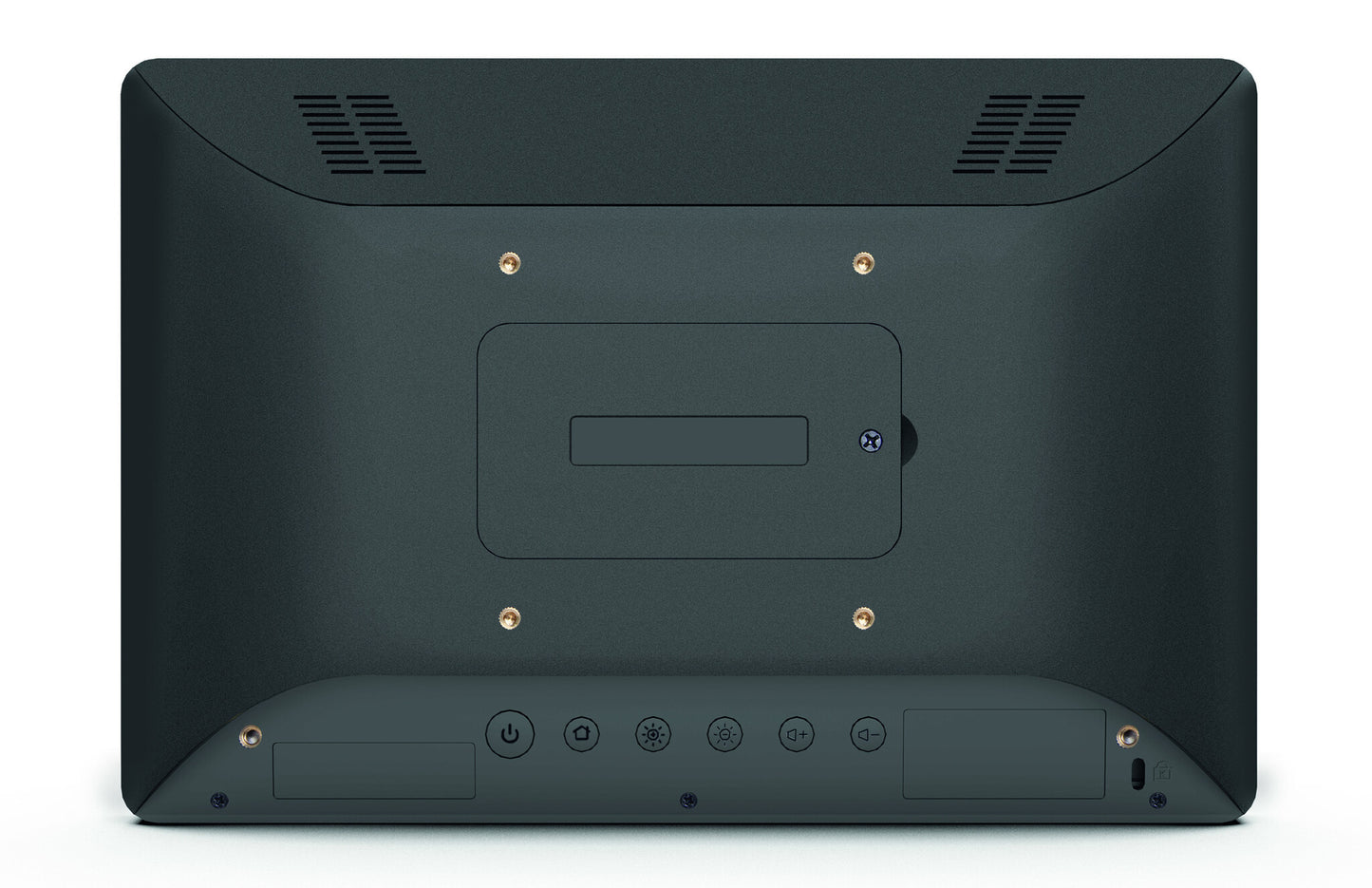

iiyama TW1023ASC-B1P

iiyama TW1023ASC-B1P

  • 10" (WxHxD mm): 255 x 172 x 30,5
  • Nits: 450 cd/m²
  • OS: Android 8.1
  • POE Support: Yes
  • Resolution: 1280 x 800
  • VESA: 75 x 75
  • Orientation: landscape, portrait, face-up
  • Weight: 0,8 kg
  • TW Series
  • SKU:4948570117116
  • GTIN/EAN:4948570117116
  • MPN:TW1023ASC-B1P
Add To Favorite

You need to login to view the price.

View full details

iiyama TW1023ASC-B1P. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Display technology: LED. Panel mounting interface: 75 x 75 mm, Certification: CE, REACH. Operating system installed: Android. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Package width: 398 mm, Package depth: 68 mm, Package height: 223 mm

10.1” PCAP 10pt touch screen with Android and Power over Ethernet Technology


The ProLite TW1023ASC-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications.


This 10.1” PCAP 10-point touchscreen with Android allows users to directly connect and operate the monitor from any device. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera and speakers it offers limitless interactive installation possibilities.


BUILT-IN WEBCAM & SPEAKERS

Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.

Display
Number of simultaneous touchpoints
10
Touchscreen technology
Projected capacitive system
Touchscreen
Yes
Contrast ratio (typical)
1000:1
Display brightness
450 cd/m²
Response time
25 ms
Maximum refresh rate
60 Hz
Pixel pitch
0.1692 x 0.1692 mm
Display resolution
1280 x 800 pixels
Display technology
LED
Display diagonal
25.6 cm (10.1")
Design
Certification
CE, REACH

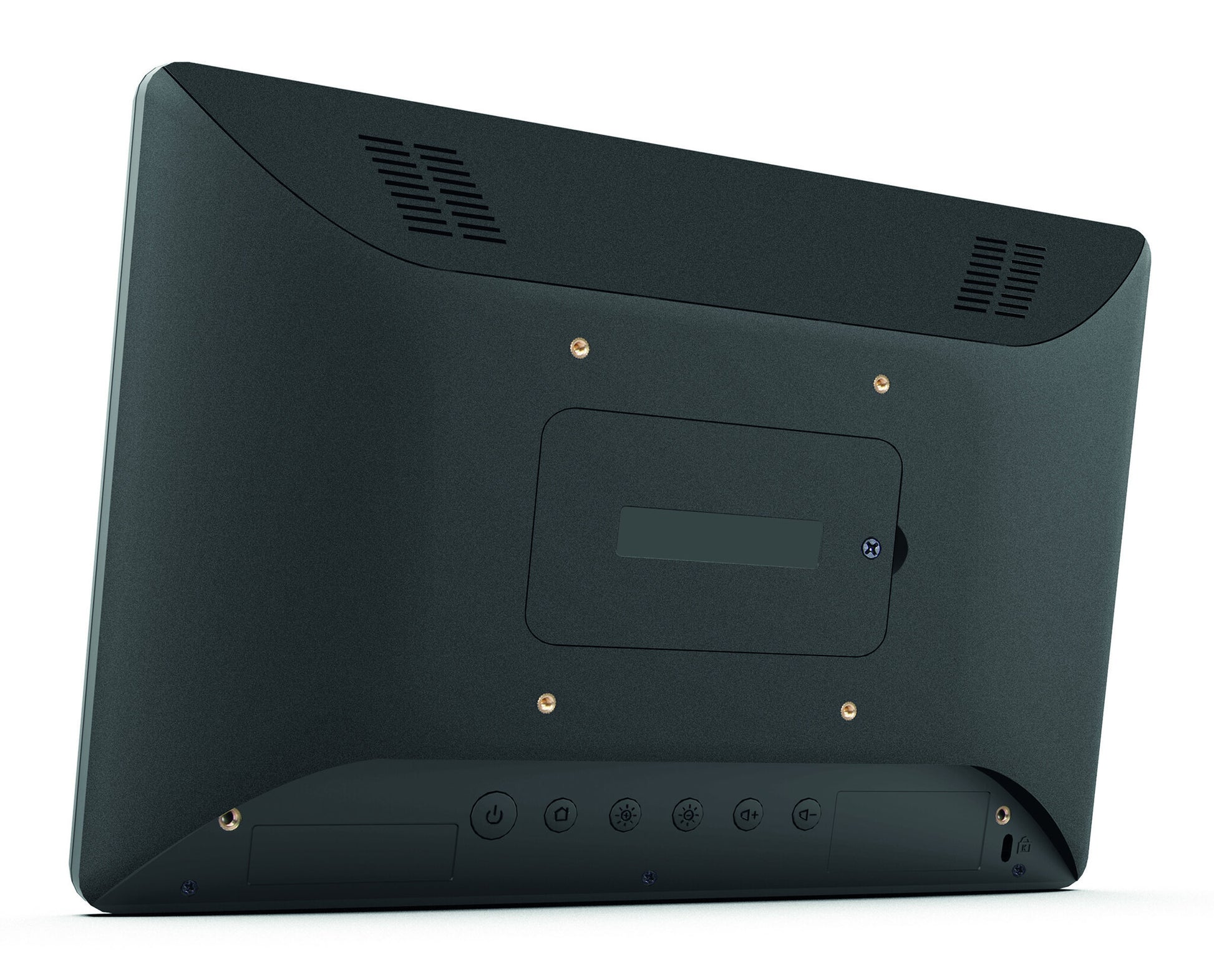

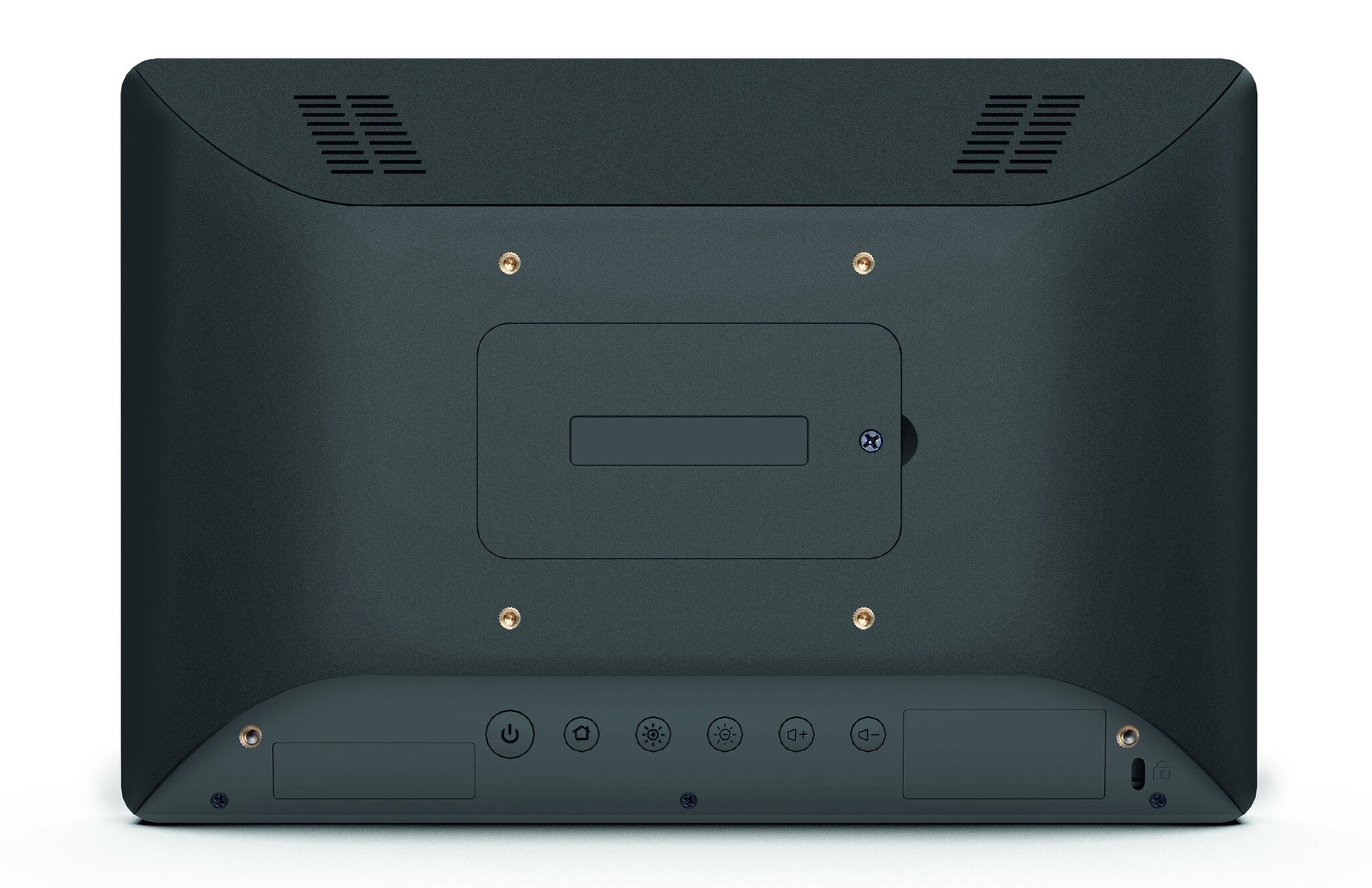

Panel mounting interface
75 x 75 mm
VESA mounting
No
Performance
Operating system installed
Android
Built-in processor
Yes
Audio
Number of speakers
2
Built-in speaker(s)
Yes
Built-in microphone
Yes
Camera
Built-in camera
Yes
Network
Ethernet LAN
Yes
Bluetooth version
4.0
Bluetooth
Yes
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi
Yes
Ports & interfaces
HDMI ports quantity
1
Packaging data
Package weight
1.36 kg
Package height
223 mm
Package depth
68 mm
Package width
398 mm
