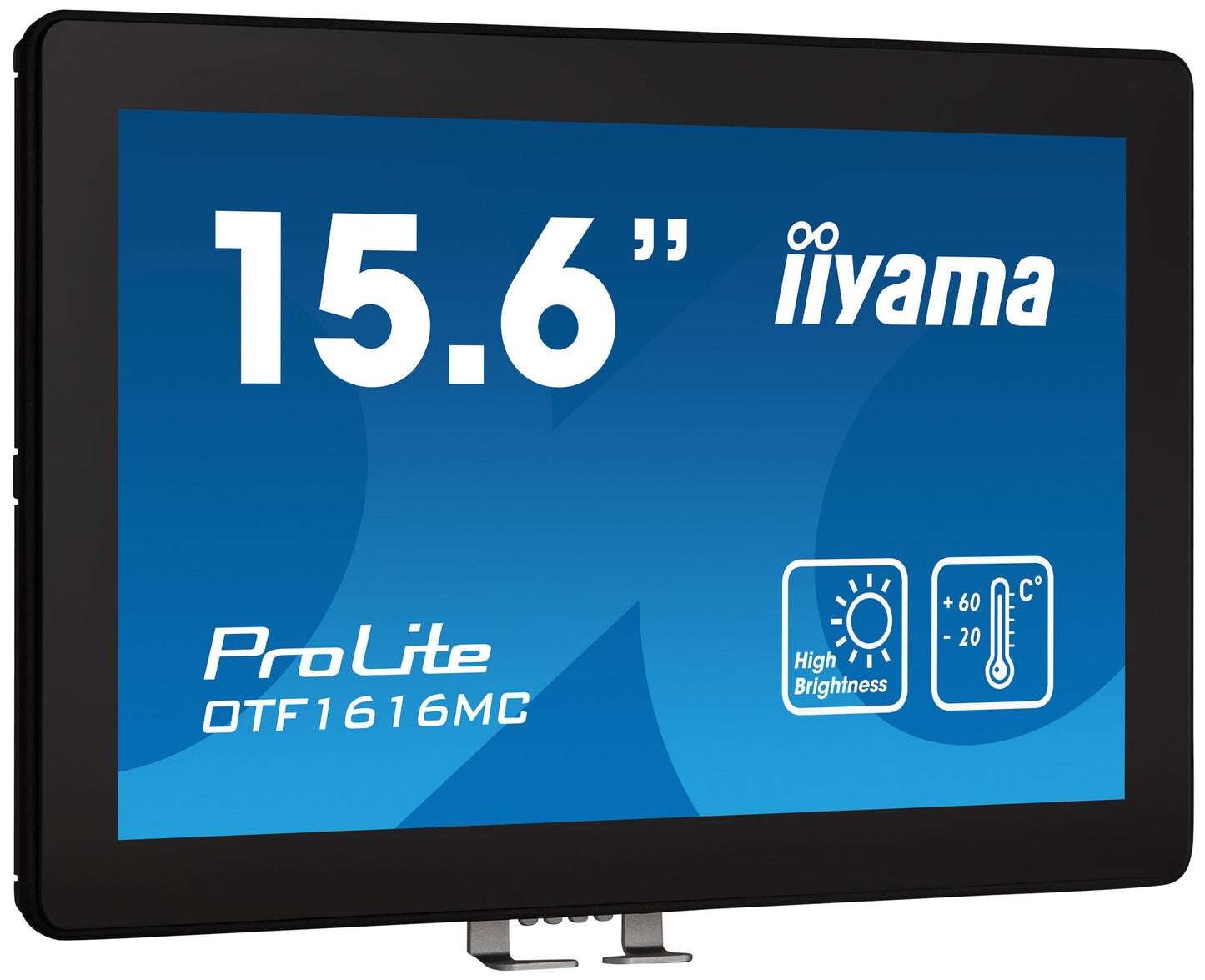

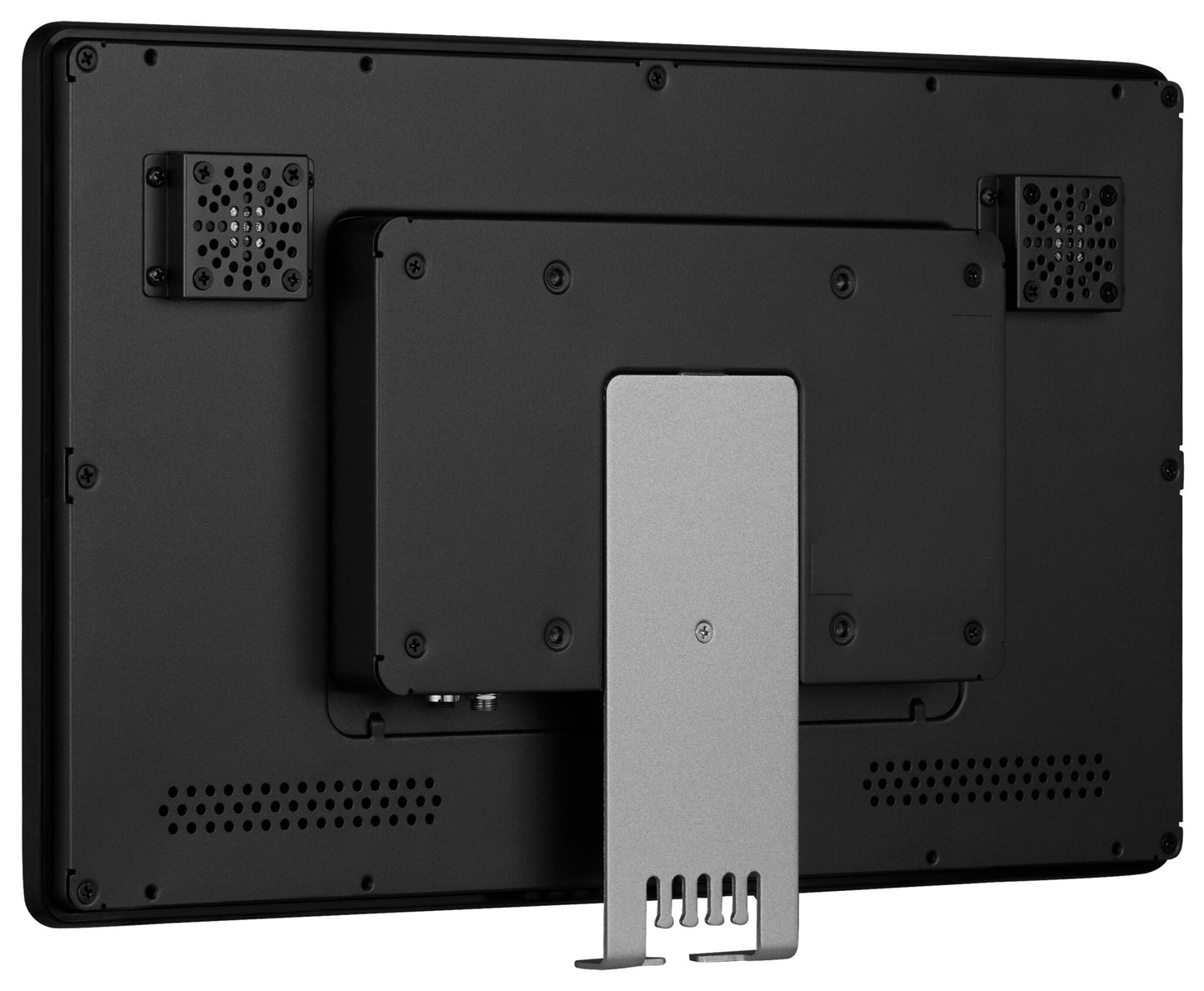

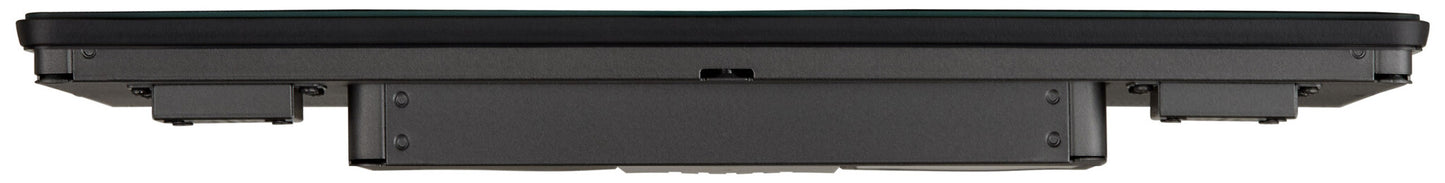

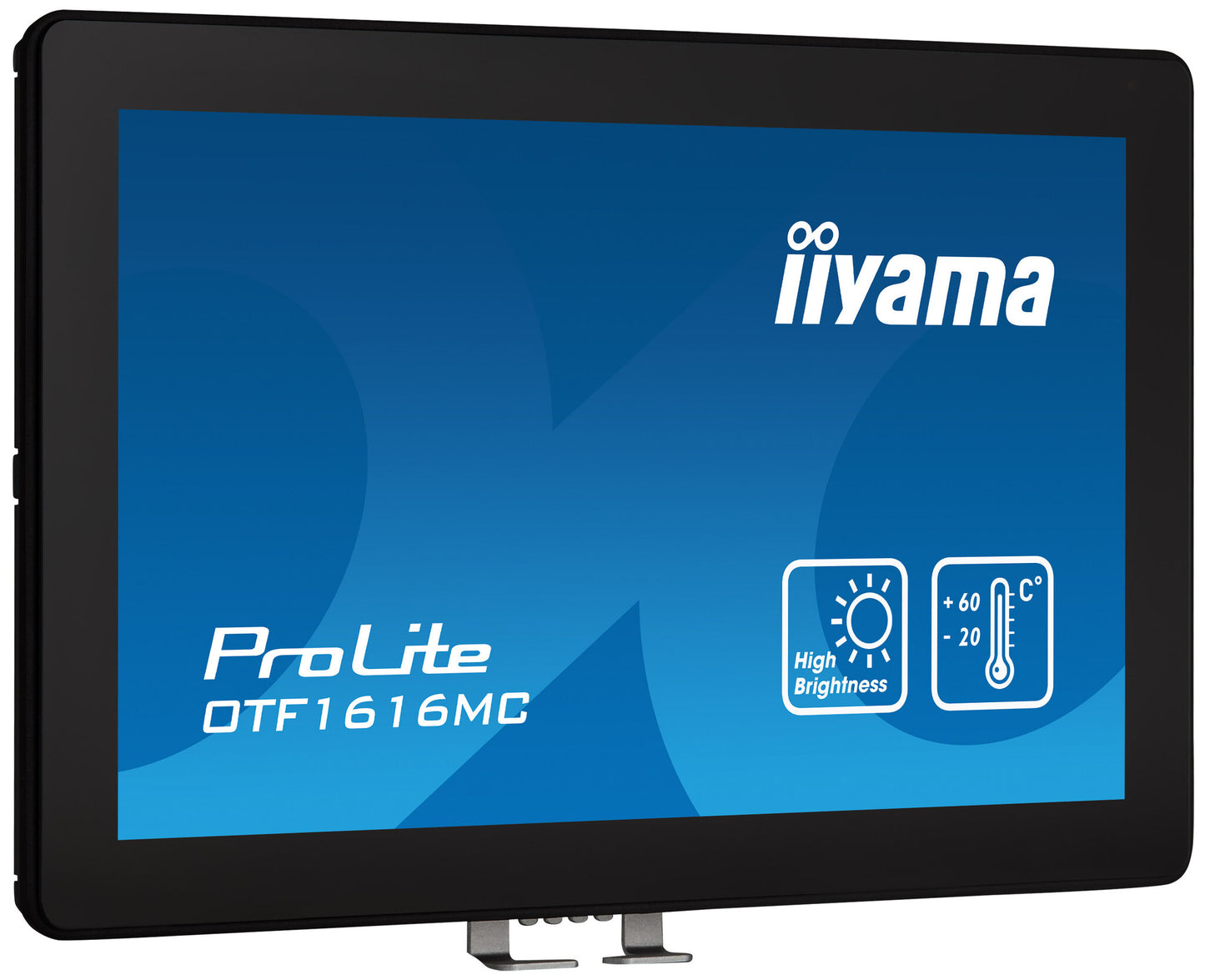

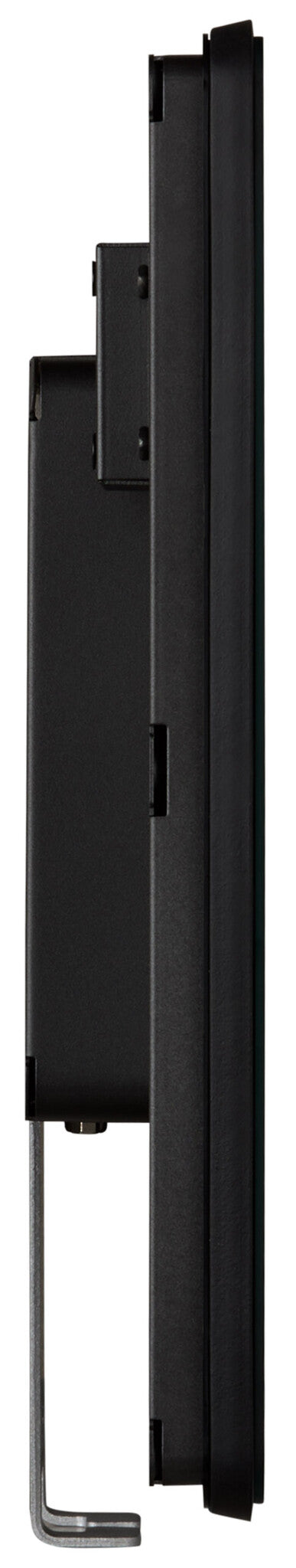

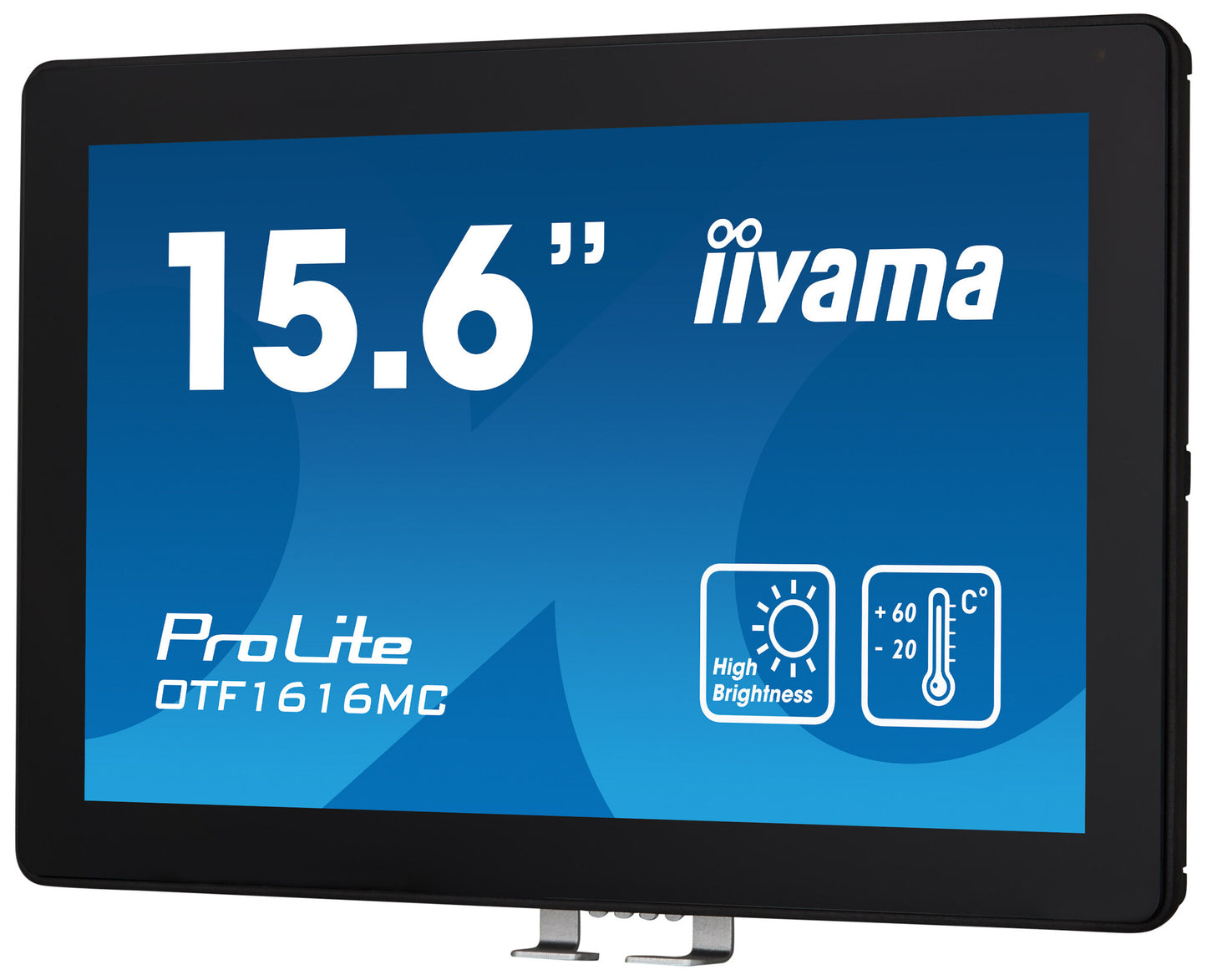

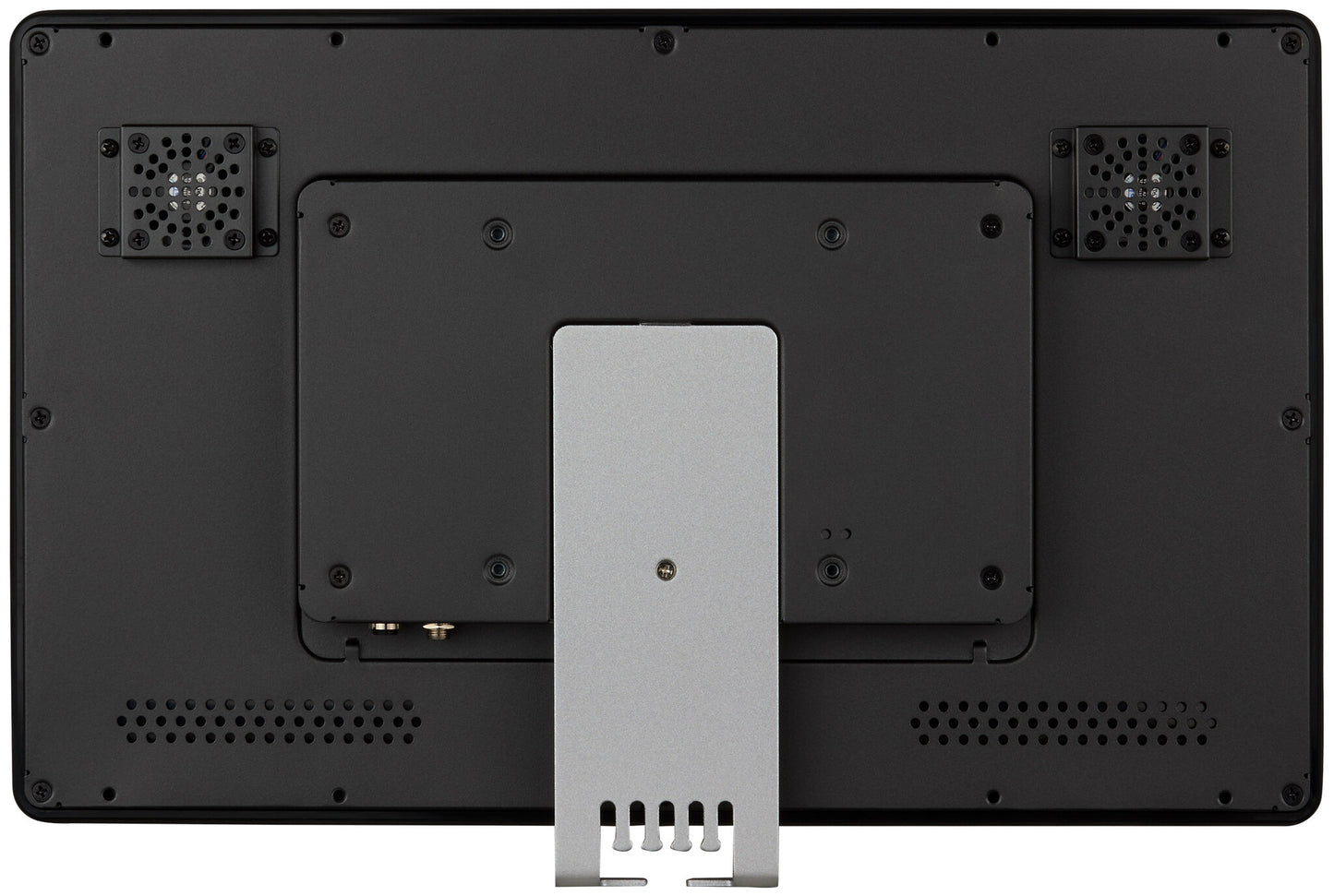

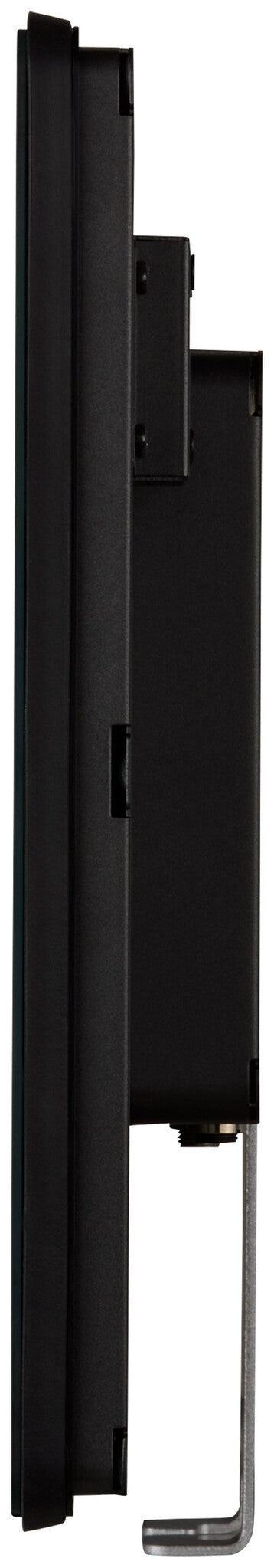

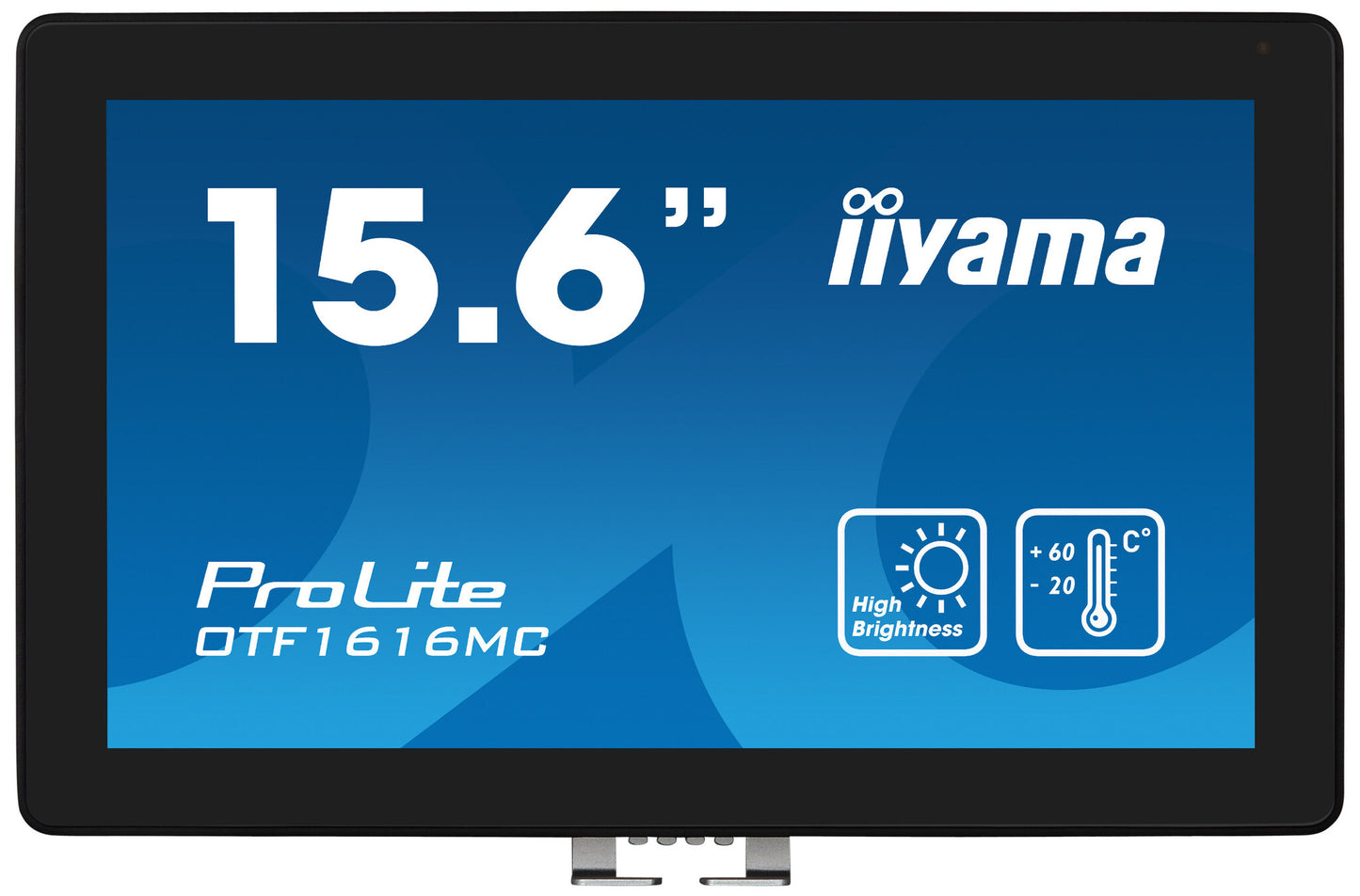

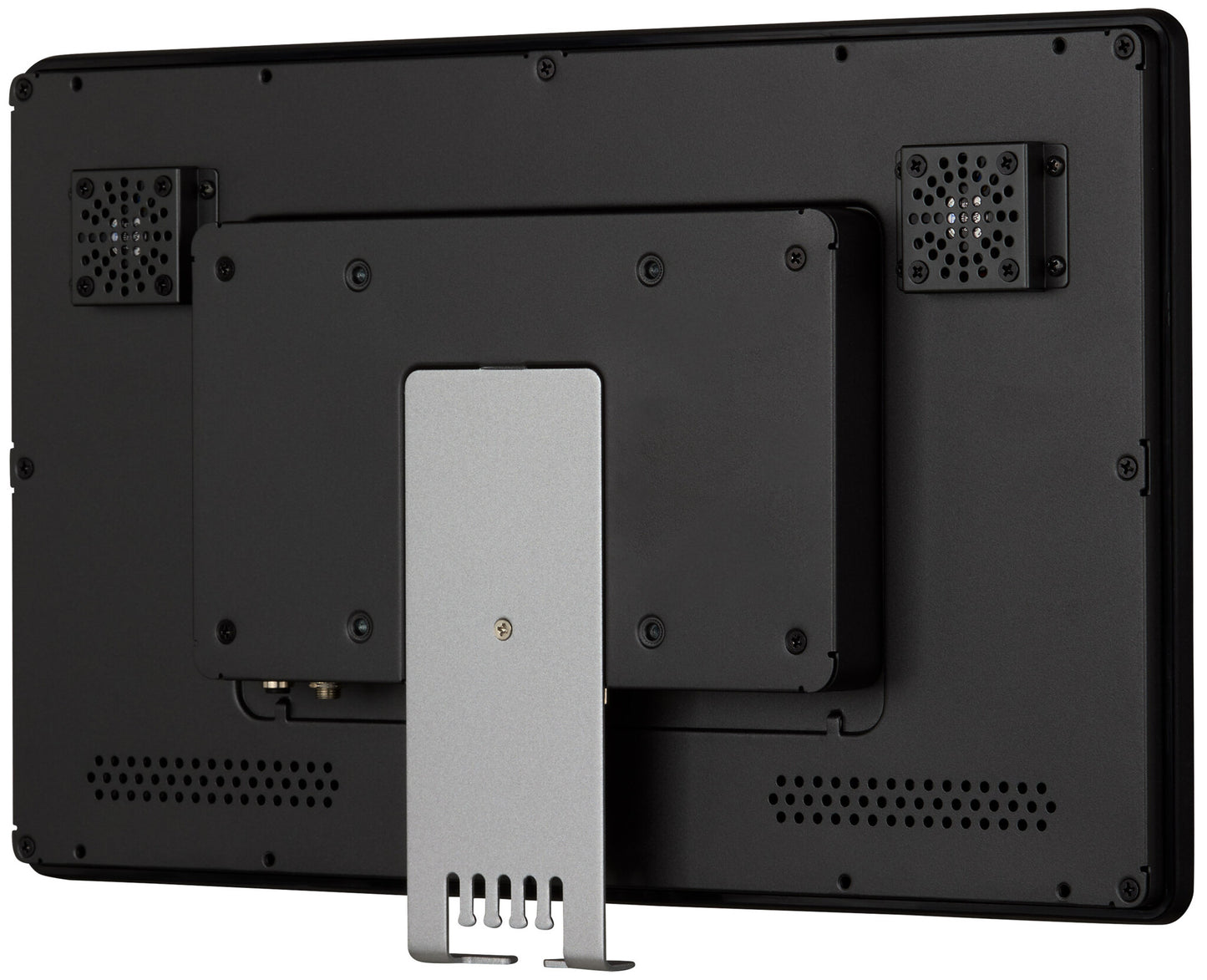

iiyama OTF1616MC-B1

iiyama OTF1616MC-B1

15.6", 39.5cm, VA, 1920 x 1080, 60 Hz, 25 ms, Black, 345.2 x 194.6mm, projective capacitive, IP65

  • Indoor Digital signage flat panel Black
  • 39.6 cm (15.6") 1920 x 1080 pixels LCD 1100 cd/m²
  • Touchscreen 60 Hz 25 ms
  • Ethernet LAN
  • SKU:4948570123742
  • GTIN/EAN:4948570123742
  • MPN:OTF1616MC-B1
Add To Favorite

You need to login to view the price.

View full details

iiyama OTF1616MC-B1. Product design: Digital signage flat panel. Display diagonal: 39.6 cm (15.6"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 1100 cd/m², HD type: Full HD, Touchscreen. Product colour: Black

15.6" high-brightness touchscreen with 10 touch points PCAP touch technology for semi-outdoor applications

Built into a rugged, edge-to-edge glass bezel the ProLite OTF1616MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C.

The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF1616MC-B1 can be equipped with optional external mounting brackets (OMK5-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media.

HIGH-BRIGHTNESS
The display offers a brightness of up to 935 cd/m², so that the content displayed on the screen is clearly visible even in very bright environments.

Display
Horizontal scan range
31.5 - 67.5 kHz
Panel type
VA
Native refresh rate
60 Hz
Glass thickness
3.5 mm
Surface hardness
7H
Display diagonal (metric)
39.5 cm
Active display area (W x H)
345.2 x 194.6 mm
Pixel pitch
0.179 x 0.179 mm
Display number of colours
16.2 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
800:1
Response time
25 ms
Native aspect ratio
16:9
Number of simultaneous touchpoints
10
Touchscreen technology
Projected capacitive system
Touchscreen
Yes
HD type
Full HD
Display brightness
1100 cd/m²
Display resolution
1920 x 1080 pixels
Display technology
LCD
Display diagonal
39.6 cm (15.6")

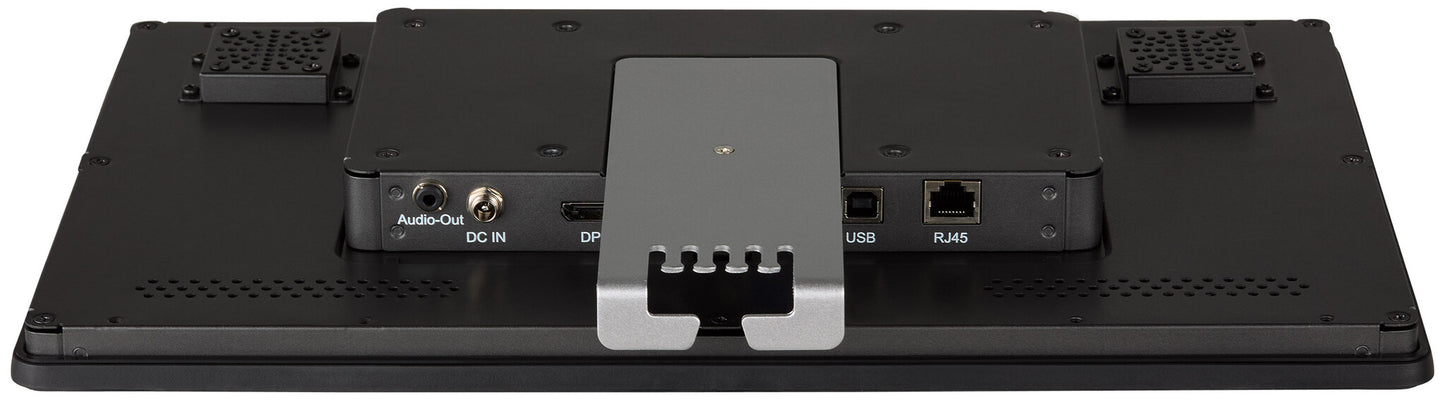

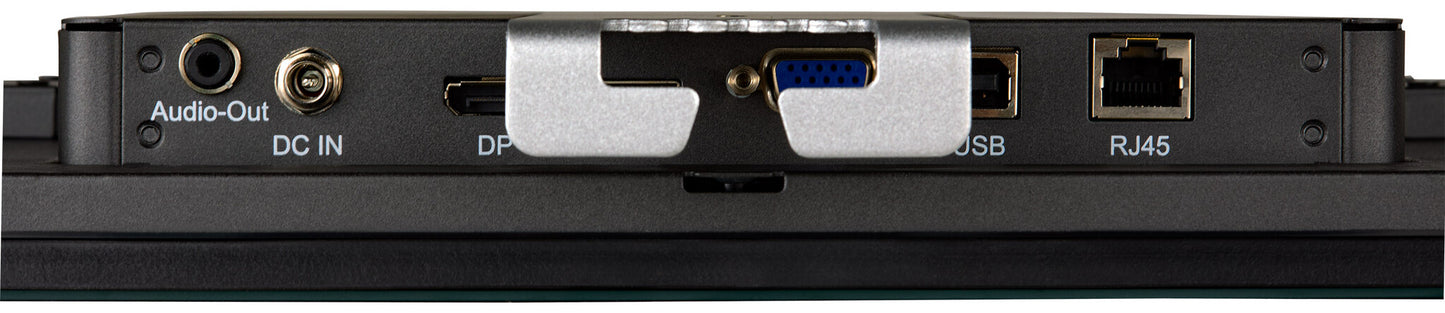

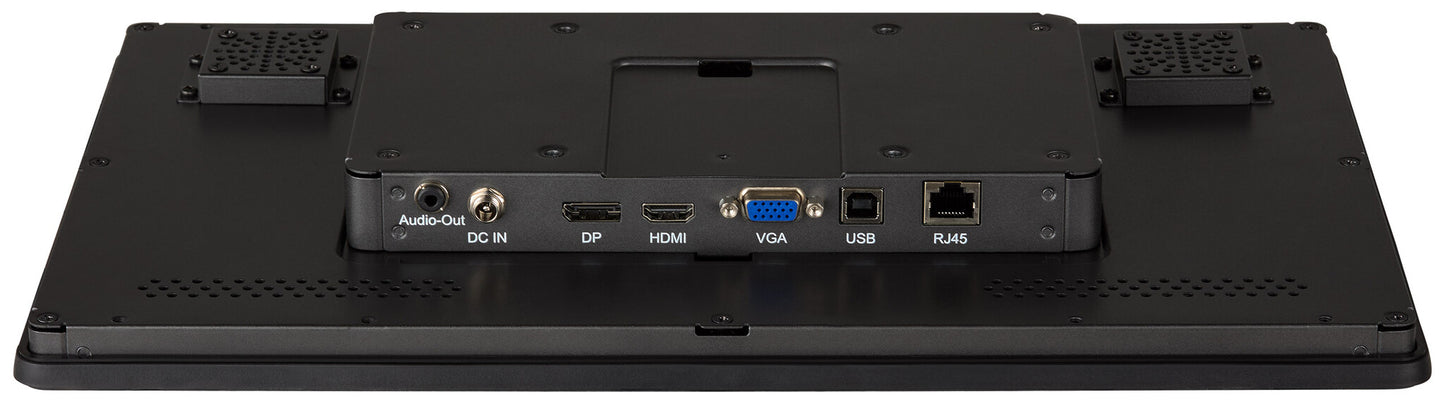

Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB port
Yes
DisplayPorts quantity
1
VGA (D-Sub) input ports
1
DVI port
No
HDMI input ports quantity
1
HDMI ports quantity
1
Design
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Screen shape
Flat
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
Mean time between failures (MTBF)
60000 h
HDCP
Yes
International Protection (IP) code
IP65
On Screen Display (OSD)
Yes
Number of OSD languages
7
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Purpose
Universal
Power
Energy efficiency scale
A to G
Energy consumption (SDR) per 1000 hours
11 kWh
Energy efficiency class (SDR)
E
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
24 W
Weight & dimensions
Display weight
3 kg
Display height
246 mm
Display depth
42 mm
Display width
398.5 mm
Packaging data
Package weight
4.62 kg
Package height
370 mm
Package depth
150 mm
Package width
485 mm
Packaging content
Cables included
AC, DisplayPort, HDMI, USB

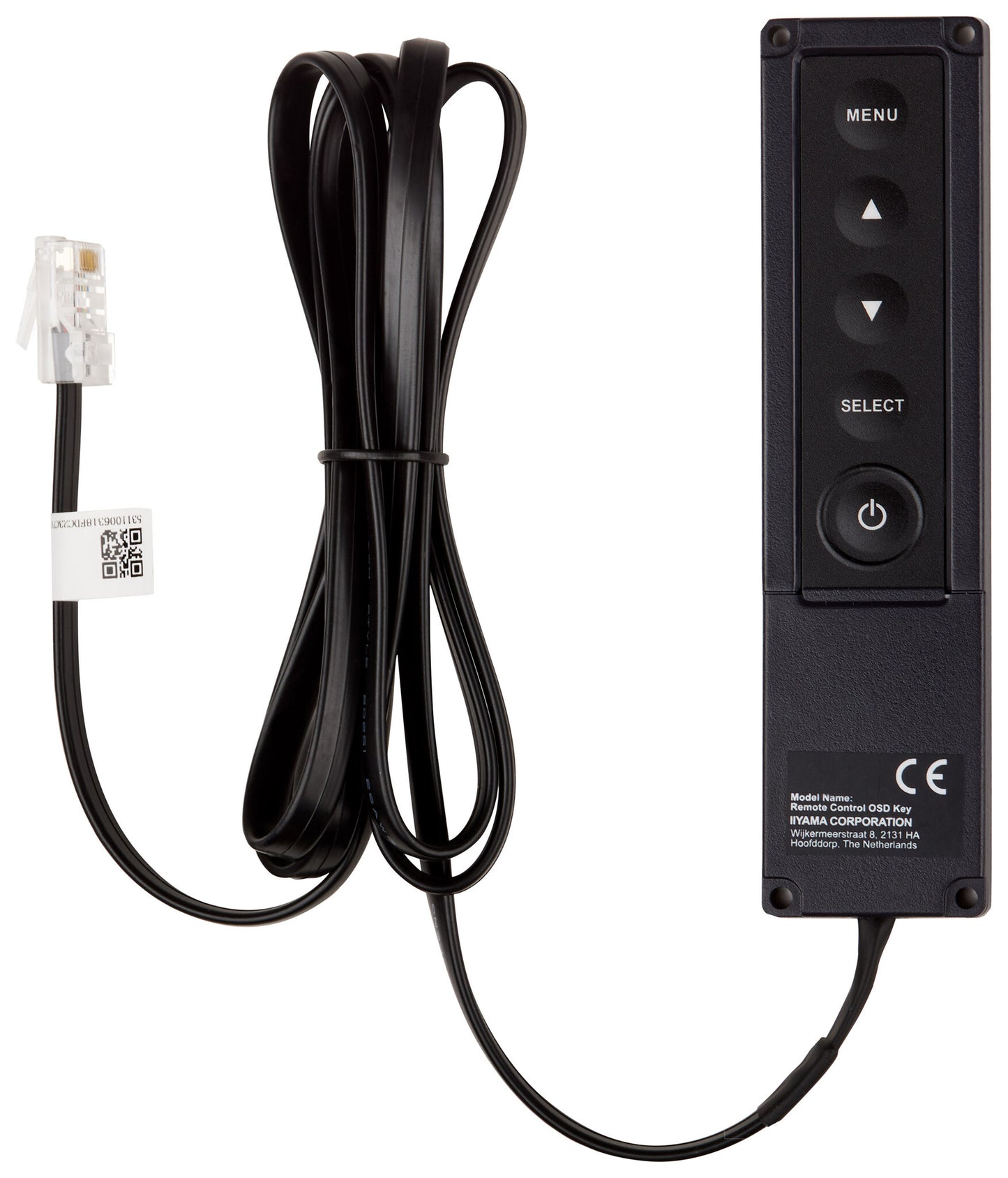

Remote control included
Yes
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Certificates
Certification
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
