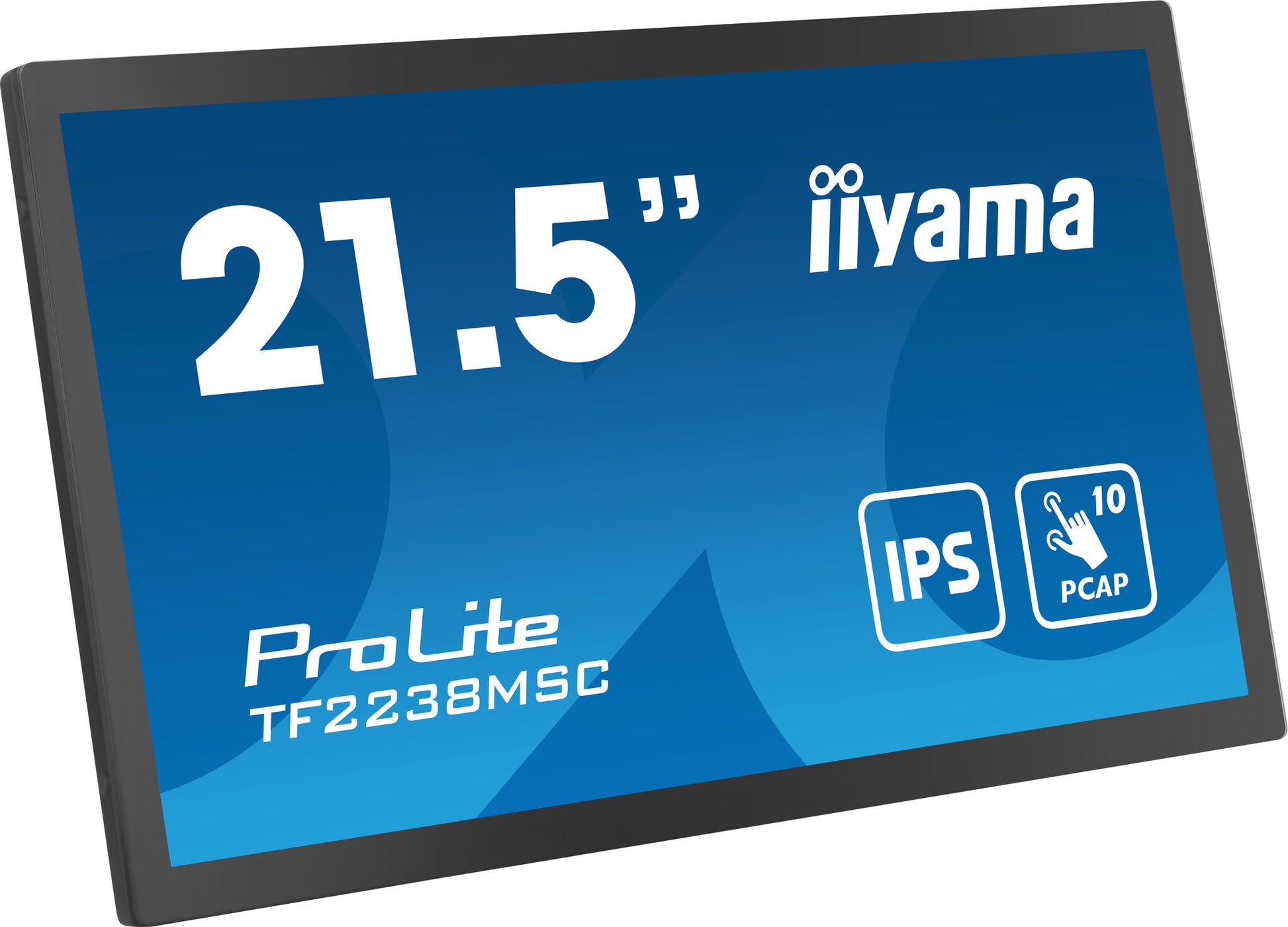

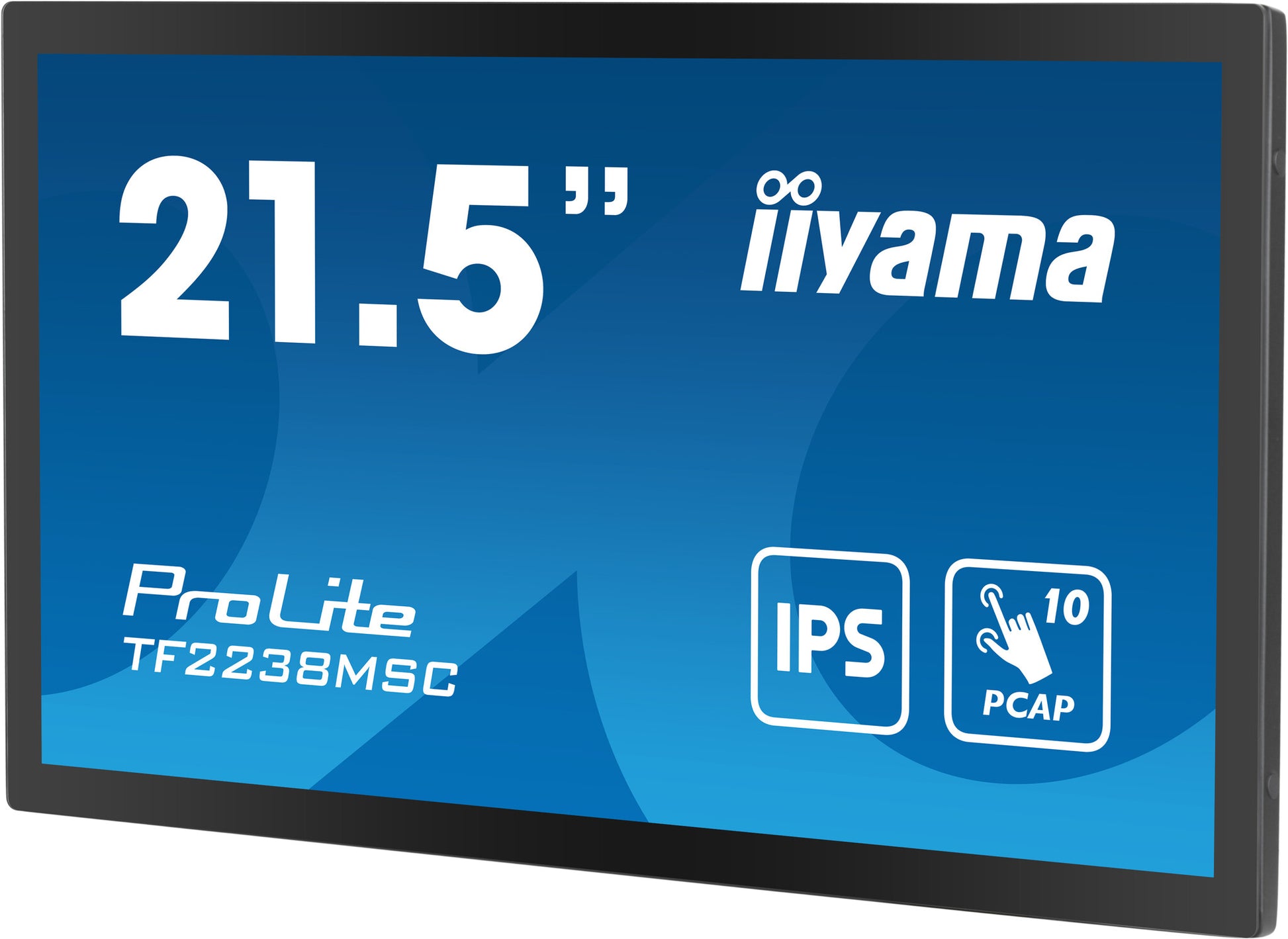

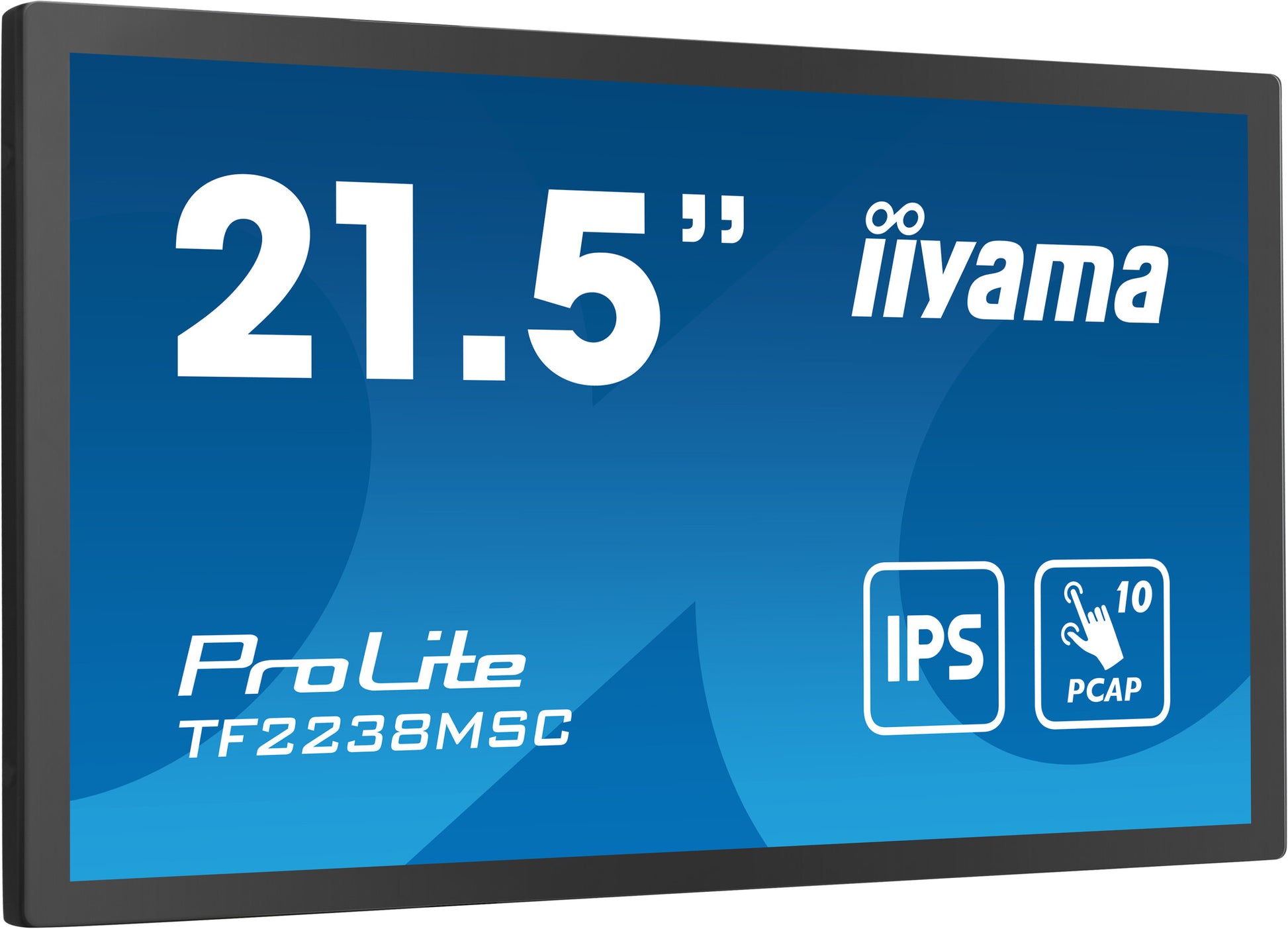

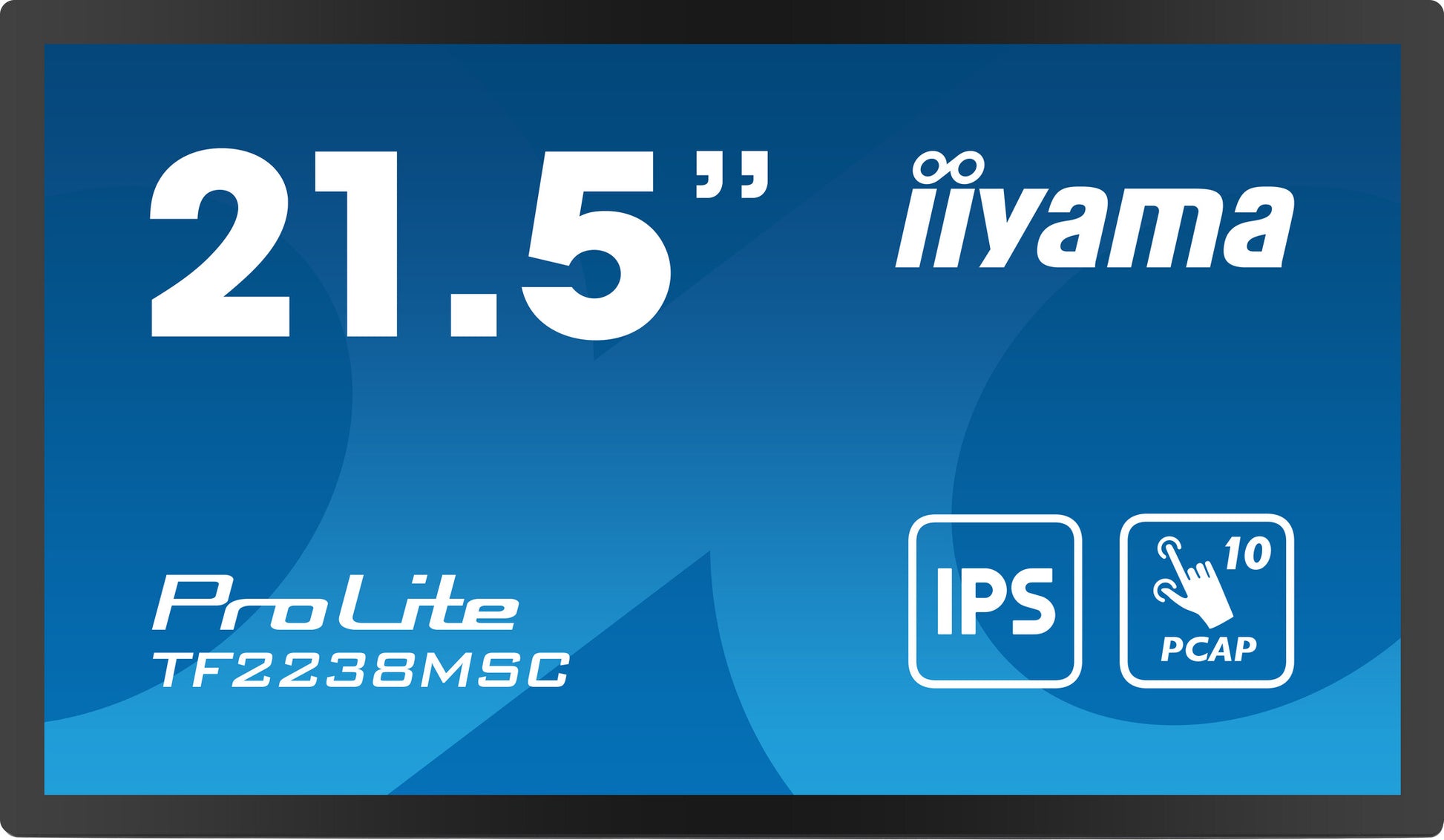

PROLITE TF2238MSC-B1

PROLITE TF2238MSC-B1

  • 21,5" (WxHxD mm): 512,5 x 300 x 47
  • Nits: 600 cd/m²
  • Touch: Multi-touch, PCAP
  • Resolution: FullHD, 1920 x 1080 @60Hz
  • VESA: 100 x 100
  • Bezel: TB 19,8 mm / LR 17 mm

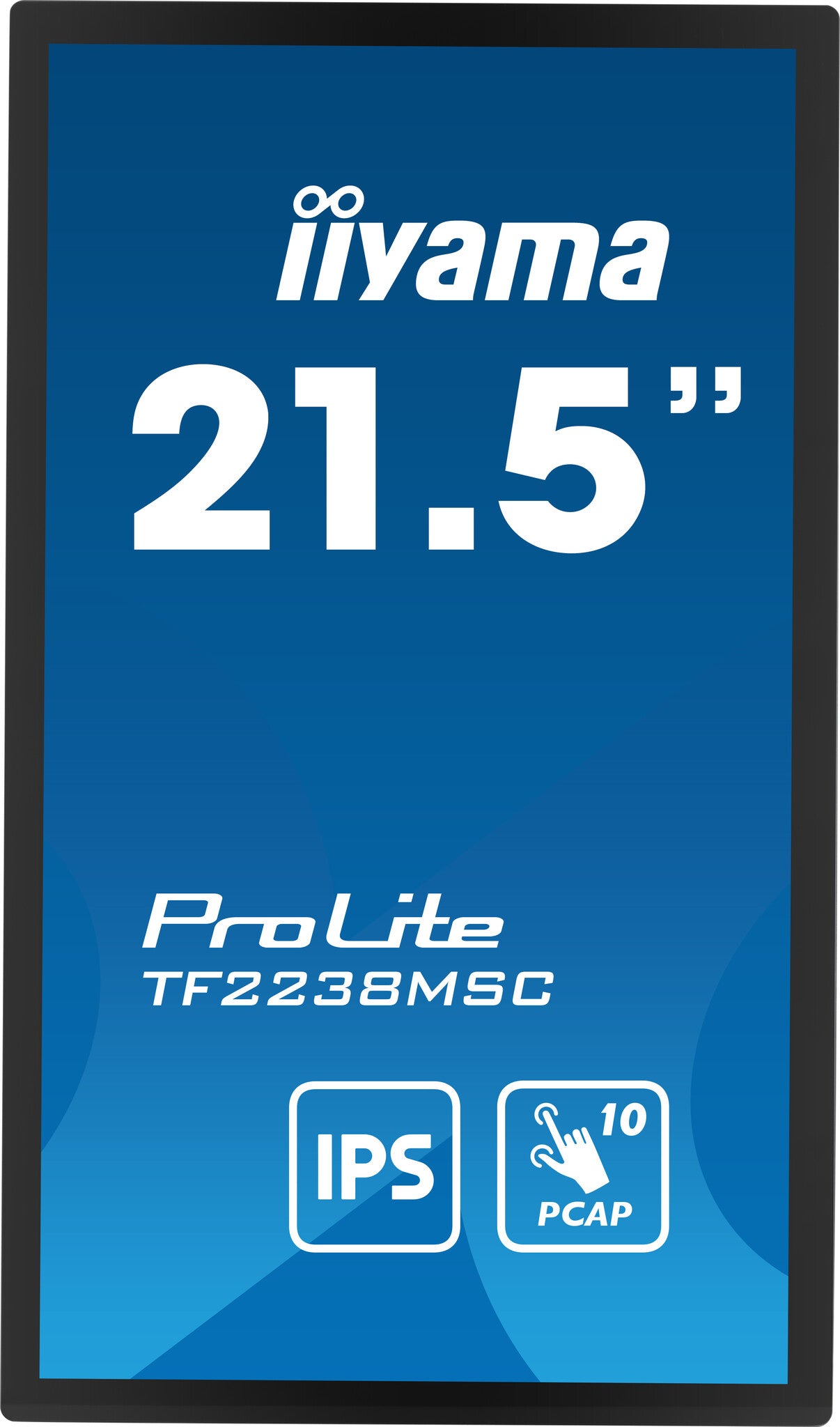

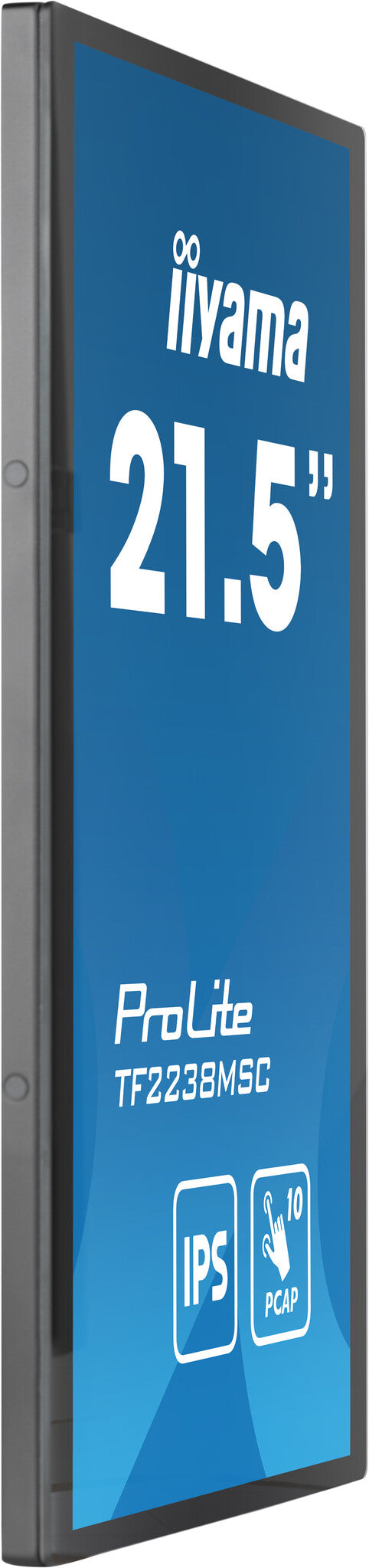

  • Orientation: landscape, portrait
  • Weight: 5,1 kg
  • xx38 series
  • SKU:4948570121618
  • GTIN/EAN:4948570121618
  • MPN:TF2238MSC-B1
Add To Favorite

You need to login to view the price.

View full details

PROLITE TF2438MSC-B1

23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing

The Full HD (1920x1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.

OPTICAL BONDED PCAP

The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.

OPEN FRAME LFD

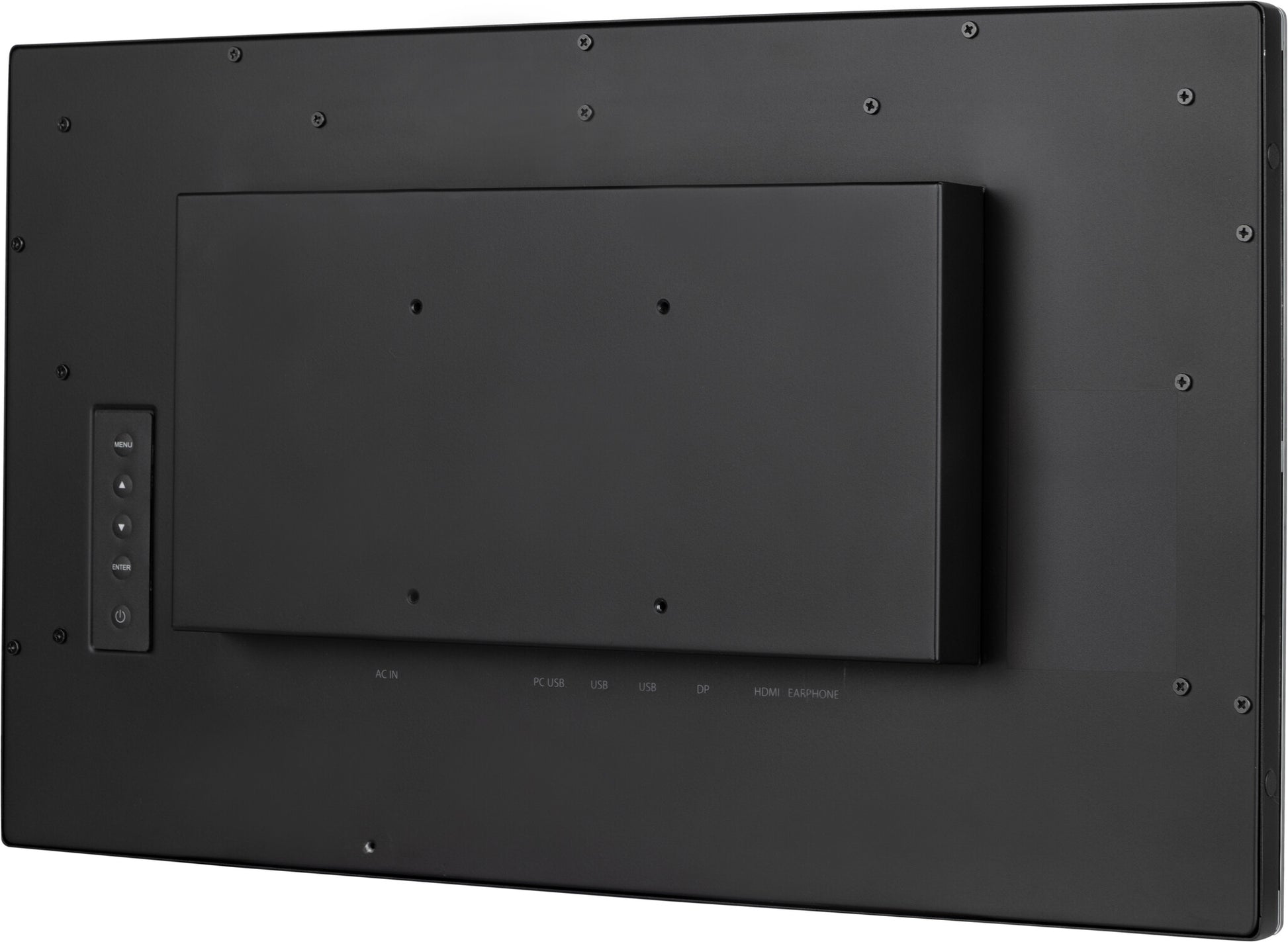

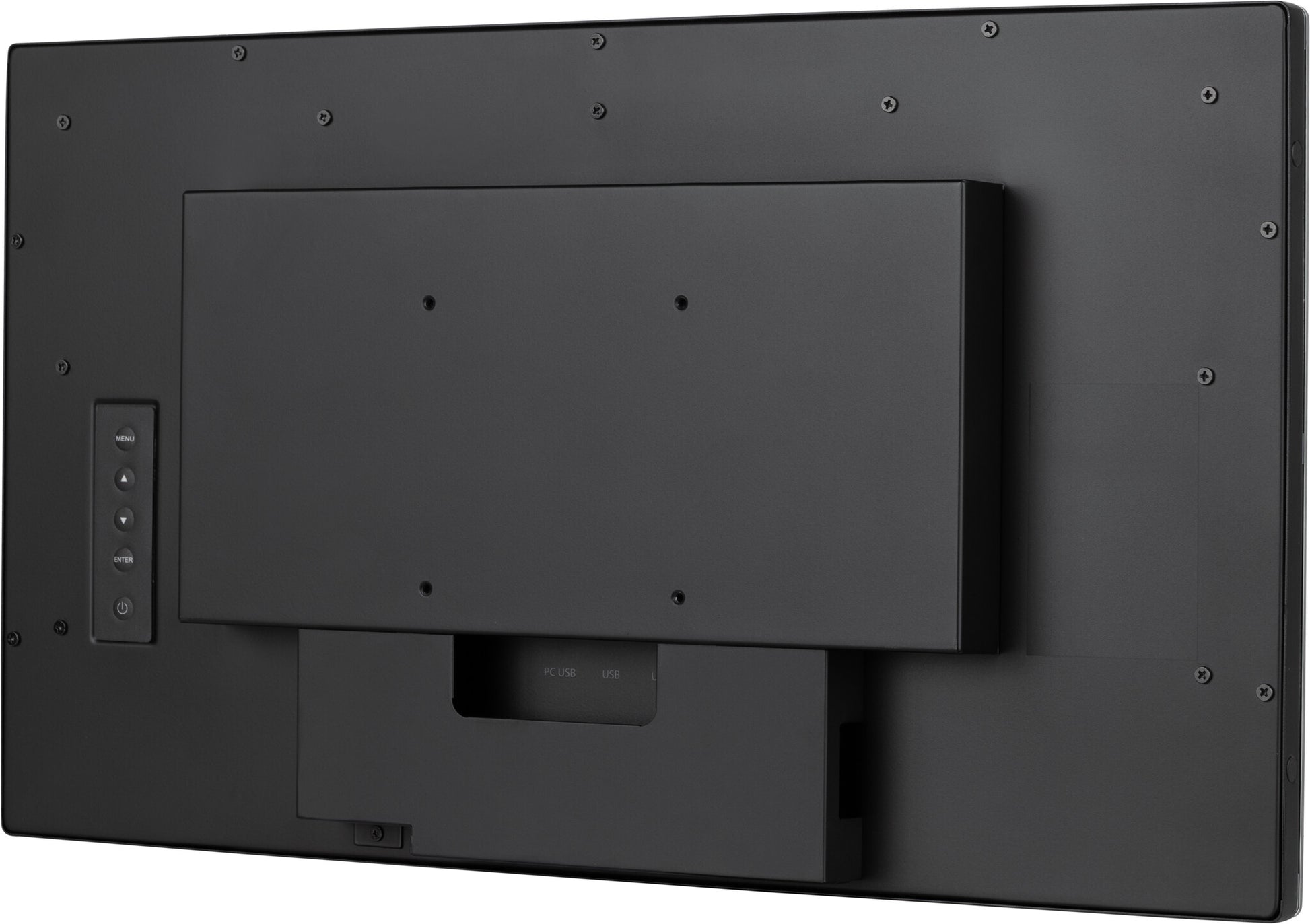

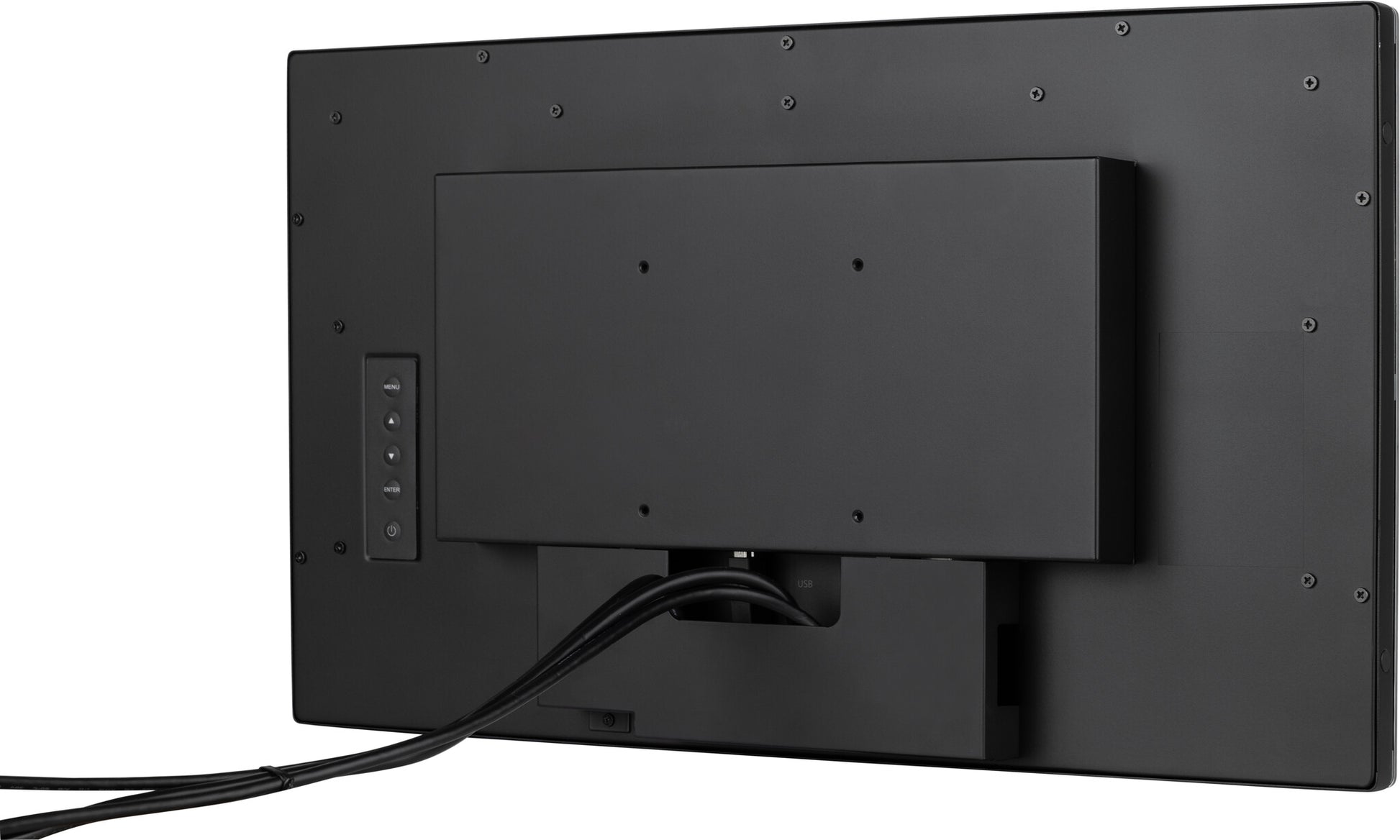

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.

IPS TECHNOLOGY

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

Display
Horizontal scan range
28 - 160 kHz
Panel type
IPS
Native refresh rate
60 Hz
Surface hardness
7H
Display diagonal (metric)
54.5 cm
Active display area (W x H)
479 x 260 mm
Display number of colours
16.7 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1000:1
Response time
5 ms
Native aspect ratio
16:9
Touchscreen technology
Projected capacitive system
Touchscreen
Yes
HD type
Full HD
Display brightness
600 cd/m²
Display resolution
1920 x 1080 pixels
Display technology
LED
Display diagonal
55.9 cm (22")

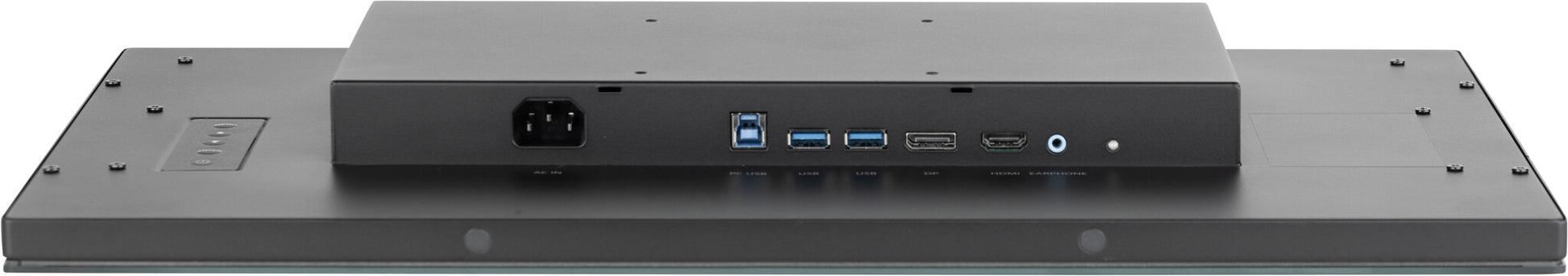

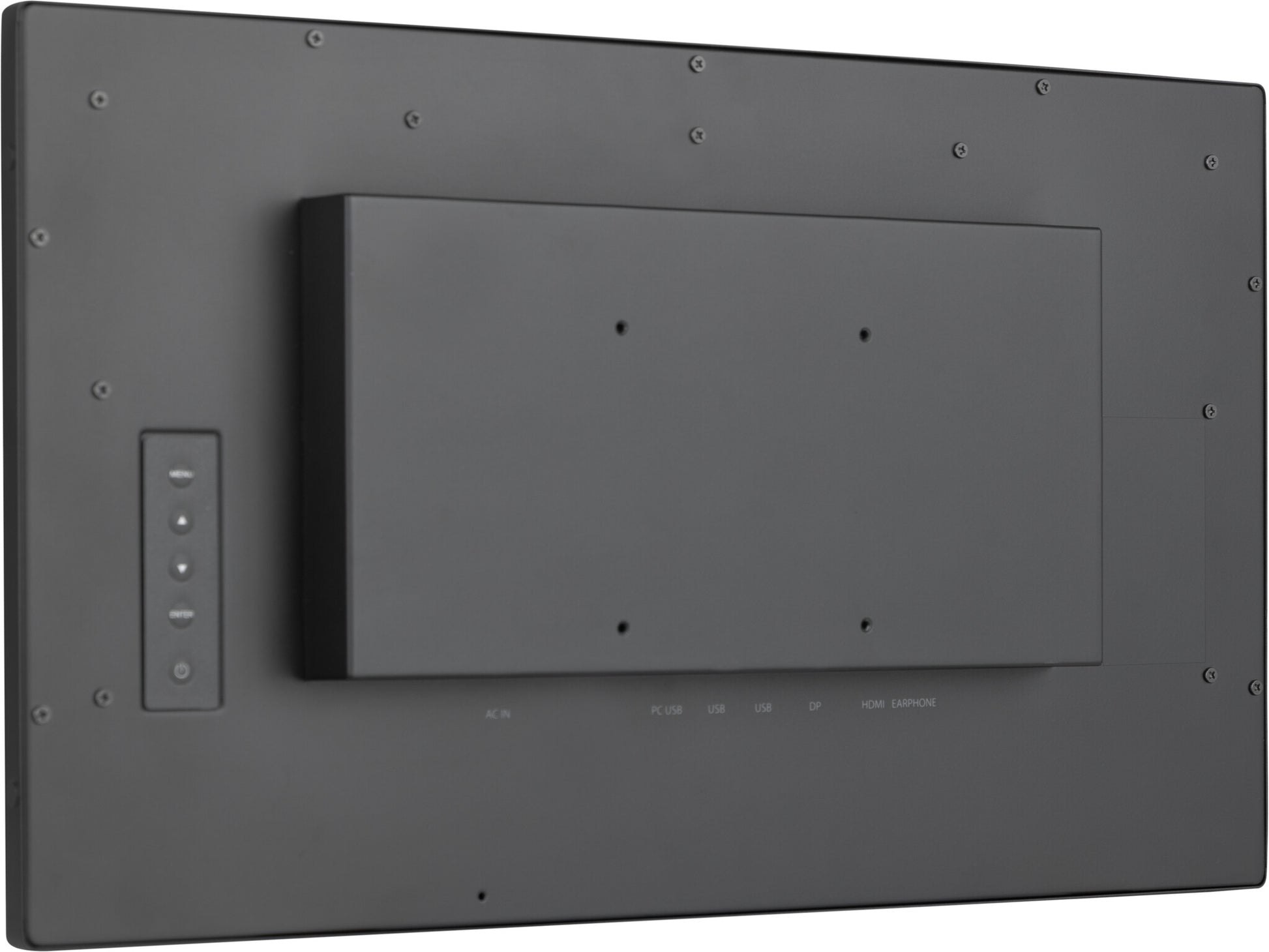

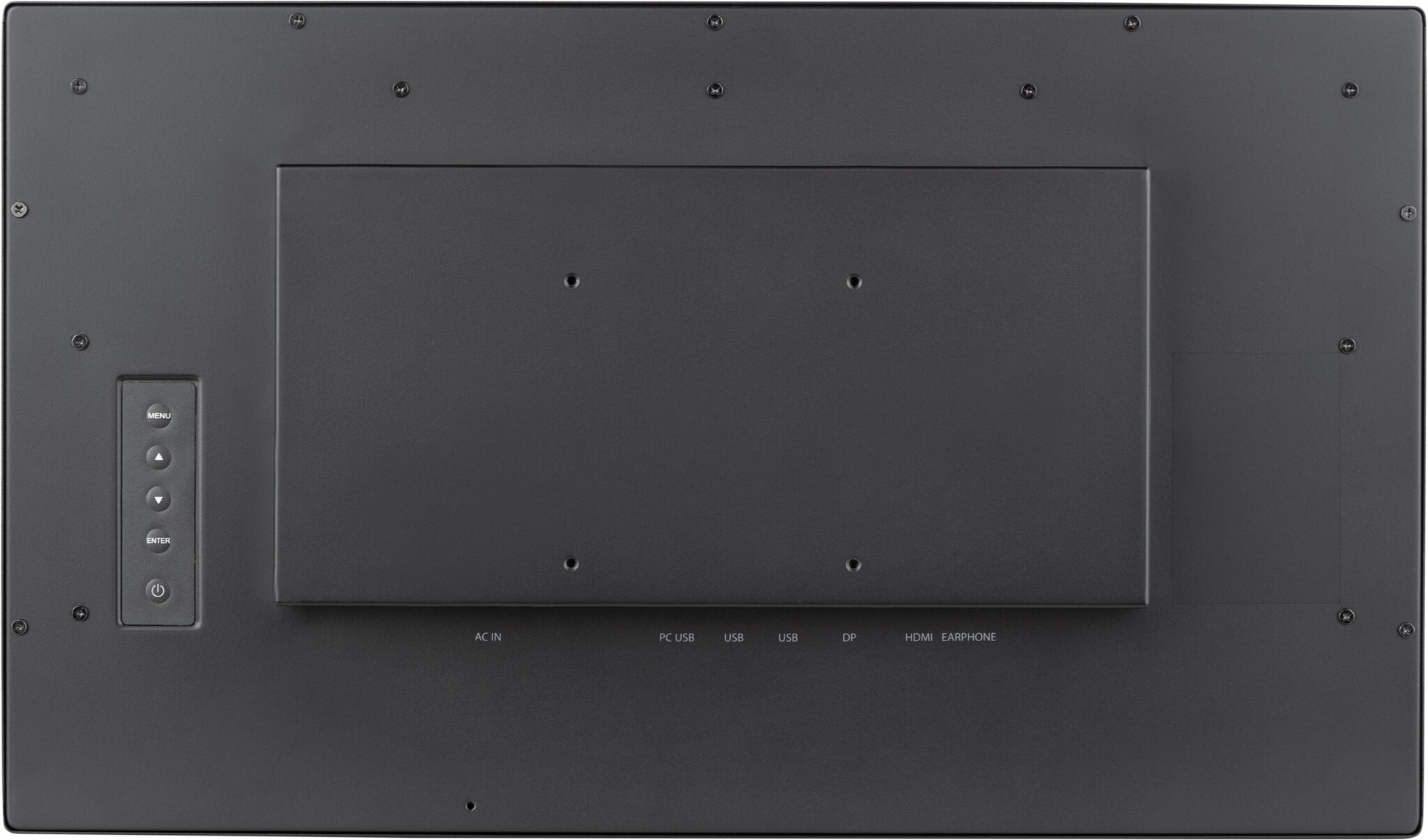

Ports & interfaces
Wi-Fi
No
Ethernet LAN
No
USB version
3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
2
USB port
Yes
DisplayPorts quantity
1
DVI port
No
HDMI ports quantity
1
Audio
RMS rated power
2 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
1.98 cm
Bezel width (side)
1.7 cm
Bezel width (top)
1.98 cm
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Digital A-board
Performance
HDCP
Yes
International Protection (IP) code
IP1X
On Screen Display (OSD) languages
Simplified Chinese, German, English, French, Japanese, Polish, Russian
Purpose
Universal
Power
AC input frequency
50 Hz
AC input voltage
100 - 240 V
Energy efficiency class (SDR)
D
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
17 W
Computer system
Built-in processor
No
Computer system
No
Weight & dimensions
Display weight
5.1 kg
Display height
300 mm
Display depth
47 mm
Display width
512.5 mm
Packaging data
Package weight
6.4 kg
Package height
364 mm
Package depth
112 mm
Package width
572 mm

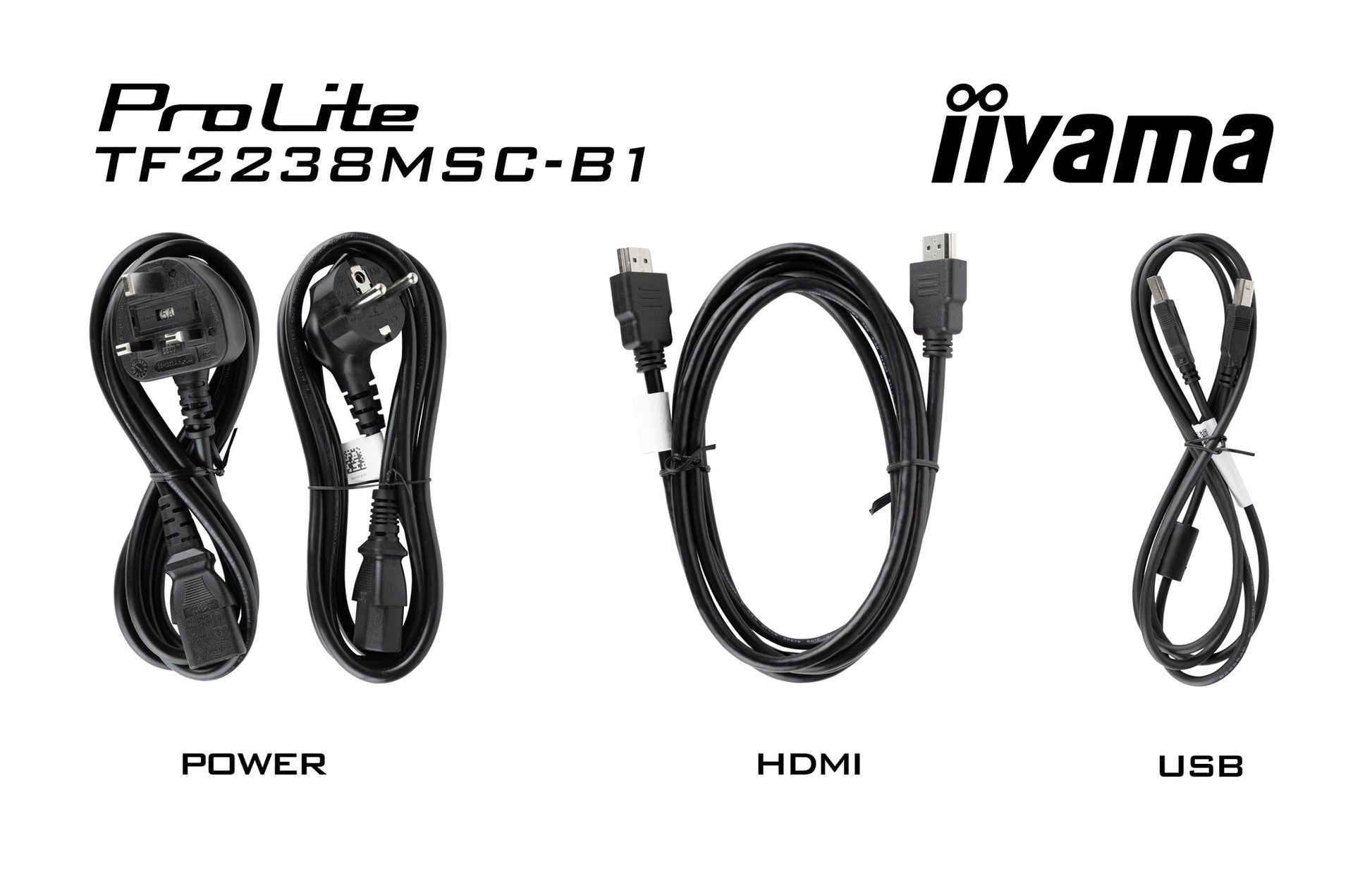

Packaging content

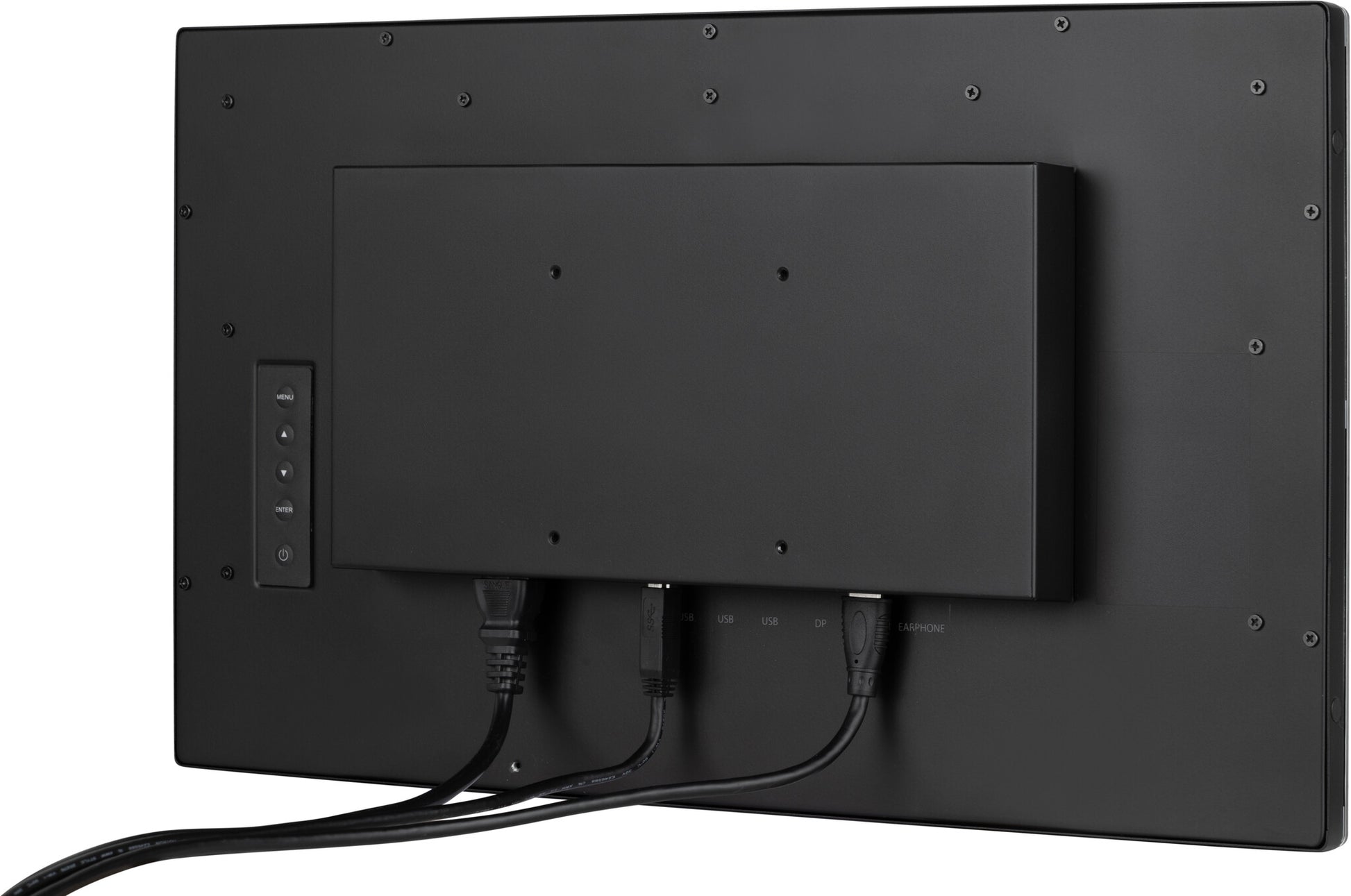

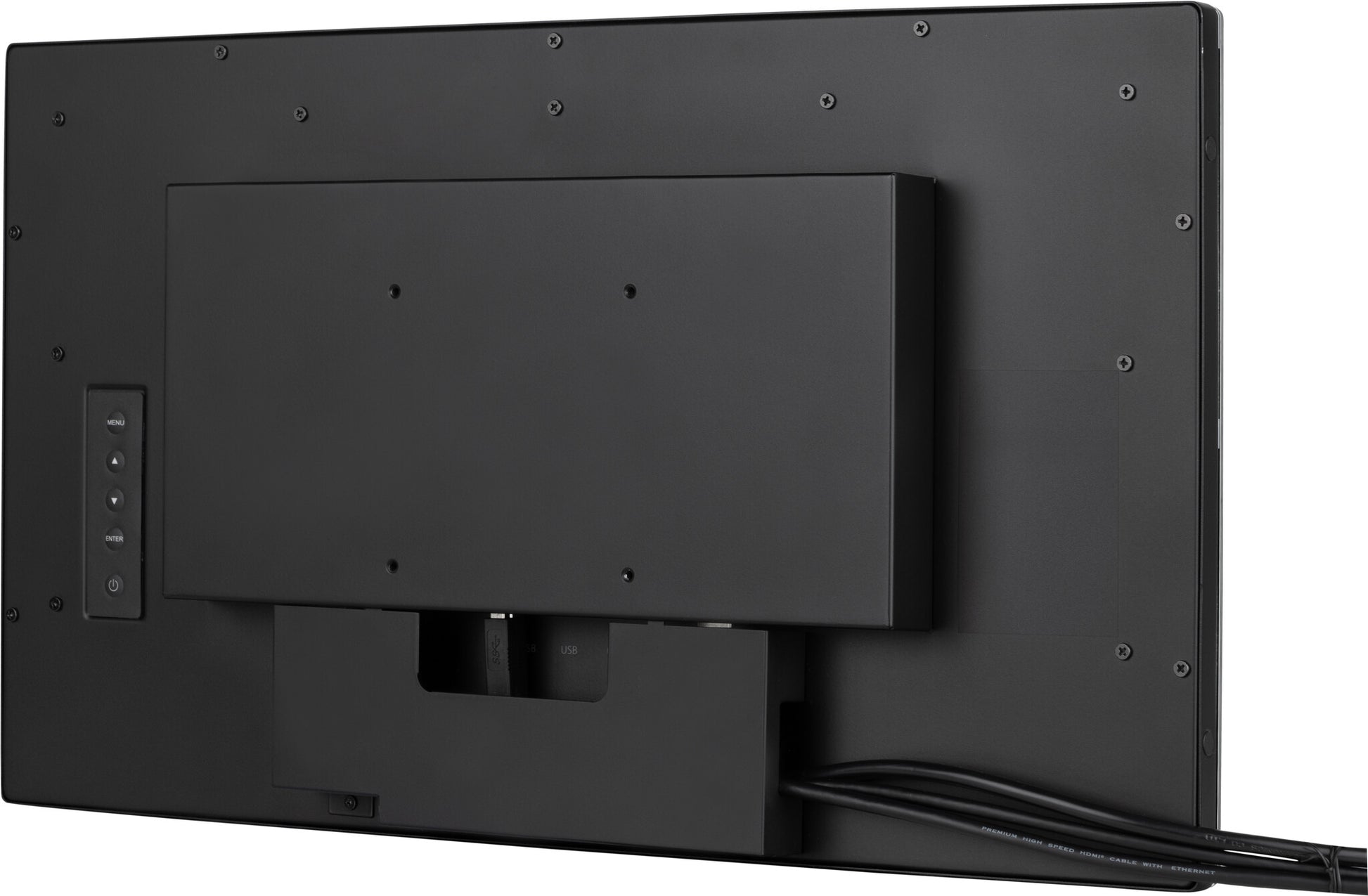

Cables included
HDMI, Power, USB
Certificates
Certification
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
