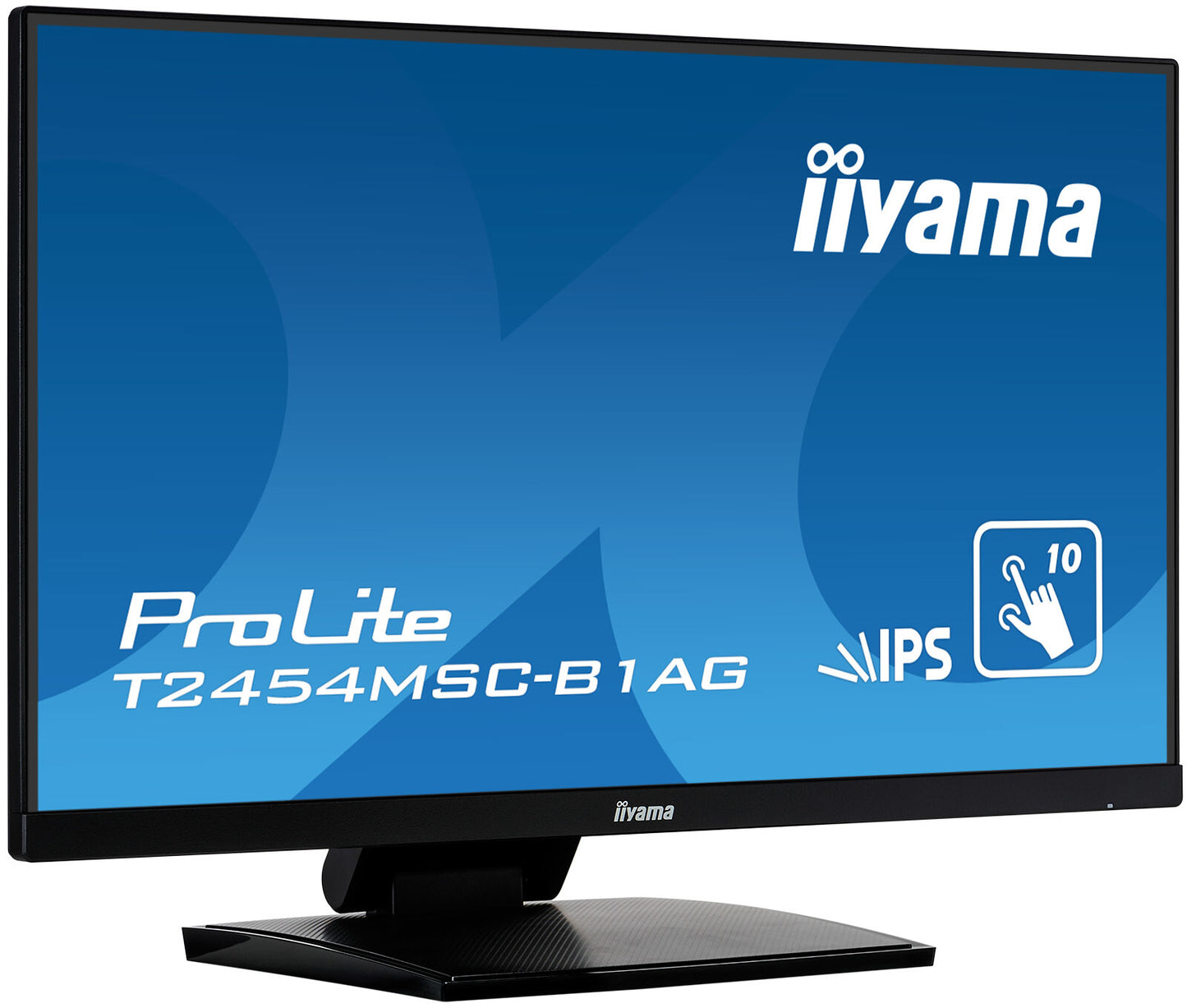

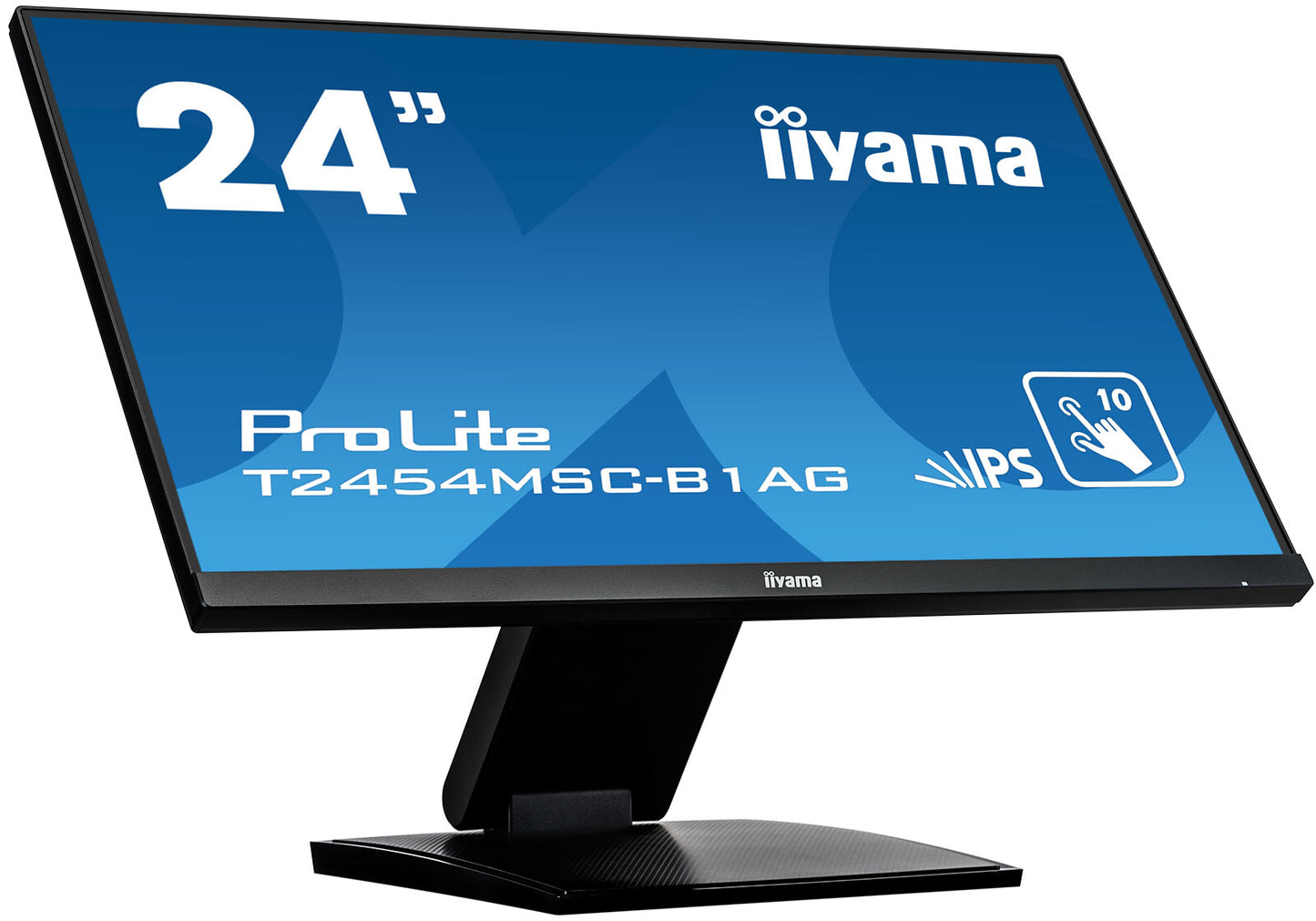

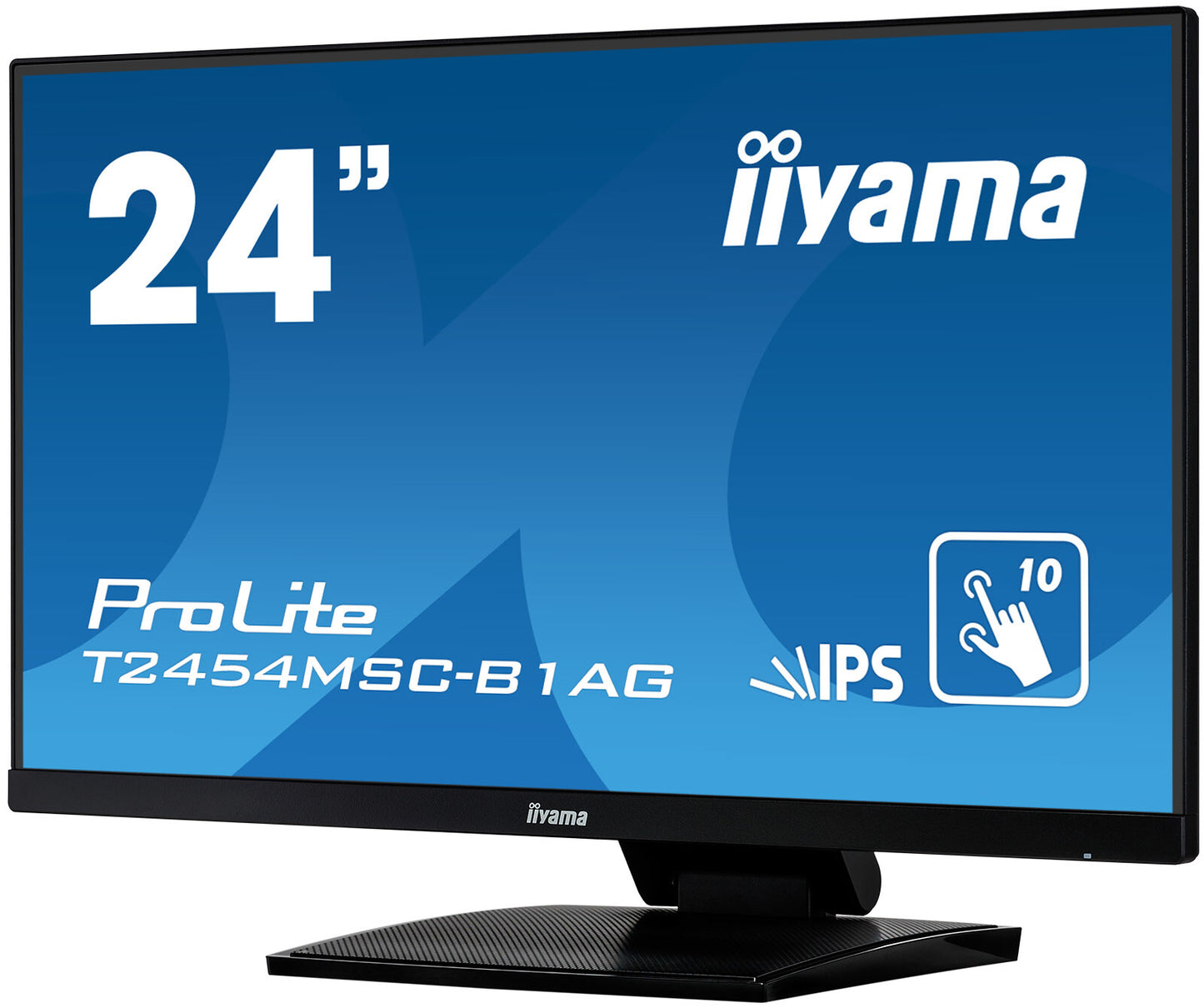

iiyama T2454MSC-B1AG

iiyama T2454MSC-B1AG

ProLite T2454MSC-B1AG, 23.8", 1920x1080, IPS LED, 16:9, 4 ms, VGA, HDMI, 2x USB 3.0, HDCP, RMS 2x 2W, IPX1, AC 100 - 240V, 50/60Hz, 540.5 x 388 x 128mm

  • Touchscreen 60.5 cm (23.8") LED IPS
  • Full HD 1920 x 1080 pixels 16:9
  • 4 ms 1000:1
  • F 20 kWh 24 W
  • SKU:4948570116416
  • GTIN/EAN:4948570116416
  • MPN:T2454MSC-B1AG
Add To Favorite

You need to login to view the price.

View full details

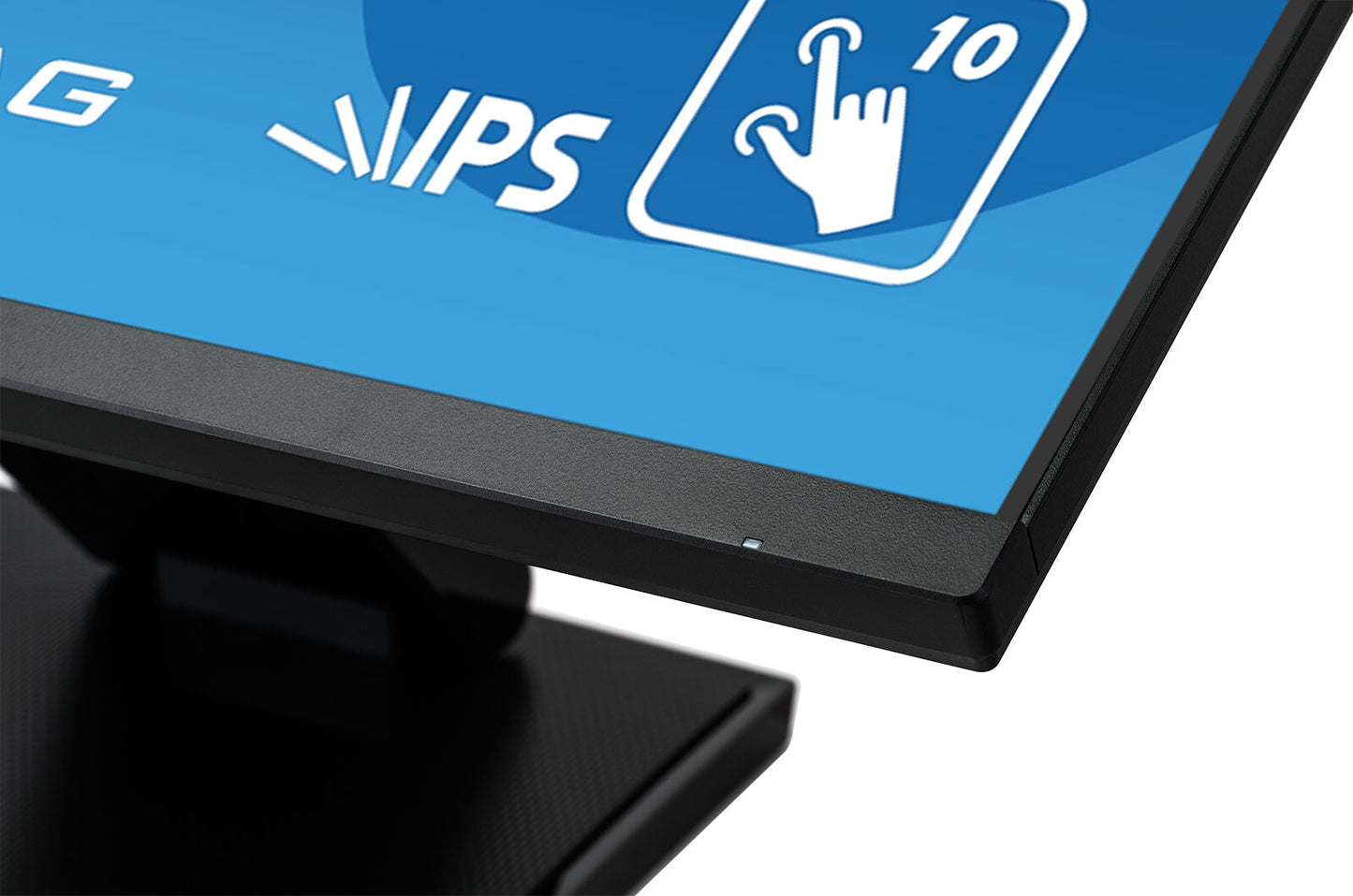

24” P-CAP 10pt touch screen featuring IPS panel technology and Anti Glare coating

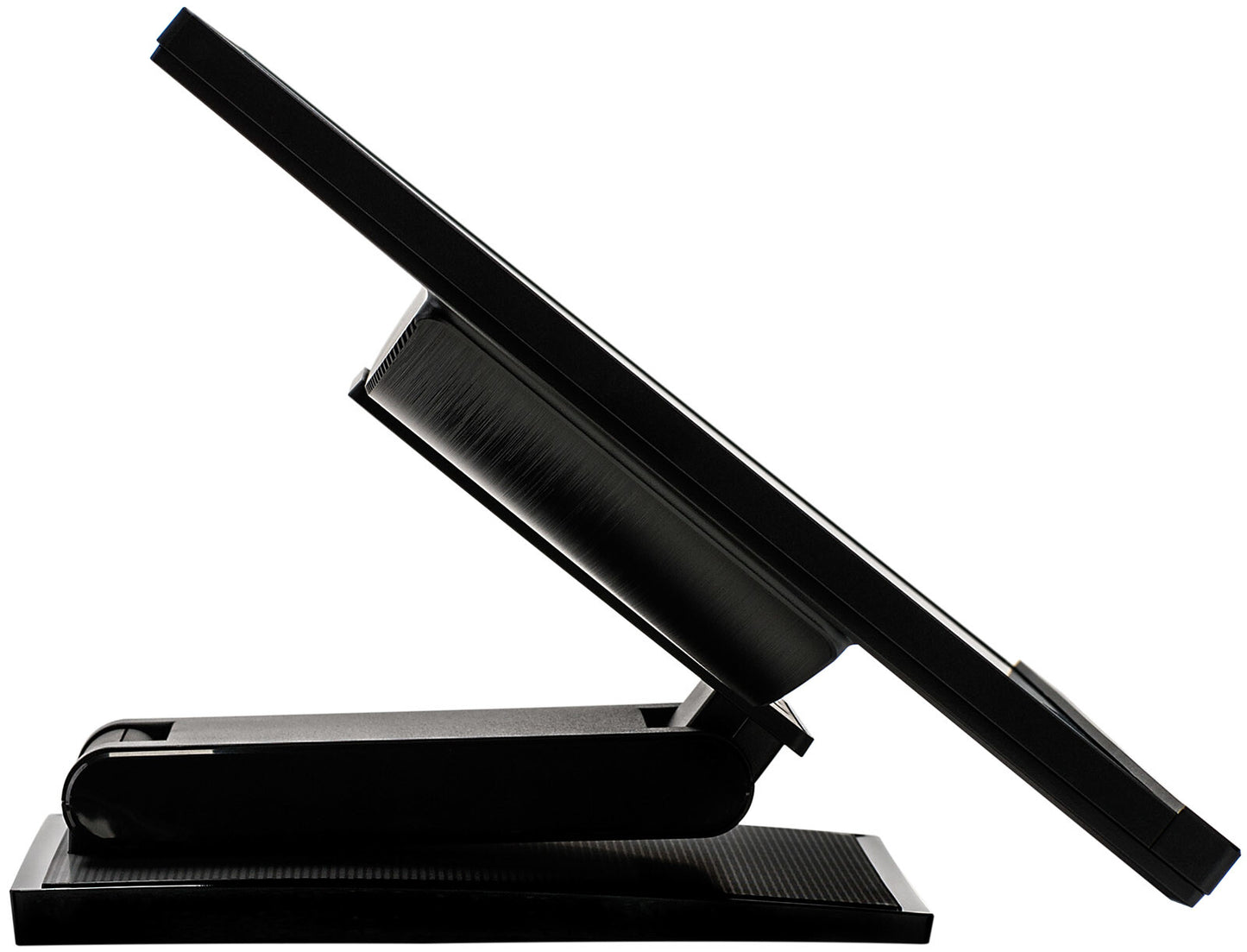

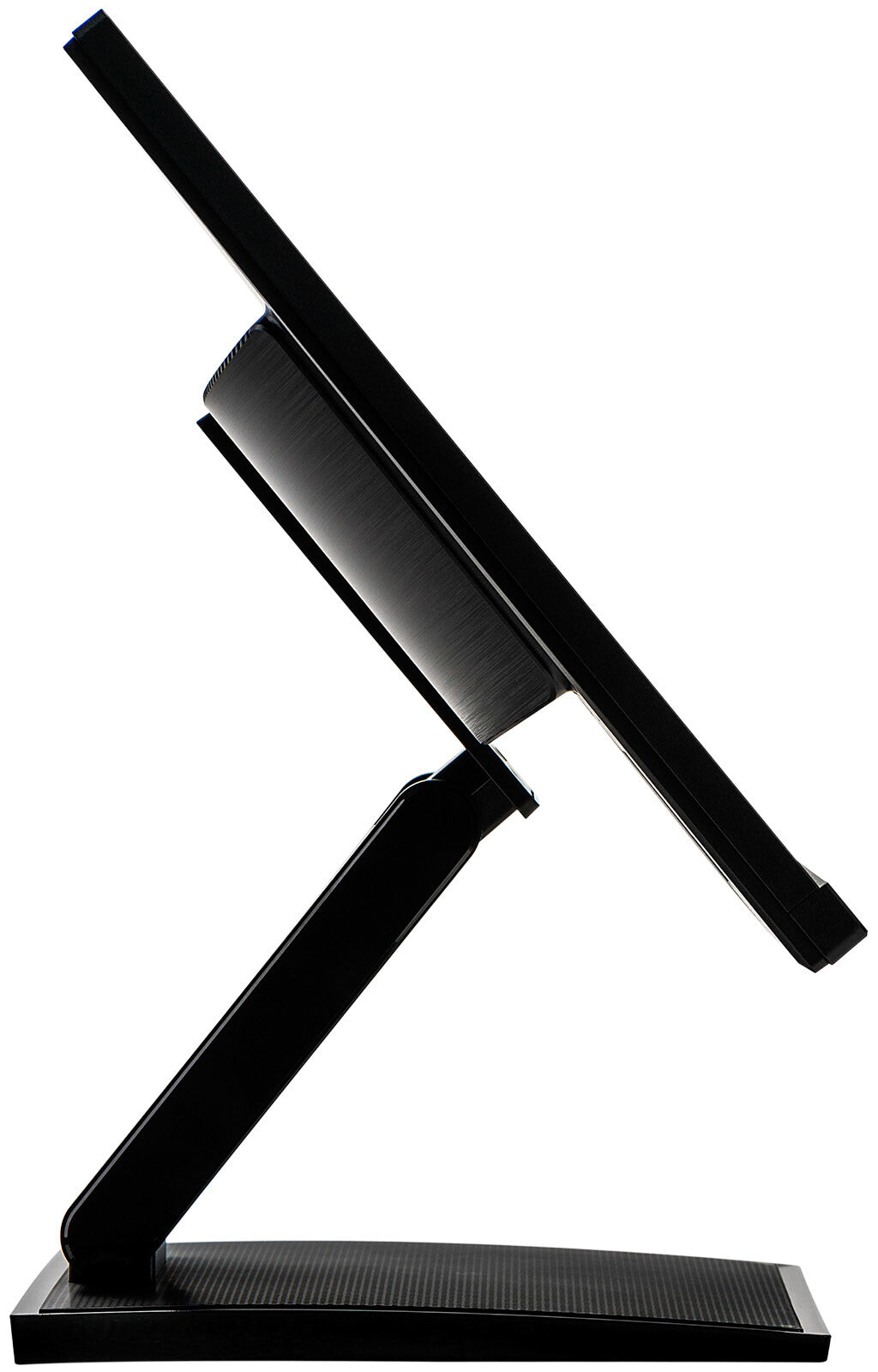

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IPS
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

AG COATING
The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.

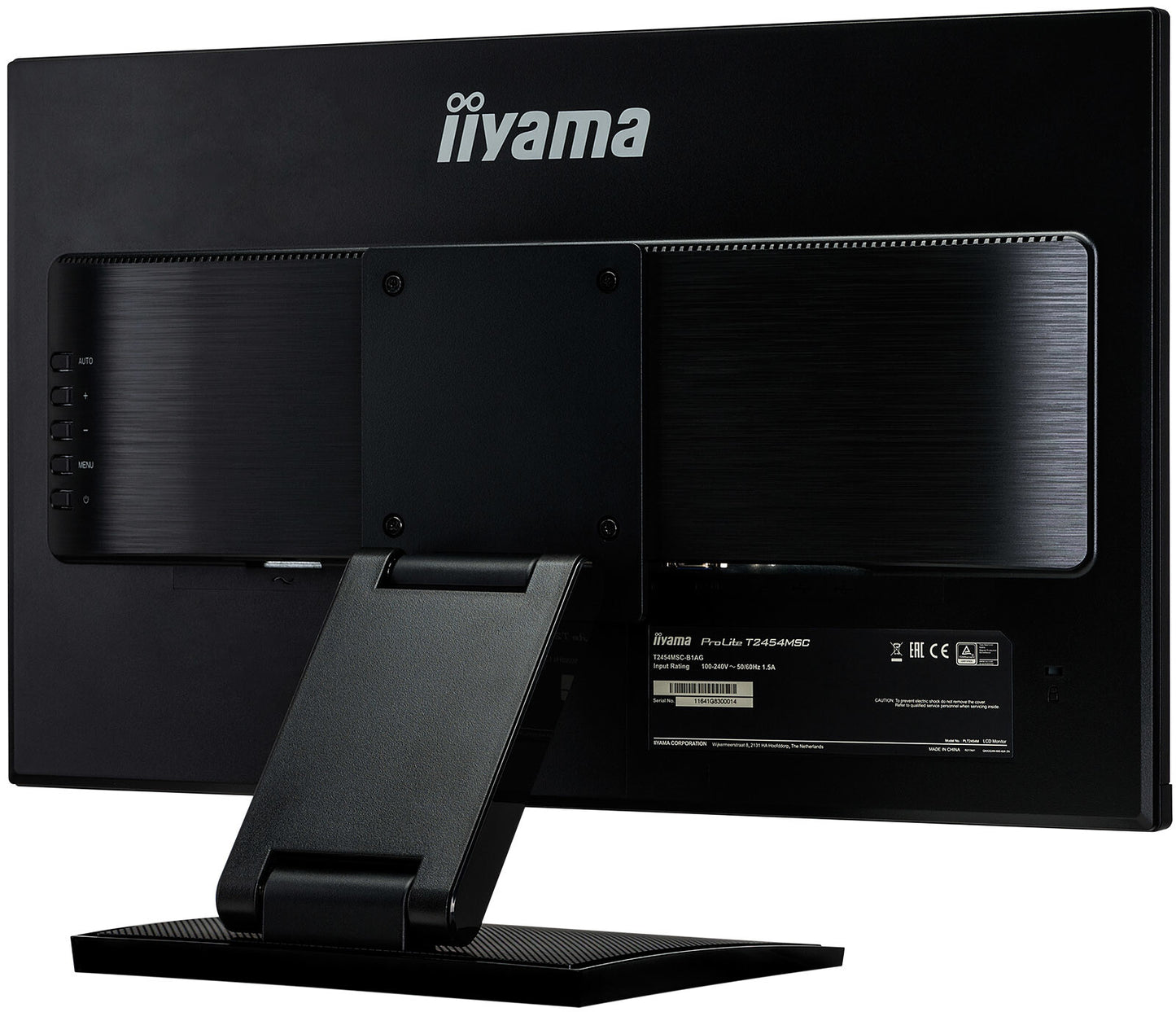

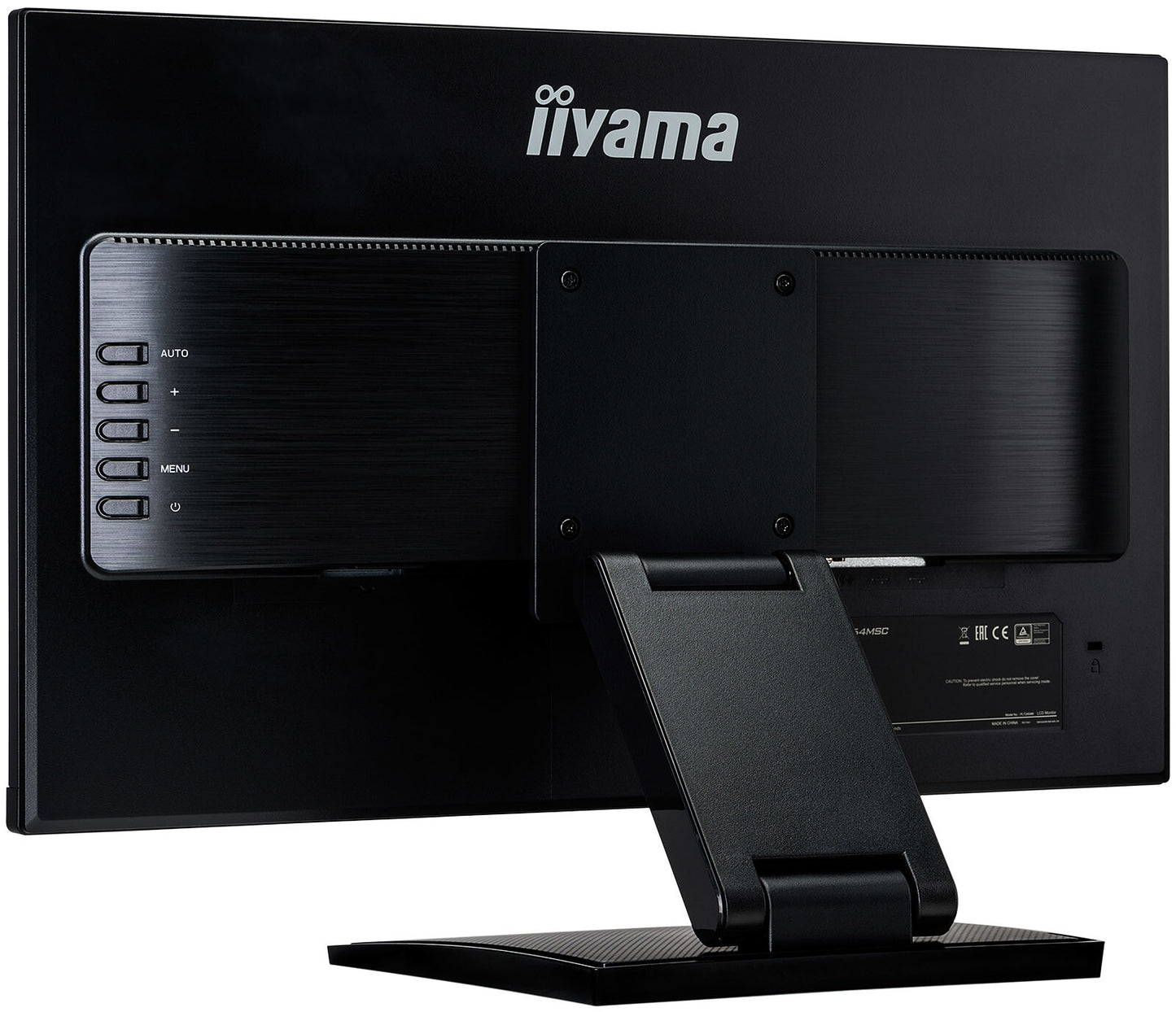

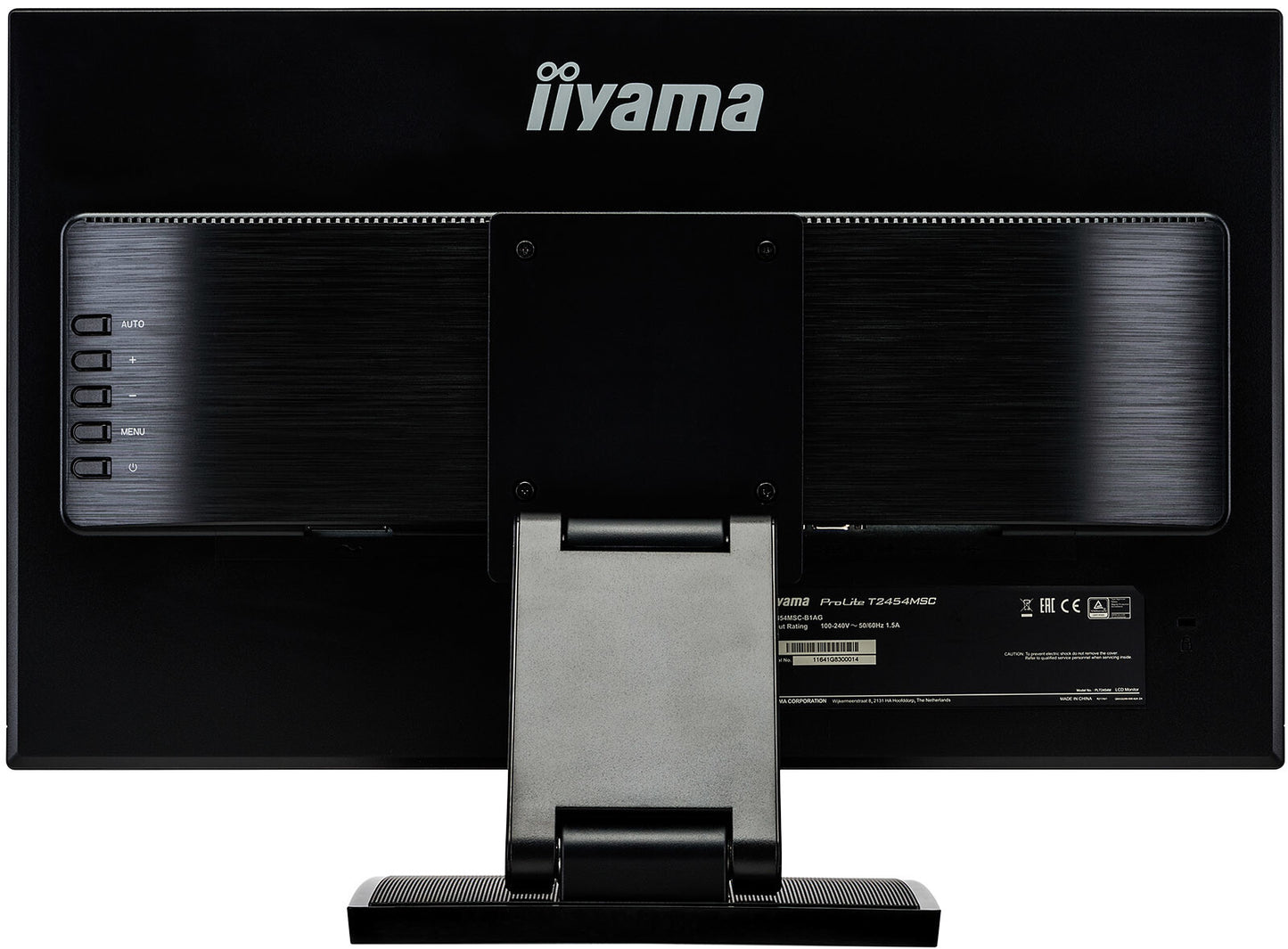

VESA
VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

Display
Vertical scan range
56 - 75 Hz
Horizontal scan range
30 - 80 kHz
Display number of colours
16.78 million colours
Contrast ratio (typical)
1000:1
Aspect ratio
16:9
Screen shape
Flat
LED backlight
Yes
Display brightness
250 cd/m²
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Response time
4 ms
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
1920 x 1080 pixels
Display diagonal
60.5 cm (23.8")
Performance
OmniTapps Multitouch compatibility
No
Linux operating systems supported
Yes
Windows operating systems supported
Yes
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
Megapixel (approx.)
2.1 MP
RMS rated power
4 W
Built-in speaker(s)
Yes
Design
Certification
CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB
International Protection (IP) code
IPX1
Product colour
Black

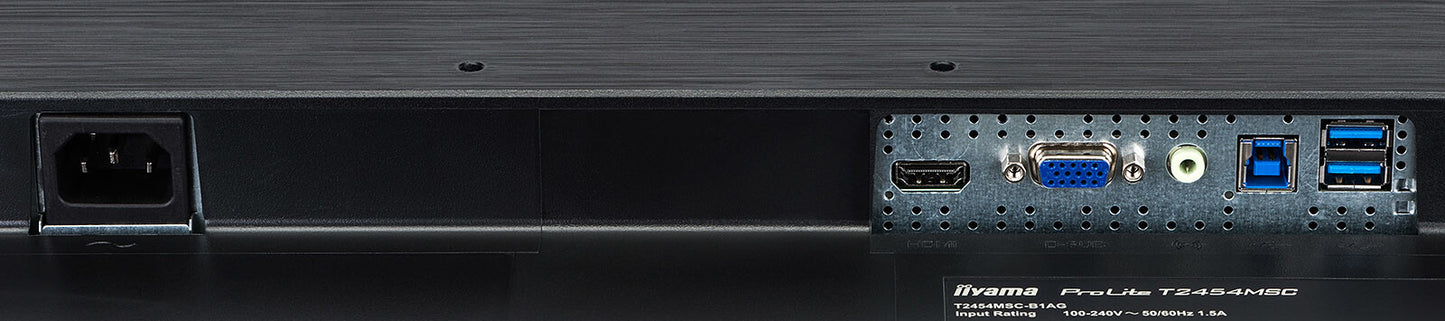

Ports & interfaces
USB Type-A downstream ports quantity
1
Number of upstream ports
1
Audio input
3.5mm
Ergonomics
Plug and Play
Yes
Tilt adjustment
Yes
On Screen Display (OSD) languages
German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Number of OSD languages
10

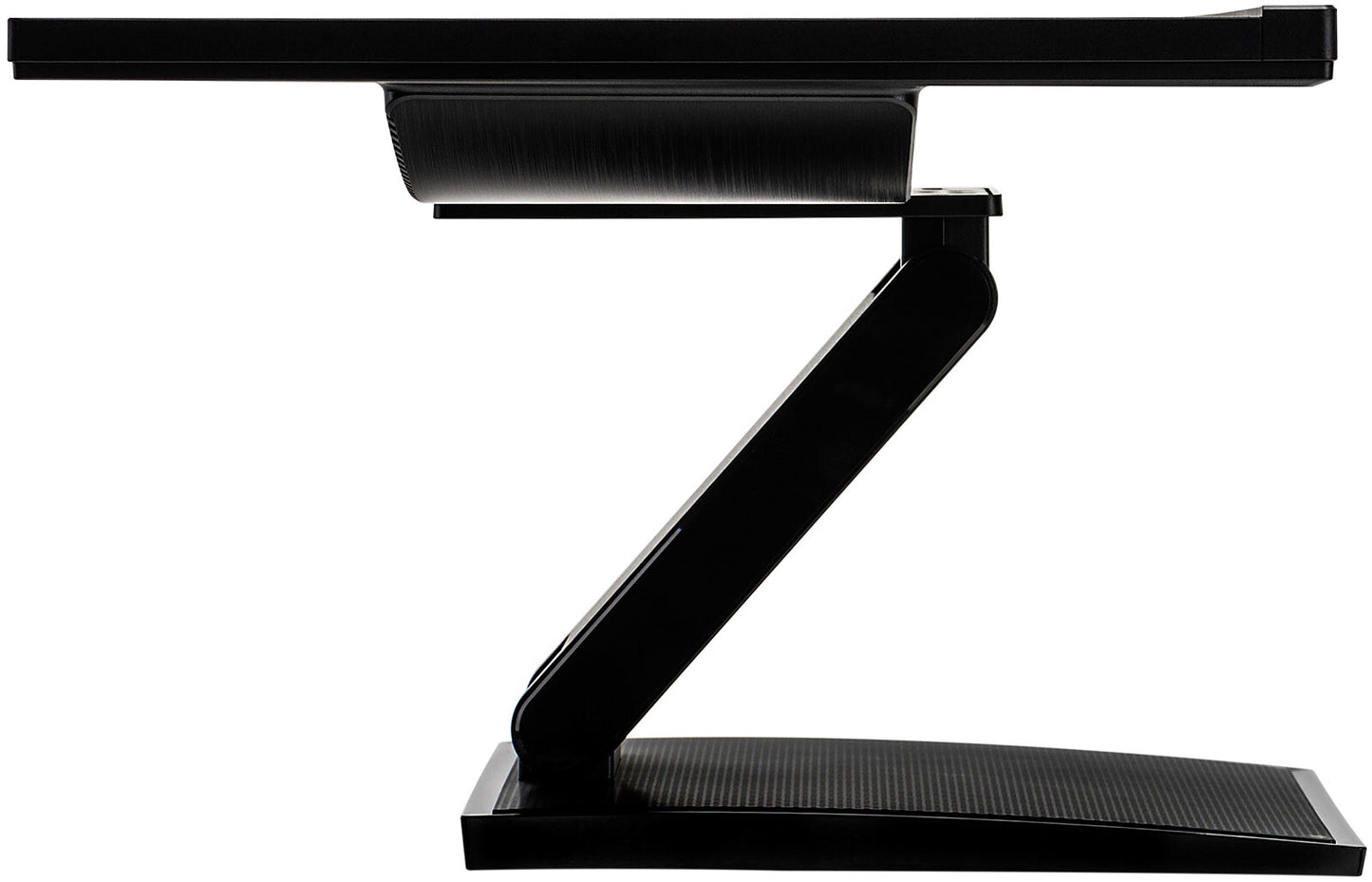

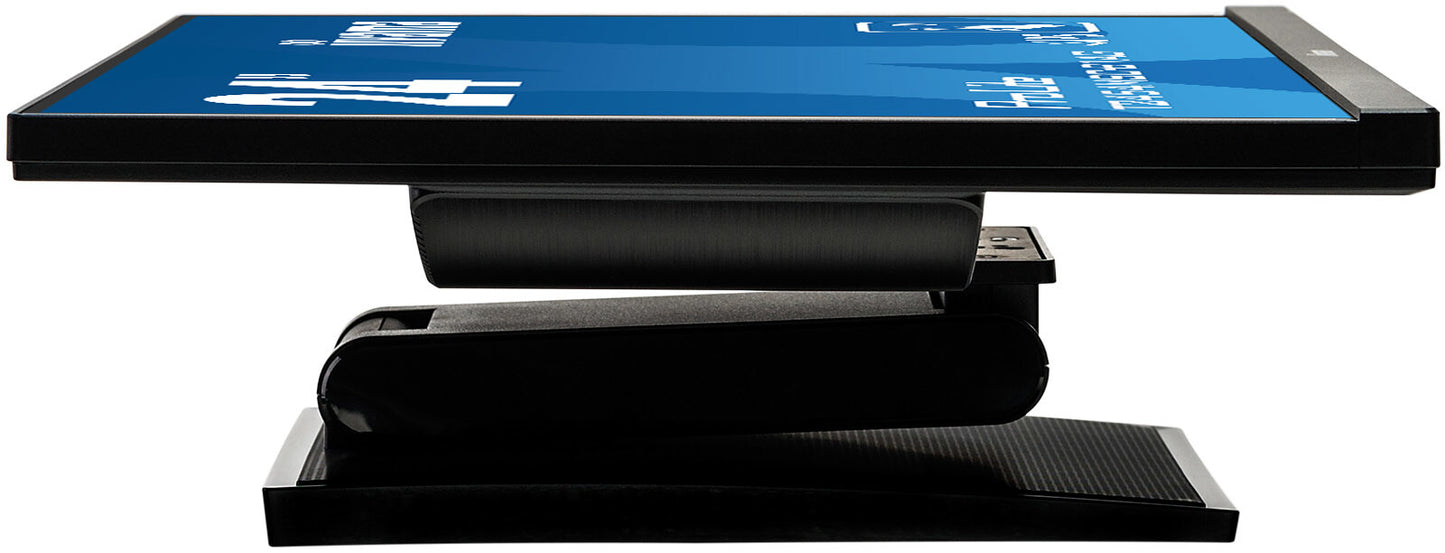

Tilt angle range
-5 - 90°
Height adjustment
7 cm
Height adjustment
Yes
Cable lock slot type
Kensington
Cable lock slot
Yes
Wall mountable
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power supply type
AC
AC input frequency
50 - 60 Hz
AC input voltage
100-240 V
Power consumption (standby)
0.5 W
Power consumption (typical)
24 W
Energy consumption (SDR) per 1000 hours
20 kWh
Energy efficiency class (SDR)
F
Operational conditions
Storage relative humidity (H-H)
10 - 90%
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
5 - 35 °C
Sustainability
European Product Registry for Energy Labelling (EPREL) code
366281
Algemeen
Productfamilie
ProLite
Weight & dimensions
Height (without stand)
322.5 mm
Depth (without stand)
46.5 mm
Width (without stand)
540.5 mm
Weight (with stand)
5.5 kg
Height (with stand)
388 mm
Depth (with stand)
128 mm
Width (with stand)
540.5 mm
Packaging data
Quick start guide
Yes

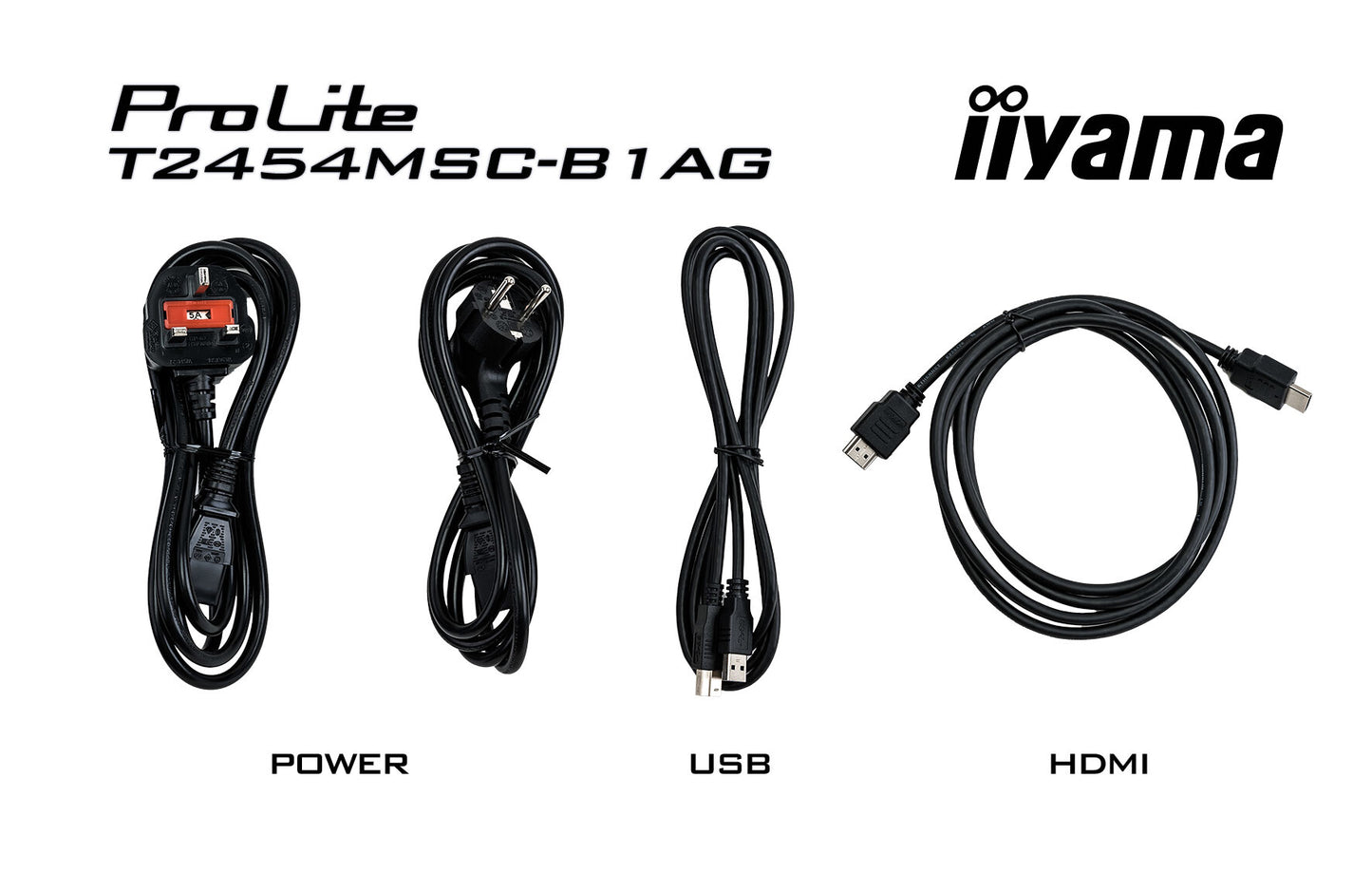

Cables included
AC, HDMI, USB, VGA
Logistics data
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
RoHS
Other features
Mean time between failures (MTBF)
30000 h
Display viewable area (HxV)
527.04 x 296.46 mm
Placement supported
Horizontal/Vertical
Full HD
Yes
Dimensions (W x D x H) with stand
540.5 x 128 x 388 mm
Surface hardness
HDCP
Yes
Display diagonal (metric)
60.5 cm
Built-in microphone
No
Pixel pitch
0.274 x 0.274 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
5000000:1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Touch port
Yes
Number of simultaneous touchpoints
10
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
