SB335 Class D Amplifier With Bluetooth Capabilities
SB335 Class D Amplifier With Bluetooth Capabilities
SoundTube Channel Class D Amplifier With Bluetooth Capabilities
- 35 Watts per channel at 8 Ω (3 channels)
- 50 Watts per channel at 8 Ω (2 channels)
- IR learning for volume control via TV remote
- Bluetooth® connectivity
- SKU:AU/MSE/TS/SB335
- GTIN/EAN:
- MPN:SB335
SoundTube Channel Class D Amplifier With Bluetooth Capabilities

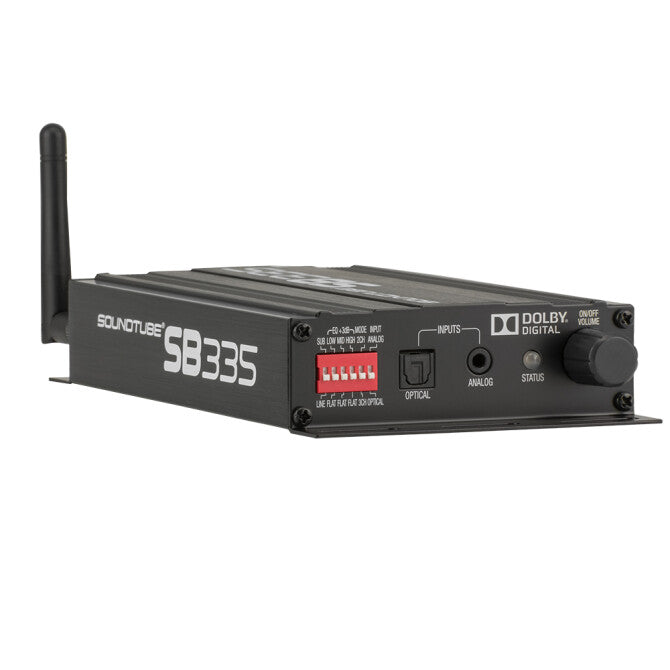

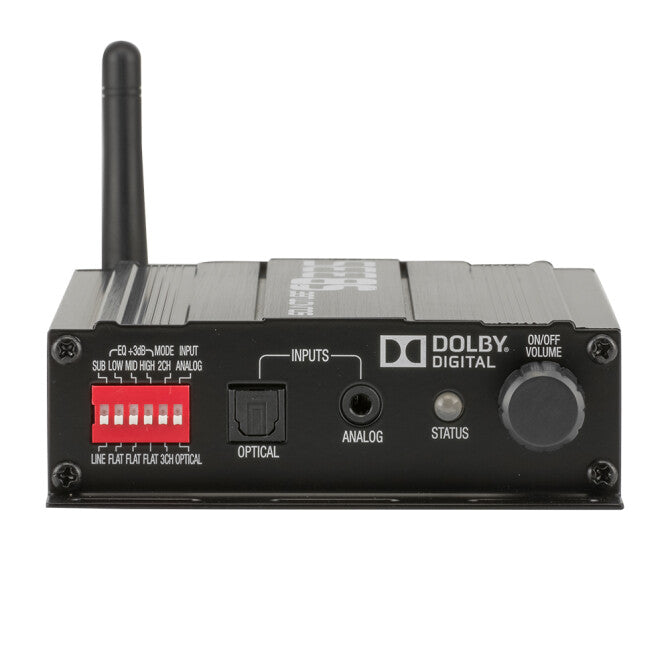

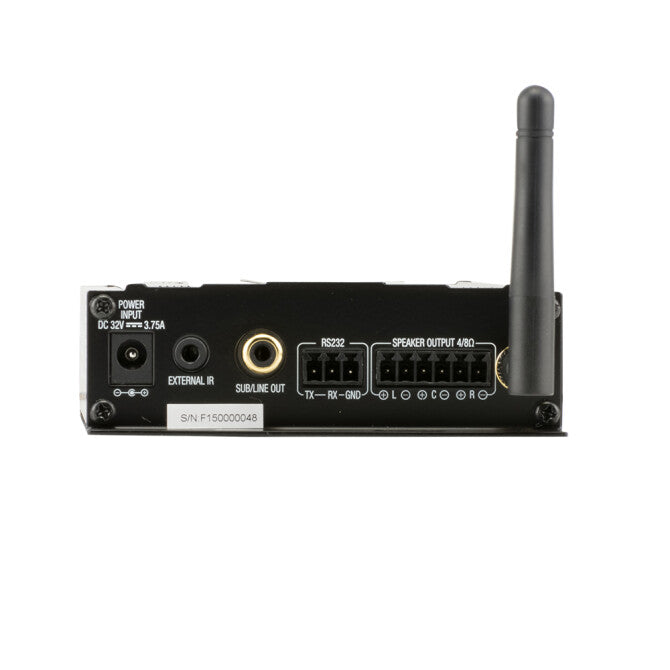

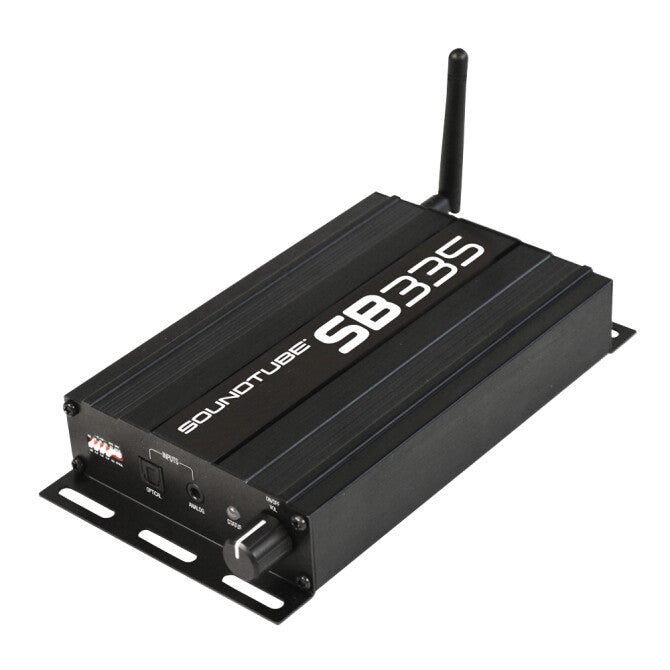

The SB335 is a versatile, small, class D amplifier engineered for use in localized audio applications. Designed for use with SoundTube speakers, other high-fidelity speakers and passive soundbars, the SB335 provides 50 watts per channel into 8 ohms (2 channel operation) or 35 watts per channel into 8 ohms (3 channel operation). Digital and analog inputs are provided, enabling direct connection from most TVs or monitors. Bluetooth® streaming functionality is also featured as a signal option. In addition to the speaker outputs, the SB335 includes a line level subwoofer output. Dolby Digital® decoding is also provided. The SB335 may be controlled via RS232 and will learn IR codes for volume control.
Power Output @ 4 Ohms: 2 Channel 55W or 3 Channel 40W. Power Output @ 8 Ohms: 2 Channel 50W or 3 Channel 35W.
