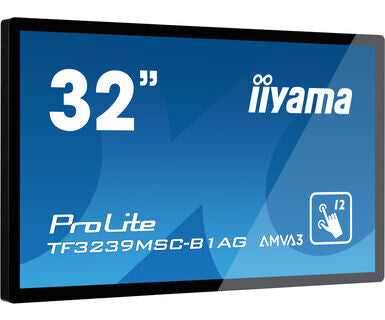

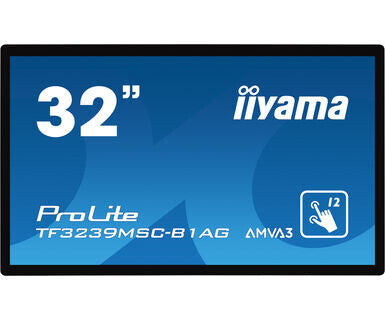

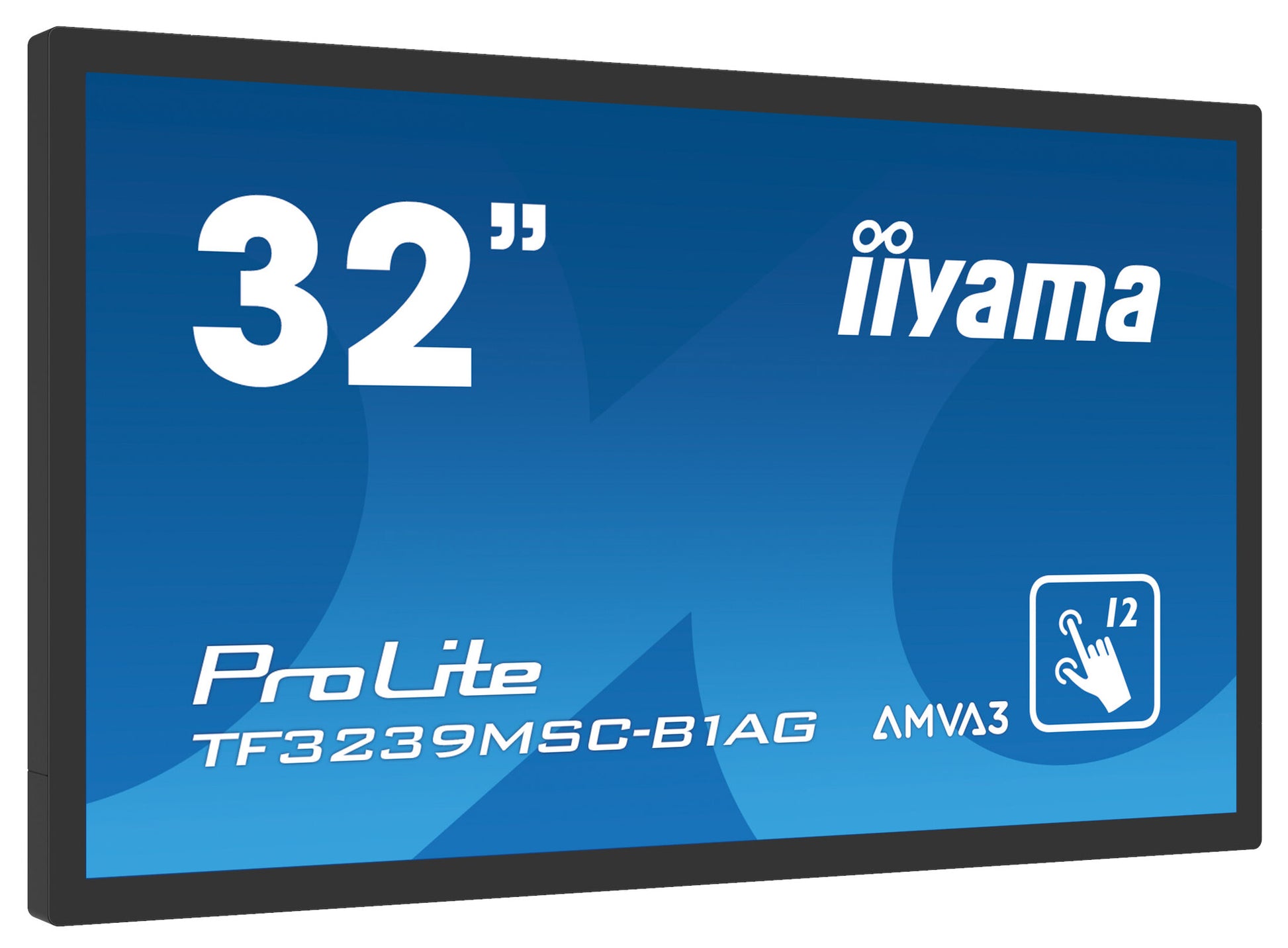

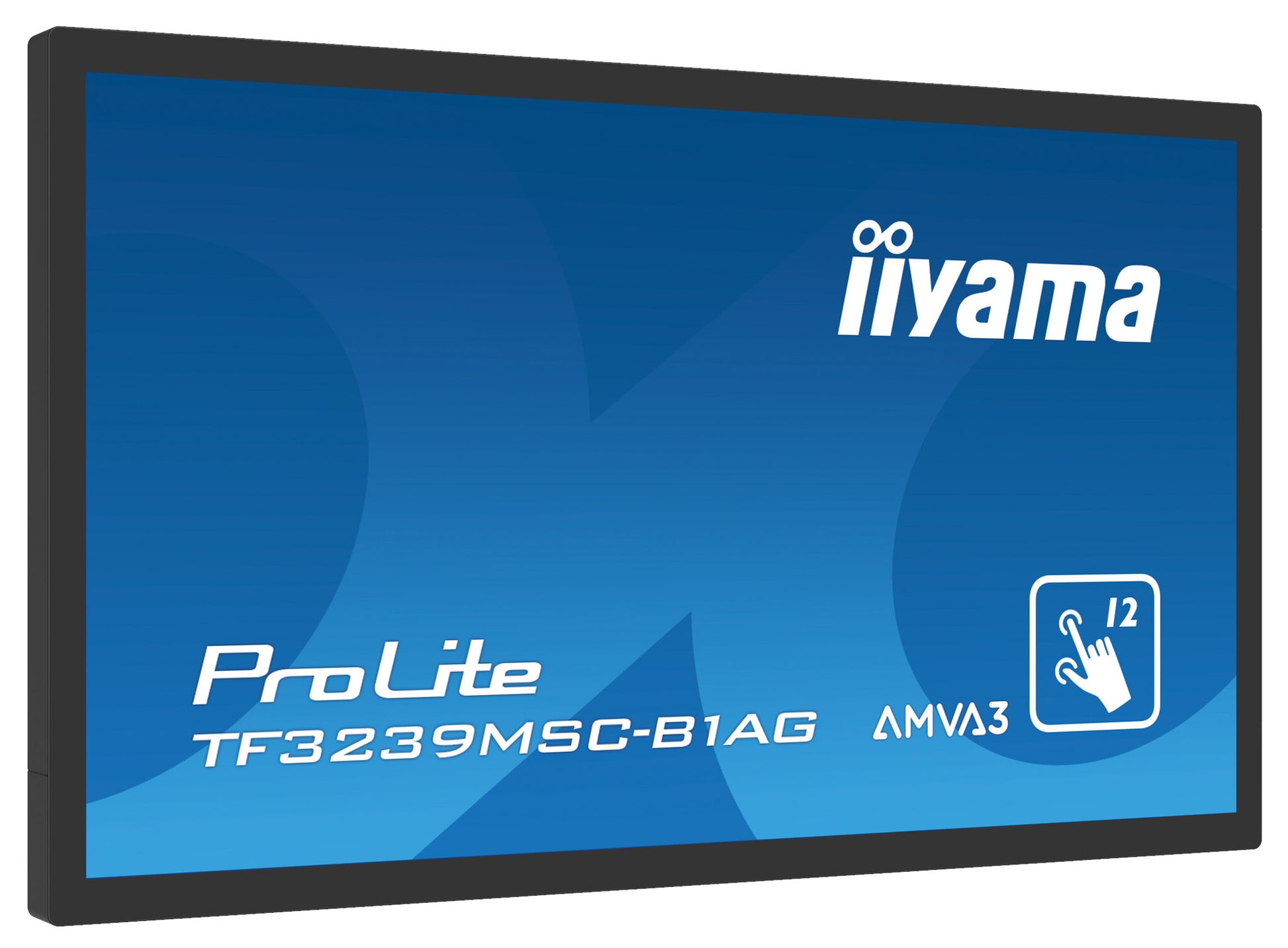

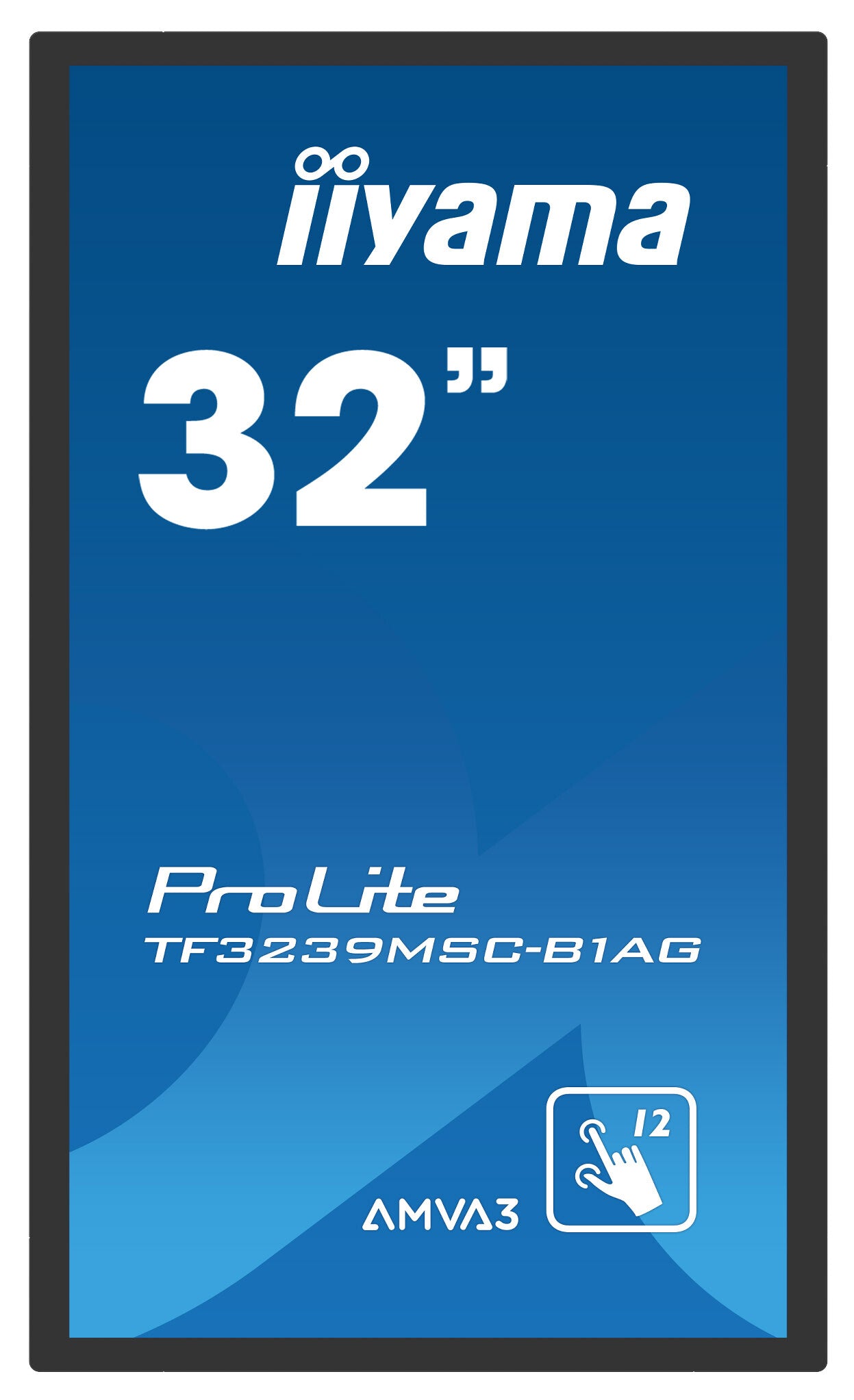

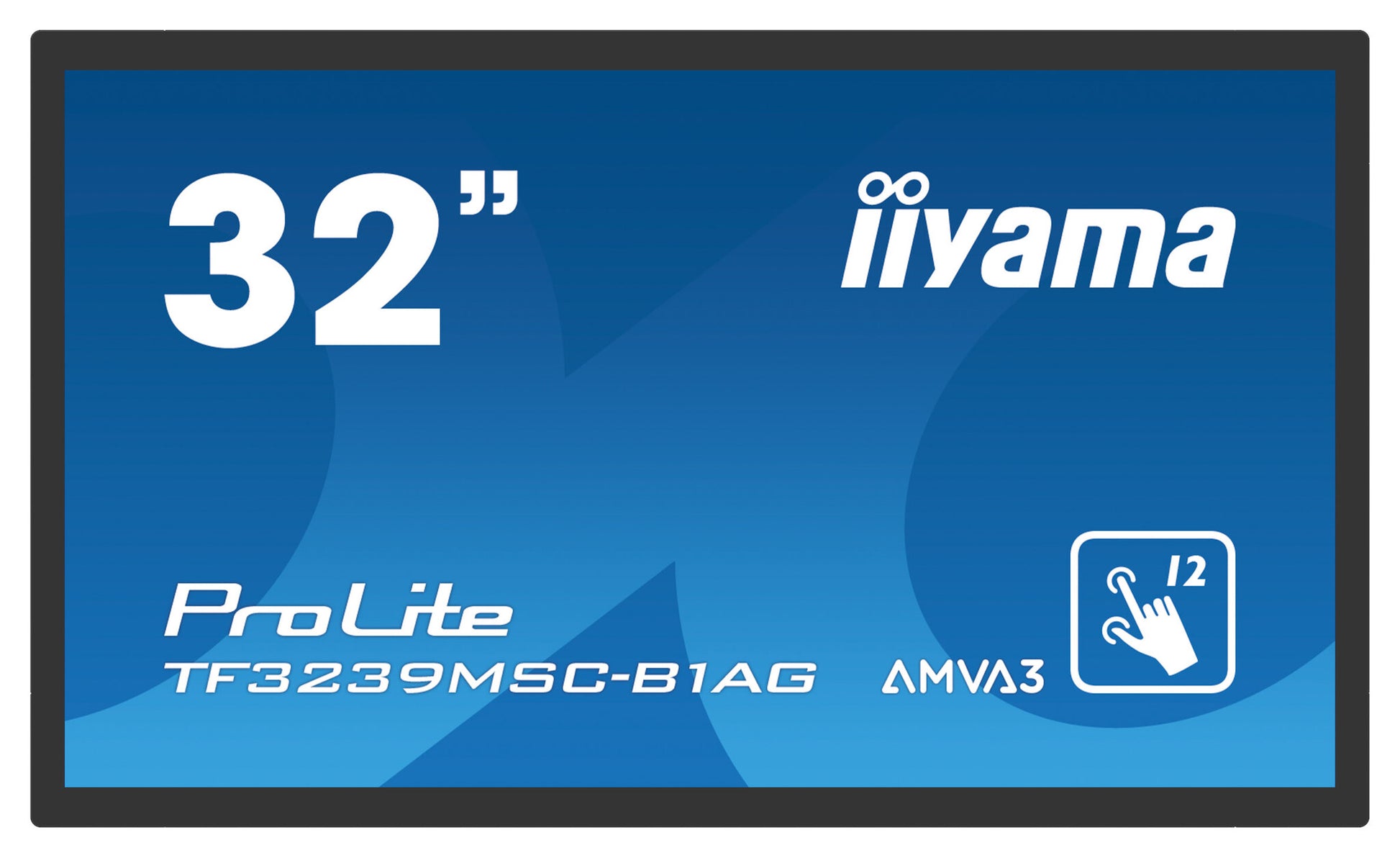

iiyama TF3239MSC-B1AG

iiyama TF3239MSC-B1AG

32" AMVA3 LED, PCAP 12pt, Open Frame, 1920 x 1080, 500 cd/m², 8ms, HDMI, VGA, DisplayPort, RMS 16W, IP54, black, matte

  • Touch technology - Capacitive
  • Touch through-glass
  • Open frame
  • AG Coating
  • 24/7
  • SKU:4948570118021
  • GTIN/EAN:4948570118021
  • MPN:TF3239MSC-B1AG
Add To Favorite

You need to login to view the price.

View full details

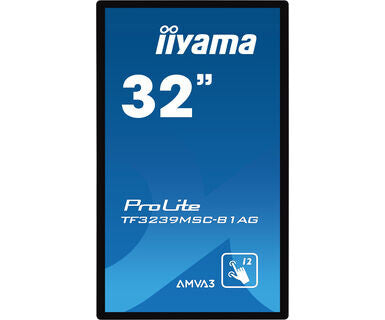

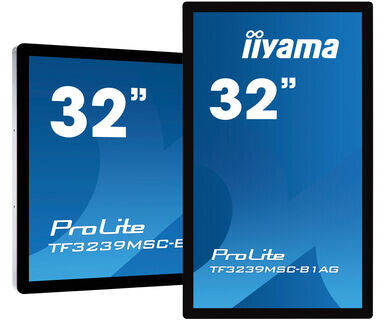

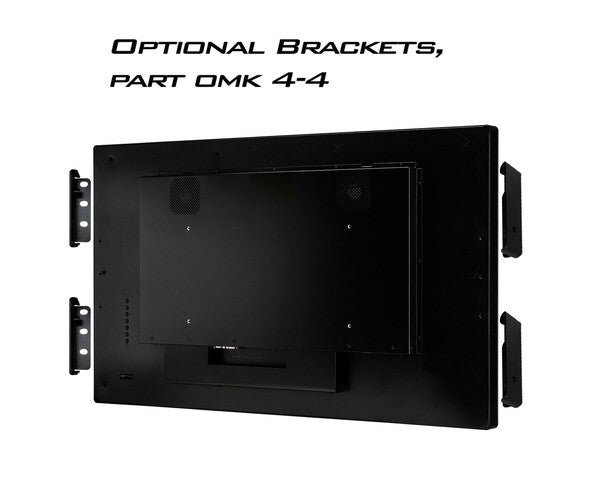

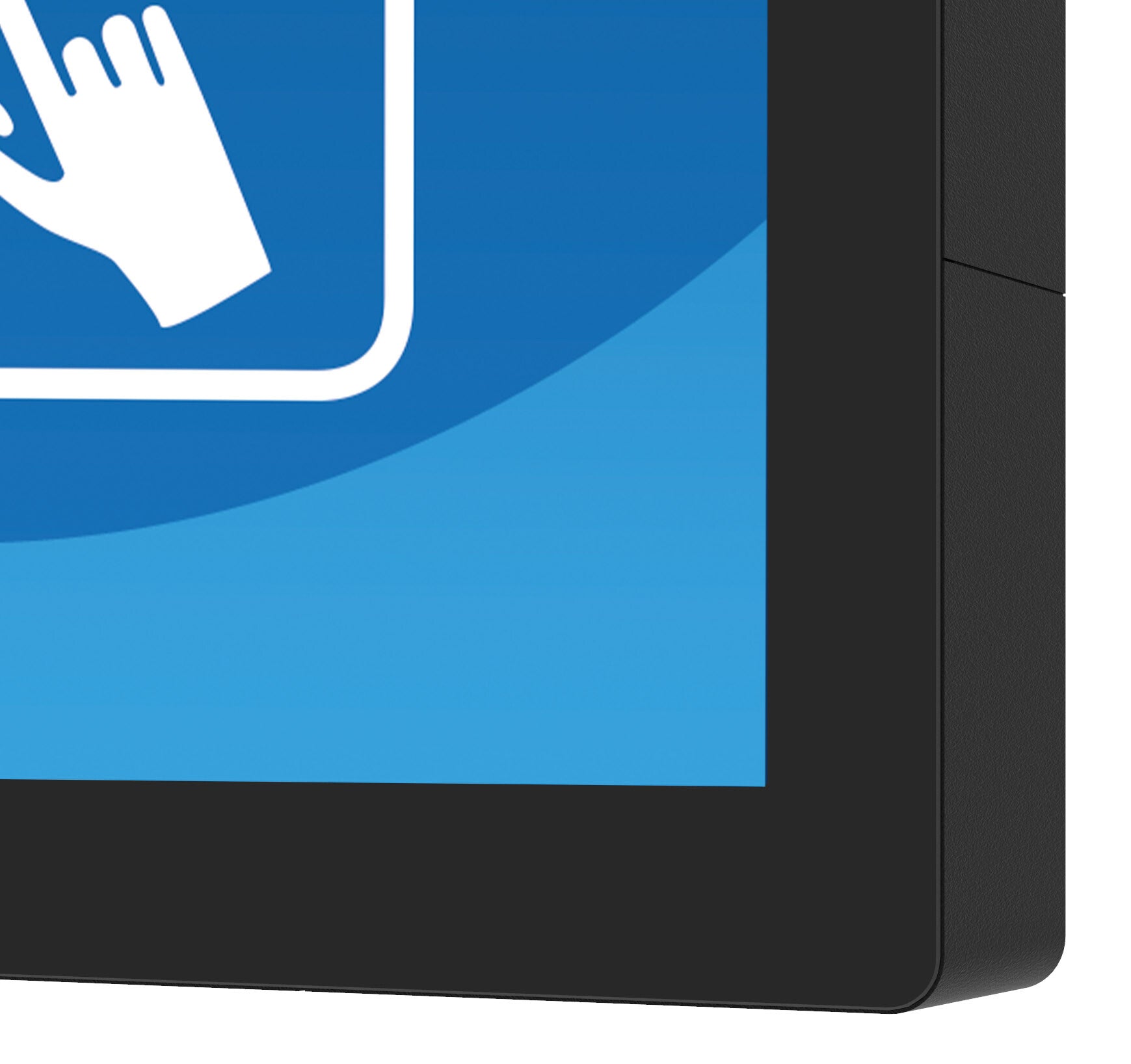

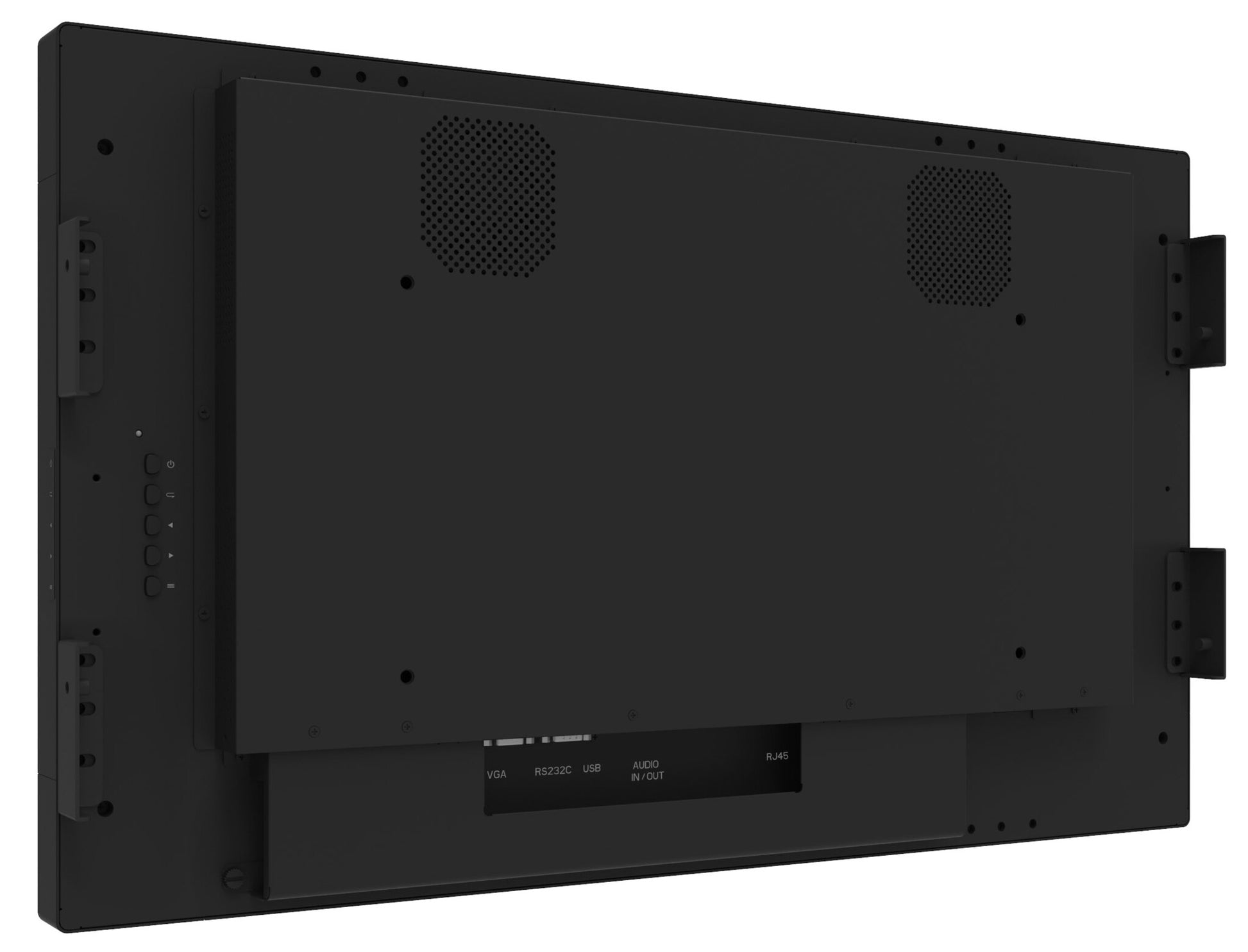

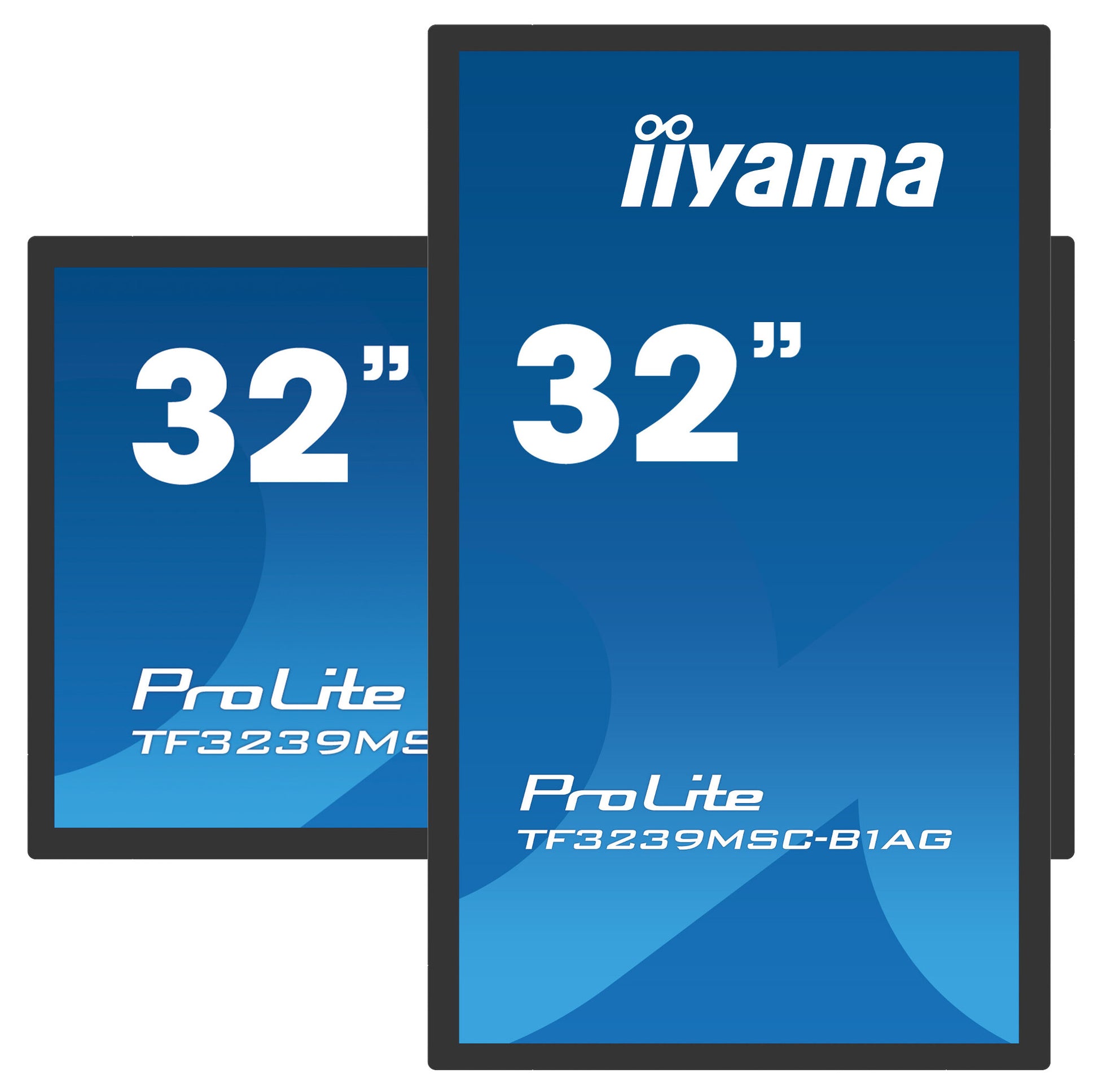

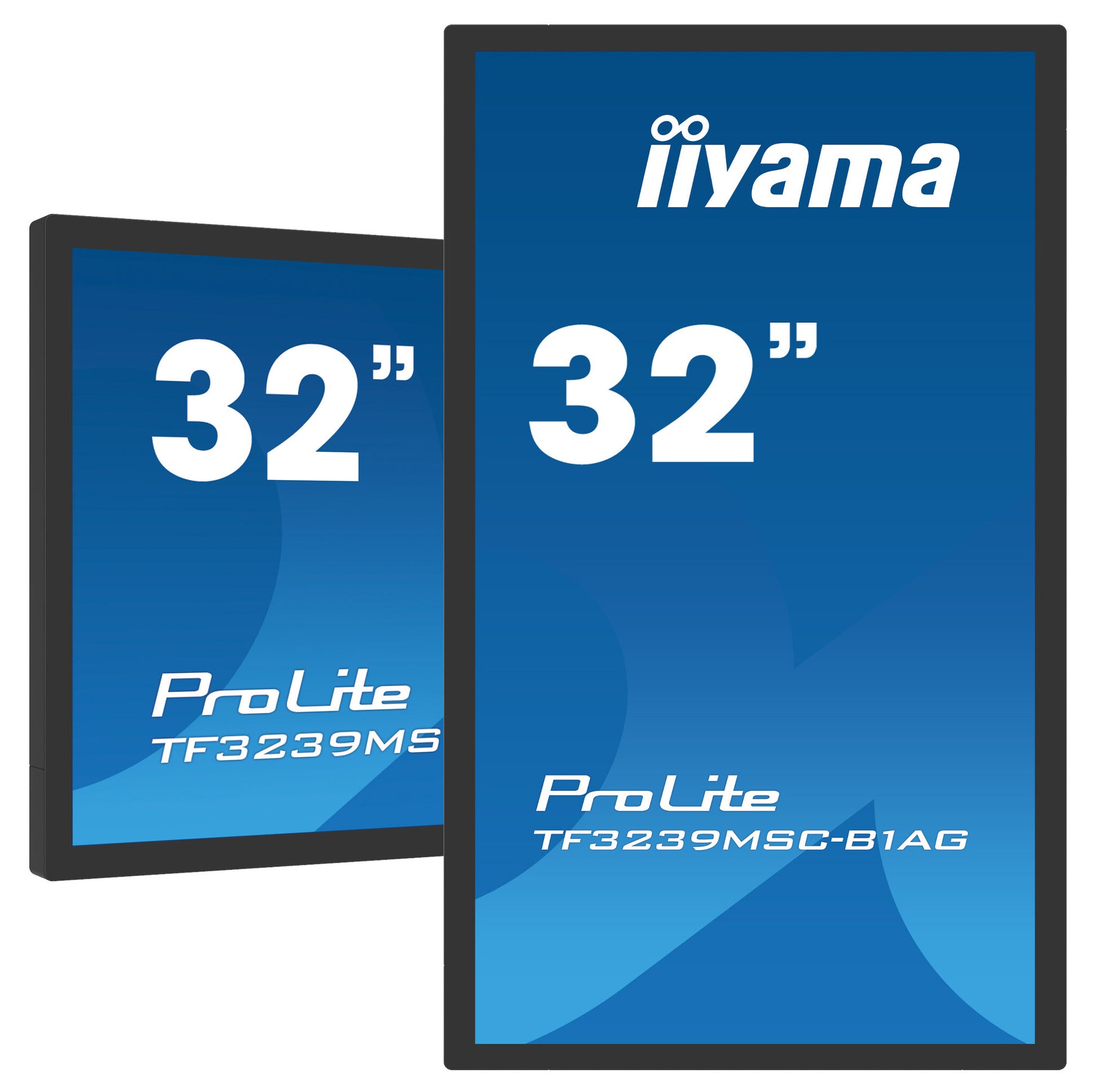

The Full HD (1920x1080) TF3239MSC Open Frame monitor with slim borders is the ideal display solution for interactive shop windows, education, kiosks and in-store communications. The Projective Capacitive (PCAP) touch technology with 12 touch points ensures a seamless and accurate touch response. Thanks to the touch-through-glass technology it’s possible to turn glass surfaces into touchscreens. It can be installed in landscape, portrait and face-up orientation for maximum flexibility and accessibility. With its AMVA3 LED panel, it offers exceptional colour performance, high contrast and wide viewing angles. Featuring a metal housing with a 60950-1 ball-drop proof, scratch-resistant, edge-to-edge glass, this display can be installed in the most demanding environments and build in different set-ups as a result of its Open Frame side mounting holes.

AG Coating

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

Display
Digital vertical frequency
50 - 76 Hz
Digital horizontal frequency
30 - 83 kHz
Viewable size, vertical
39.3 cm
Viewable size, horizontal
69.8 cm
Display number of colours
16.78 million colours
Maximum refresh rate
60 Hz
Contrast ratio (typical)
3000:1
Screen shape
Flat
LED backlight
Yes
Display brightness
500 cd/m²
Response time
8 ms
Touchscreen technology
Projected capacitive system
Panel type
AMVA3
Display resolution
1920 x 1080 pixels
Display diagonal
80 cm (31.5")
Performance
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
16 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
Certification
CB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH
International Protection (IP) code
IP54
Glass thickness
2 mm
Housing material
Metal
Product colour
Black

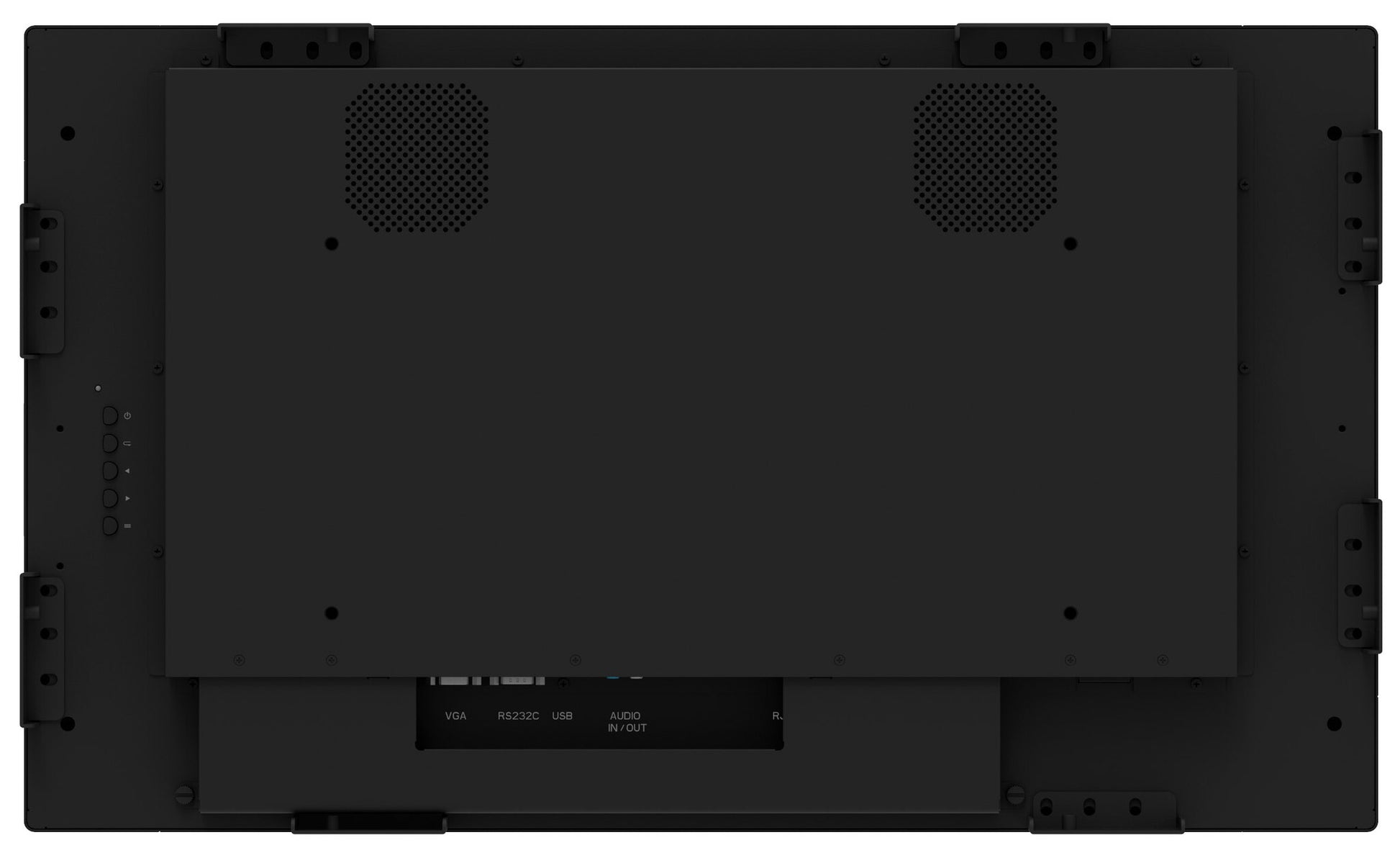

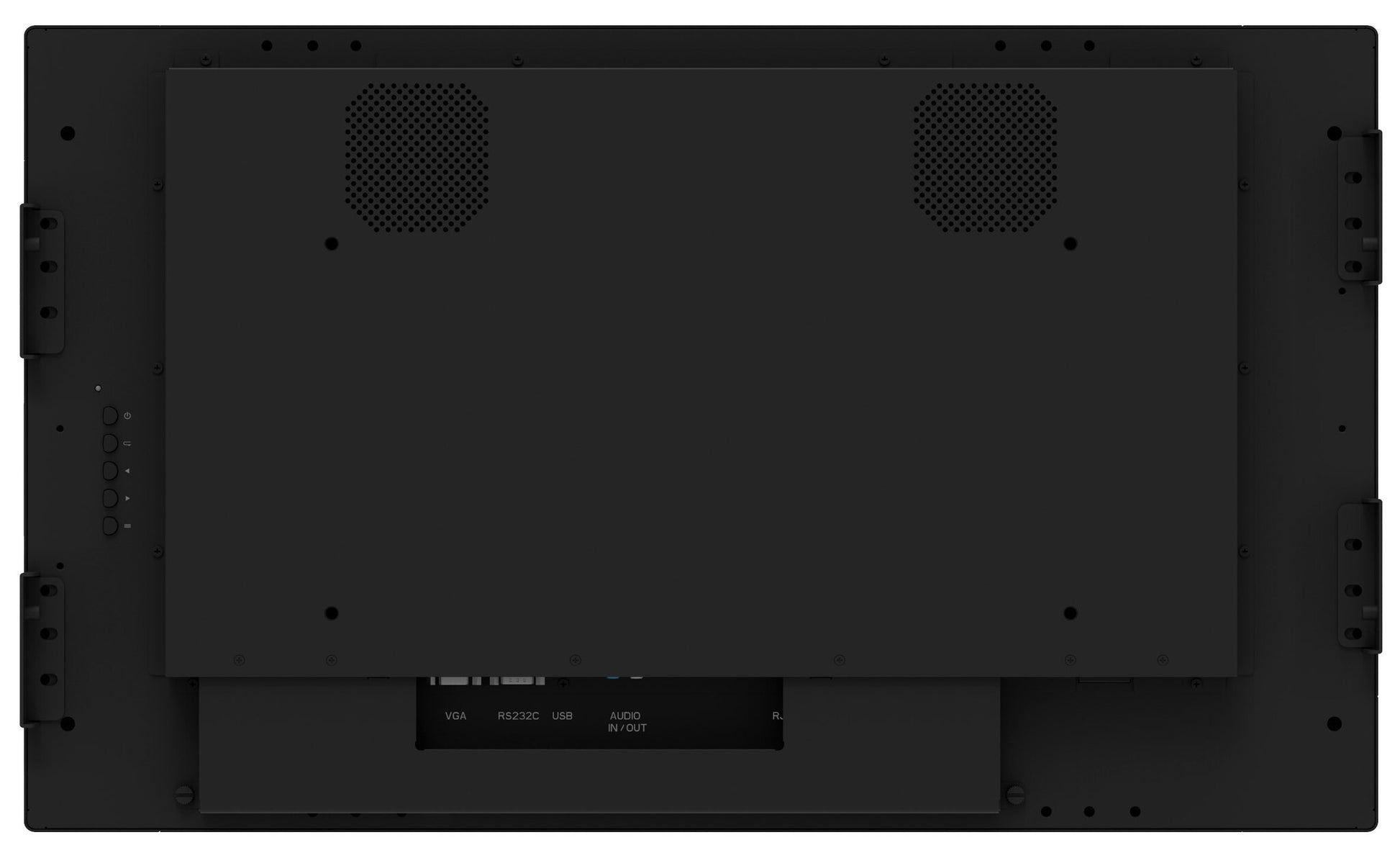

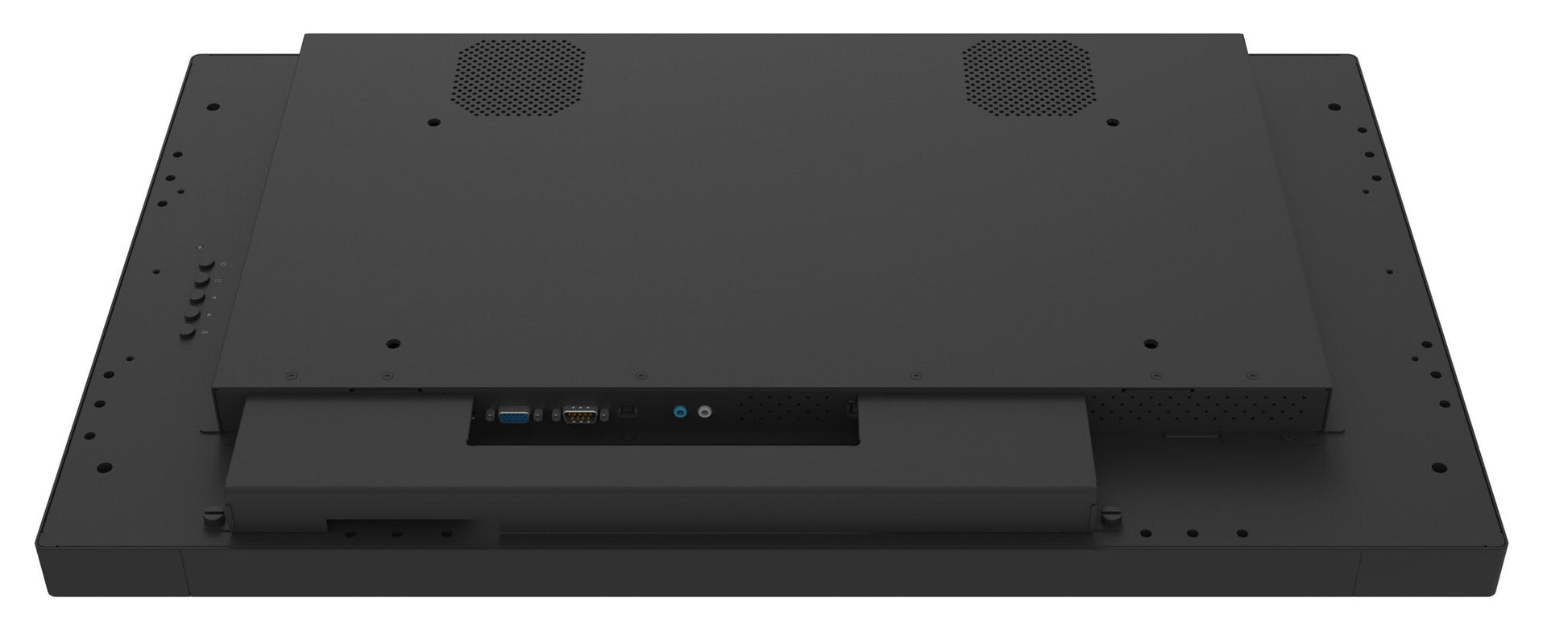

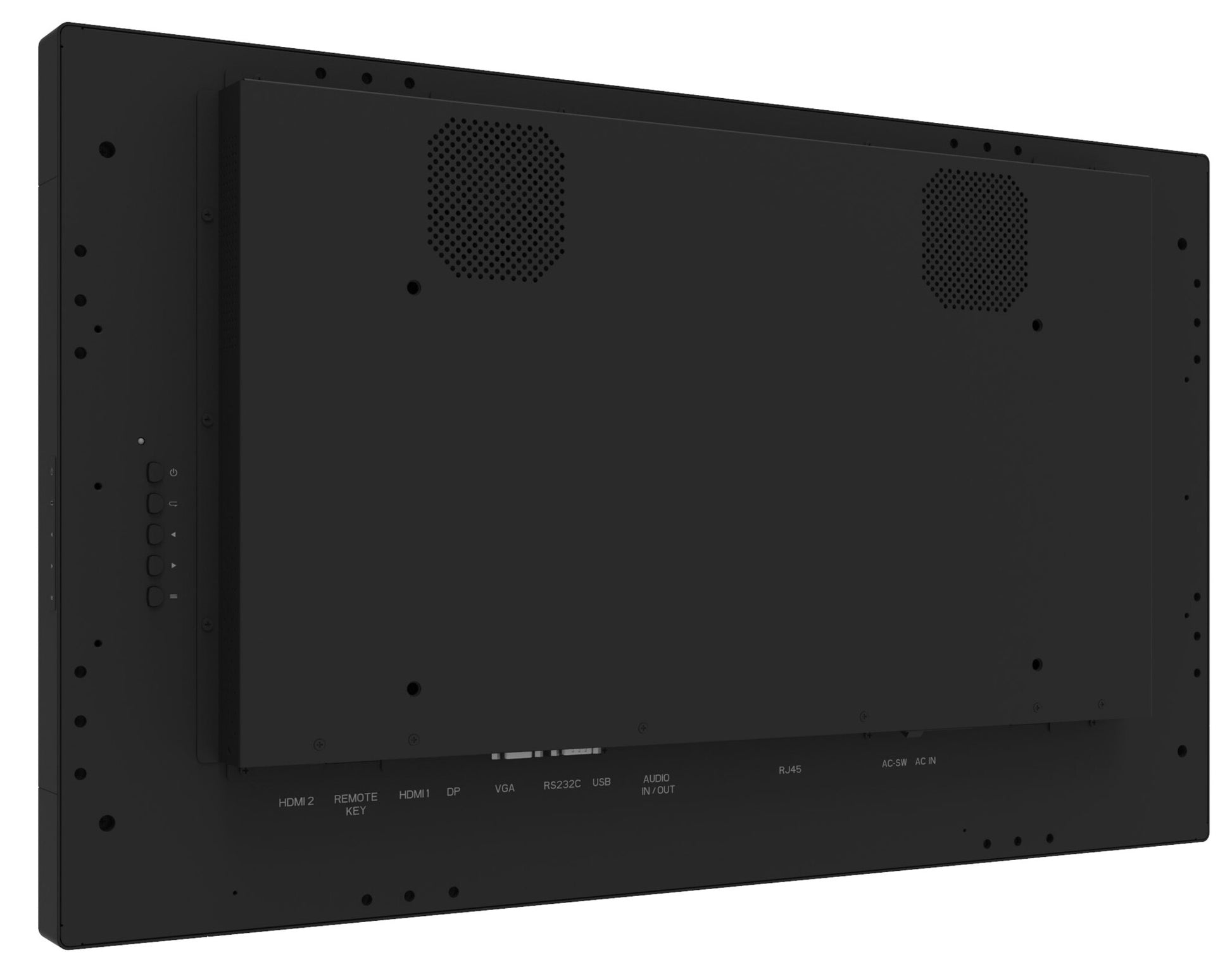

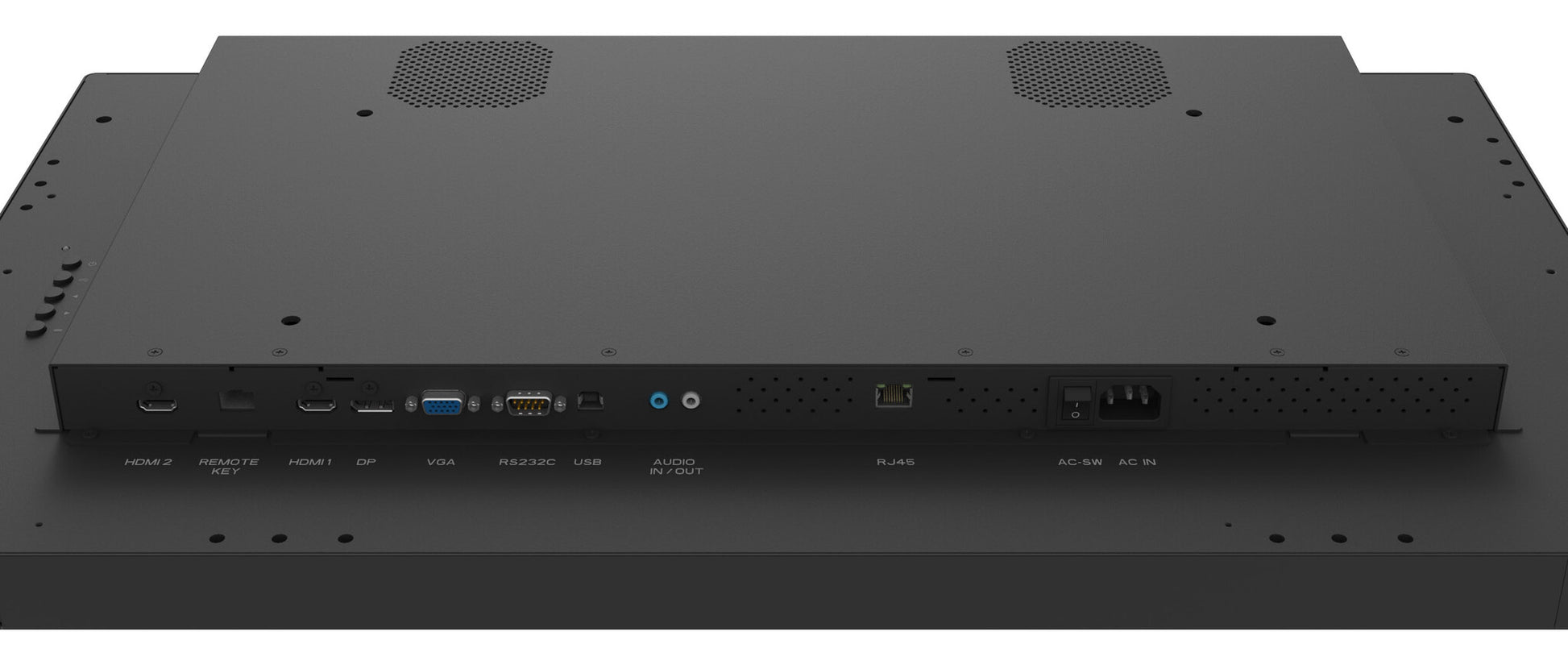

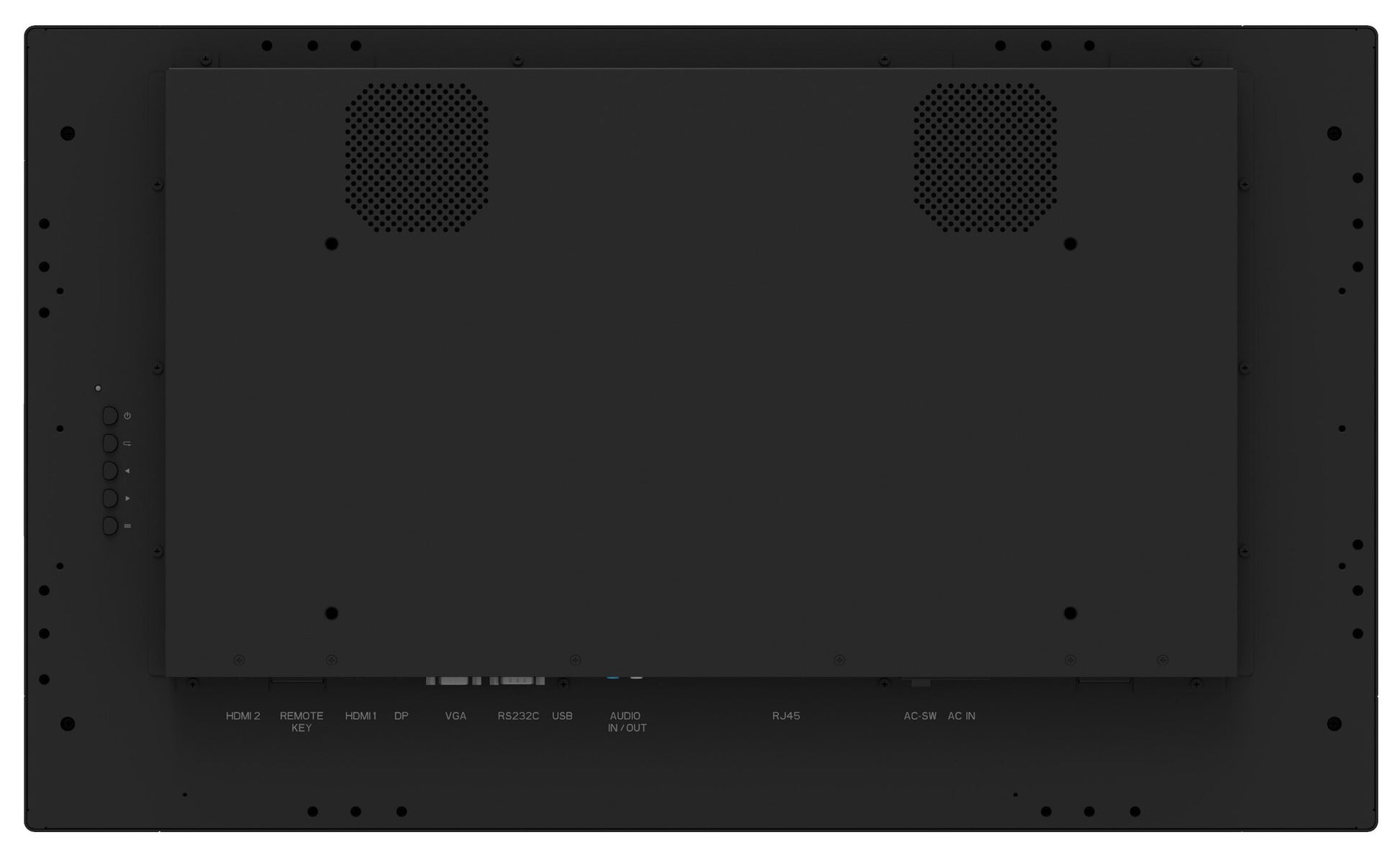

Ports & interfaces
RS-232C
Yes
Audio output
1
Audio input
1
DVI port
No
Ergonomics
LED indicators
Yes
Plug and Play
Yes
On Screen Display (OSD) languages
German, Dutch, English, Spanish, French, Italian, Polish, Russian
Number of OSD languages
8

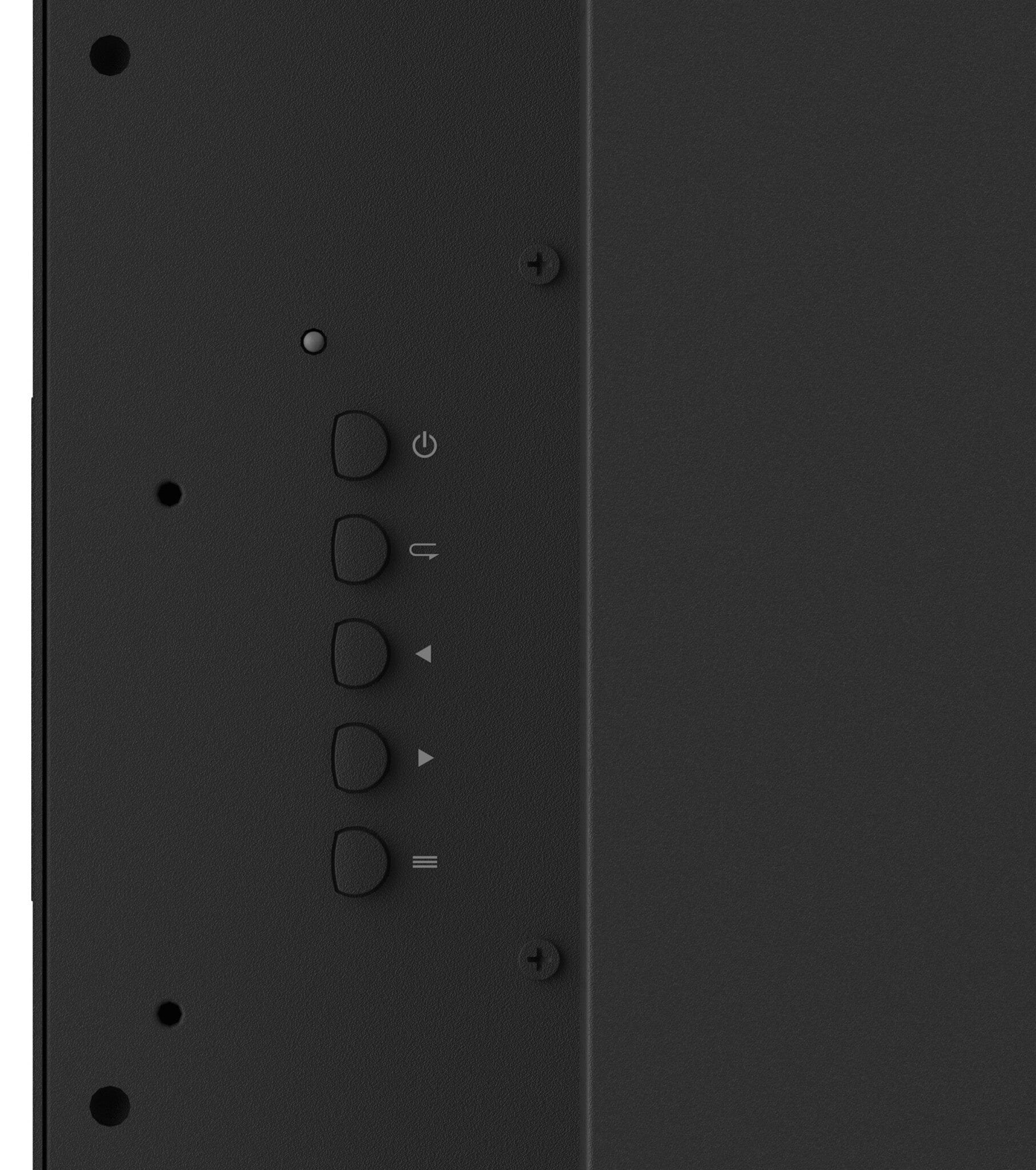

On Screen Display (OSD)
Yes
Wall mountable
Yes

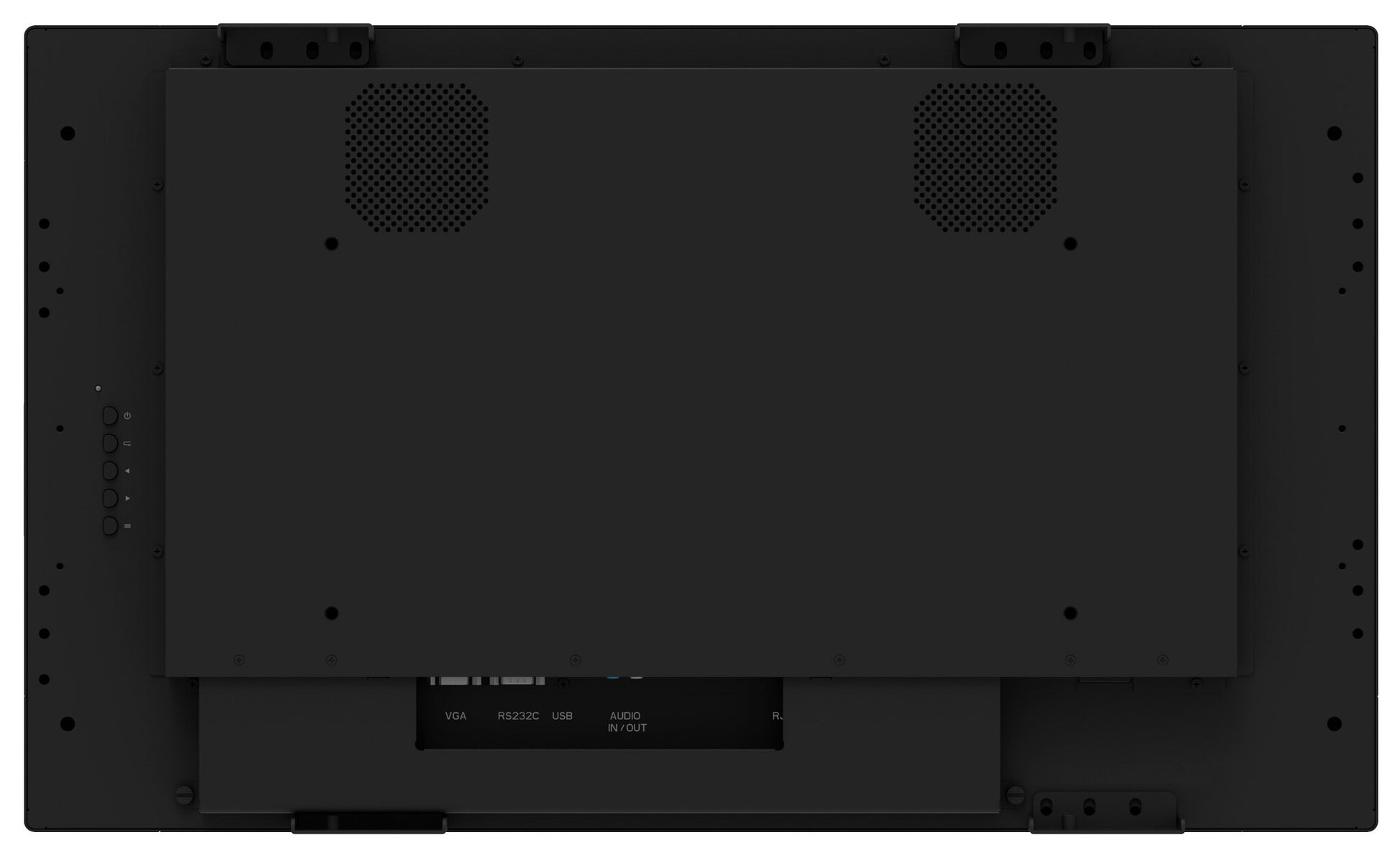

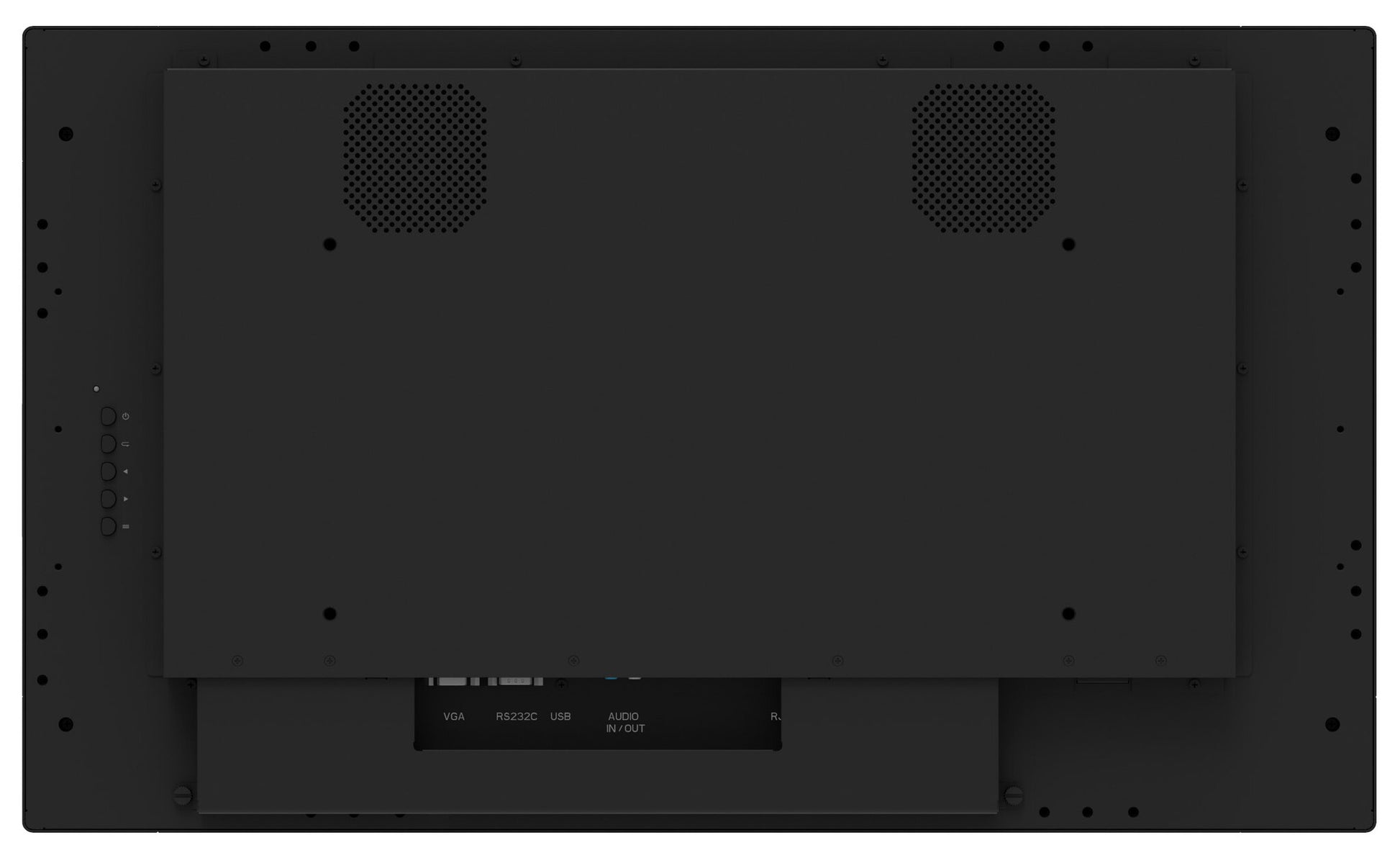

Panel mounting interface
400 x 200 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power supply type
AC
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
60 W
Energy consumption (SDR) per 1000 hours
55 kWh
Energy efficiency class (SDR)
G
Network
Ethernet LAN
No
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Sustainability
European Product Registry for Energy Labelling (EPREL) code
396170
Sustainability compliance
Yes
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (without stand)
13.8 kg
Height (without stand)
439.9 mm
Depth (without stand)
67 mm
Width (without stand)
738.7 mm
Packaging data
Package weight
17.2 kg
Package height
900 mm
Package depth
590 mm
Package width
187 mm

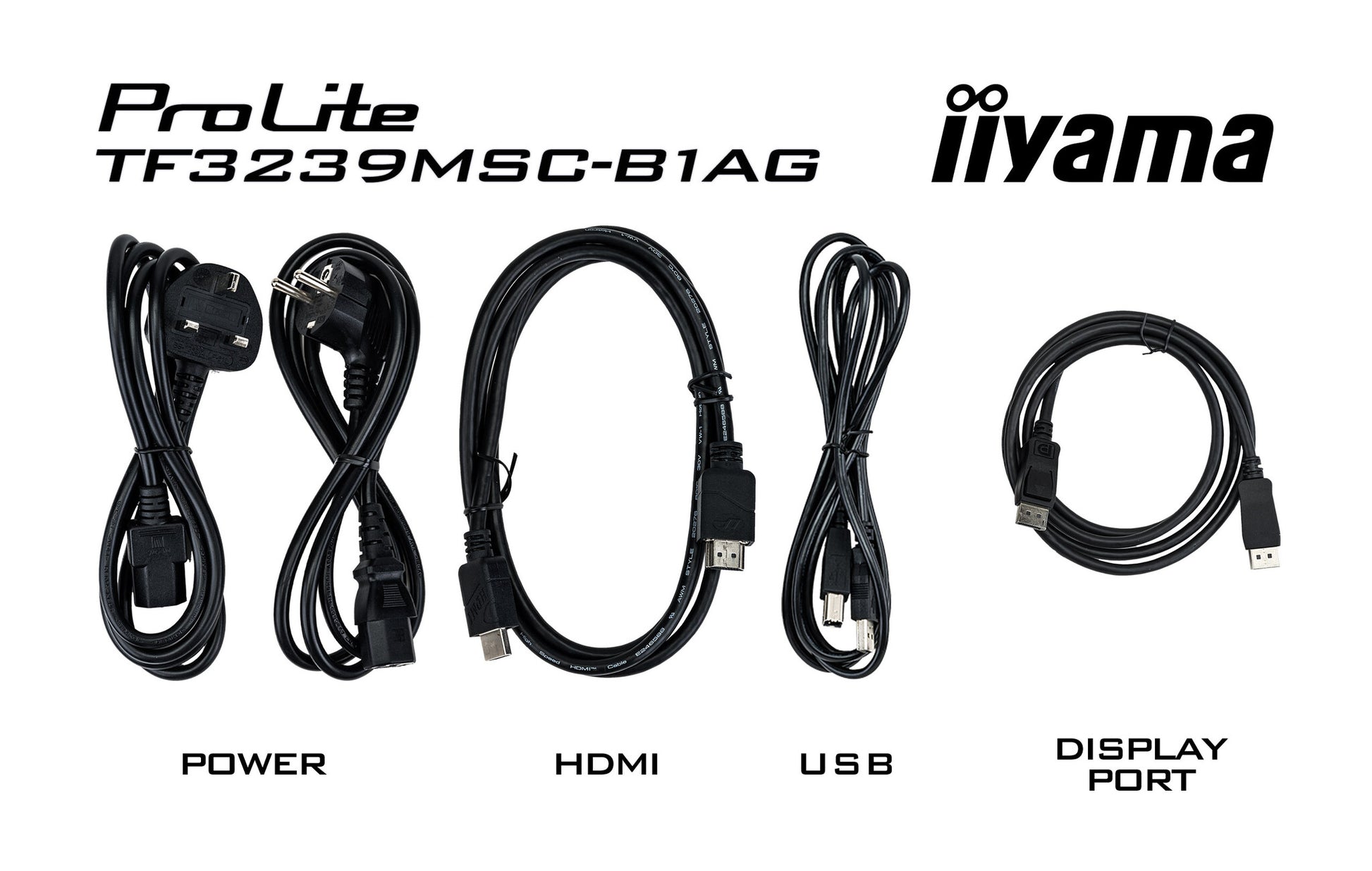

Cables included
AC, DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CE, REACH, RoHS
Other features
Ethernet LAN (RJ-45) ports
1
Mean time between failures (MTBF)
50000 h
Surface hardness
HDCP
Yes
Display diagonal (metric)
80 cm
Built-in microphone
No
Pixel pitch
0.3637 x 0.3637 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
2
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Touch port
Yes
Number of simultaneous touchpoints
12
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
