iiyama TF3215MC-B2AG

iiyama TF3215MC-B2AG

31.5", 80cm, 1920 x 1080, Full HD, VA, 500 cd/m², 8 ms, 16:9, Touch technology projective capacitive, VGA, HDMI, DP, Black

  • Touchscreen 80 cm (31.5") LED VA
  • Full HD 1920 x 1080 pixels 16:9
  • 8 ms 500 cd/m² 3000:1
  • F 27 kWh 32 W
  • SKU:4948570123674
  • GTIN/EAN:4948570123674
  • MPN:TF3215MC-B2AG
Add To Favorite

You need to login to view the price.

View full details

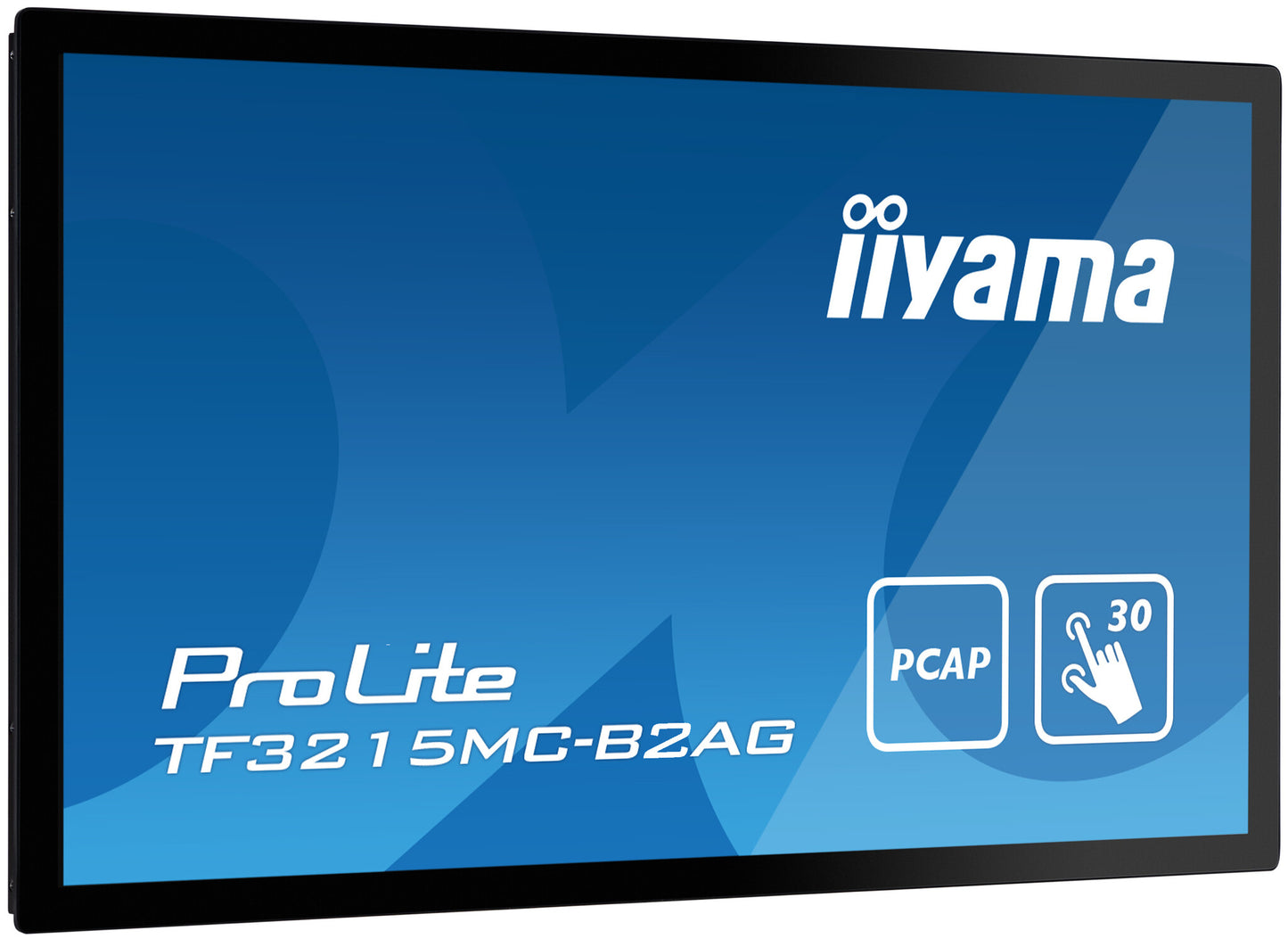

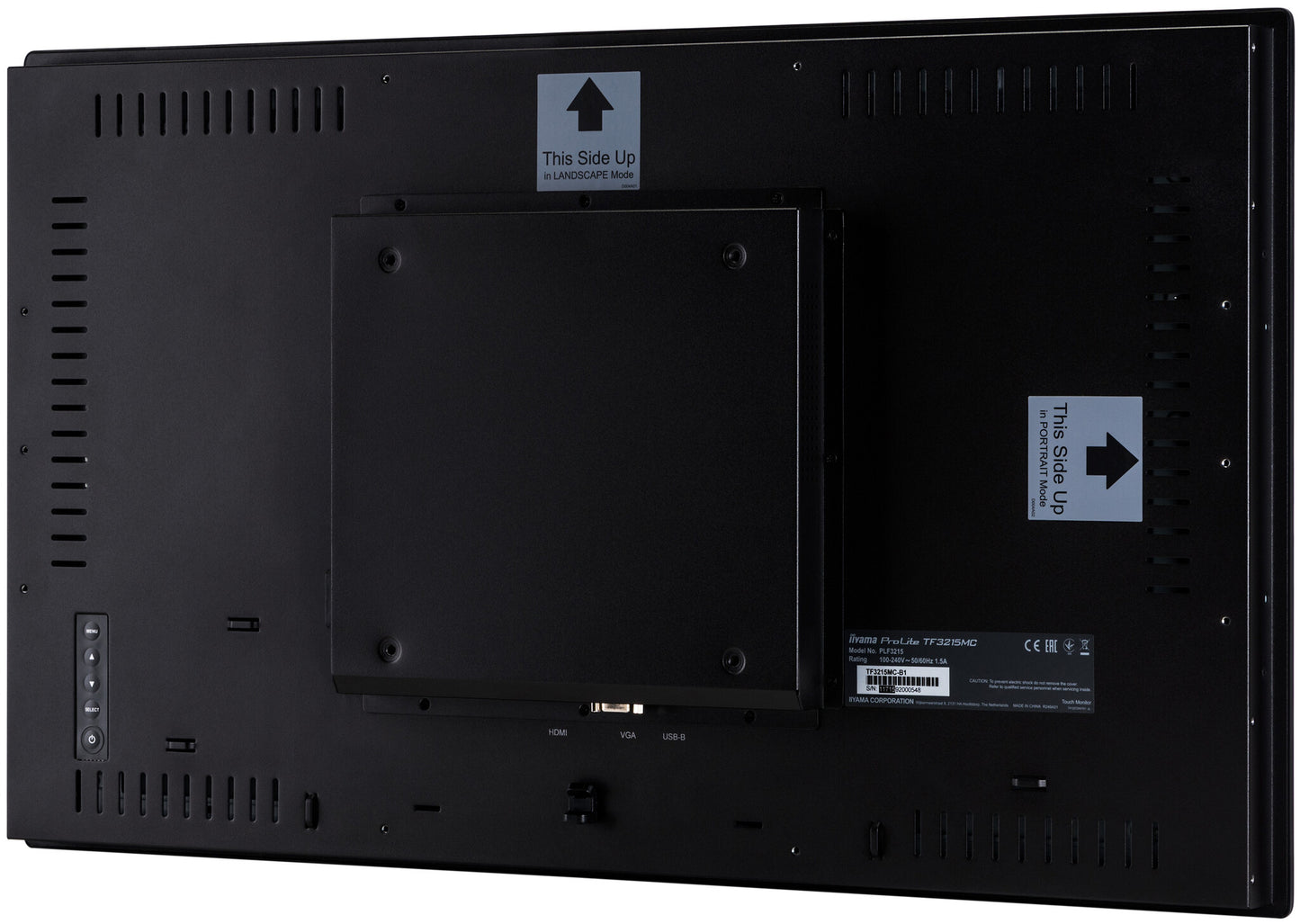

iiyama ProLite TF3215MC-B2AG. Display diagonal: 80 cm (31.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

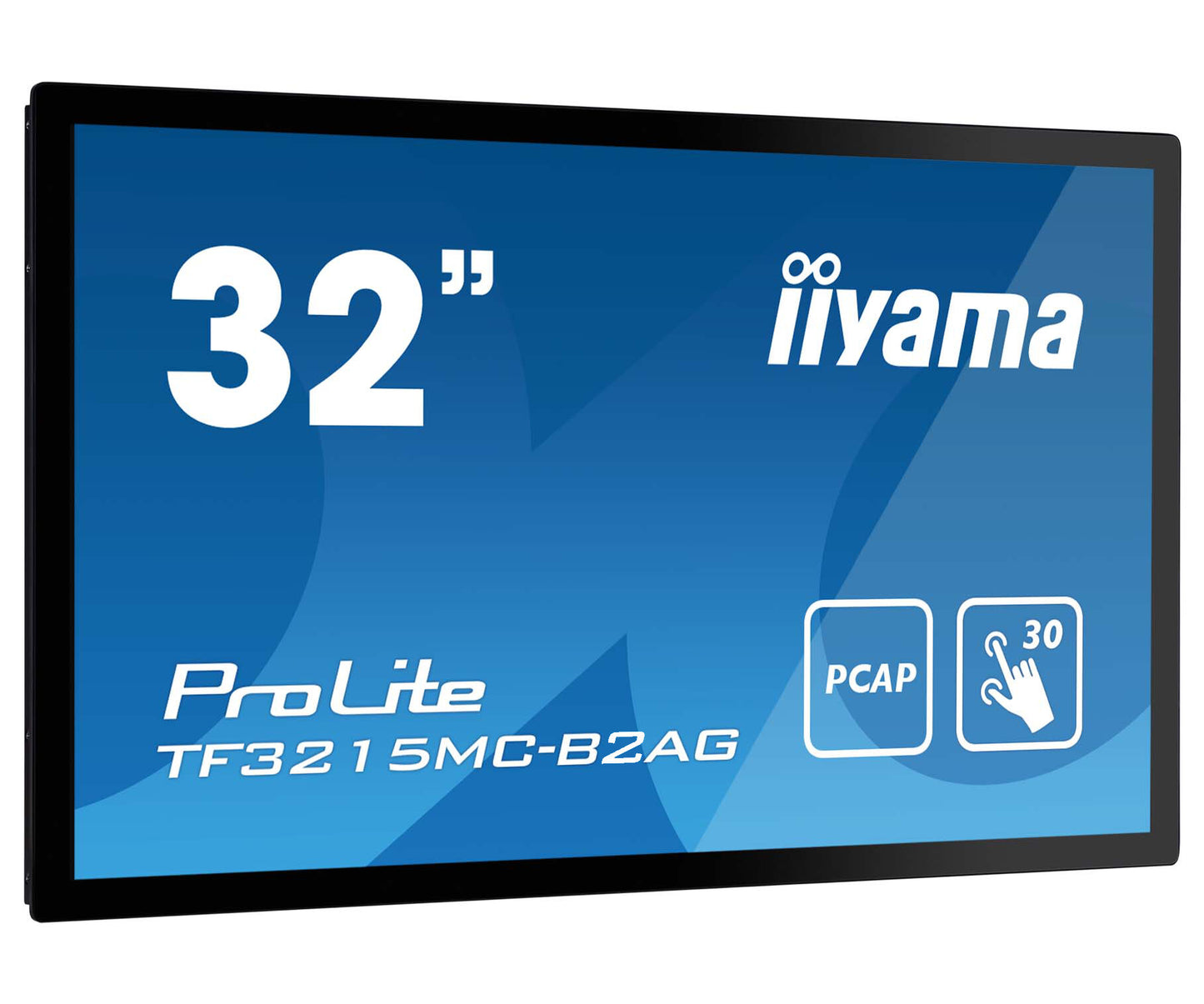

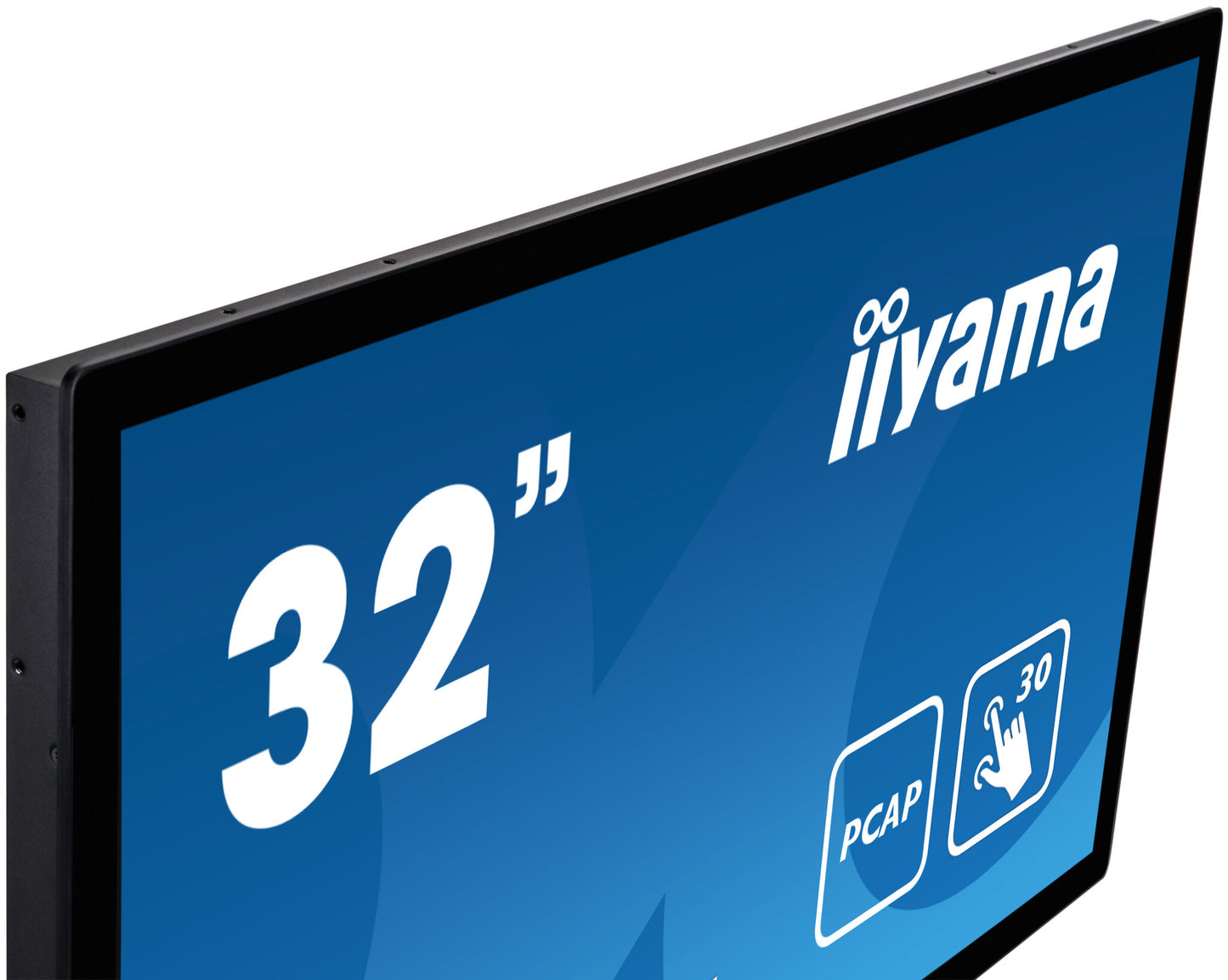

Open Frame PCAP 30-point Touch monitor with AG coating equipped with a foam seal finish for seamless integration

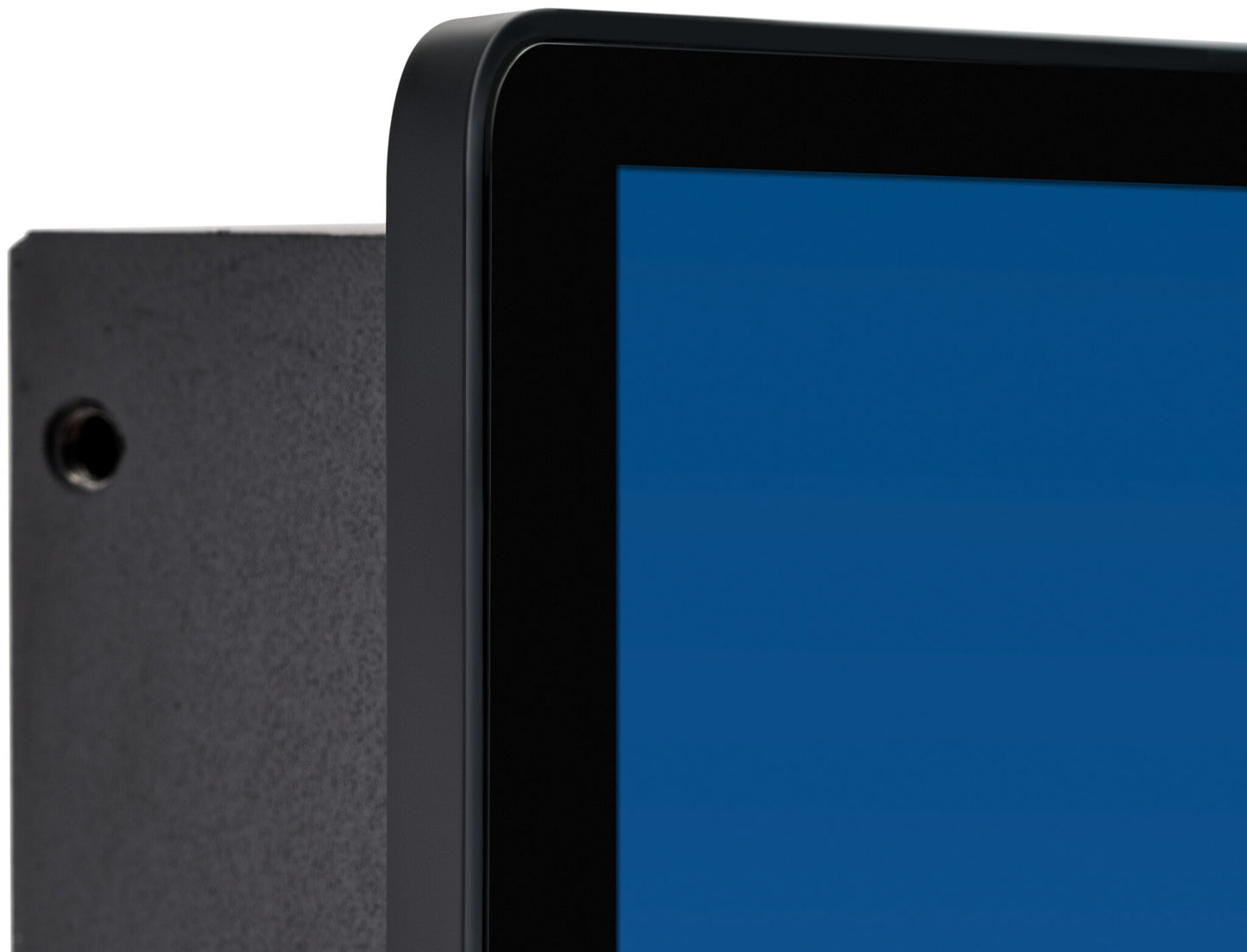

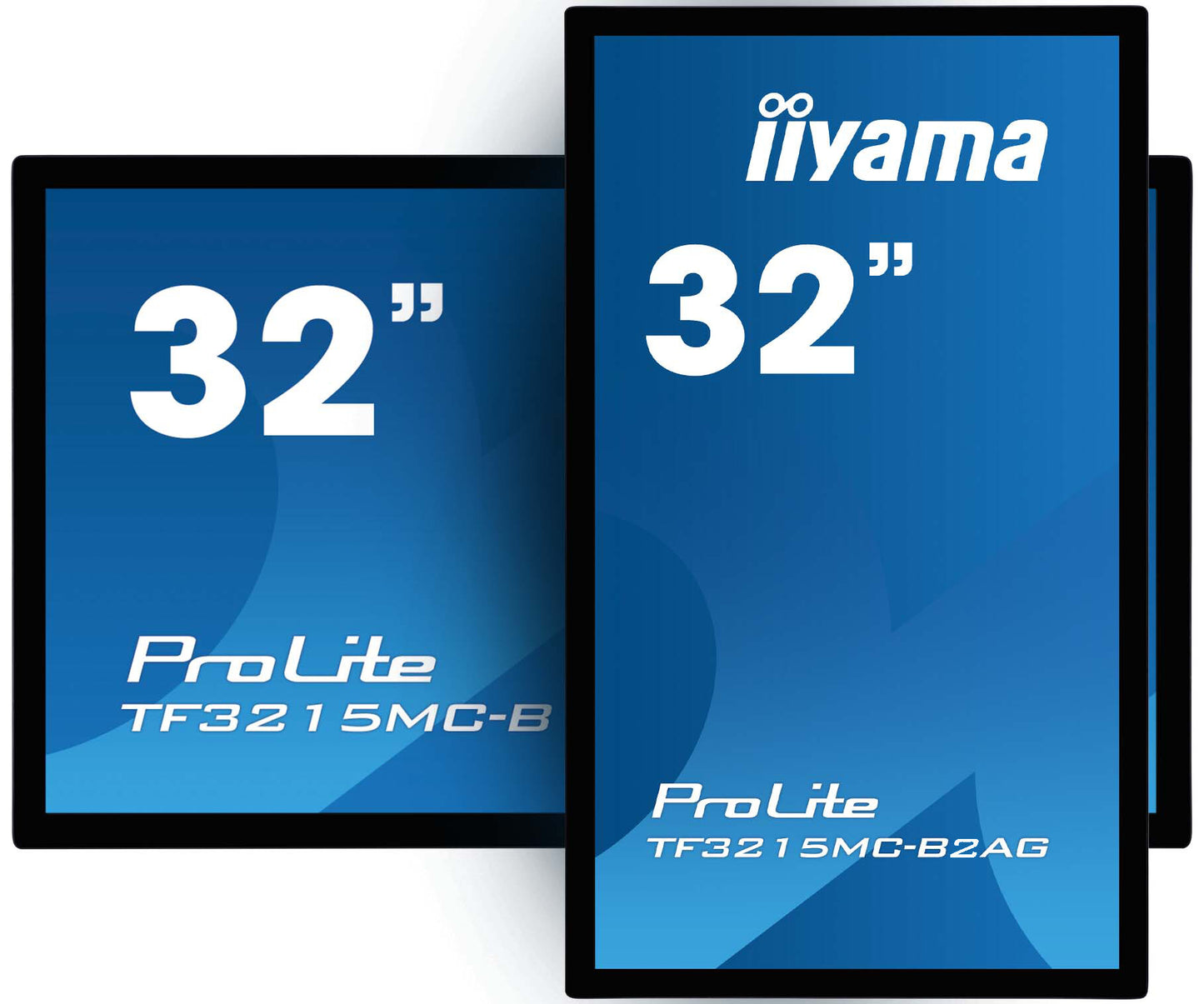

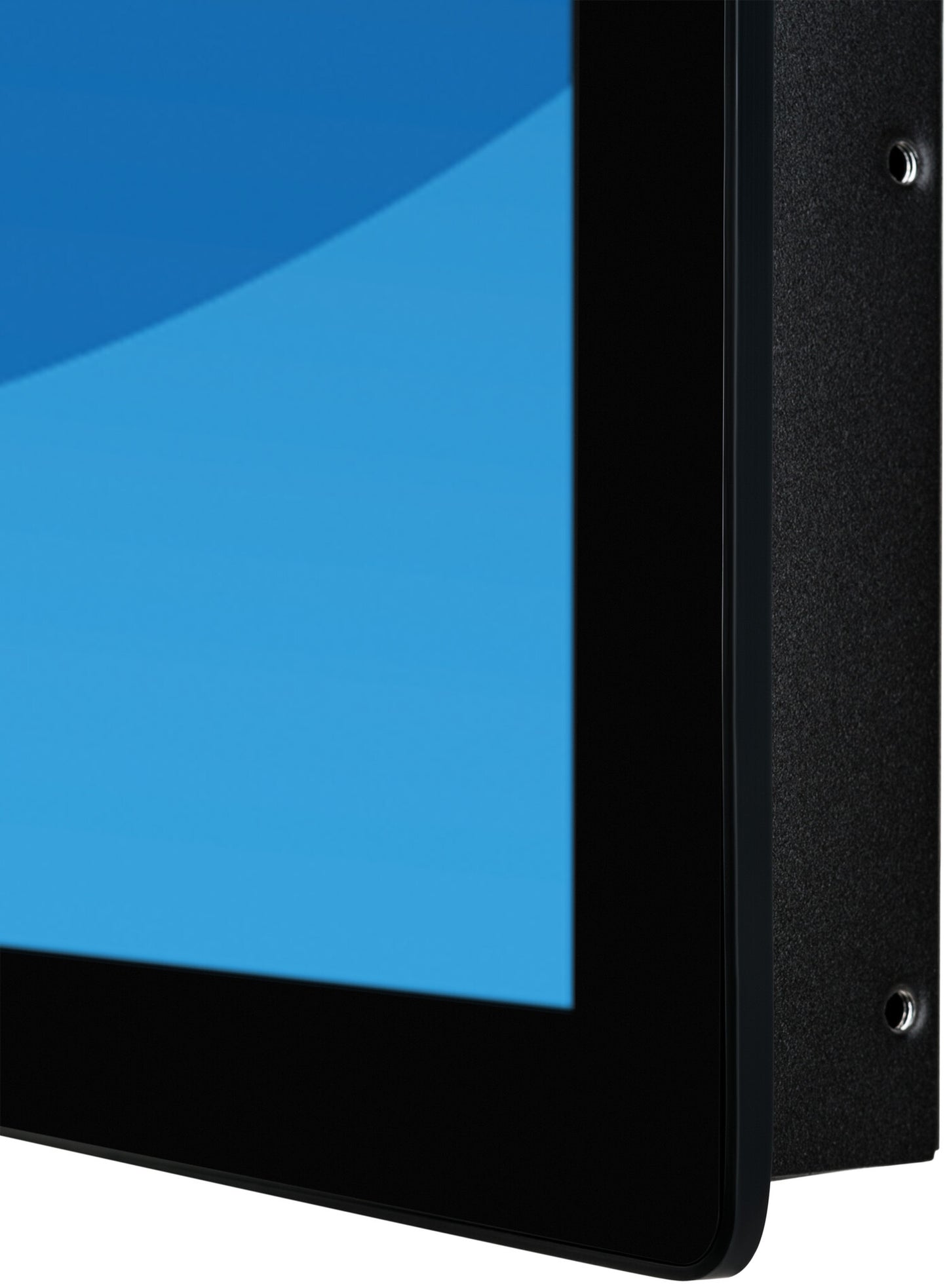

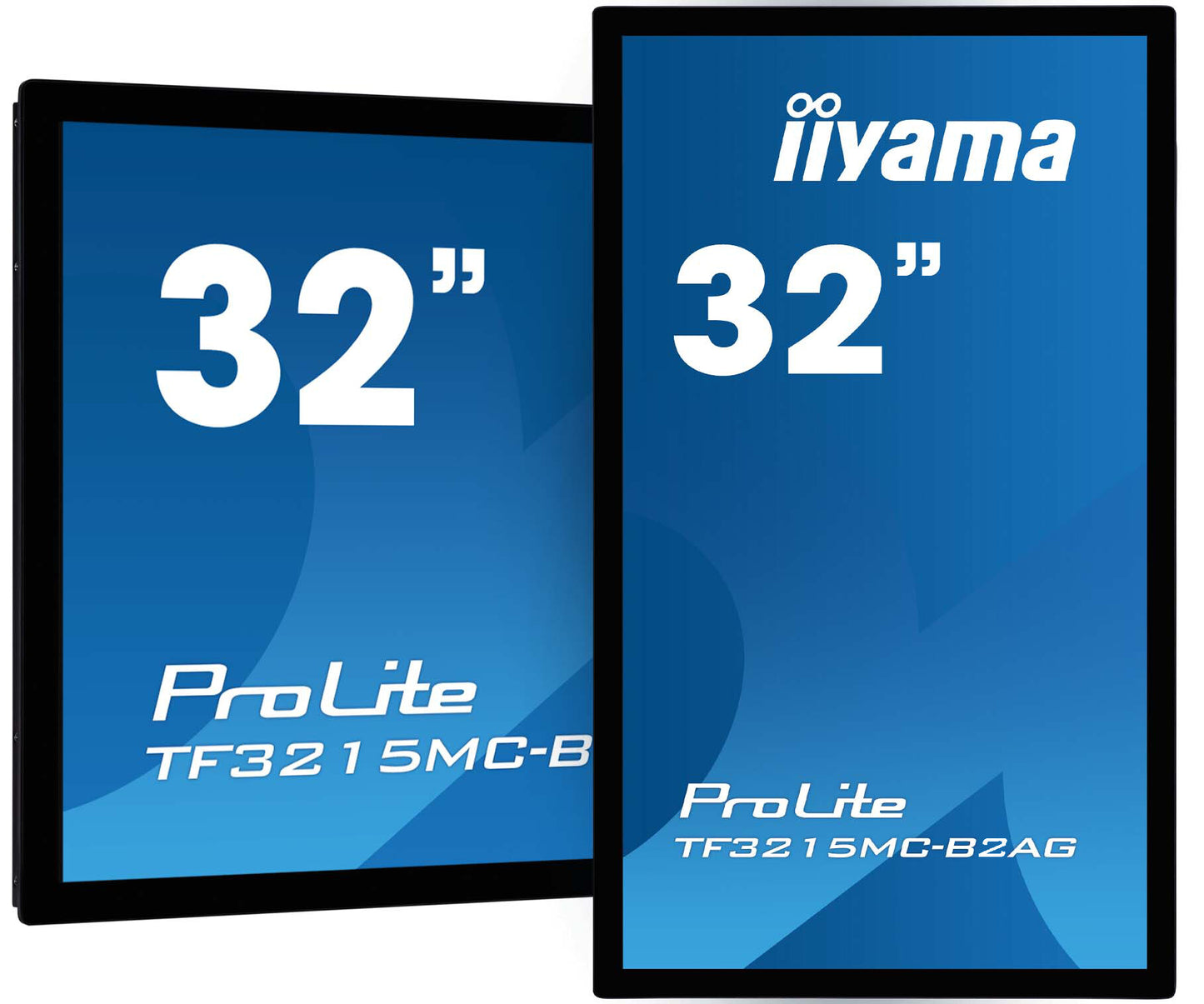

The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display
Digital horizontal frequency
30 - 68 kHz
Viewable size, vertical
39.3 cm
Viewable size, horizontal
69.8 cm
Display number of colours
16.7 million colours
Contrast ratio (typical)
3000:1
Screen shape
Flat
Anti-glare screen
Yes
Response time
8 ms
Display brightness (typical)
500 cd/m²
Touchscreen technology
Projected capacitive system
Panel type
VA
Display resolution
1920 x 1080 pixels
Display diagonal
80 cm (31.5")
Performance
Operating hours (hours/days)
24/7
AMD FreeSync
No
NVIDIA G-SYNC
No
Design
International Protection (IP) code
IP65
Glass thickness
6 mm
Housing material
Metal
Product colour
Black
Market positioning
Business
Ports & interfaces
Built-in USB hub
No
Ergonomics
Plug and Play
Yes
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
On Screen Display (OSD)
Yes

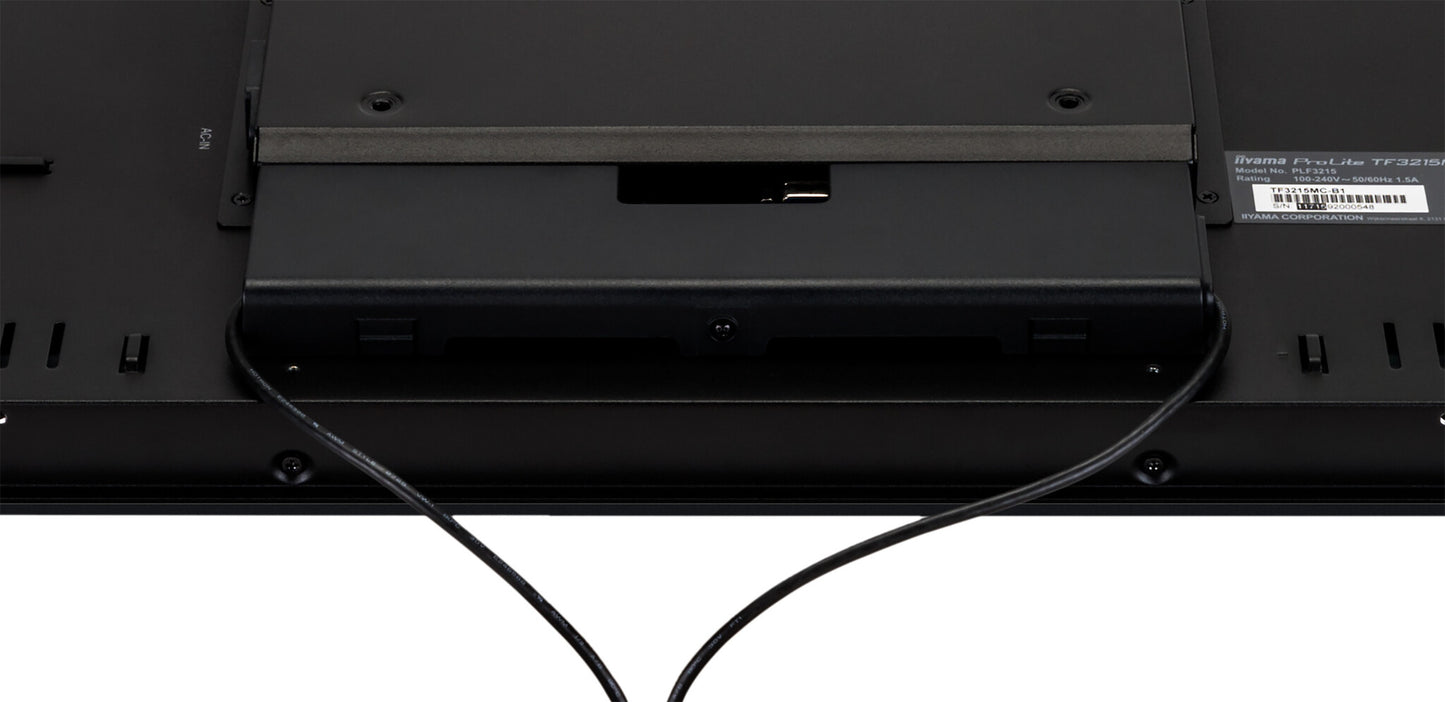

Cable management
Yes
Panel mounting interface
200 x 200 mm

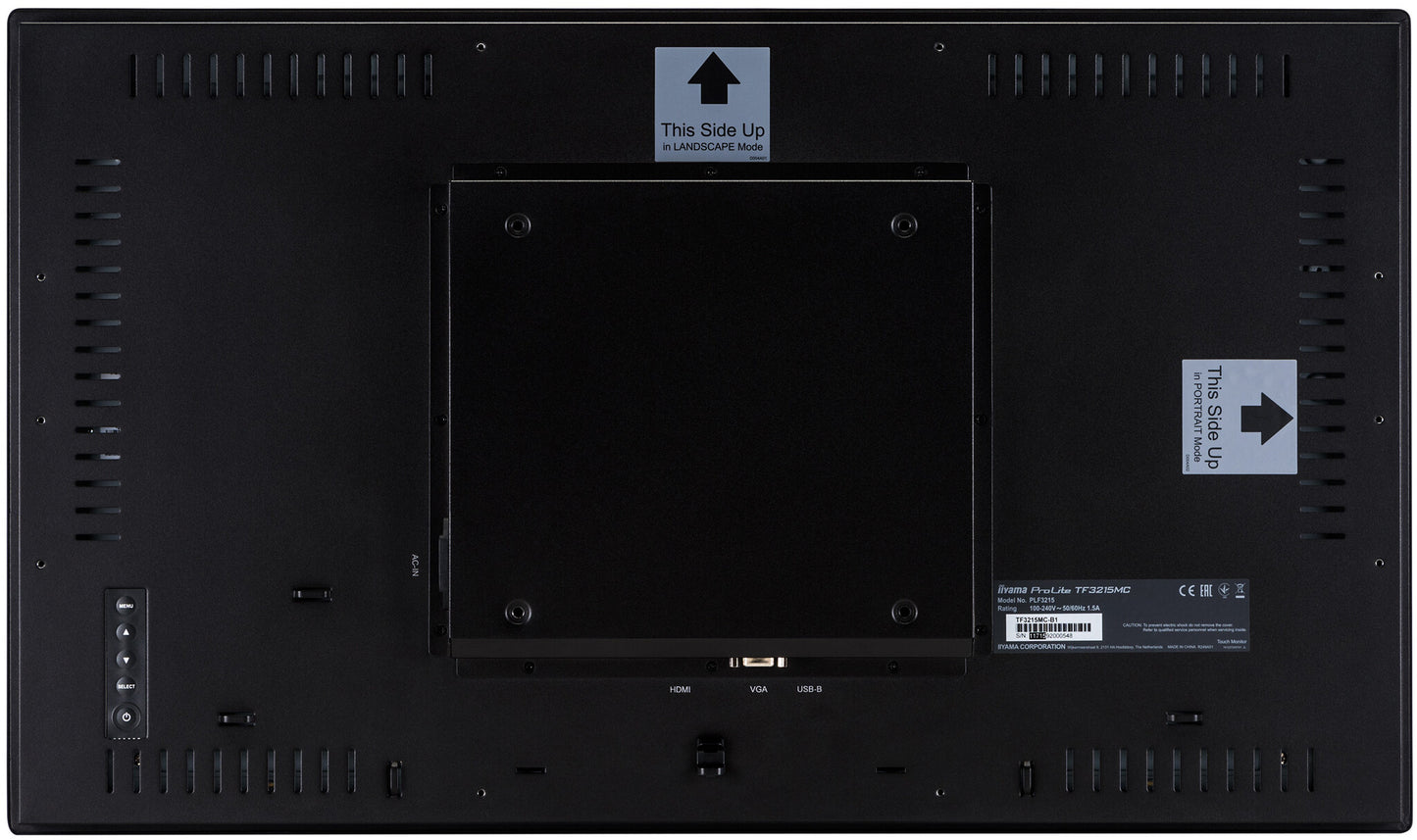

VESA mounting
Yes
Power
Energy efficiency scale
A to G
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
32 W
Energy consumption (SDR) per 1000 hours
27 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
F
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (without stand)
10 kg
Height (without stand)
437 mm
Depth (without stand)
61 mm
Width (without stand)
745.5 mm
Packaging data
Package weight
12.8 kg
Package height
630 mm
Package depth
155 mm
Package width
890 mm
Quick start guide
Yes

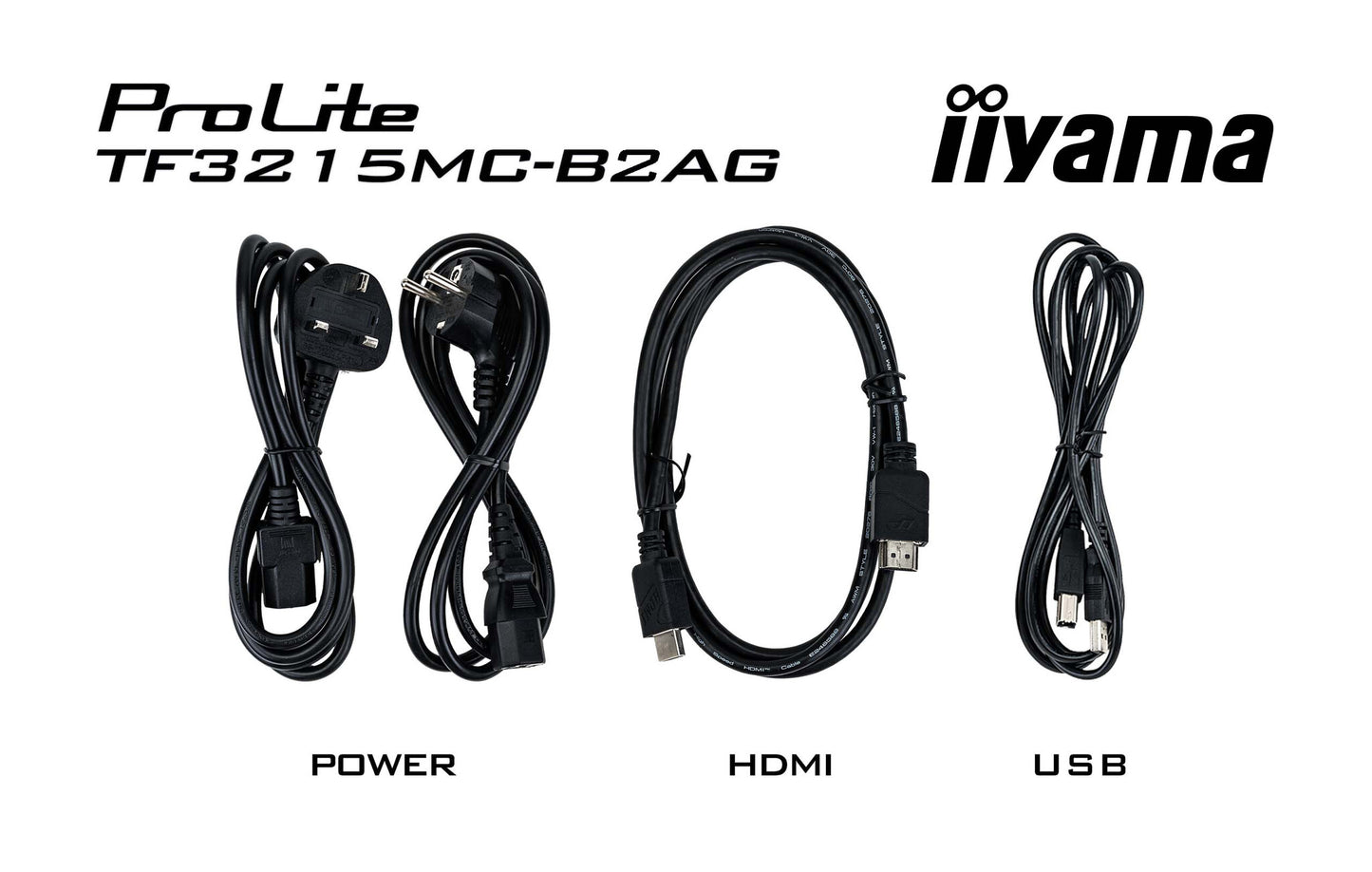

Cables included
AC, HDMI, USB
Technical details
Compliance certificates
REACH
Other features
IK code
IK07
Surface hardness
Surface hardness
6H
HDCP
Yes
Display diagonal (metric)
80 cm
Pixel pitch
0.3637 x 0.3637 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
Number of simultaneous touchpoints
30
Touchscreen type
Kiosk
Touch technology
Multi-touch
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
