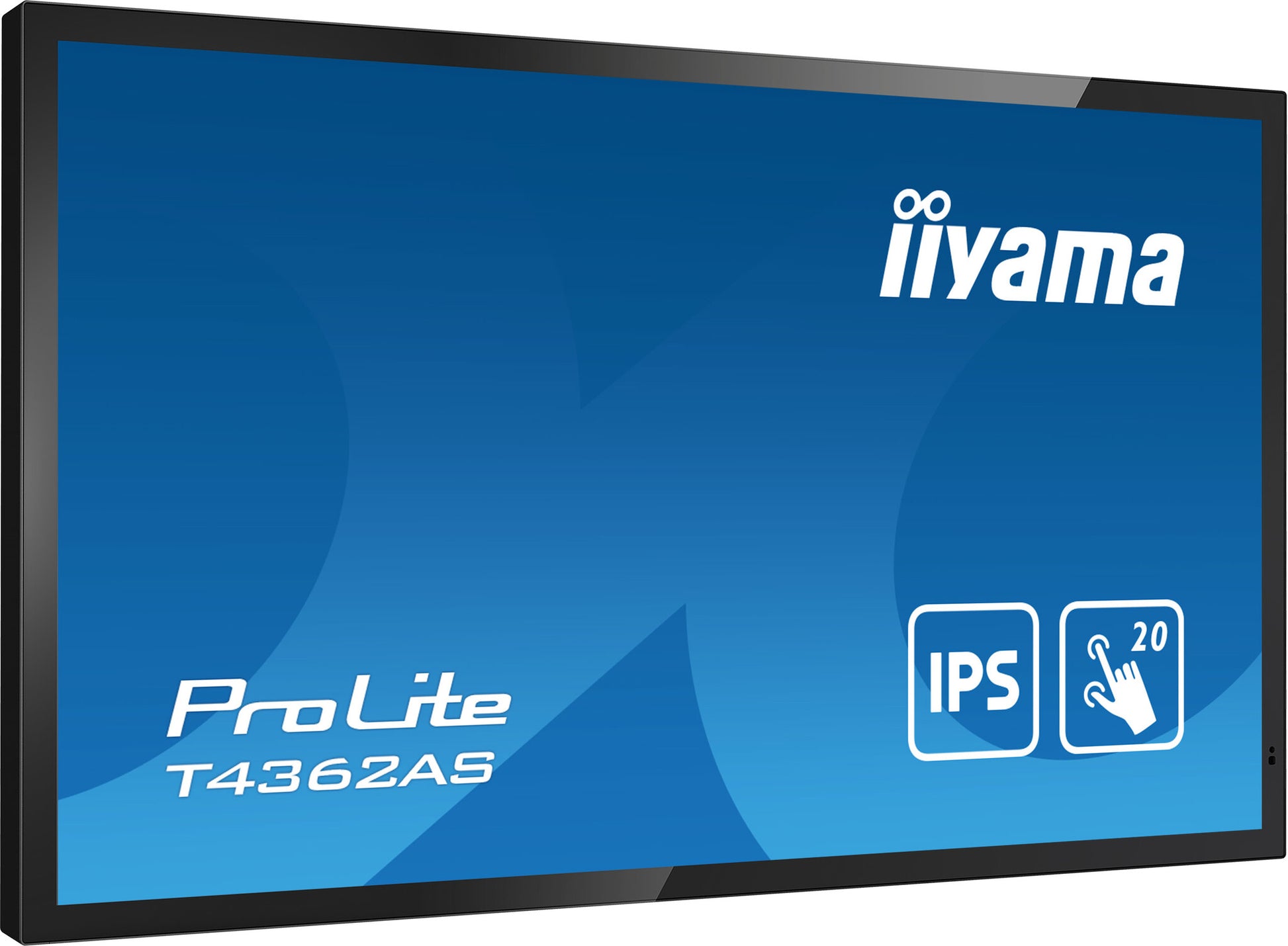

iiyama T4362AS-B1

iiyama T4362AS-B1

42.5", 3840 x 2160, IPS, 16:9, 8 ms, 60 Hz, HDMI, RS-232C, RJ-45, USB, 990 x 578.2 x 70.2 mm

  • Indoor Interactive flat panel Black
  • 108 cm (42.5") 3840 x 2160 pixels IPS 500 cd/m²
  • Touchscreen 60 Hz 8 ms
  • Ethernet LAN
  • Built-in speaker(s) 20 W
  • SKU:4948570120468
  • GTIN/EAN:4948570120468
  • MPN:T4362AS-B1
Add To Favorite

You need to login to view the price.

View full details

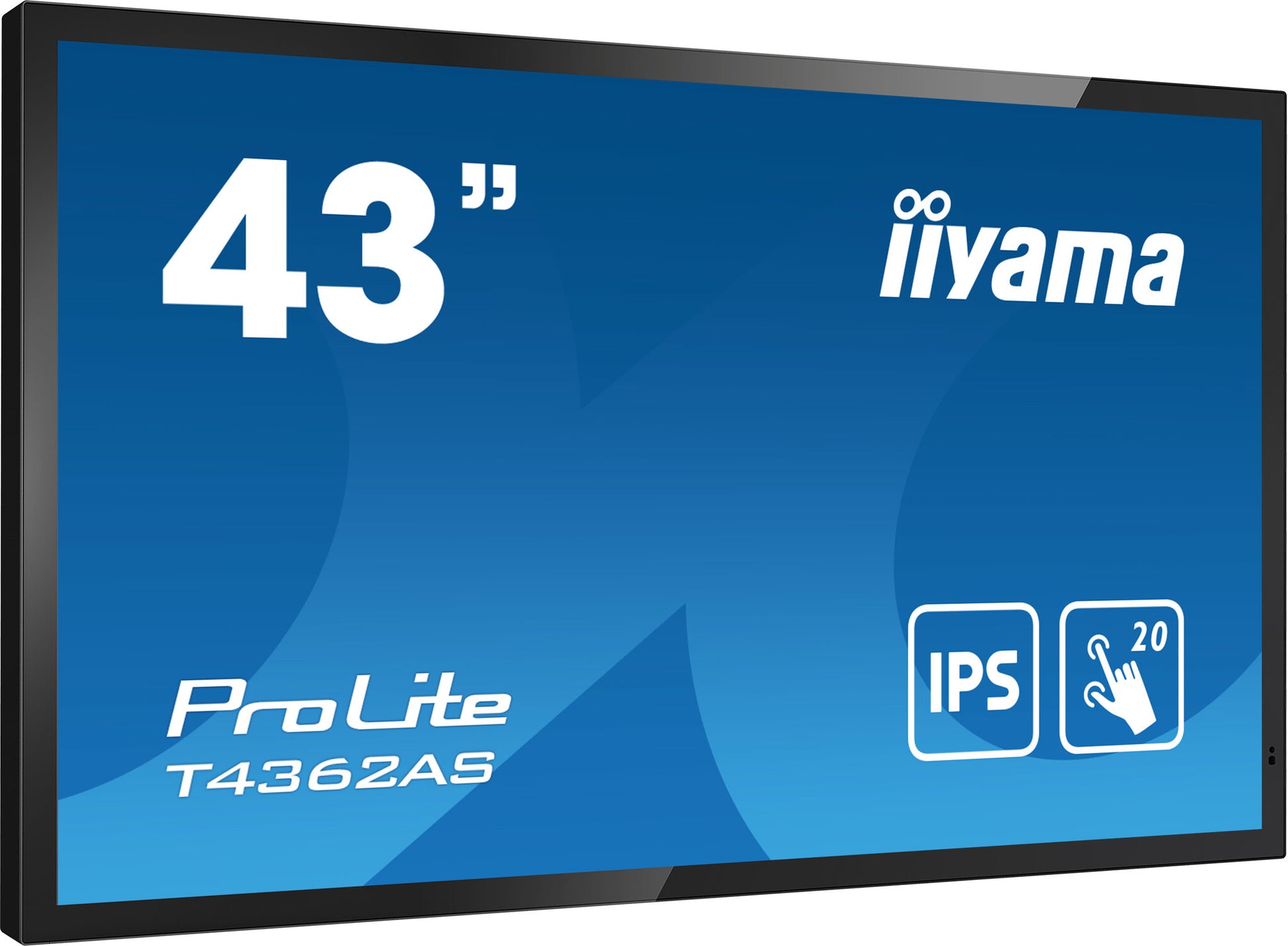

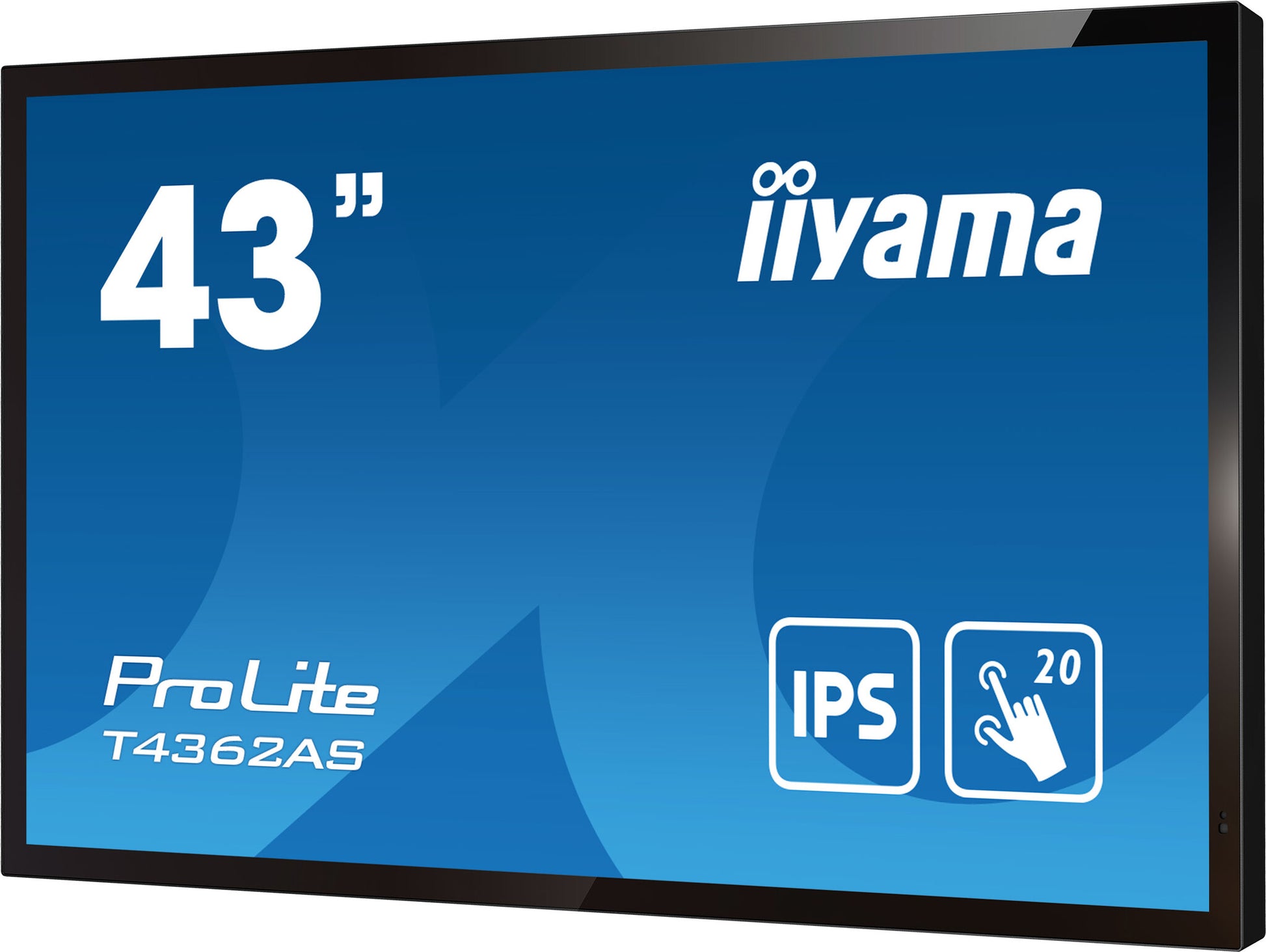

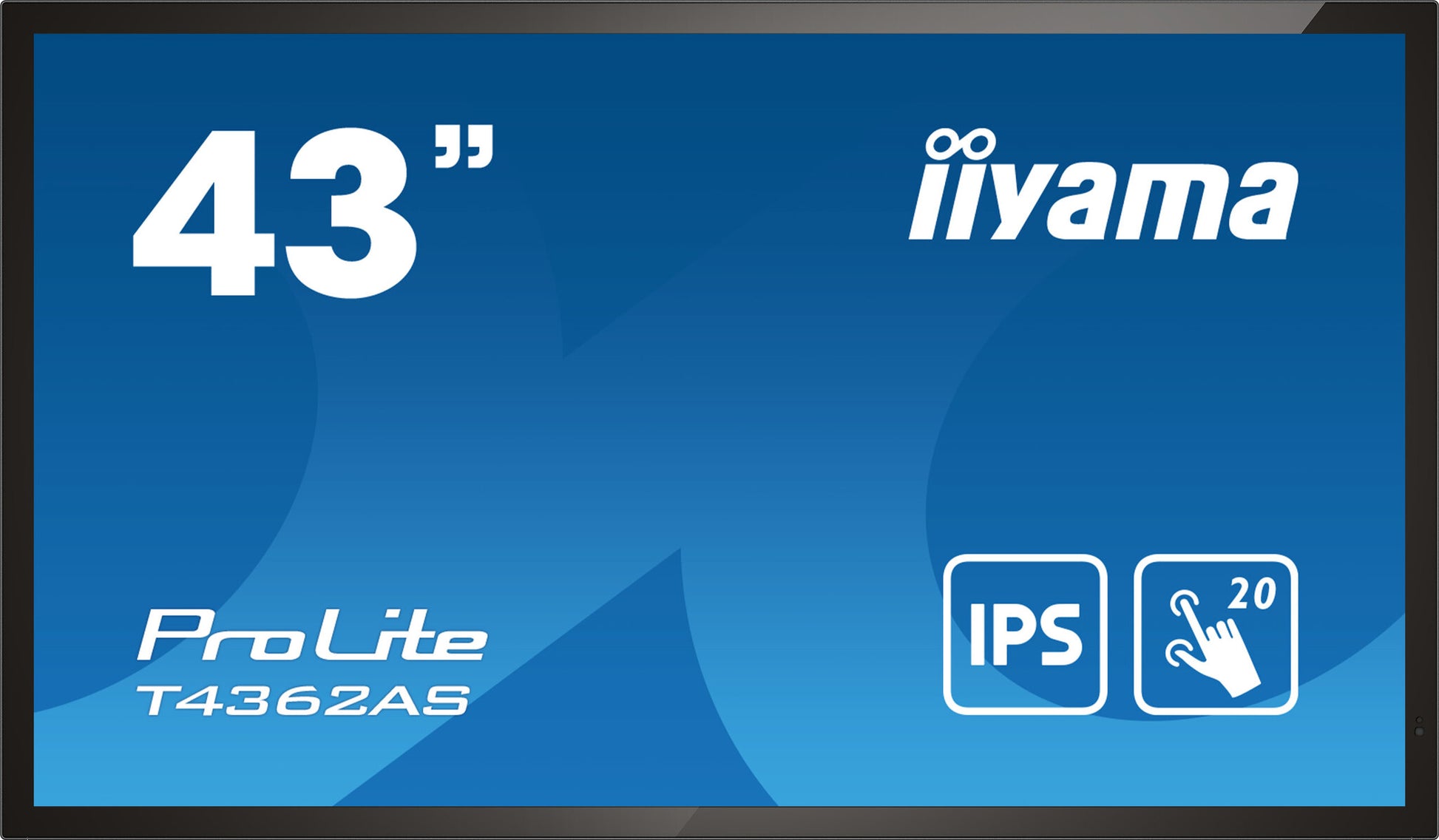

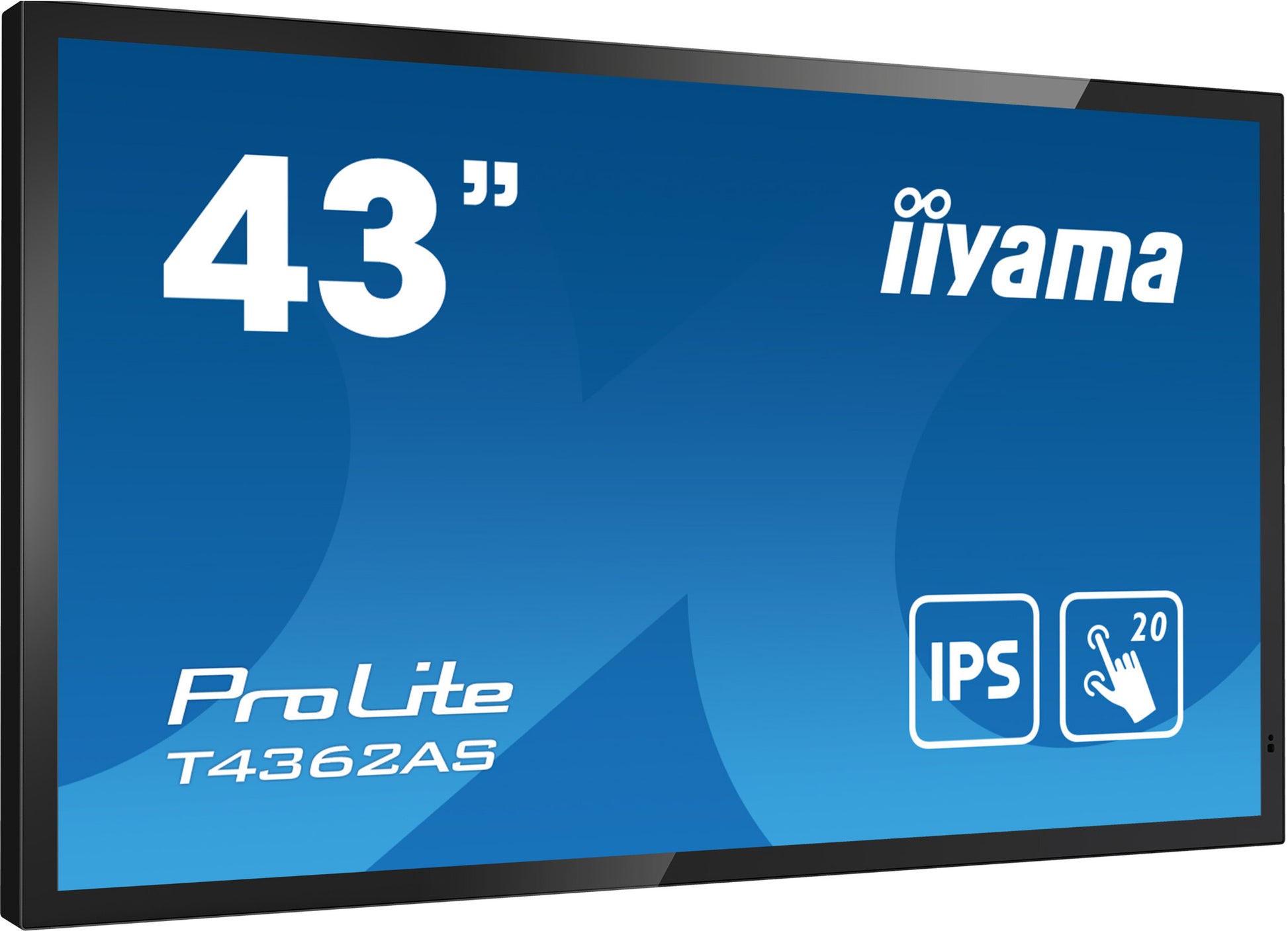

PROLITE T4362AS-B1
All-in-one PCAP Interactive Display inspired by technology and designed for creative spaces and sharing

Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.

The refined design of the T4362AS-B1 lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.

RETAIL INSTALLATIONS
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make the 62 Series displays one of the most adaptable Touchscreens solutions around.

HUDDLE SPACES
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.

SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Display
RGB colour space
NTSC
Horizontal scan range
30 - 135 kHz
Native refresh rate
60 Hz
Display diagonal (metric)
108 cm
Active display area (W x H)
941.2 x 529.4 mm
Pixel pitch
0.245 x 0.245 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Number of simultaneous touchpoints
20
Multi-touch
Yes
Touchscreen technology
Capacitive
Touchscreen
Yes
HD type
4K Ultra HD
Display brightness
500 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
IPS
Display diagonal
108 cm (42.5")

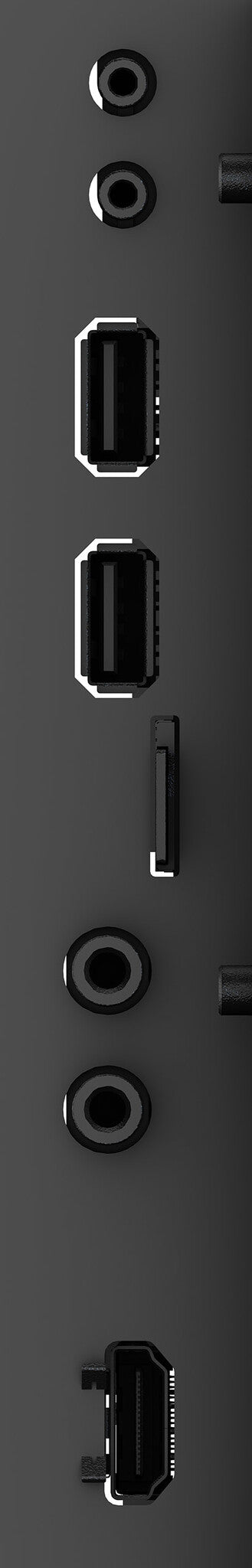

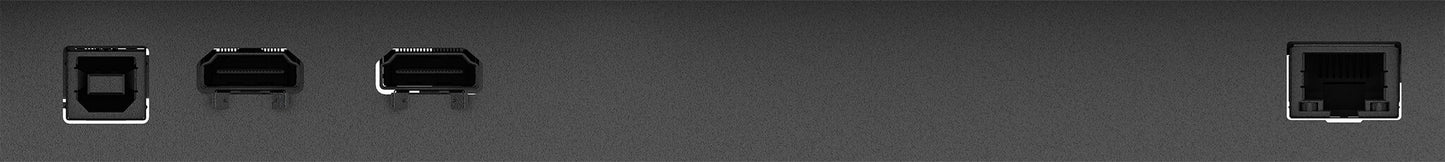

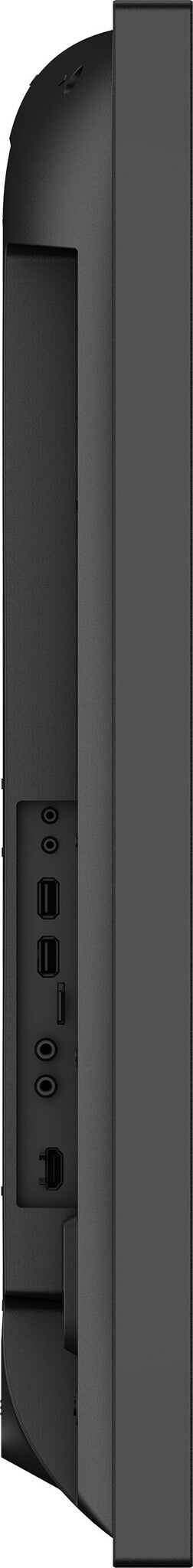

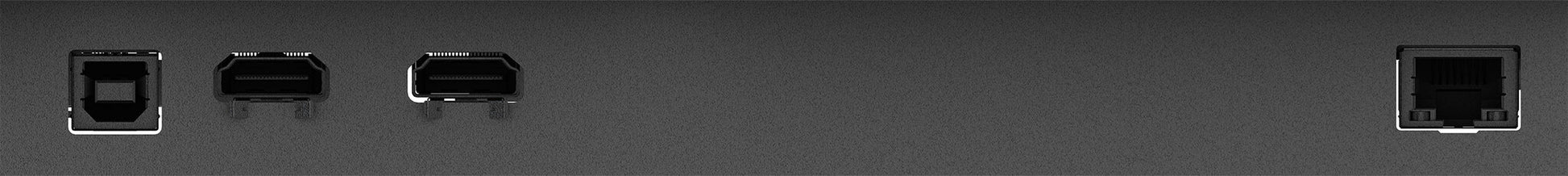

Ports & interfaces
RS-232C
Yes
Wi-Fi
No
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
2
USB port
Yes
DVI port
No
HDMI ports quantity
3
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design

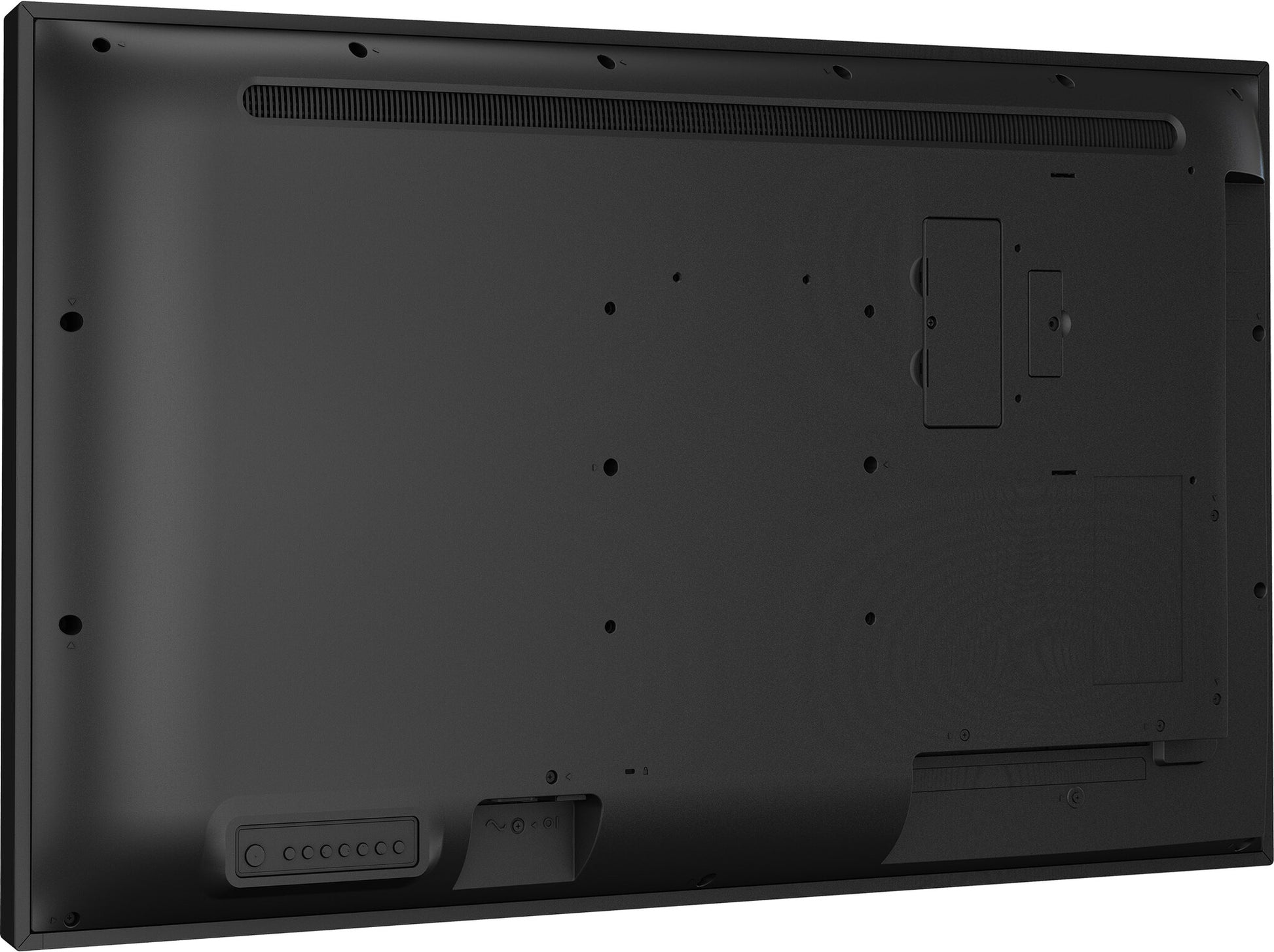

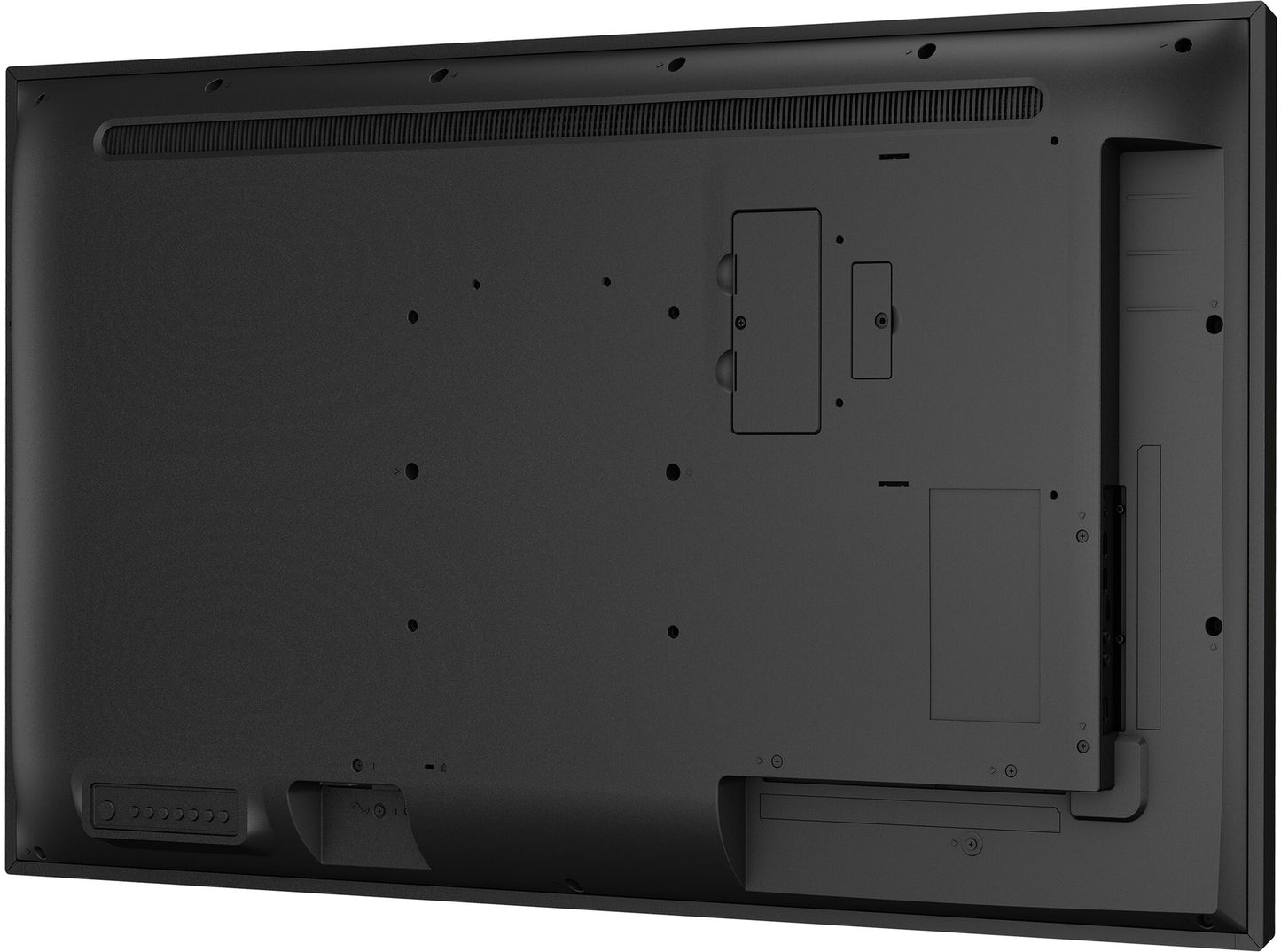

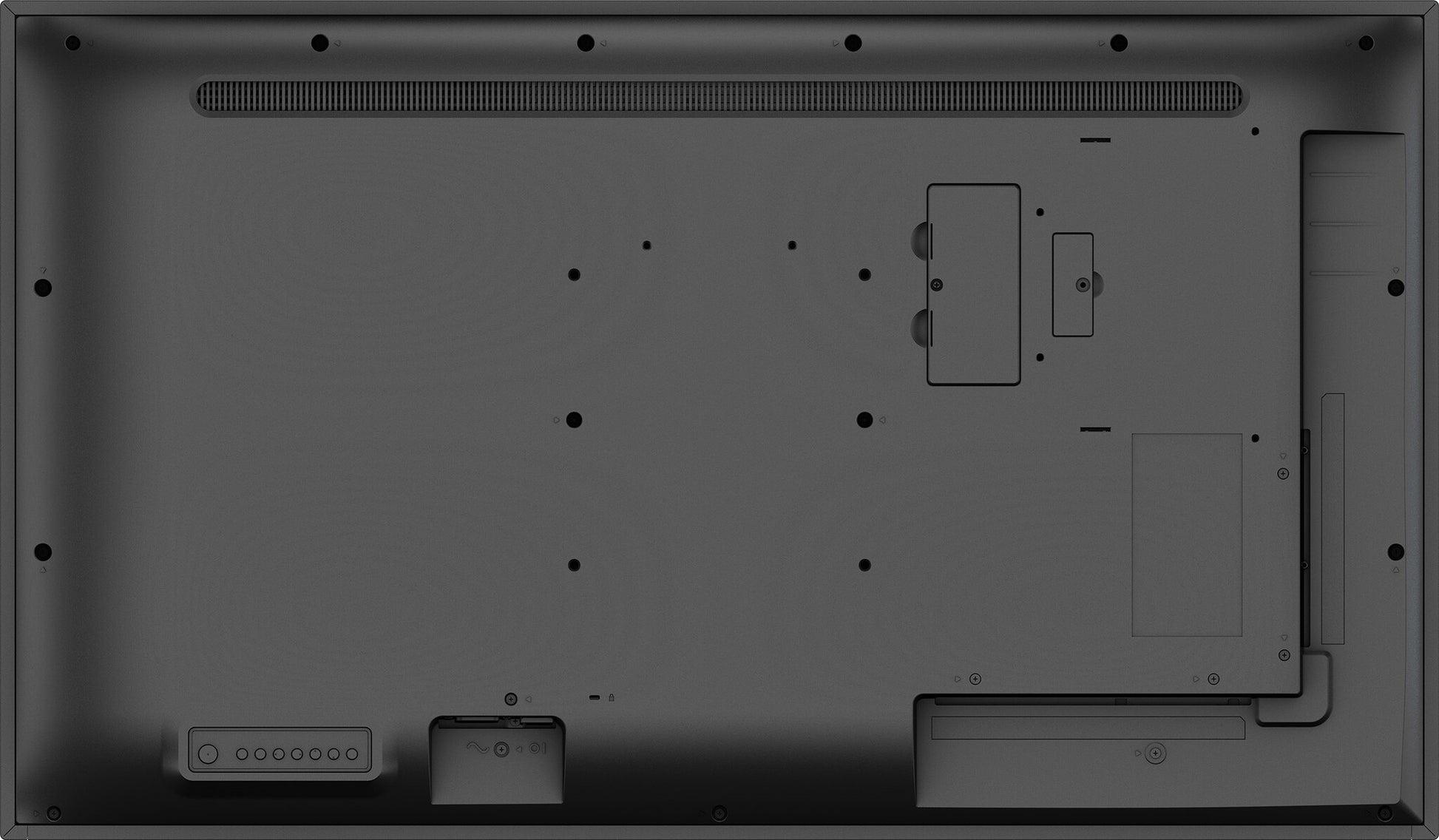

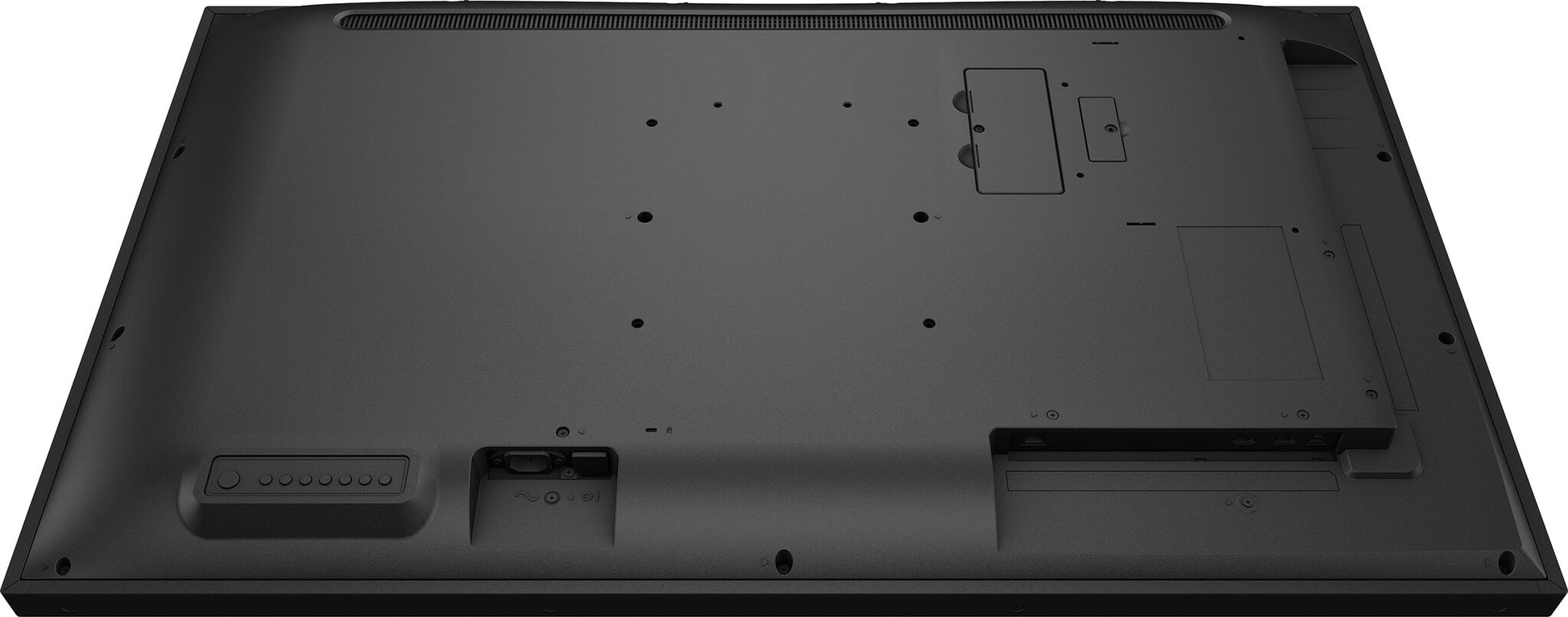

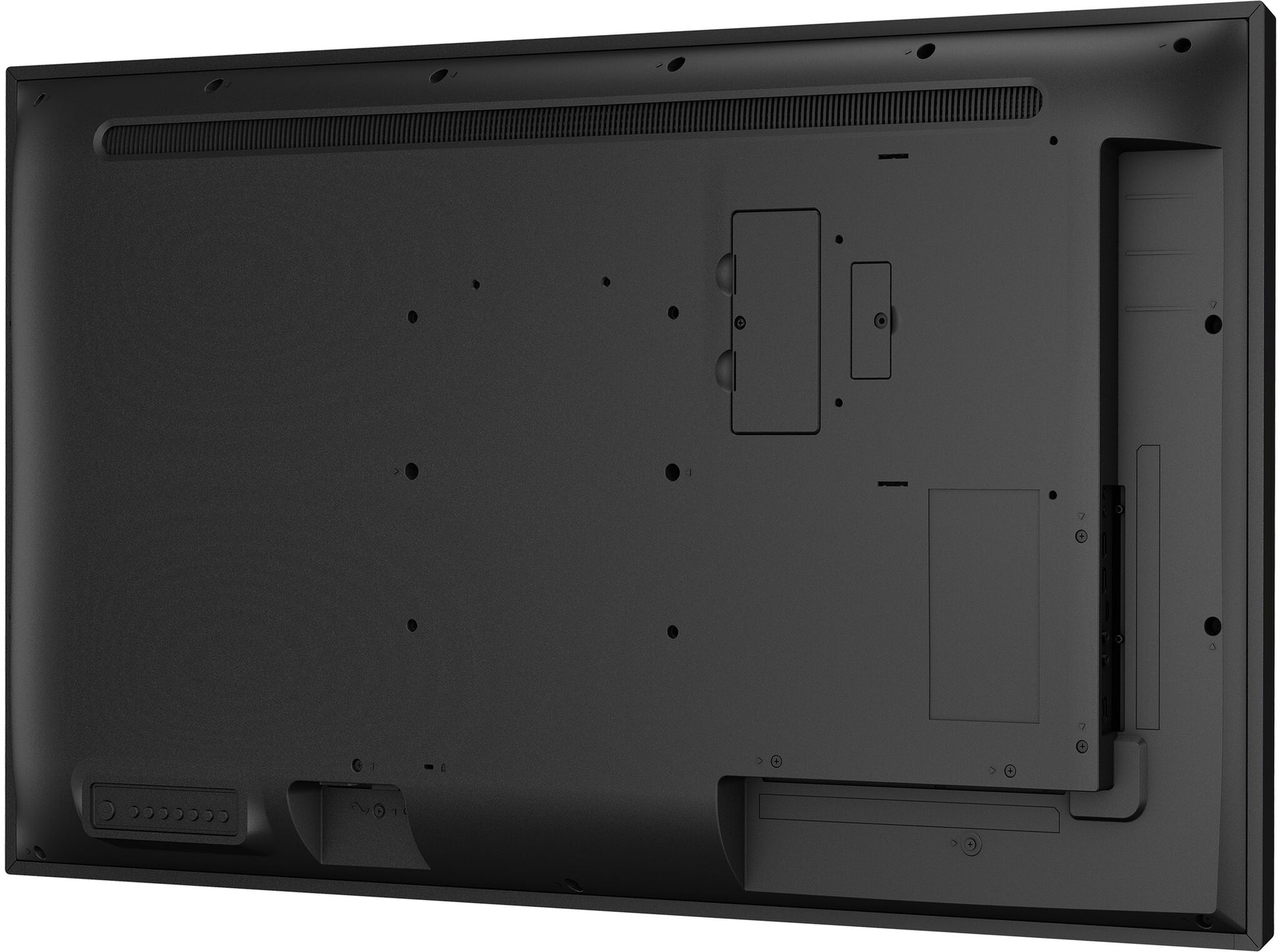

Panel mounting interface
200 x 200 mm
VESA mounting
Yes

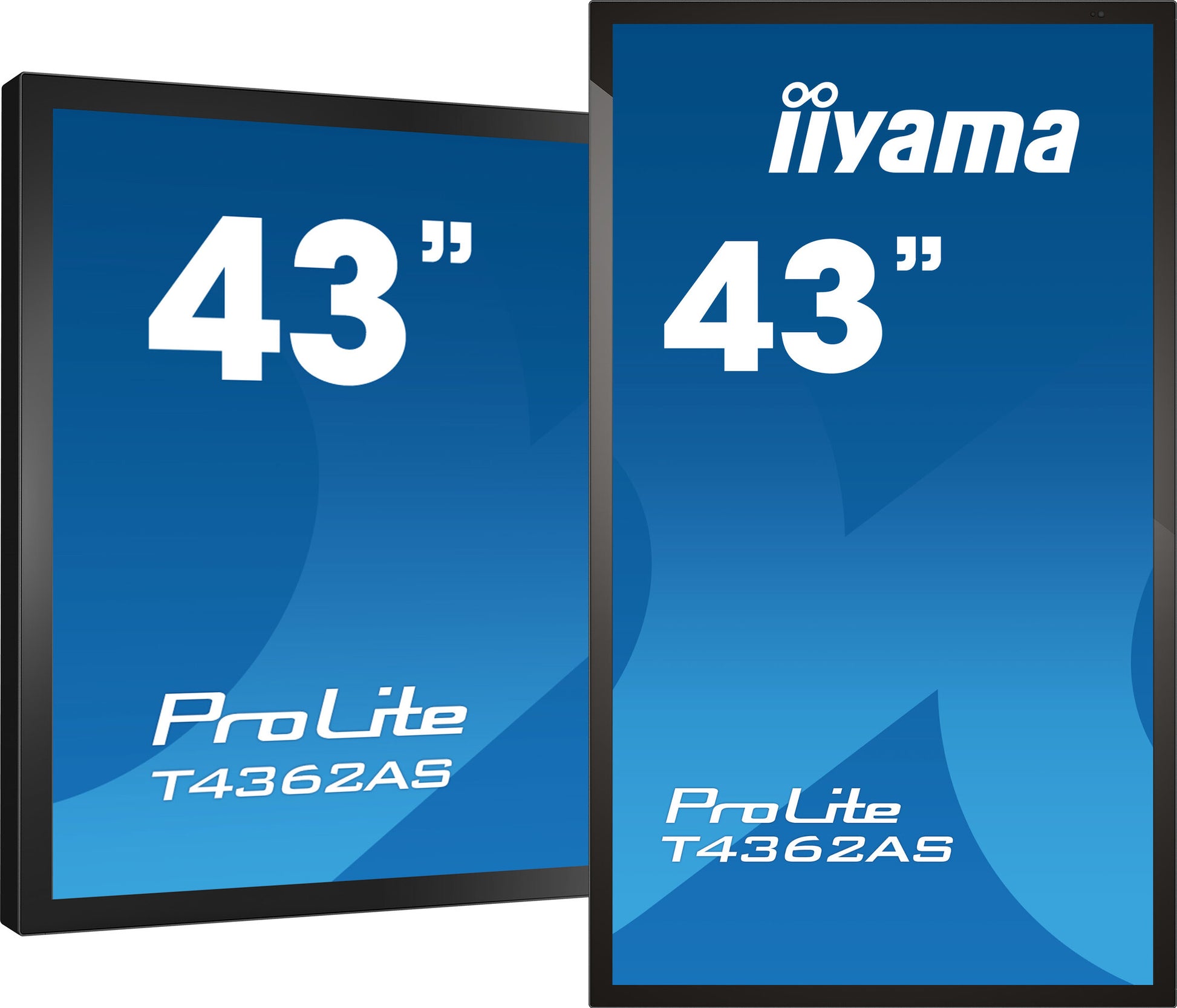

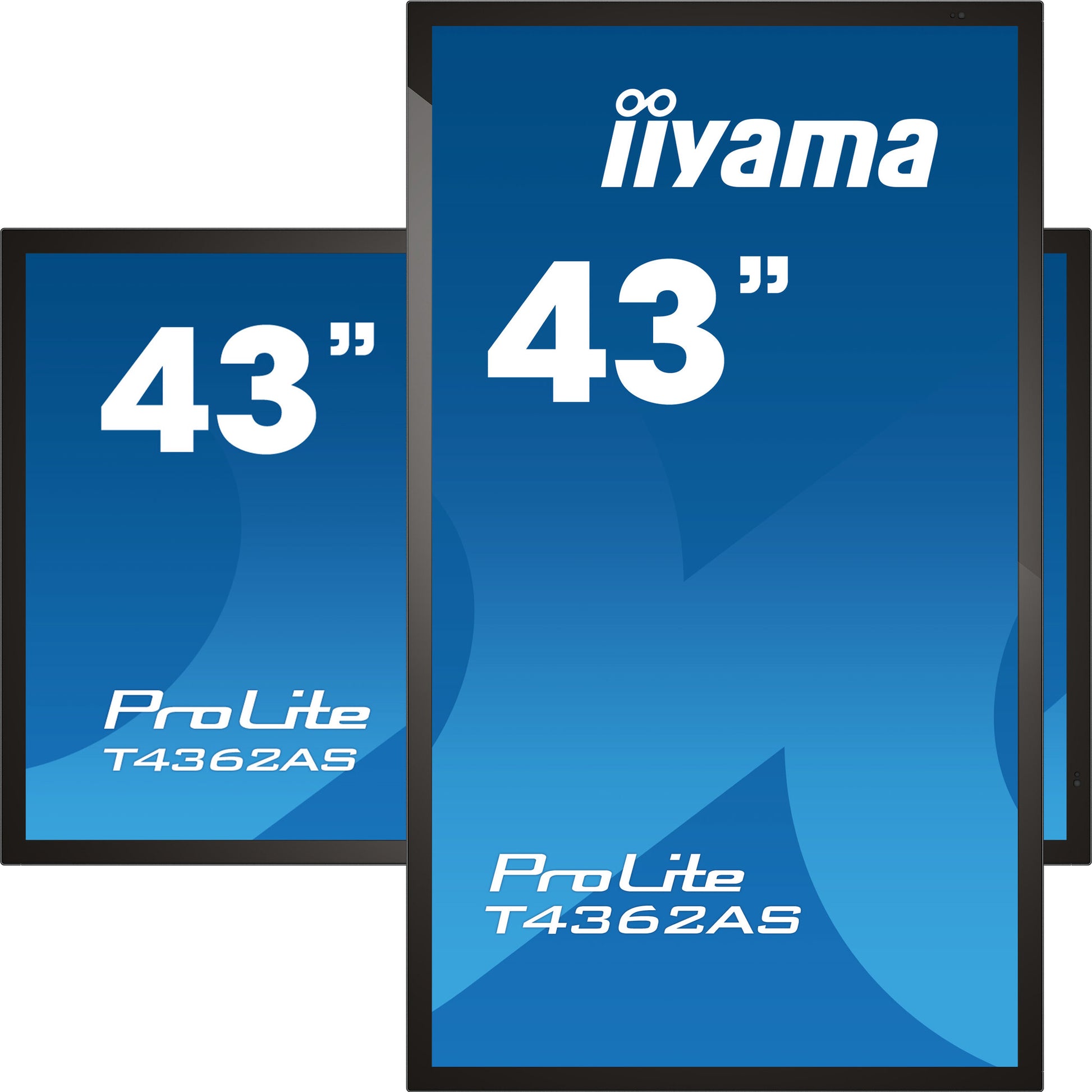

Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Interactive flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Yes
HDCP version
2.2
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Yes
Number of OSD languages
8
On Screen Display (OSD) languages
German, Dutch, English, Spanish, French, Japanese, Polish, Russian
Purpose
Universal
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
75 W
Computer system
Operating system installed
Android 8.0
Internal storage capacity
16 GB
On-board graphics card model
ARM Mali-G51
Internal memory
2 GB
Built-in processor
Yes
Computer system
Yes
Weight & dimensions
Weight
18 kg
Height
578 mm

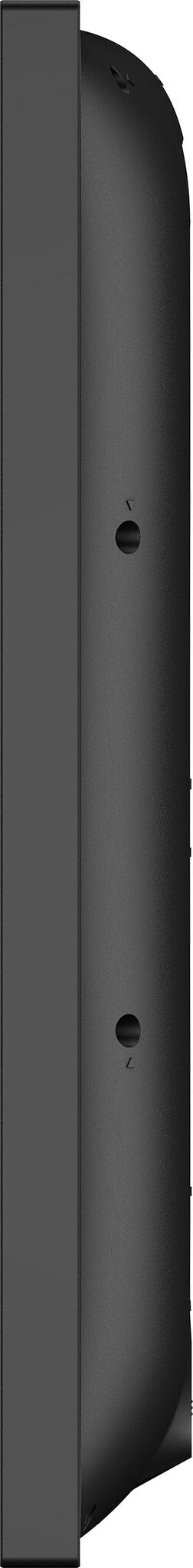

Depth
70 mm
Width
990 mm
Packaging data
Package weight
20.5 kg
Package height
702 mm
Package depth
186 mm
Package width
1070 mm
Packaging content
Cables included
AC, HDMI, RS-232, USB
Remote control included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Technical details
Sustainability certificates
ErP
Pallet net height
13 cm
Pallet net length
108 cm
Pallet net width
114 cm
Compliance certificates
CE, REACH, RoHS, WEEE
