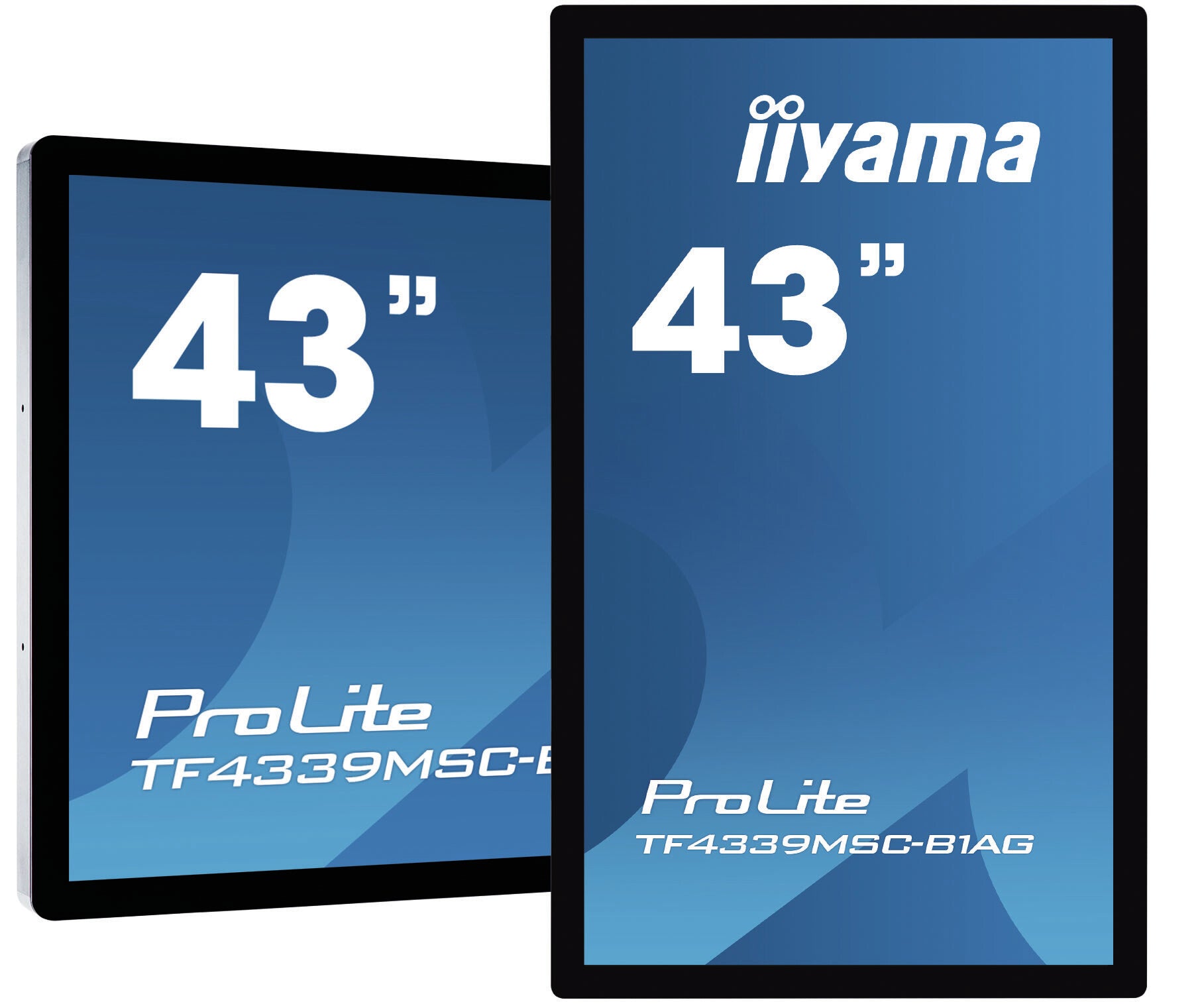

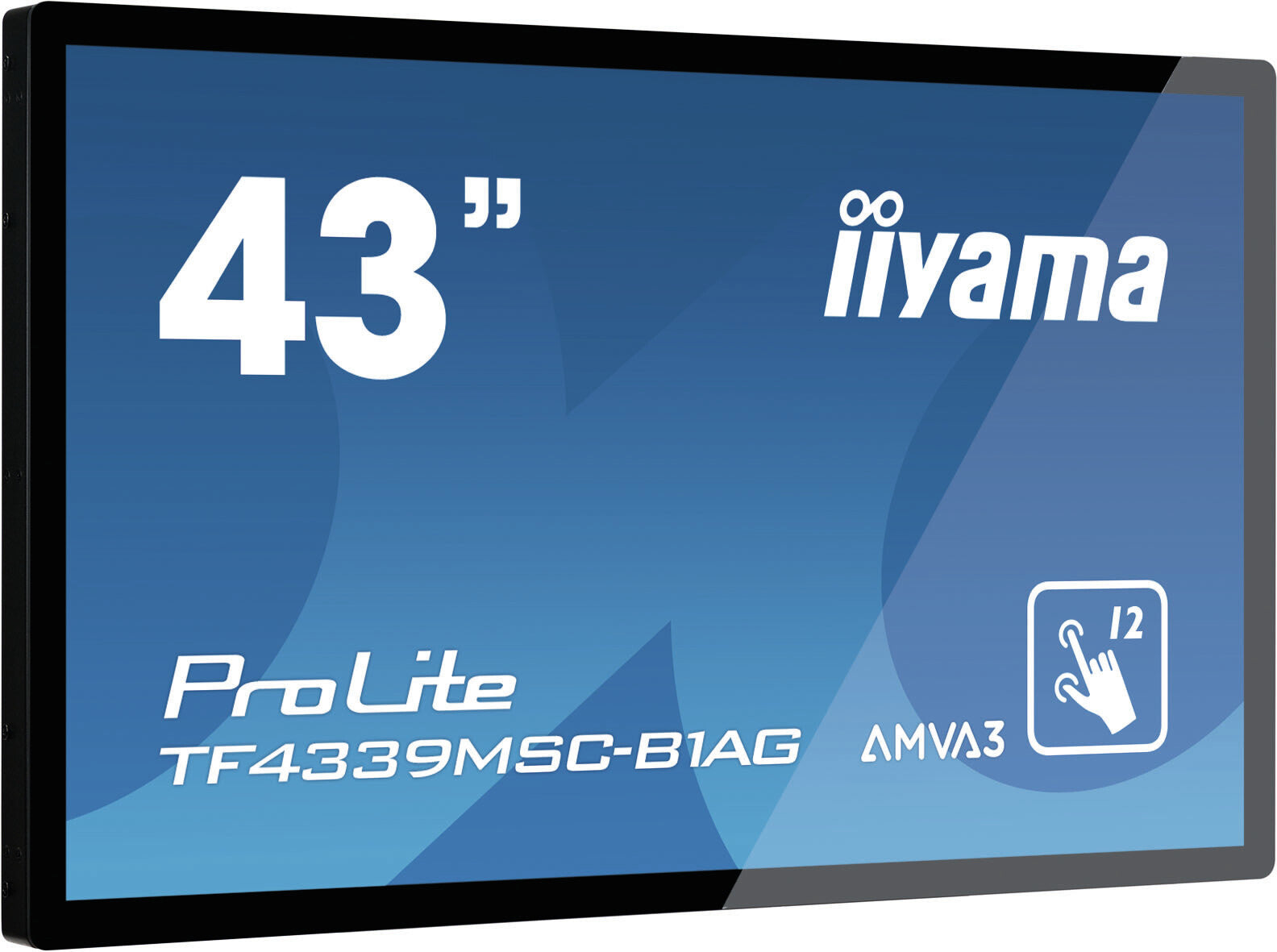

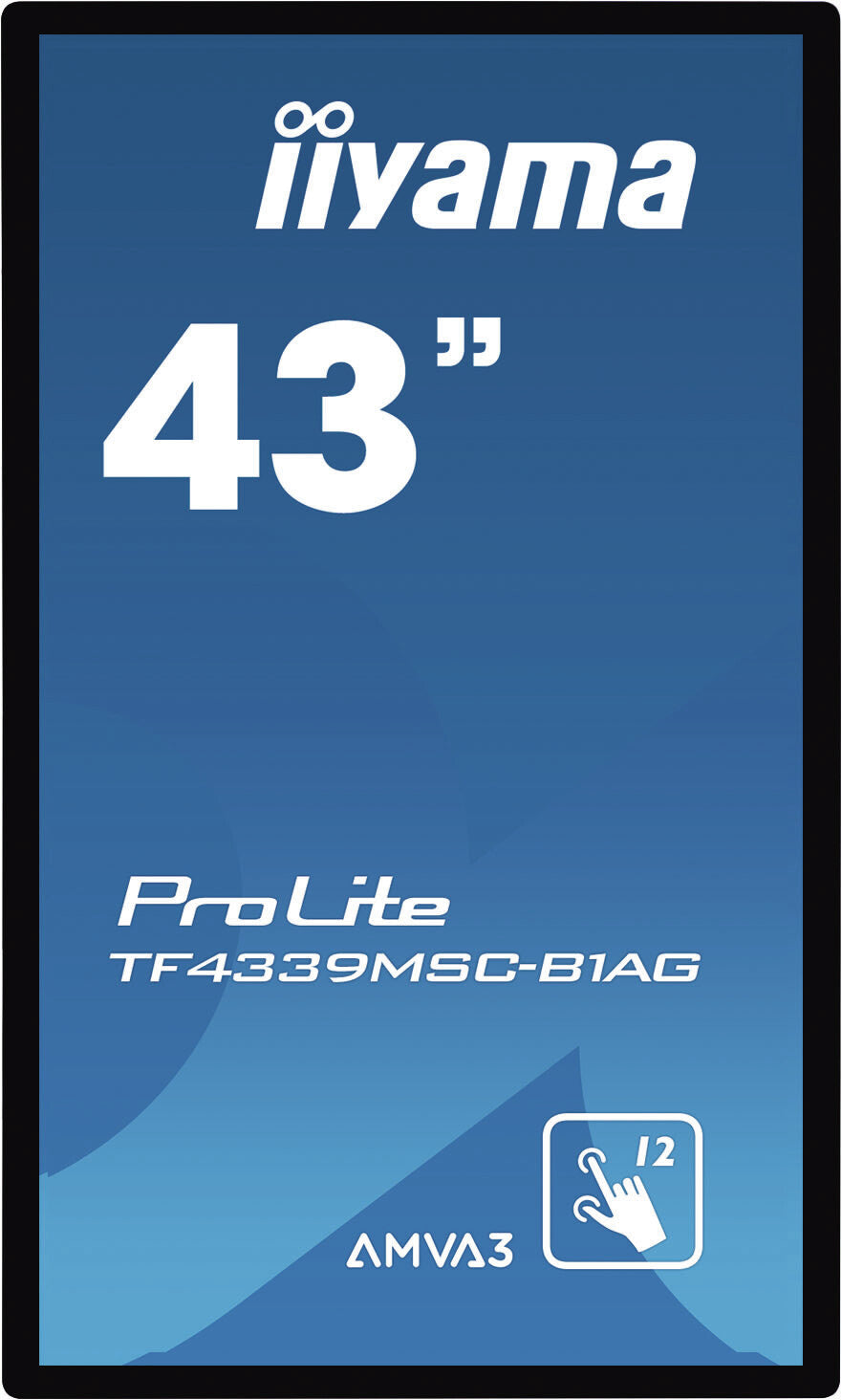

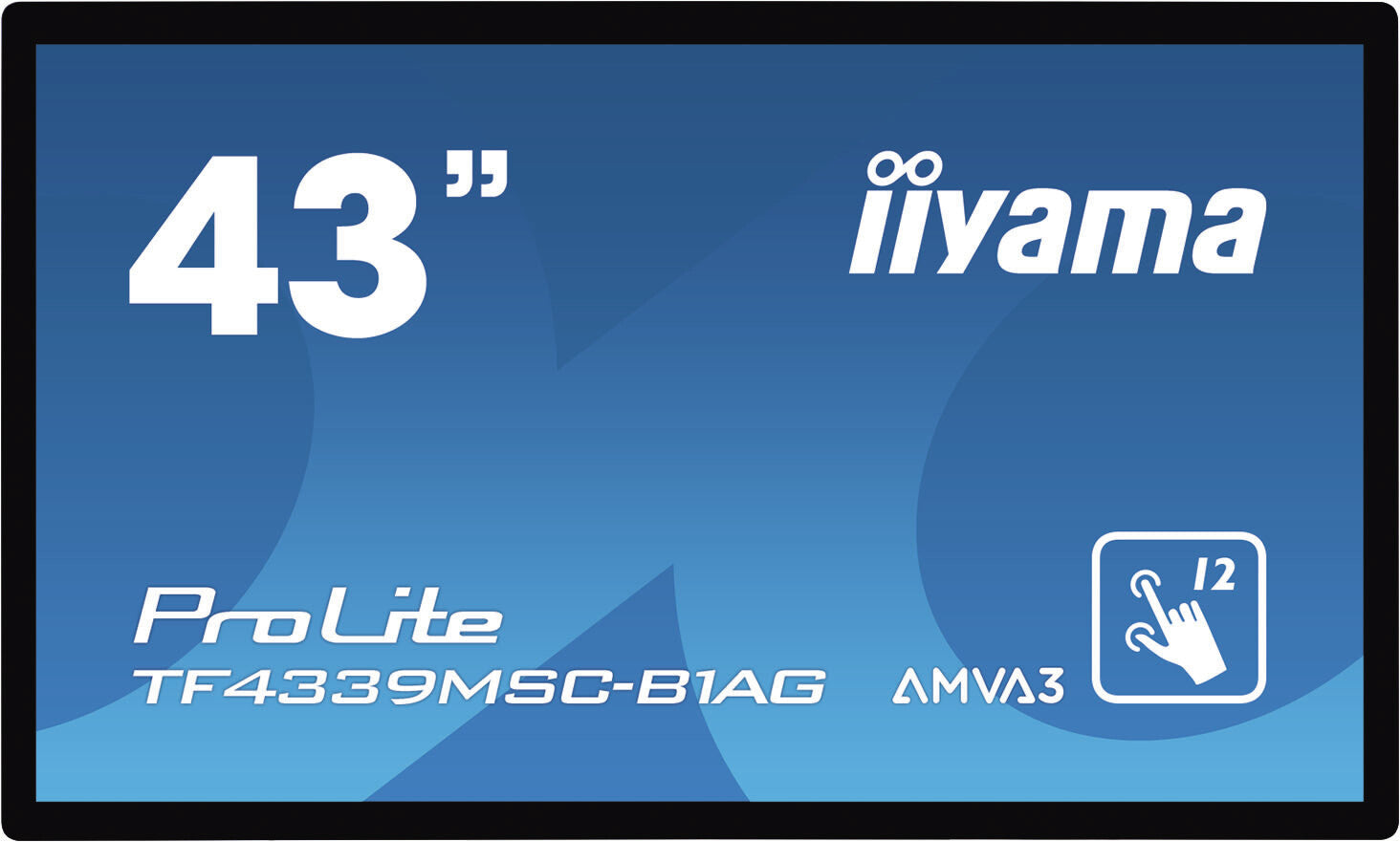

iiyama TF4339MSC-B1AG

iiyama TF4339MSC-B1AG

43", 1920x1080, 16:9, AMVA3 LED, 8 ms, VGA, HDMI, DP, RJ-45, RS-232C, HDCP, AC 100-240 V, 985x577.5x68 mm

  • Touchscreen 109.2 cm (43") LED AMVA3
  • Full HD 1920 x 1080 pixels 16:9
  • 60 Hz 8 ms 4000:1
  • G 56 kWh 60 W
  • SKU:4948570118045
  • GTIN/EAN:4948570118045
  • MPN:TF4339MSC-B1AG
Add To Favorite

You need to login to view the price.

View full details

43" 12pt Open Frame PCAP interactive large format display with touch through glass function

Touch-Through-Glass technology, guaranteeing a seamless and accurate touch response for true kiosk integration or behind-glass-retail applications. The vibrant, Full HD (1920x1080) TF4339MSC-B1AG Open Frame monitor with slim borders is the ideal display solution for interactive shop windows, education, kiosks and in-store communications. It can be installed in landscape, portrait and face-up orientation for maximum flexibility and accessibility. With its AMVA3 LED panel, it offers exceptional colour performance, high contrast and wide viewing angles. Featuring a metal housing with a 60950-1 ball-drop proof, scratch-resistant, edge-to-edge glass, this display can be installed in the most demanding environments and build in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF3239MSC can be equipped with optional external mounting brackets (OMK4-3) making it an ideal solution for kiosk integrators and interactive multimedia.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Display
Horizontal scan range
30 - 83 kHz
Display number of colours
16.78 million colours
Maximum refresh rate
60 Hz
Contrast ratio (typical)
4000:1
Screen shape
Flat
Display brightness
400 cd/m²
Response time
8 ms
Touchscreen technology
Projected capacitive system
Panel type
AMVA3
Display resolution
1920 x 1080 pixels
Display diagonal
109.2 cm (43")
Performance
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
16 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
Certification
CE, EAC, RoHS, ErP, WEEE, cULus, REACH, UKCA
International Protection (IP) code
IP54
Glass thickness
3 mm
Product colour
Black
Ports & interfaces
RS-232C
Yes
Audio output
1
Audio input
1
Ergonomics
On Screen Display (OSD) languages
German, Dutch, English, Spanish, French, Italian, Polish, Russian
Number of OSD languages
8
On Screen Display (OSD)
Yes
Wall mountable
Yes
Panel mounting interface
400 x 200 mm
Power
Energy efficiency scale
A to G
Power supply type
AC
AC input frequency
50 - 60 Hz
AC input voltage
100-240 V
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
60 W
Energy consumption (SDR) per 1000 hours
56 kWh
Energy efficiency class (SDR)
G
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Sustainability
Sustainability certificates
ErP
European Product Registry for Energy Labelling (EPREL) code
401399
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (without stand)
23 kg
Height (without stand)
577.5 mm
Depth (without stand)
68 mm
Width (without stand)
985 mm
Packaging data
Package height
700 mm
Package depth
200 mm
Package width
1070 mm
Cables included
AC, DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CE, REACH, RoHS
Other features
Ethernet LAN (RJ-45) ports
1
Display viewable area (HxV)
529.25 x 940.86 mm
Placement supported
Horizontal/Vertical
Surface hardness
Surface hardness
7H
HDCP
Yes
Display diagonal (metric)
108 cm
Built-in microphone
No
Pixel pitch
0.4902 x 0.4902 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
2
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Touch port
Yes
Number of simultaneous touchpoints
12
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
