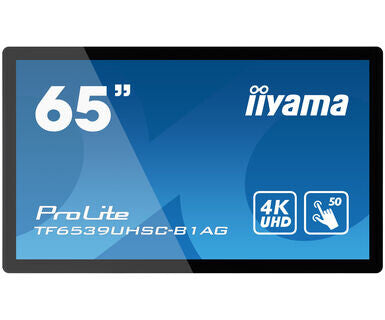

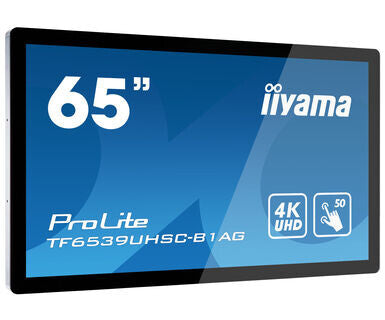

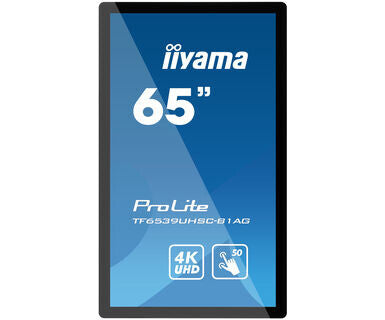

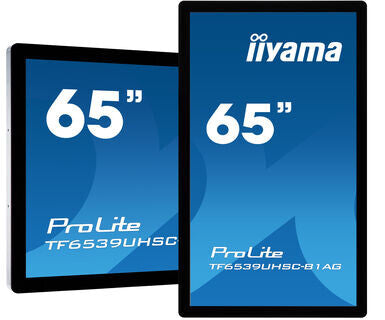

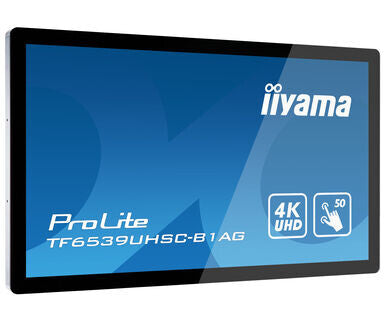

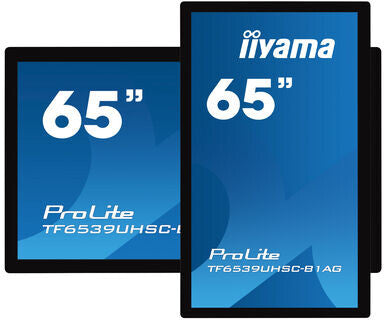

iiyama TF6539UHSC-B1AG

iiyama TF6539UHSC-B1AG

65", IPS, 4K, 3840 x 2160, 16:9, 500 cd/m², 1100:1, 8ms, HDMI x2, DisplayPort x1, RS-232c x1, RJ45 x1

  • Interactive flat panel Black
  • 165.1 cm (65") 3840 x 2160 pixels LCD 500 cd/m²
  • Touchscreen 8 ms
  • Built-in speaker(s)
  • SKU:4948570118083
  • GTIN/EAN:4948570118083
  • MPN:TF6539UHSC-B1AG
Add To Favorite

You need to login to view the price.

View full details

The 4K UHD (3840x2160) Open Frame TF6539UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF6539UHSC-B1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.

IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

24/7
24/7 displays are designed for a continuous operation.

Display
Panel type
IPS
Display number of colours
16.78 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1100:1
Response time
8 ms
Number of simultaneous touchpoints
50
Touchscreen
Yes
HD type
4K Ultra HD
Display brightness
500 cd/m²
Display resolution
3840 x 2160 pixels
LED backlight
Yes
Display technology
LCD
Display diagonal
165.1 cm (65")
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
HDMI version
1.4/2.0
HDMI ports quantity
2
Audio
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Panel mounting interface
600 x 400 mm
VESA mounting
Yes
Product colour
Black
Product design
Interactive flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Yes
Purpose
Commercial
Power
Energy efficiency scale
A to G
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.5 W
Power consumption (standby)
0.5 W
Power consumption (typical)
175 W
Weight & dimensions
Weight
56 kg
Height
880.5 mm
Depth
67 mm
Width
1503.5 mm
Packaging data
Package weight
65 kg
Package height
1020 mm
Package depth
310 mm
Package width
1670 mm
Packaging content
Cables included
AC, DisplayPort, HDMI, USB
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Technical details
Sustainability certificates
ErP
Compliance certificates
CE, REACH, RoHS, WEEE
Other features
Quick start guide
Yes
DisplayPort version
1.2
