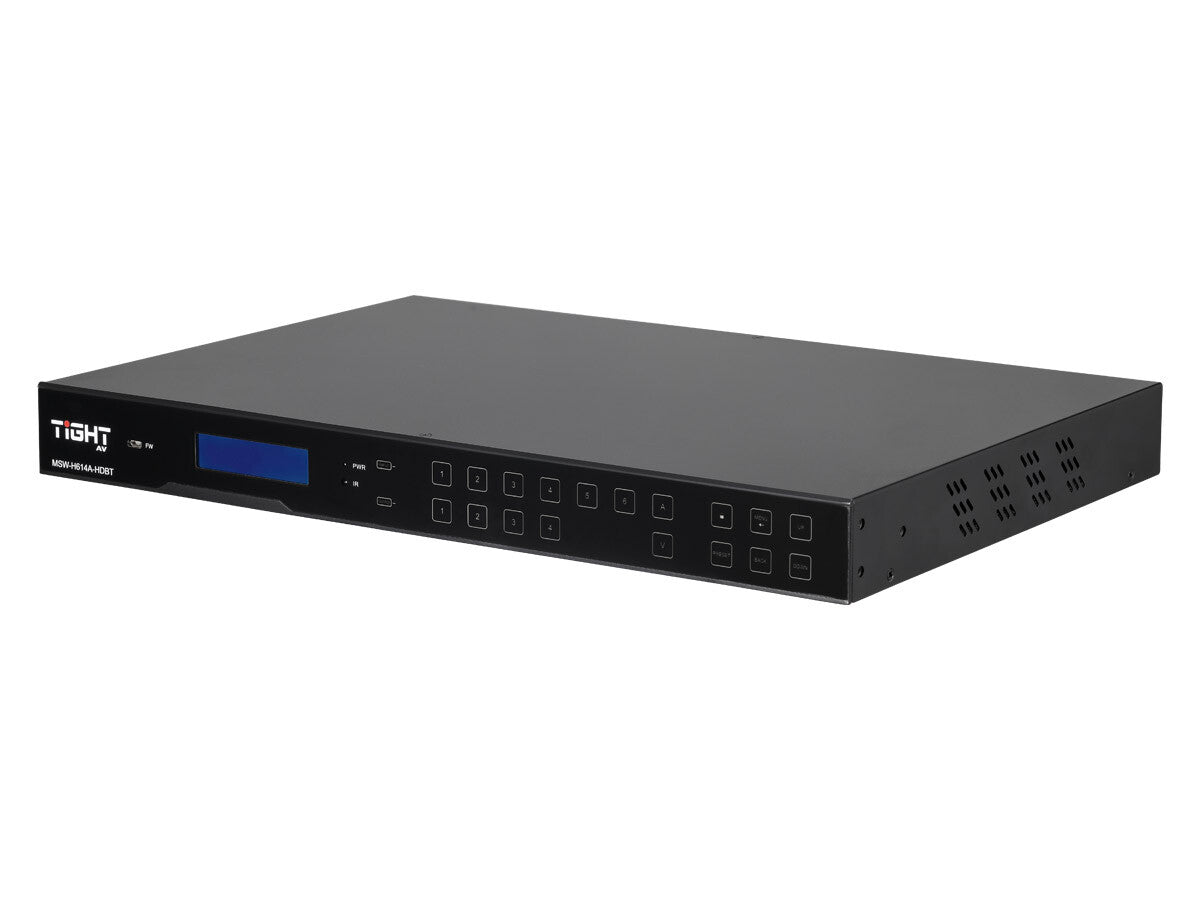

6X4+2 MATRIX SWITCHER WITH HDBT

This professional-grade 6x4+2 HDMI 2.0 and HDBaseT matrix switcher is designed to deliver optimal performance. Boasting a 2-input HDBaseT and four-input HDMI matrix with HDCP 2.3 and up to 4K60 4:4:4 video support, this matrix switcher is capable of transmitting 4K video up to 40 meters and 1080p video up to 70 meters over a single CAT6A cable.

In addition, the MSW-H614A-HDBT features four HDMI 2.0 with two mirrored simultaneous HDBaseT outputs which support 24V Power over Cable (PoC), enabling compatible TiGHT AV HDBaseT receivers to draw power from the matrix over the CAT6A cable. The matrix switcher is equipped with a 6x4 audio matrix that possesses de-embedding capabilities with individual volume, mute, and delay control per analog output channel.

The matrix switcher features comprehensive EDID management and advanced HDCP handling to ensure maximum functionality with a wide range of video sources and displays. The matrix switcher also offers multiple control options by front panel, IR, RS232 commands, WEB UI and TCP/IP commands.

KEY FEATURES

• Supports HDMI 2.0b, 4K@60Hz 4:4:4, HDR 10, Dolby Vision and HDCP 2.3.
• Equipped with HDBaseT inputs and outputs for signal extension. Compatible with   TiGHT AV EXT-H101L2-TX/RX-HDBT and EXT-H211L2-SRX-HDBT.
• Max transmission is up to 4K 40m and 1080p@70m over HDBT.
• Audio matrix, audio out can de-embedded from arbitrary input or output.
• Individual volume adjustment and delay on each analog audio output.
• Supports 4K to 1080p auto-downscaling without frame rate change on all HDMI and HDBaseT outputs.
• Provides 24V PoC for compatible TiGHT AV HDBaseT transmitters and receivers.
• Each of the HDMI outputs supports up to 5V@500mA for AoC cables.
• Advanced WEB-UI for control and configuration.
• Comprehensive HDCP and EDID management.
• Controllable by front panel, IR, RS232 and TCP/IP.
• Open TiGHT AV API for third-party control.
