SolidDrive Actuator Desktop Kit with SD-250 Amplifier for Any Surface

SolidDrive Actuator Desktop Kit with SD-250 Amplifier for Any Surface

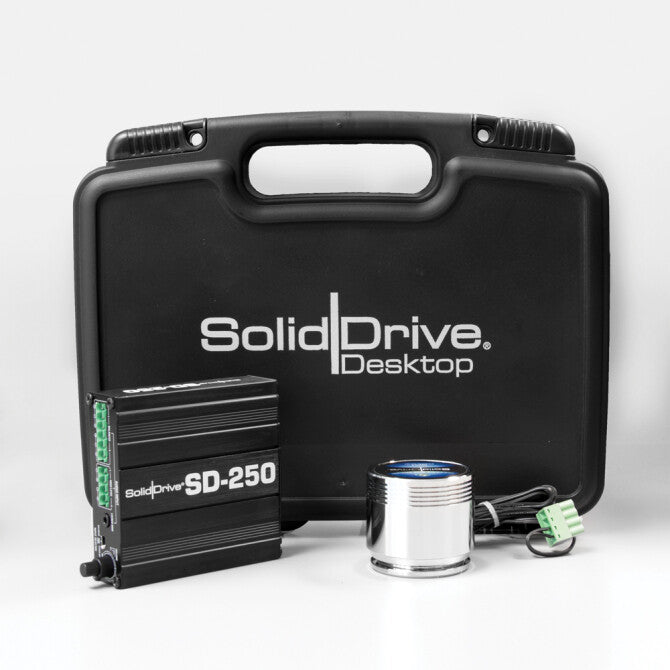

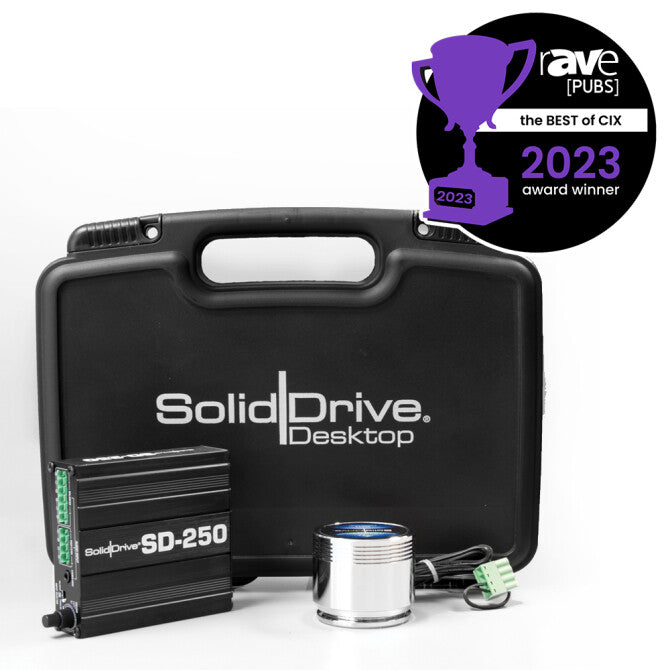

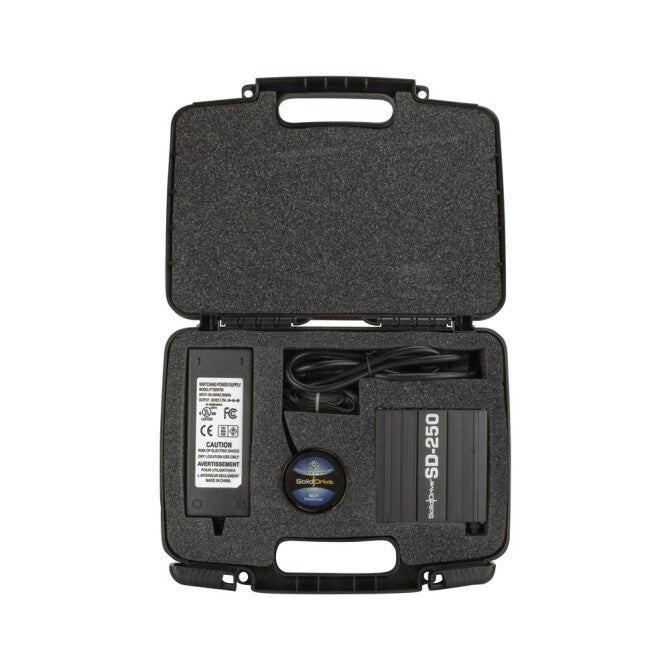

  • KIT Including SD1 desktop unit, DC power adapter, cables, and SD-250 250 watt mini amp with SolidDrive EQ curves in a convenient carrying case.
  • SKU:SD-1DESKTOP-250
  • GTIN/EAN:644216214006
  • MPN:SD-1DESKTOP-250
Add To Favorite

You need to login to view the price.

View full details

SolidDrive SD1 Desktop Kit-250 Actuator Desktop Kit with SD250 Amplifier for Any Surface

The SD1 Desktop Kit-250 is the ideal way to see how the SolidDrive works on any surface including but not limited to glass, metal, wood, ceramics, laminates, and composites. The SolidDrive unit in the kit has a special silicone backing so it will work with virtually any surface without scratching or leaving a mark. The kit includes one SD1 desktop unit, DC power adapter, cables, and SD-250 250 watt mini amp with SolidDrive EQ curves in a convenient carrying case. The SD-250 is an ultra compact 2-channel amplifier with extra heat sink surfaces for extended duty at full power. The amp is rated at 50 watts per channel and can run in stereo, mono, or bridged mono. But most importantly it has custom electronic EQs for glass, sheet rock, wood, or bypass. Having the correct power and the right EQ will make the AD sound its best. The amp can utilize balanced stereo euroblock, stereo unbalanced mini jack, or high level euroblock inputs.

Owner's Manual | Tech Sheet | CE Certification

Color Black
UPC 644216214006
Manufacturer SolidDrive
Manufacturer's Category The Original SolidDrive
Height 2.06 in / 52.32 mm
Width/Diameter 2.3 in / 58.42 mm
Shipping Weight 10.36 lbs
Certifications RoHS
Enclosure Properties Anodized Aluminum
Included Accessories 3-Pin Euroblock, 4-Pin Euroblock, Mounting Hardware, Power Supply, Stereo RCA Adapter
Source Inputs Wire Leads
TAA Compliant (Trade America) Yes
BAA Compliant (Made in USA) Yes
Power Requirements 32 v DC
Voltage Gain 34 dB
Coverage Angle (±6dB @ 2kHz) 120°
Frequency Response (± 10 dB) 60 Hz - 15 kHz Nominal w/o EQ
Frequency Response (± 3 dB) 80 Hz - 10 kHz Nominal w/o EQ
Max. Continuous Power RMS 30 W
Max. Program Power 100 W
Minimum Impedance (Ω Ohms) 7.8 Ω
Nominal Impedance (Ω Ohms) 8 Ω
Audio
Impedance
8 Ω
RMS rated power
30 W
