ALPHA MR120F

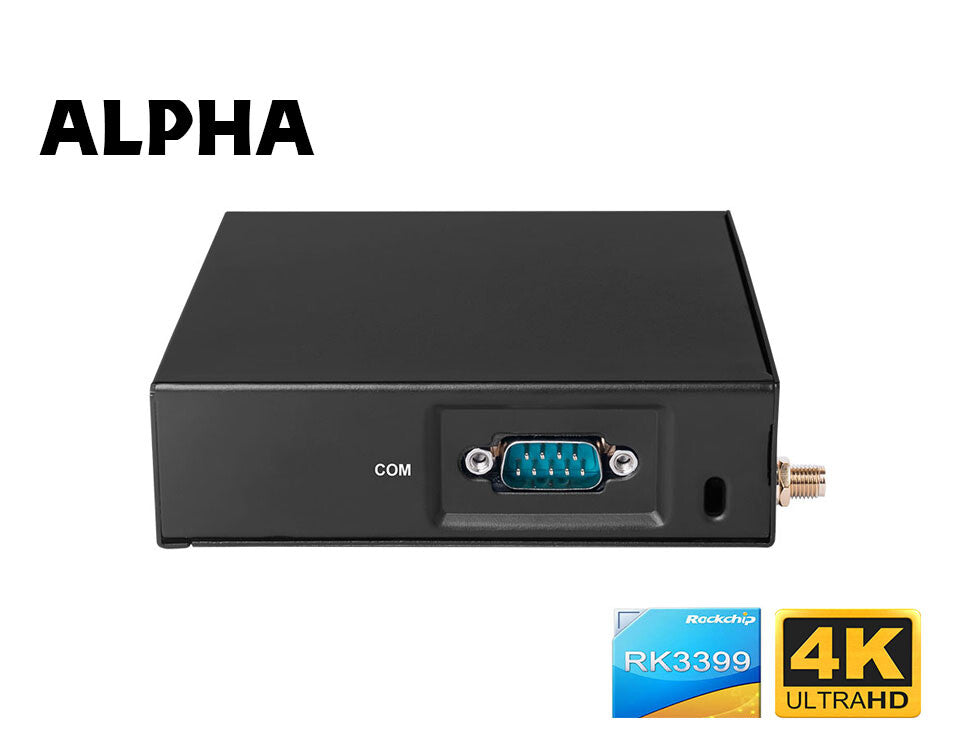

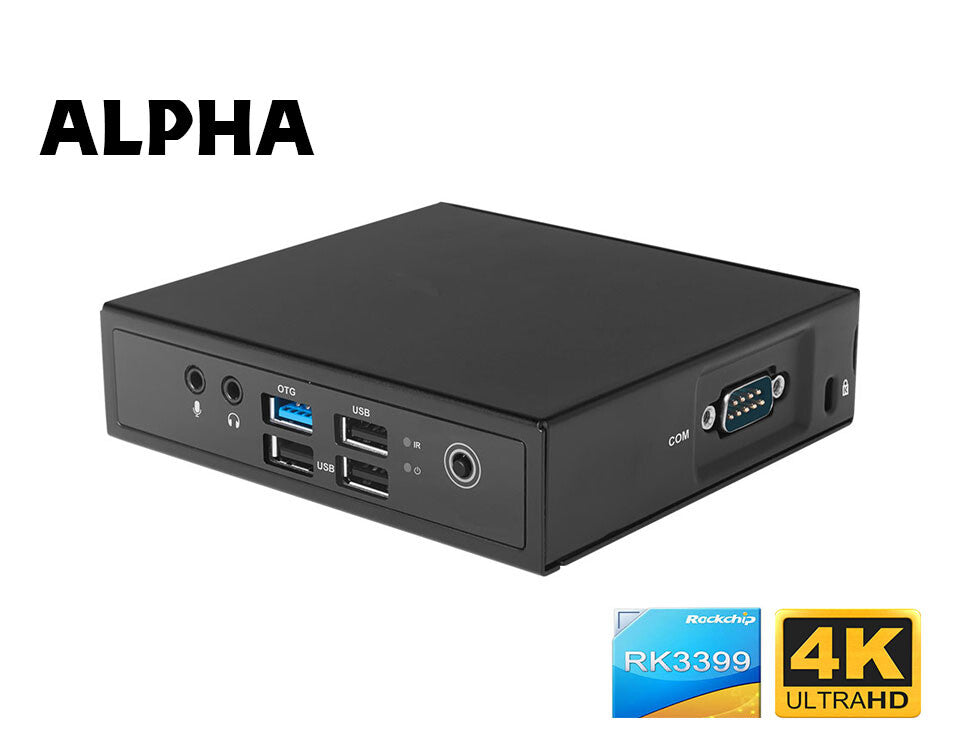

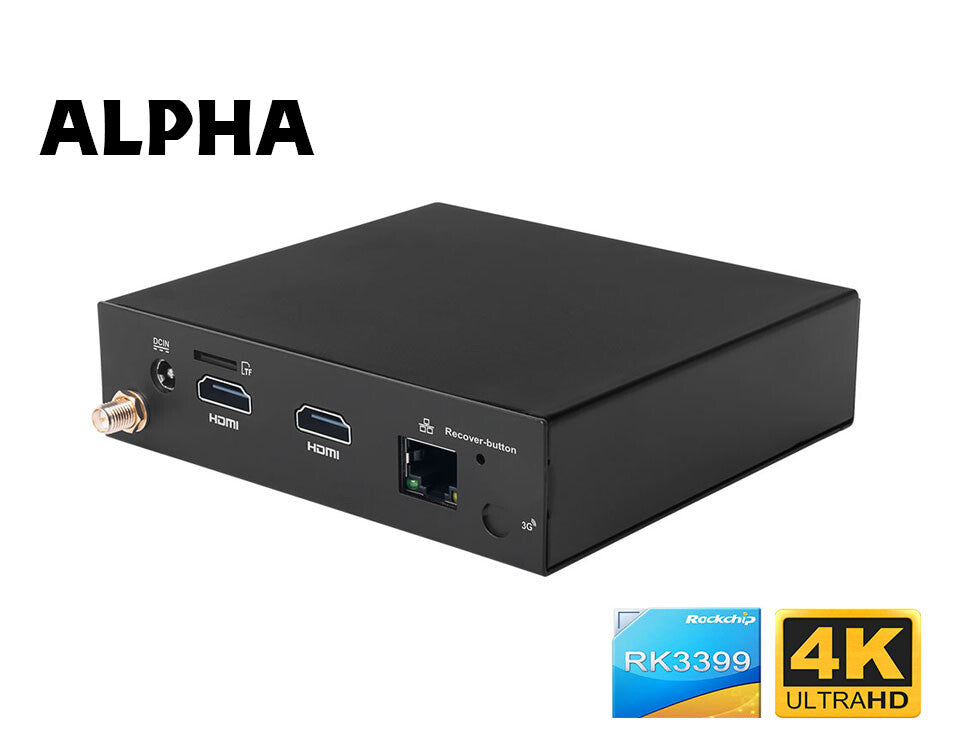

ALPHA MR120F small form factor Android player

The ALPHA MR120 comes with a Rockchip RK3399 CPU. It supports two video outputs via 1 x HDMI 2.0 (4096 x 2304@60Hz) and 1 x HDMI 1.4a (2560 x 1440@30 Hz). MR120F is based on Android 11.

RK3399 High-performance Processors

The ultra-compact Android player adopts Dual-core Cortex-A72 and Quad-core Cortex-A53 processors. It supports onboard dual-channel LPDDR4 memory, eMMC5.1 storage and dual-band WiFi, Bluetooth 4.2.

Dual Display Outputs
Supporting 4K Video Playback

The player adopts Rockchip integrated Mali-T860 GPU. It supports two video outputs via 1 x HDMI 2.0 (4096 x 2304@60Hz) and 1 x HDMI 1.4a (2560 x 1440@30 Hz). As for video decoding capability, it supports one 4K ( 3840 x 2160 @ 60Hz) or two 1080p (1920x1080@60Hz) video decoding.

Fanless Design

With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

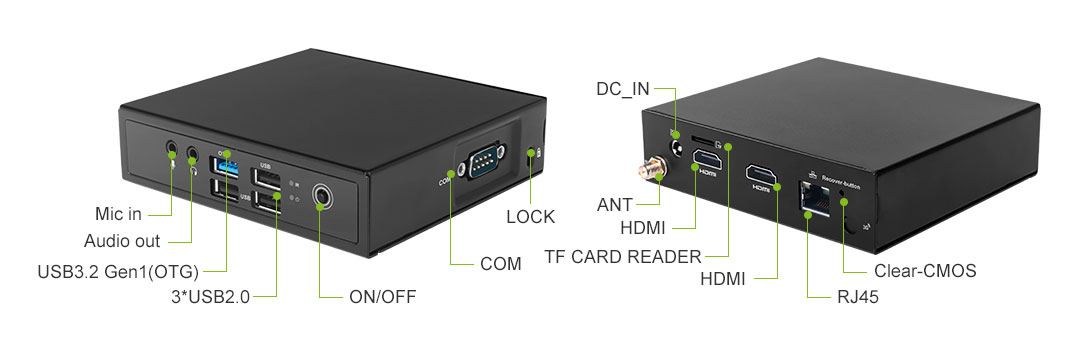

I/O port introduction
