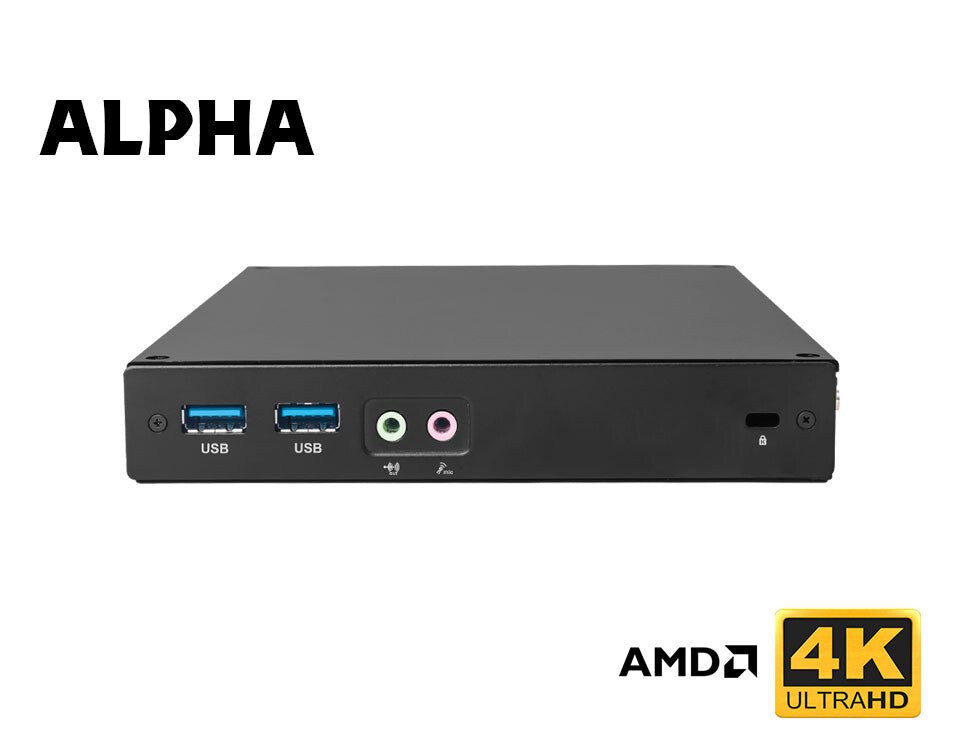

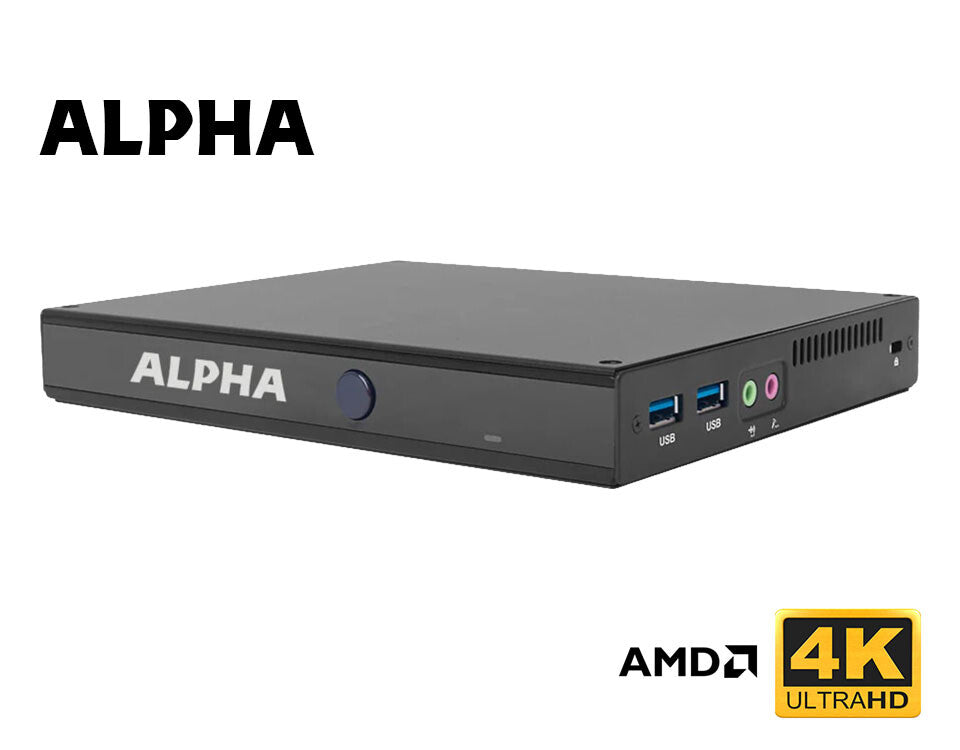

ALPHA SA1202

ALPHA SA1202

  • 24/7 Operation
  • AMD® Ryzen V1202B CPU
  • 250 GB SSD Disk
  • 8 GB DDR4 RAM
  • Windows 10 LTSC 21H2
  • Four Display Outputs Supporting 4K Video Playback
  • Dimension: 189,6 x 148,3 x 26 mm (Ultra slim
  • SKU:PC/A/B/SA1202
  • GTIN/EAN:5744003820030
  • MPN:ADM6-V1202B40H0G
Add To Favorite

You need to login to view the price.

View full details

ALPHA SA1202B Quad Display, small form factor computer

The ALPHA SA1202B comes with a AMD Ryzen Dual Core CPU. This makes it an optimal choice for signage tasks. It has four HDMI 2.0a outputs, supporting Max. 3840 x 2160@60Hz resolution. As for video decoding capability, it supports up to one 4K (3840 x 2160@60Hz) or four 1080p (1920x1080@60Hz) video decoding

The system supports JEHE's patented JAHC function which makes automatic on/off functions a breeze. Install the software in your Windows installation and set the switch on/off schedule during the week. It is no longer necessary to set timers in BIOS or via task manager. It makes it easy in the software.

AMD® Ryzen™ V1000 Processors
Long Life Cycle Product

The booksize player adopts high-performance Ryzen™ Embedded V1202B/V1605B processors. It supports dual-channel DDR4 memory and it's flexible to extend the hard drive through M.2 slot.

Four Display Outputs
Supporting 4K Video Playback

The player supports AMD Radeon™ Vega 3 Graphics (V1202B) or Vega 8 Graphics (V1605B). It has four HDMI 2.0a outputs, supporting Max. 3840 x 2160@60Hz resolution. As for video decoding capability, it supports up to one 4K (3840 x 2160@60Hz) or four 1080p (1920x1080@60Hz) video decoding. With AMD driver, users can easily group monitor configurations, including 1 x 4 and 2 x 2.

JEHE Active Hardware Control (JAHC)
JEHE Active Hardware Control (JAHC) management system includes both hardware Microcontroller Unit (MCU) and software (JAHC Technology Manager). JAHC can avoid devices running in non-working hours and help users save power consumption significantly. The diagram shows how JAHC can control a device through a Microcontroller Unit (MCU).

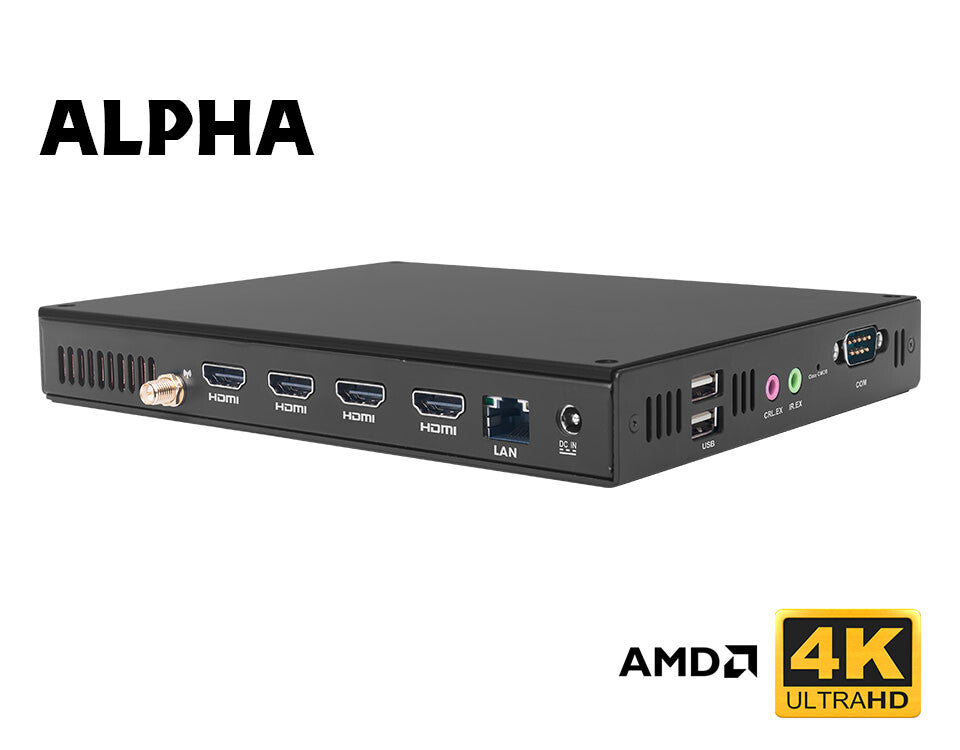

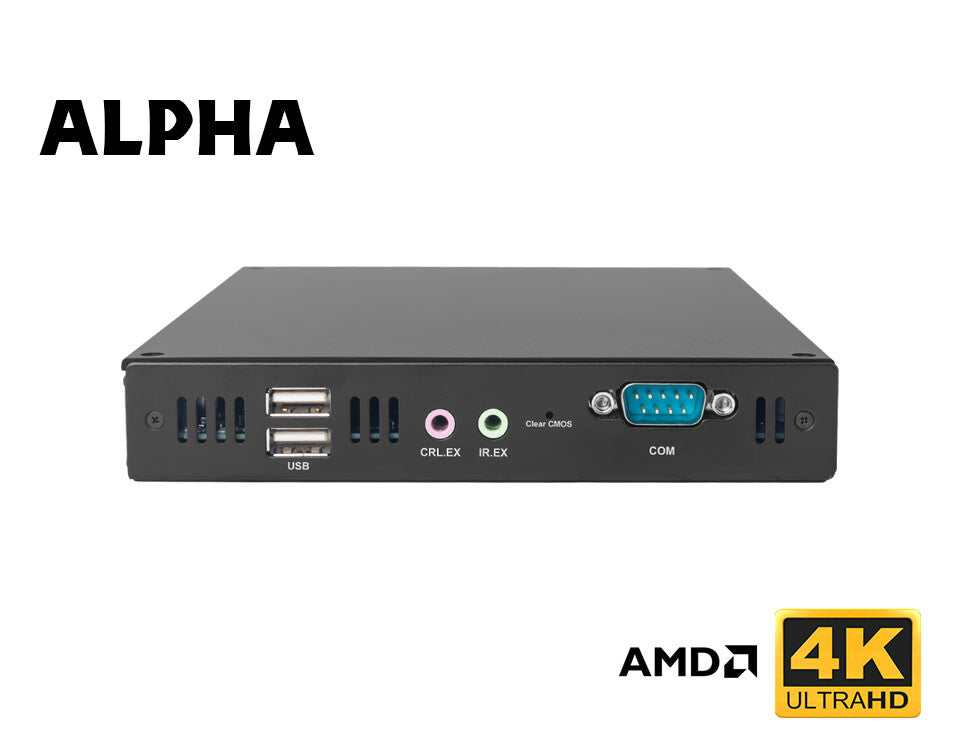

I/O port introduction
Processor
Processor cores
2
Processor family
AMD Ryzen Embedded V1000
Processor manufacturer
AMD
Memory
Internal memory
8 GB
Graphics
Discrete graphics card model
AMD Radeon RX VEGA
On-board graphics card
N
Discrete graphics card
Y
Design
Product colour
Black
