ALPHA SDM200

ALPHA SDM200

  • 24/7 Operation
  • Intel® Celeron 6305 1.8 GHz CPU
  • 250 GB NVME SSD Disk
  • 4 GB DDR4 RAM
  • Windows 10 LTSC 21H2
  • 1 extra video output (1 x HDMI)
  • Windows 10 LTSC (Windows 11 LTSC optional)
  • SKU:PC/A/B/SDM200
  • GTIN/EAN:5744003820054
  • MPN:ALPHA SDM200
Add To Favorite

You need to login to view the price.

View full details

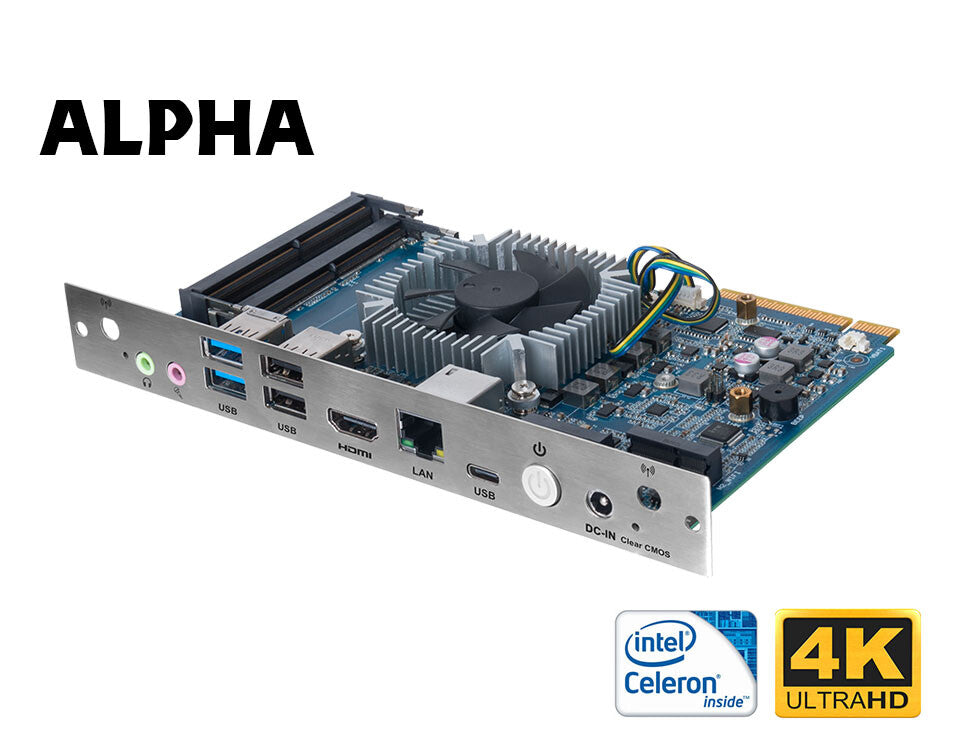

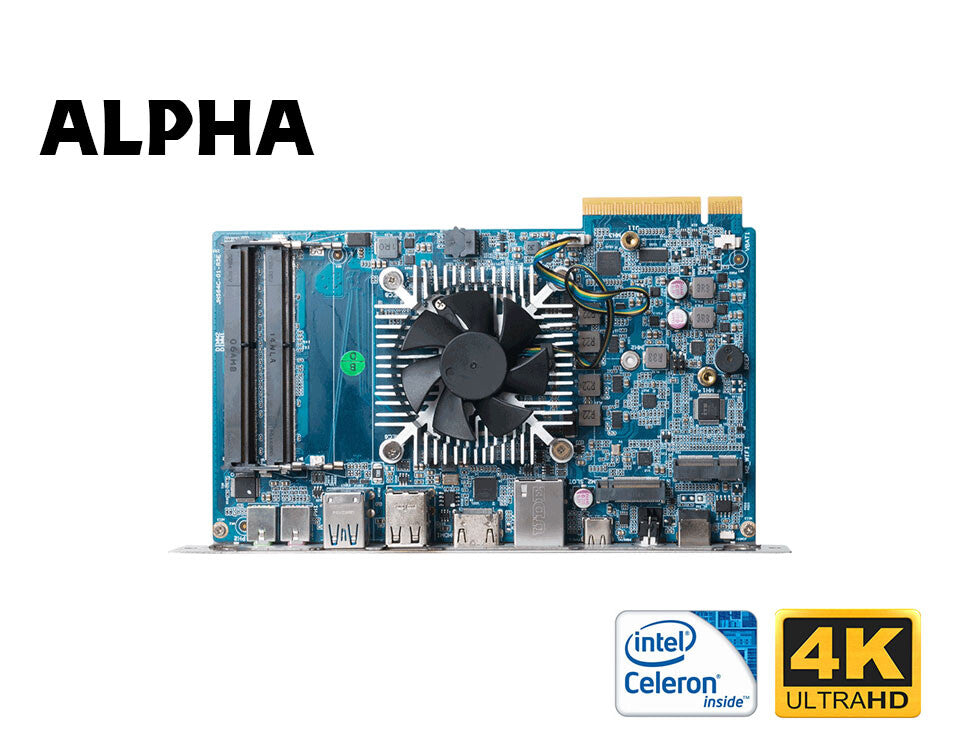

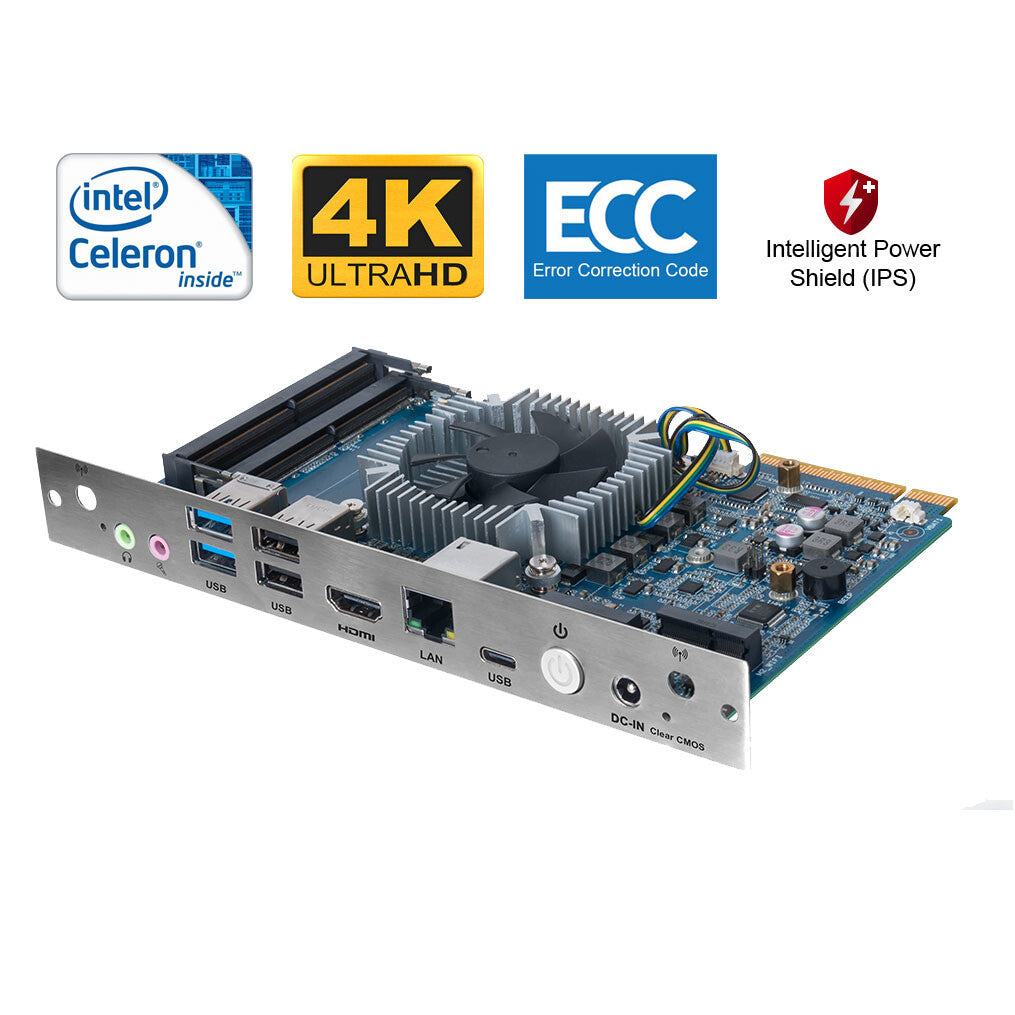

ALPHA SDM200 Smart Display Module

The ALPHA SDM200 comes with a Intel Celeron 6305 processor. A perfect choise for NEC and Iiyama users that need SDM-L standard

Intel® Tiger Lake Processors
High Computing Peformance

The SDM200 is powered by Tiger Lake UP3, Intel® 11th generation mobile processors built on 10nm process technology. The platform combines a high-performance CPU, up to 23% faster single thread performance, and up to 19% faster multi-thread performance. It supports vPro function as an option.

Supporting 8K Display*

The module supports Intel® integrated Iris® Xe GPU (*Core i5/i7), which has 50% graphic performance improvement compared with last generation. It supports max 8K resolution via the SDM PCIE X8 connector. There is another HDMI2.0 port (Max. 4096 x 2304@60 Hz) on the rear side, which can support a second display.

Intel® vPro Technology

Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.

Compatible with Leading Display Brands

SDM200 passed the compatible tests with displays from NEC®, Panasonic®, Iiyama® etc.

I/O port introduction
Processor
Configurable TDP-up
15 W
Configurable TDP-up frequency
1.8 GHz
Processor front side bus
1800 MHz
Processor cache type
Smart Cache
Processor cache
4 MB
Processor cores
2
Processor model
6305
Processor family
Intel® Celeron®
Processor manufacturer
Intel
Storage
NVMe
Yes
HDD capacity
250 GB
Storage media
SSD
Total storage capacity
250 GB
Graphics
On-board graphics card model
Intel® UHD Graphics
On-board graphics card
Yes
Software
Operating system language
Danish, English
Operating system architecture
64-bit
Operating system installed
Windows 10 IoT Enterprise
