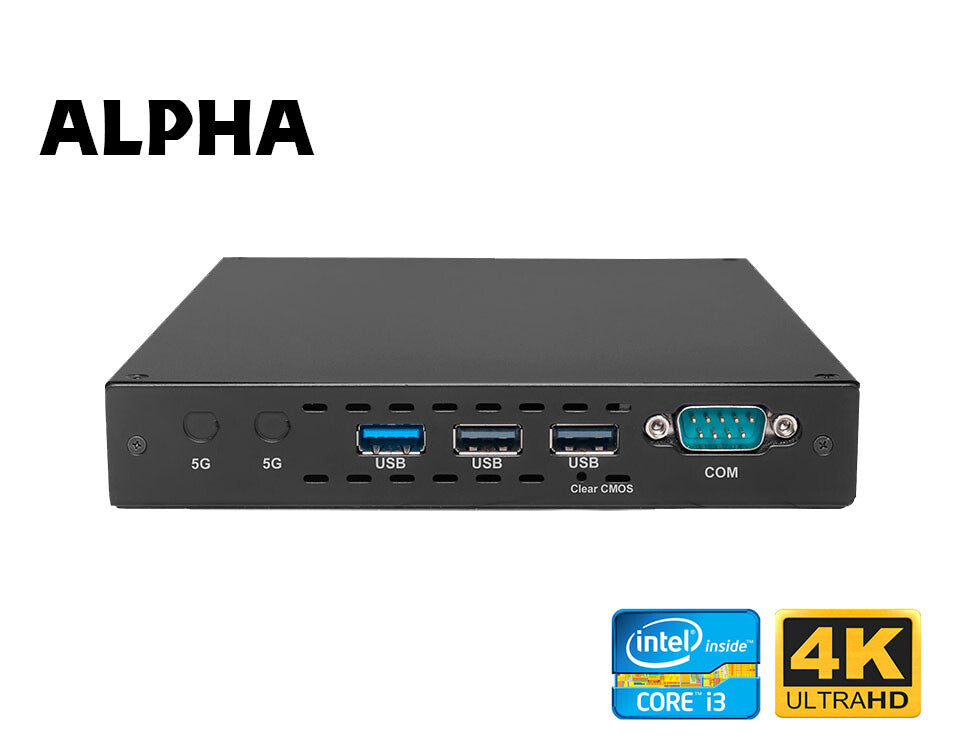

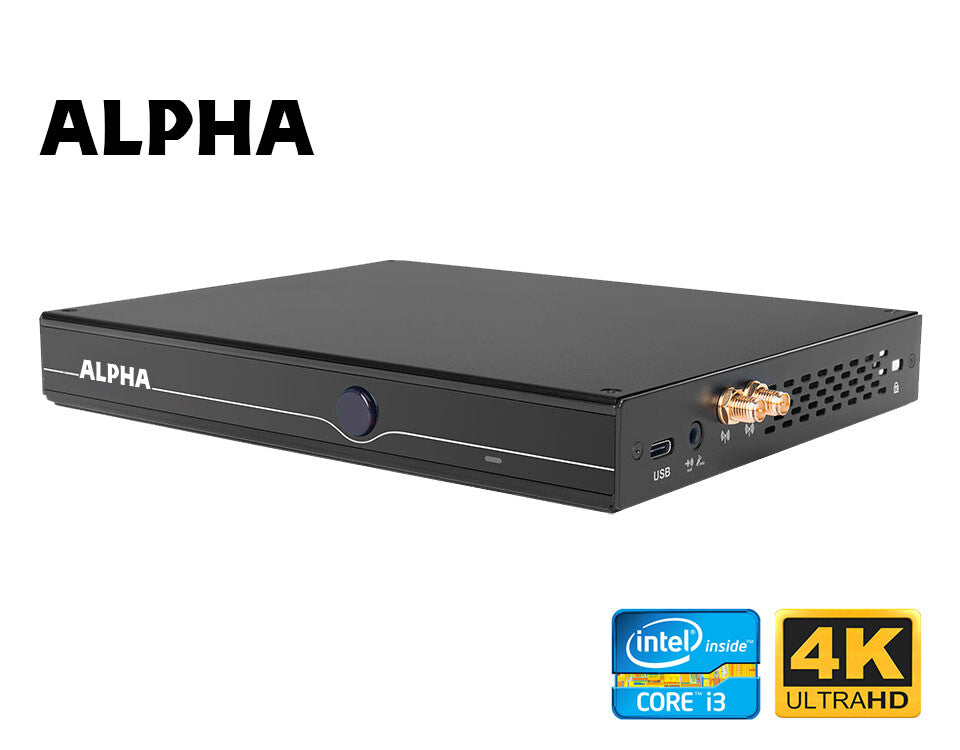

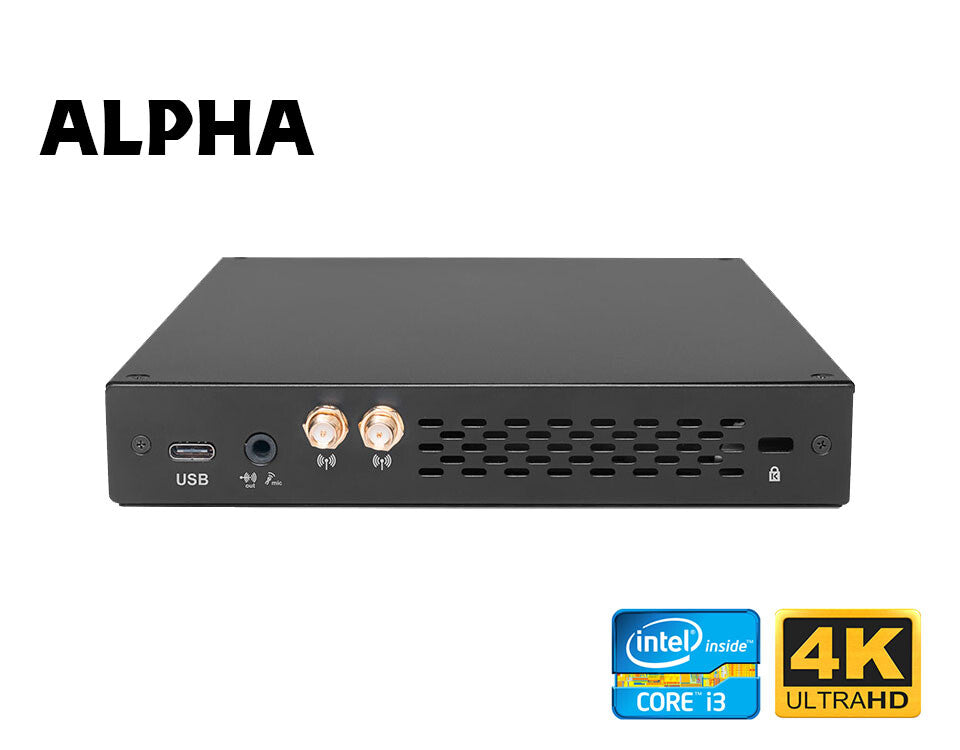

ALPHA SI360
ALPHA SI360
- 24/7 Operation
- Intel®Core™ i3-1215U (Intel 12th Gen) CPU
- 250 GB NVME SSD Disk
- 8 GB DDR4 RAM
- 4 Video Output (4 x HDMI)
- Windows 10 LTSC (Windows 11 LTSC optional)
- Dimension: 189,6 x 148,3 x 26 mm (Ultra slim)
- SKU:PC/A/B/SI360
- GTIN/EAN:
- MPN:A-D612 i3-1215U
ALPHA SI360 High Performance small form factor Computer
The ALPHA SI360 comes with a 12th generation Intel processor. This makes it an optimal choice for more demanding signage tasks. 4 x HDMI 2.0 ports allow the connection of 4 screens, each with a resolution of 4096x2304@60hz.
The system supports JEHE's patented JAHC function which makes automatic on/off functions a breeze. Install the software in your Windows installation and set the switch on/off schedule during the week. It is no longer necessary to set timers in BIOS or via task manager. It makes it easy in the software.
Intel® 12th Gen. Alder Lake Processors
High Computing Performance
ALPHA SI360 houses Intel 12th-Gen processors of i3-1215U, i5-1235U, which deliver 19 percent more performance than today’s 11th-gen “Rocket Lake”. At the same time, it can support Intel 12th-Gen Alder Lake-P processors (optional). D612 has the Intel vPro and TPM 2.0 features to deliver increased productivity, remote manageability and data security.

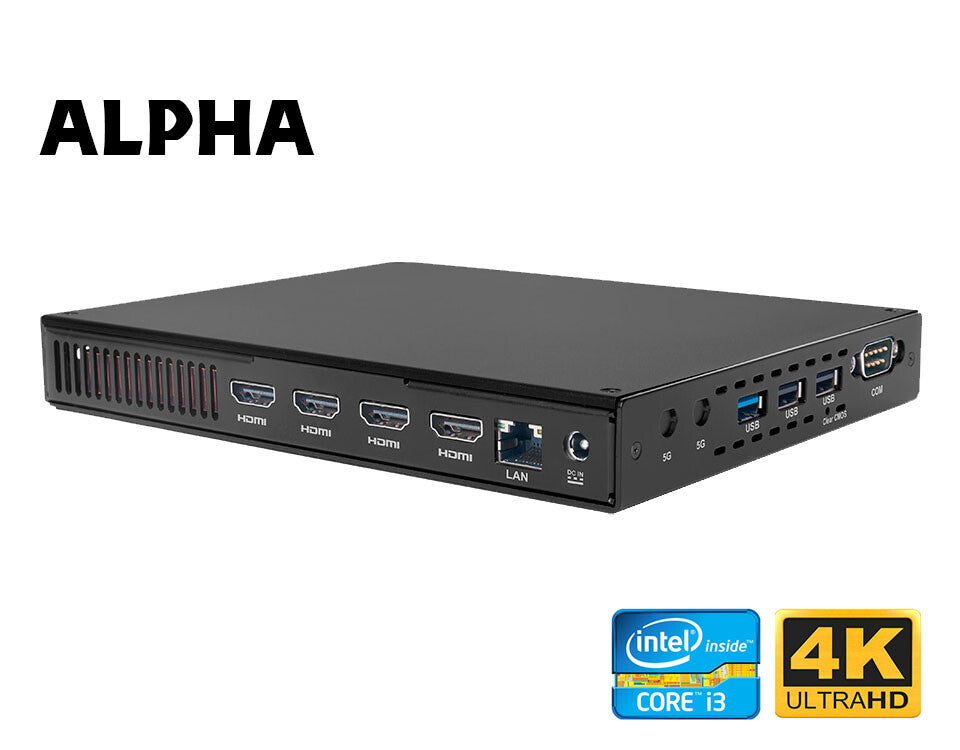

Four Display Outputs
Supporting 4K Video Playback
The player adopts Intel® integrated Iris® Xe GPU (Core i5), which has 50% graphic performance improvement compared with the last generation. It can deliver up to 4 x 4K displays (4096 x 2304@60Hz) via 4 x HDMI2.0 ports.
Intel® vPro Technology
Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.
Support 5G Mobile Network
5G provides game-changing benefits like speeds up to 10 times faster than 4G LTE speeds, a safer alternative to public Wi-Fi, low latency and massive capacity. The Quectel®-RM50XQ 5G module was certified to be compatible with ALPHA SI360.
JEHE Active Hardware Control (JAHC)
JEHE Active Hardware Control (JAHC) management system includes both hardware Microcontroller Unit (MCU) and software (JAHC Technology Manager). JAHC can avoid devices running in non-working hours and help users save power consumption significantly. The diagram shows how JAHC can control a device through a Microcontroller Unit (MCU).

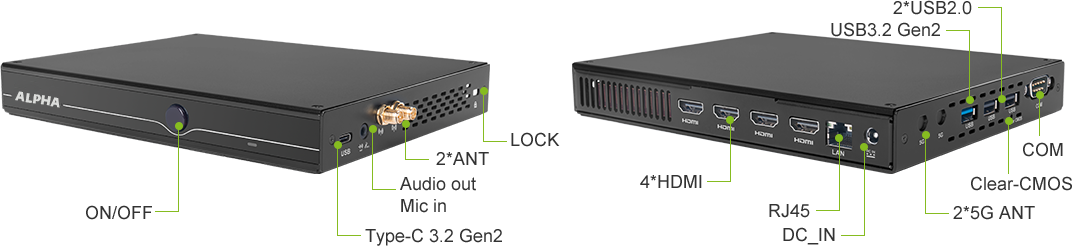

I/O port introduction
