ALPHA SI550

ALPHA SI550

  • 24/7 Operation
  • Intel® i5-10210U (Intel 10th Gen.) CPU
  • 250 GB NVME SSD Disk
  • 8 GB DDR4 RAM
  • 3 Video Output (2 x HDMI - 1 x DP)
  • Windows 10 LTSC (Windows 11 LTSC optional)
  • Dimension: 189,6 x 148,3 x 26 mm (Ultra slim)
  • SKU:PC/A/B/SI550
  • GTIN/EAN:5744003820139
  • MPN:AD610-N1-10210U40H0G
Add To Favorite

You need to login to view the price.

View full details

ALPHA SI550 Performance small form factor computer

The ALPHA SI550 comes with a 10th generation Intel processor. This makes it an optimal choice for more demanding signage tasks. 2 x HDMI + 1 Displayport allow the connection of 3 screens. 1 x DP1.2 (4096 x 2304@60Hz), 1 x HDMI2.0 (4096 x 2304@60Hz) and 1 x HDMI 1.4 (4096 x 2304@24Hz)

The system supports JEHE's patented JAHC function which makes automatic on/off functions a breeze. Install the software in your Windows installation and set the switch on/off schedule during the week. It is no longer necessary to set timers in BIOS or via task manager. It makes it easy in the software.

Intel® 10th Gen. Comet Lake Processors

ALPHA SI550 adopts Comet Lake-U CPU, Intel's 10th generation mobile processors manufactured in the 14nm process. The compact, powerful computer supports dual-channel DDR4 memory. It is flexible to extend the hard drive through the M.2 and MSATA slots.

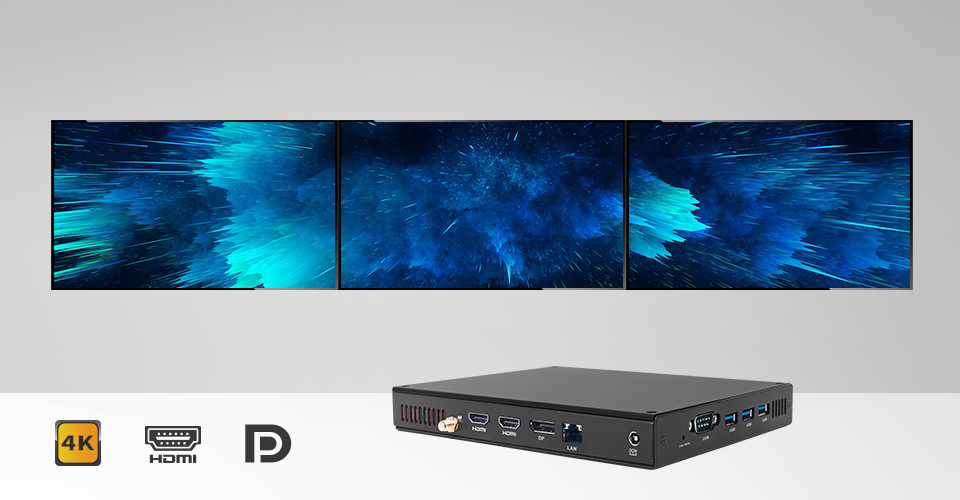

Triple Display Outputs
Supporting 4K Video Playback

It can support up to 3 screens simultaneously, via 1 x DP1.2 (4096 x 2304@60Hz), 1 x HDMI2.0 (4096 x 2304@60Hz) and 1 x HDMI 1.4 (4096 x 2304@24Hz) ports, in clone or extended mode. As for video decoding capability, it supports up to one 4K (4096 x 2304@60Hz) or triple 1080p (1920x1080@60Hz) video decoding.

JEHE Active Hardware Control (JAHC)
JEHE Active Hardware Control (JAHC) management system includes both hardware Microcontroller Unit (MCU) and software (JAHC Technology Manager). JAHC can avoid devices running in non-working hours and help users save power consumption significantly. The diagram shows how JAHC can control a device through a Microcontroller Unit (MCU).

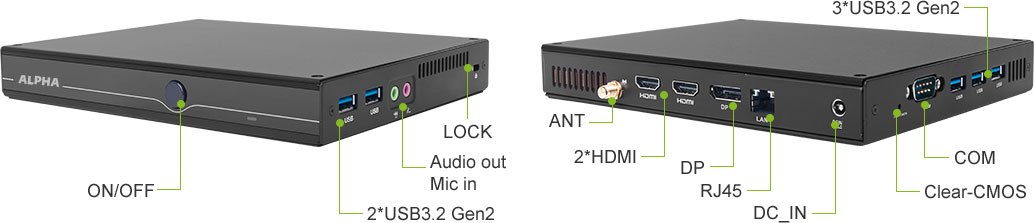

I/O port introduction
Processor
Configurable TDP-down
10 W
Configurable TDP-down frequency
0.8 GHz
Configurable TDP-up frequency
2.1 GHz
Configurable TDP-up
25 W
Processor model
i5-10210U
Processor generation
10th gen Intel® Core™ i5
Processor family
Intel® Core™ i5
Processor manufacturer
Intel
Memory
Internal memory
8 GB
Storage
NVMe
Y
SSD capacity
250 GB
Number of storage drives installed
1
Storage media
SSD
Optical drive type
N
Total storage capacity
250 GB
Graphics
On-board graphics card
Y
Discrete graphics card
N
Design
Product colour
Black
Performance
Product type
Mini PC
Software
Operating system installed
Windows 10 Enterprise LTSC 21H2
Processor special features
Intel 64
Y
Enhanced Intel SpeedStep Technology
Y
Embedded options available
N
Intel Clear Video Technology
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Intel TSX-NI
N
Idle States
Y
Intel Stable Image Platform Program (SIPP)
N
Intel Trusted Execution Technology
N
Execute Disable Bit
Y
Intel Software Guard Extensions (Intel SGX)
Y
CPU configuration (max)
1
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Virtualization Technology (VT-x)
Y
Intel Flex Memory Access
Y
Weight & dimensions
Weight
1.54 kg
Height
26 mm
Depth
148 mm
Width
189 mm
