ALPHA ZI350F

ALPHA ZI350F

ALPHA ZI350F

  • 24/7 Operation
  • Intel®Core™ i3-10110U (Intel 10th Gen.) CPU
  • 250 GB NVME SSD Disk
  • 8 GB DDR4 RAM
  • FANLESS DESIGN
  • Windows 10 LTSC (Windows 11 LTSC optional)
  • Dimension: 240 x 158,2 x 22 mm (Ultra slim)
  • SKU:PC/A/B/ZI350F
  • GTIN/EAN:5744003820160
  • MPN:DF610-10110U
Add To Favorite

You need to login to view the price.

View full details

ALPHA ZI350F FANLESS small form factor computer

The ALPHA ZI350F comes with a 10th generation Intel processor. This makes it an optimal choice for more demanding signage tasks. The player adopts Intel® UHD Graphics for 10th Gen Intel® Processors. It supports a DP1.2 (4096 x 2304@60Hz) and an HDMI 2.0 (4096 x 2304@60Hz) ports. As for video decoding capability, it supports up to two 1080p (1920x1080@60Hz) video decoding.

It's only 22mm thick, and the design enables the high-performance player applicable in environments with limited space.

The system supports JEHE's patented JAHC function which makes automatic on/off functions a breeze. Install the software in your Windows installation and set the switch on/off schedule during the week. It is no longer necessary to set timers in BIOS or via task manager. It makes it easy in the software.

High Computing Performance
Ultra-thin Design

The player supports Comet Lake-U, Intel's 10th generation mobile Core i3 & i5 processors. It's only 22mm thick, and the design enables the high-performance player applicable in environments with limited space.

Dual Display Outputs

The player adopts Intel® UHD Graphics for 10th Gen Intel® Processors. It supports a DP1.2 (4096 x 2304@60Hz) and an HDMI 2.0 (4096 x 2304@60Hz) ports. As for video decoding capability, it supports up to two 1080p (1920x1080@60Hz) video decoding.

Fanless Design

With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof.

JEHE Active Hardware Control (JAHC)
JEHE Active Hardware Control (JAHC) management system includes both hardware Microcontroller Unit (MCU) and software (JAHC Technology Manager). JAHC can avoid devices running in non-working hours and help users save power consumption significantly. The diagram shows how JAHC can control a device through a Microcontroller Unit (MCU).

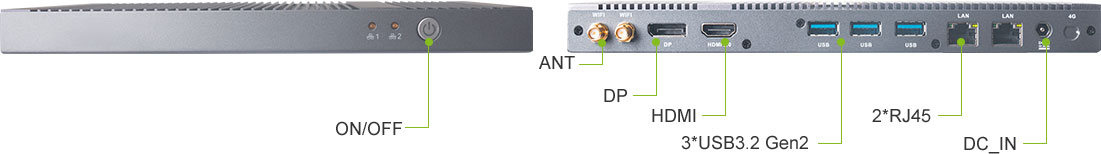

I/O port introduction
Processor
Configurable TDP-down
10 W
Configurable TDP-down frequency
0.8 GHz
Configurable TDP-up frequency
2.6 GHz
Configurable TDP-up
25 W
Processor model
i3-10110U
Processor generation
10th gen Intel® Core™ i3
Processor family
Intel® Core™ i3
Processor manufacturer
Intel
Memory
Internal memory
8 GB
Design
Product colour
Silver
Software
Operating system installed
Windows 10 Enterprise LTSC 21H2
Processor special features
Intel 64
Y
Enhanced Intel SpeedStep Technology
Y
Embedded options available
N
Intel Clear Video Technology
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Intel TSX-NI
N
Idle States
Y
Intel Stable Image Platform Program (SIPP)
N
Intel Trusted Execution Technology
N
Execute Disable Bit
Y
Intel Software Guard Extensions (Intel SGX)
Y
CPU configuration (max)
1
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Virtualization Technology (VT-x)
Y
Intel Flex Memory Access
Y
