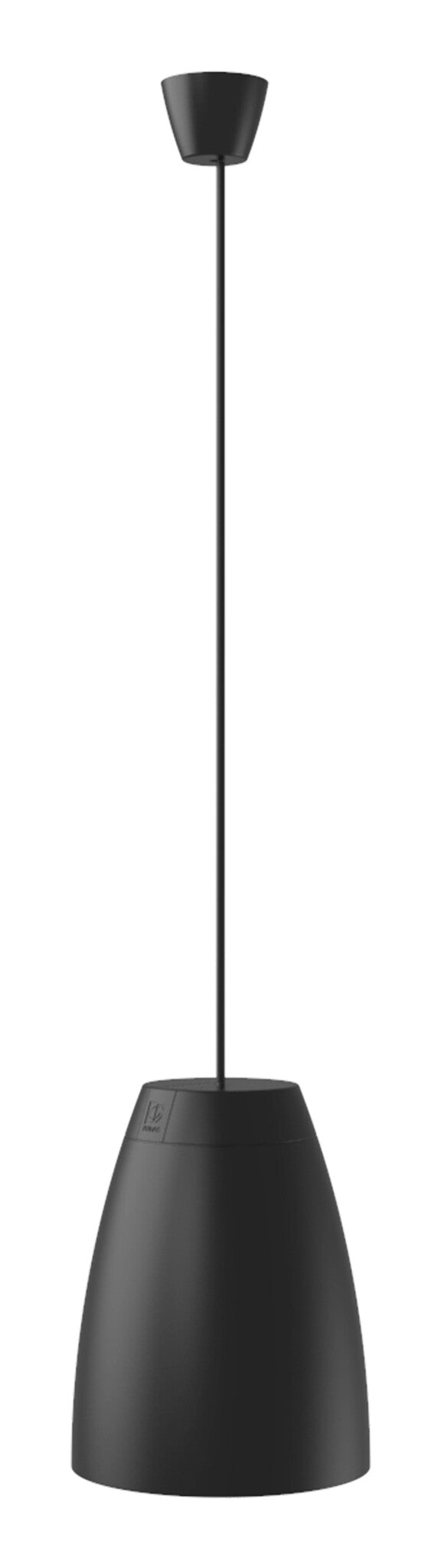

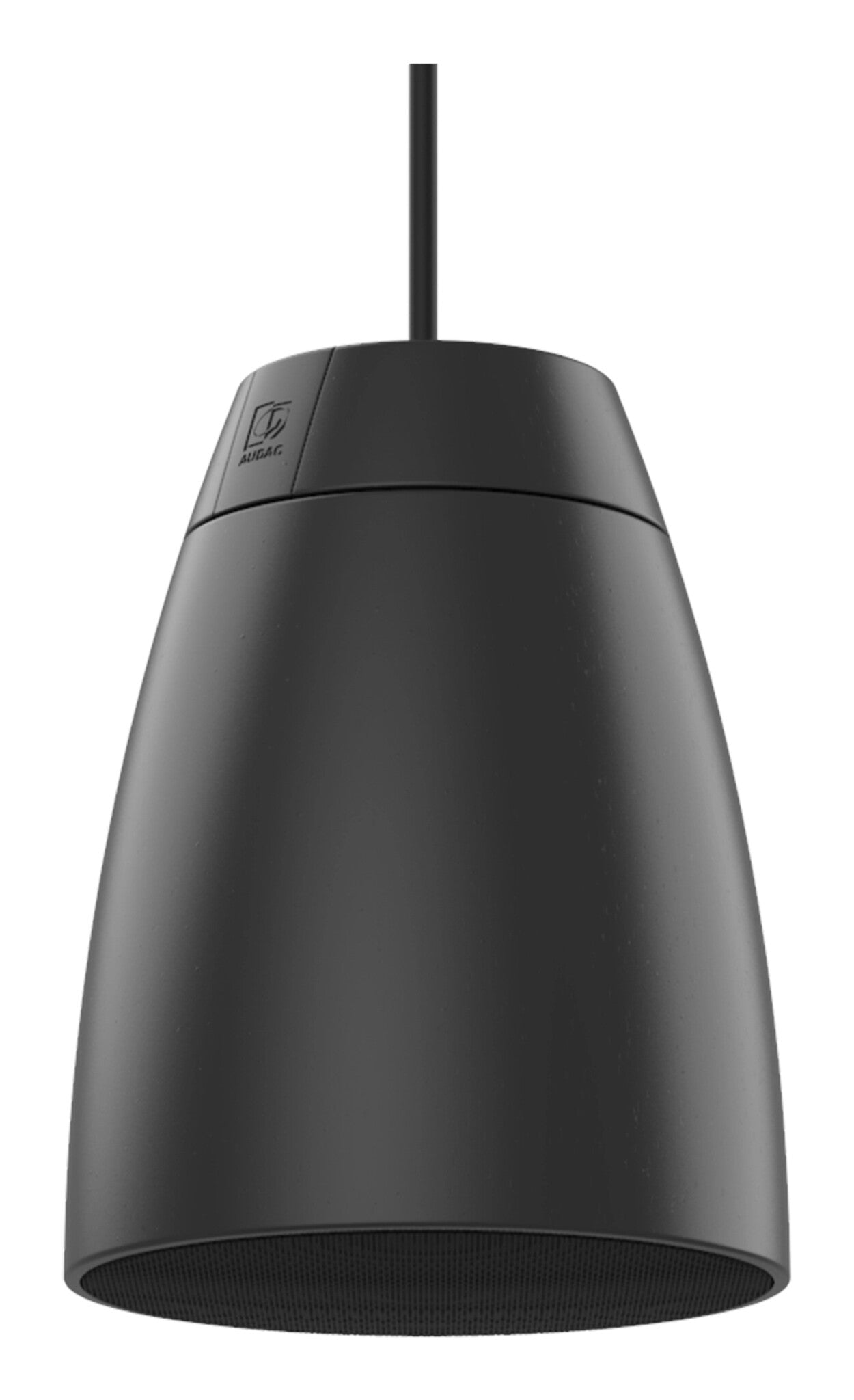

ALTI6 2-way 6" pendant speaker, Black
ALTI6 2-way 6" pendant speaker, Black
The ALTI6 is a 2-way pendant loudspeaker featuring a 6.5” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance.
- Rotary switch for 100V (15W, 30W, 60W ) and 16 Ohm tappings
- Ceiling suspension
- Innovative & unique design
- Wide opening angle
- Dual Gripple™ locking system
- Suspension cable with dual steel core
- Ceiling cable cover
- SKU:ALTI6/B
- GTIN/EAN:
- MPN:ALTI6/B

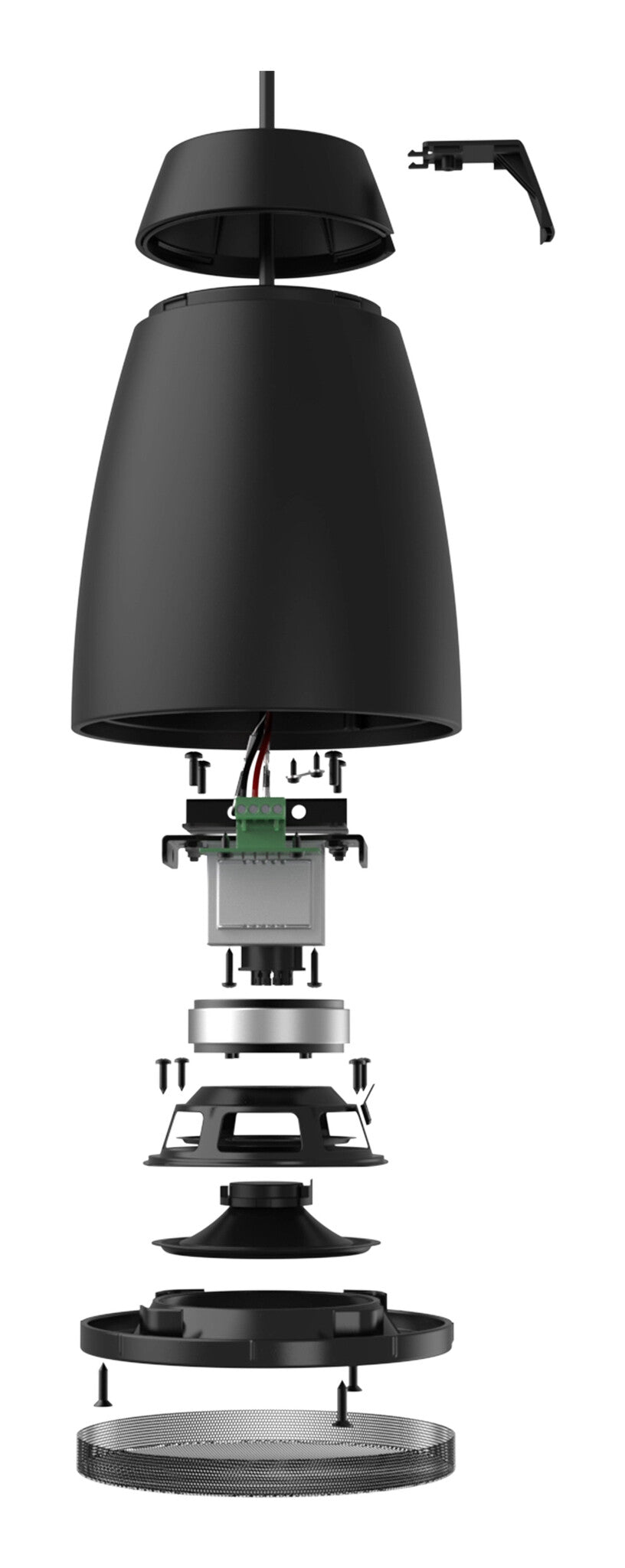

The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 Watt is achieved. Connections are made through a terminal block connector behind the rear cover, accompanied with a power tap selector switch for the tapping of a 70V/100V line transformer with tappings for 60W, 30W, 15W and a 16 Ohm bypass connection.
Mounting the speaker is done through a connection cable with two integrated steel cores for suspending with an additional drop safety. Fixation is made through two snap-hooks on one end and a dual Gripple™ fixation on the other end. The included cable length of 3.5 meters offers possibilities for a wide variety of ceiling heights. An innovatively designed rear cover of the speaker can be placed after installation and hides the connection and suspension on the speaker end. The ceiling end connections are covered through a cable cover.
DUAL GRIPPLE™ LOCKING SYSTEM
Secure and fast mounting
The ALTI series' connection cable, steel suspension and safety wire are all stored in one single outer jacket. Fixation is made through two snap hooks on one end and a Dual Gripple™ locking system on the other end. The included cable length of 3.5 meters offers possibilities for a wide variety of ceiling heights.

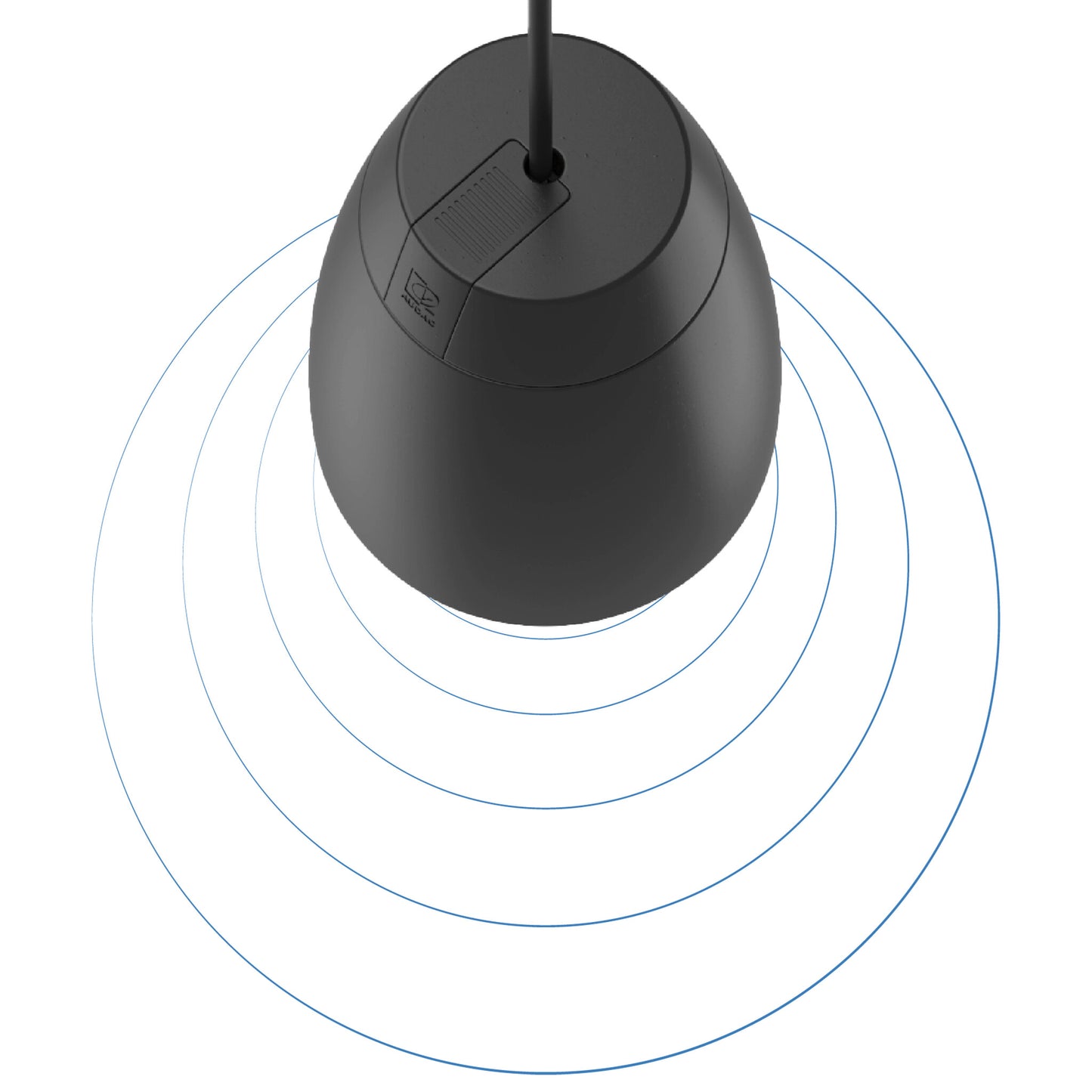

EXCEPTIONAL DISPERSION
Wide opening angle
The wide opening angle of the speaker guarantees an exceptional dispersion in all different kinds of applications and locations with high ceilings and large open spaces. The carefully matched components and construction guarantee optimal coverage over the entire frequency range.
SLIDECAP™ INNOVATION
Fast and easy installation

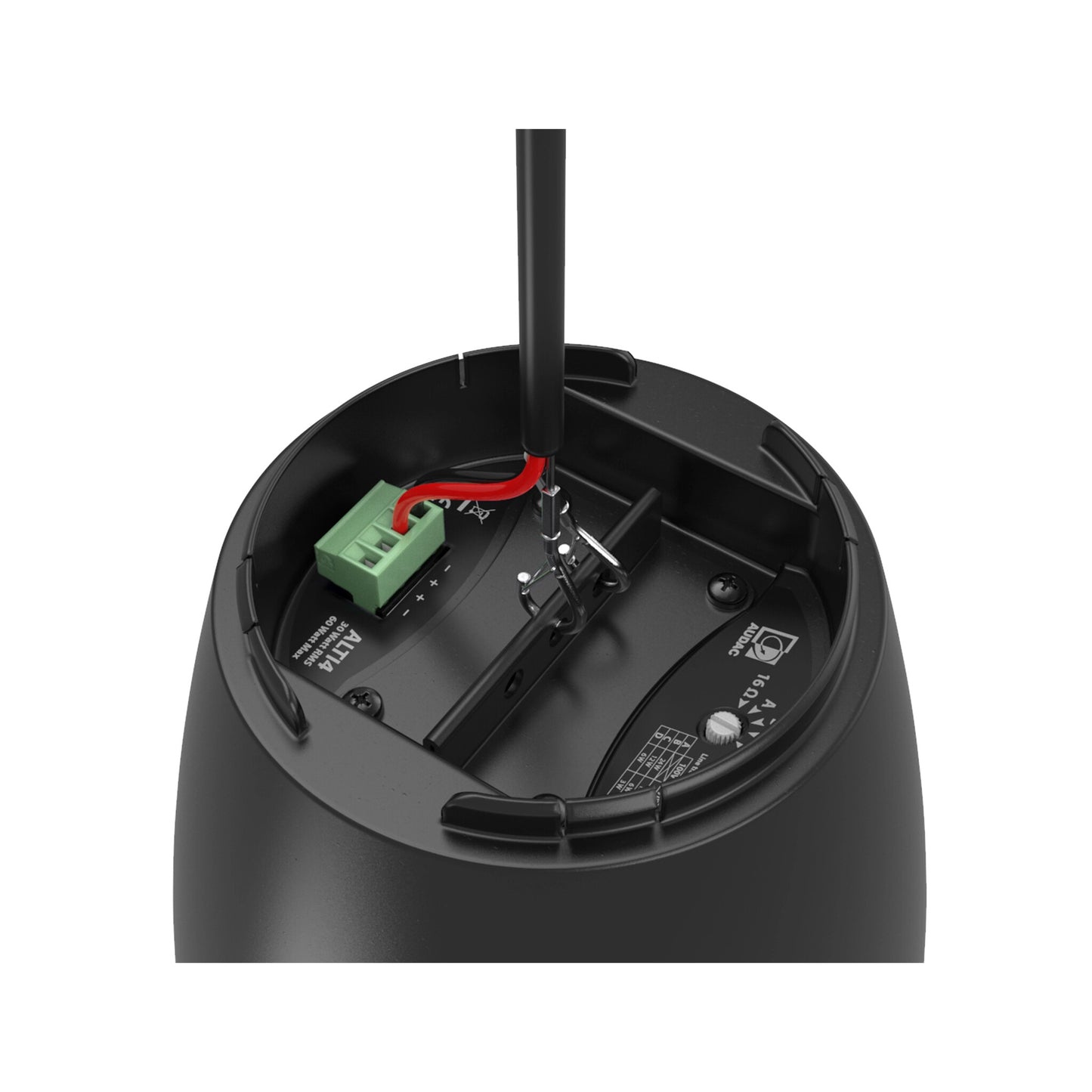

An innovatively designed rear cover hides the connection and suspension on the speaker end. It can easily be attached and detached by sliding, even after installation. Leading to one neat and enclosed entity.
EASILY CUSTOMISABLE
Plug-and-play multi-tapping

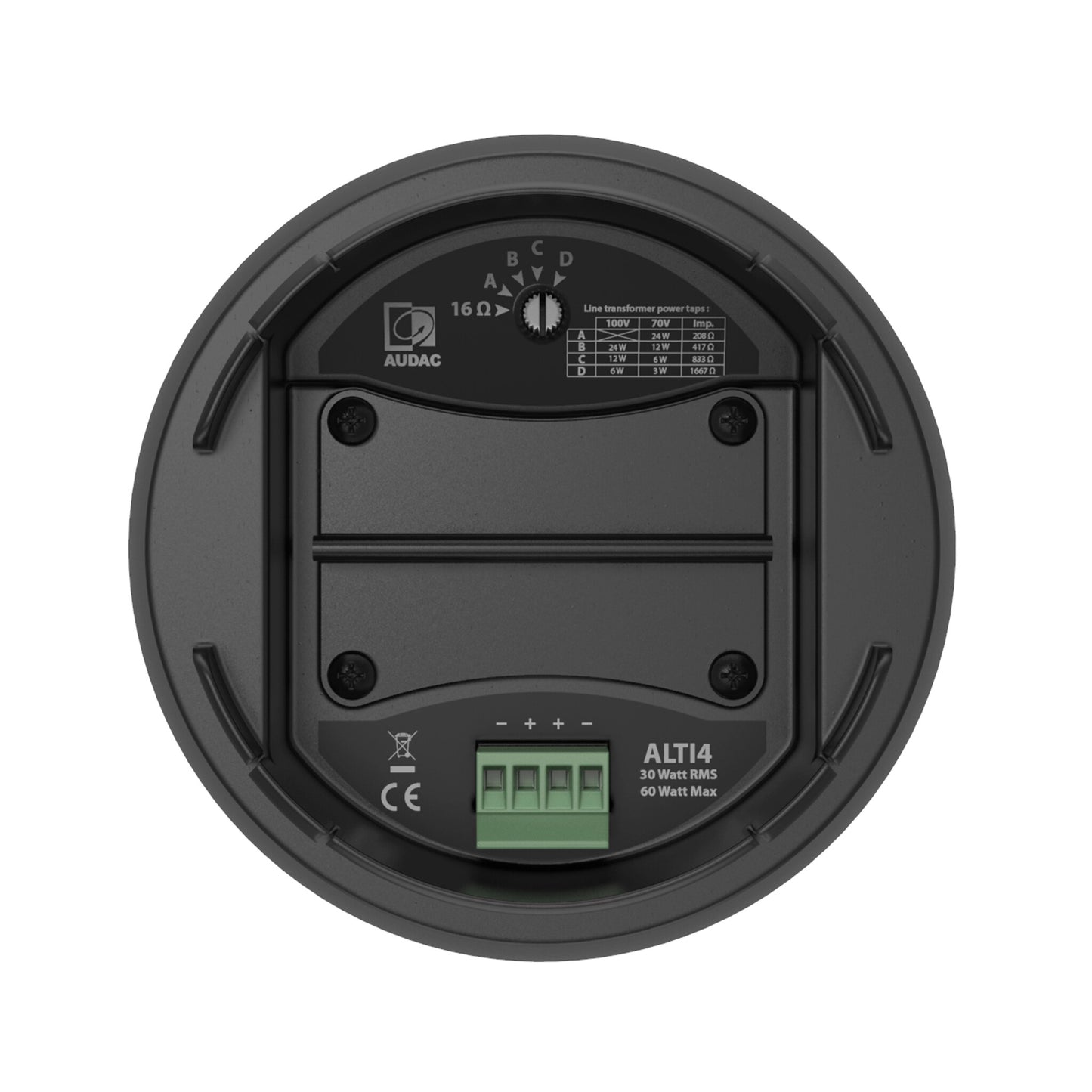

A rotary selector switch located behind the rear cover selects the setting between low impedance and 70V/100V use, while adjustments in tappings are easily made, even after already installed and connected.
SUITABLE FOR OUTDOOR APPLICATIONS
Moisture resistant driver
Thanks to a special coating applied to the drivers, the ALTI series are also suitable for use in applications with high levels of humidity such as outdoor terraces, bathrooms or many more!
