Techly 37-70 Telescopic Ceiling Long Support LED TV LCD" ICA-CPLB 946L

Techly 37-70 Telescopic Ceiling Long Support LED TV LCD" ICA-CPLB 946L

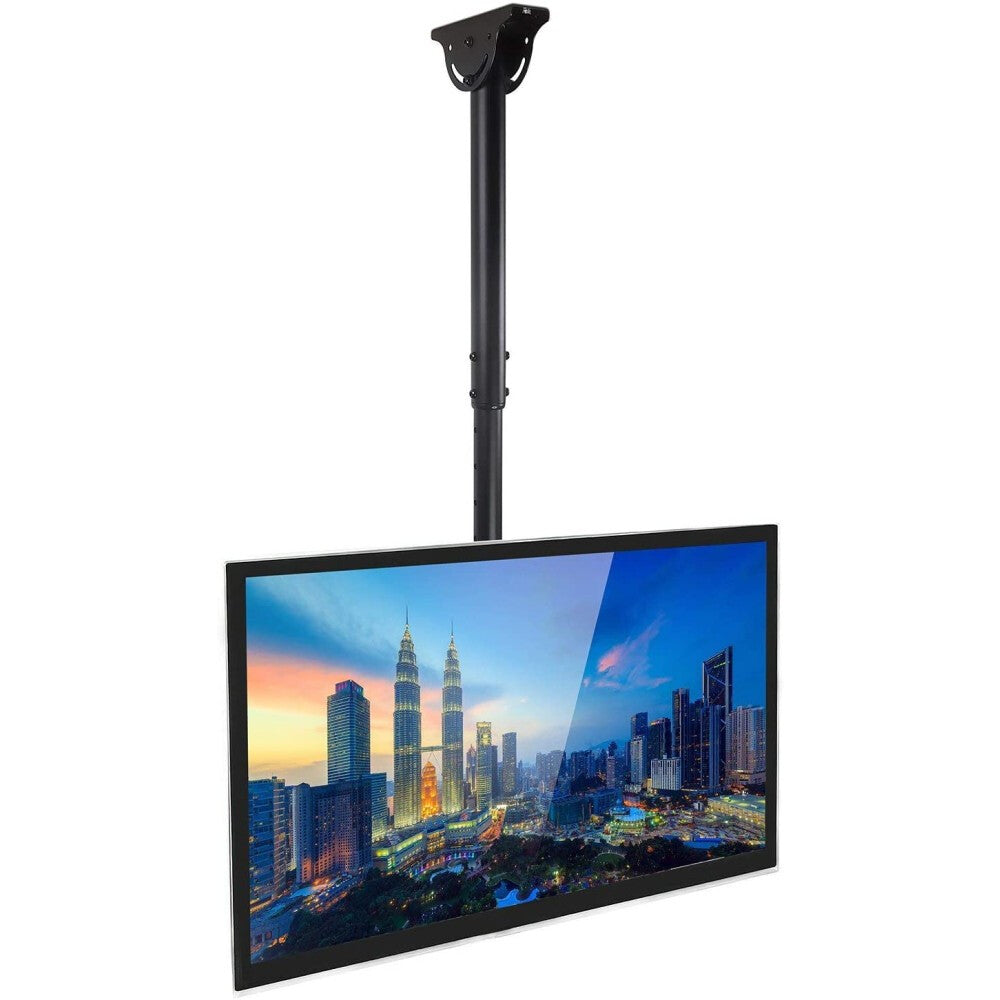

37-70" Telescopic Ceiling Long Support LED TV LCD

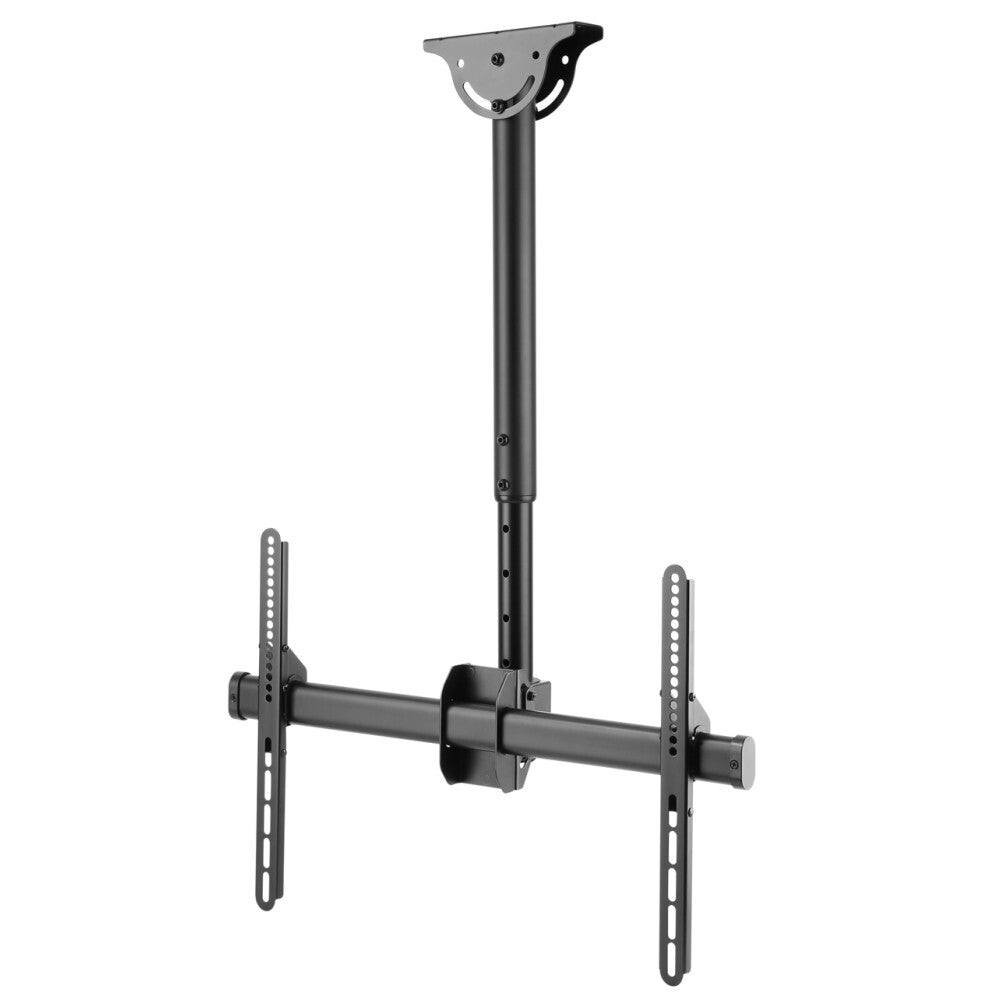

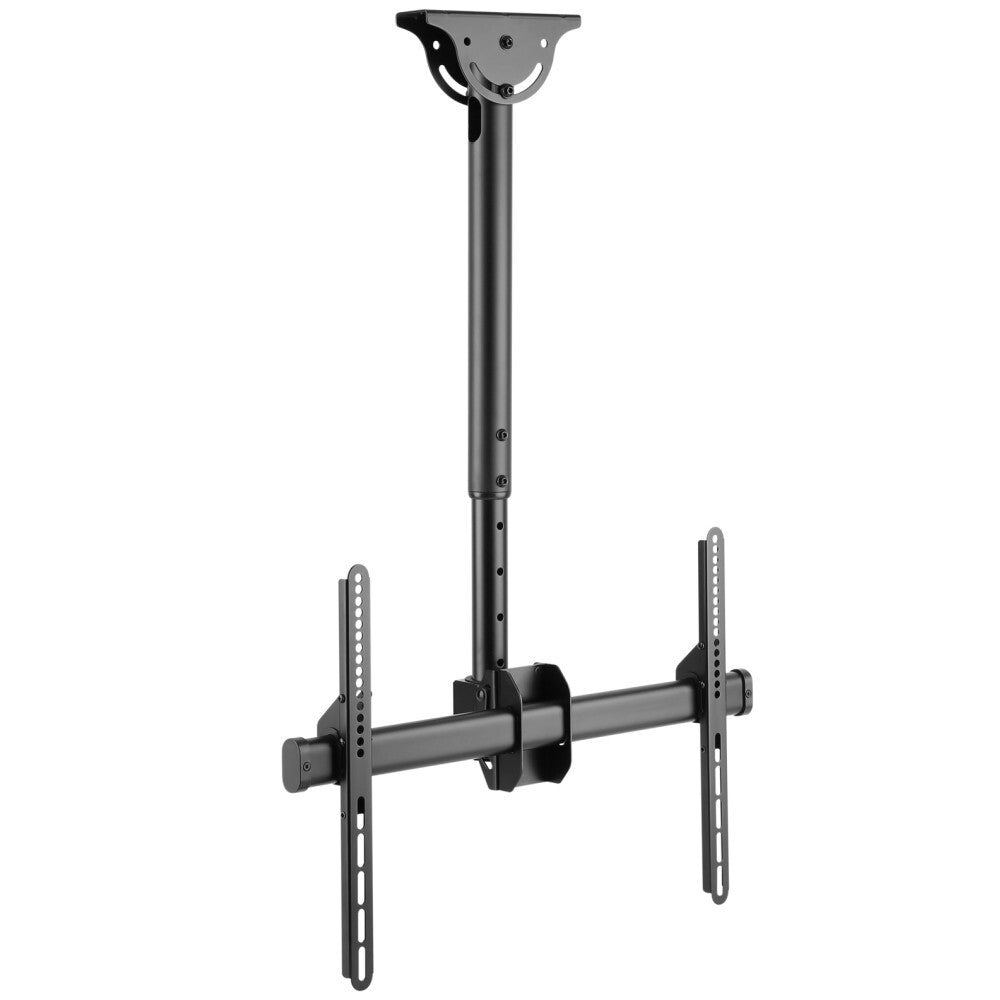

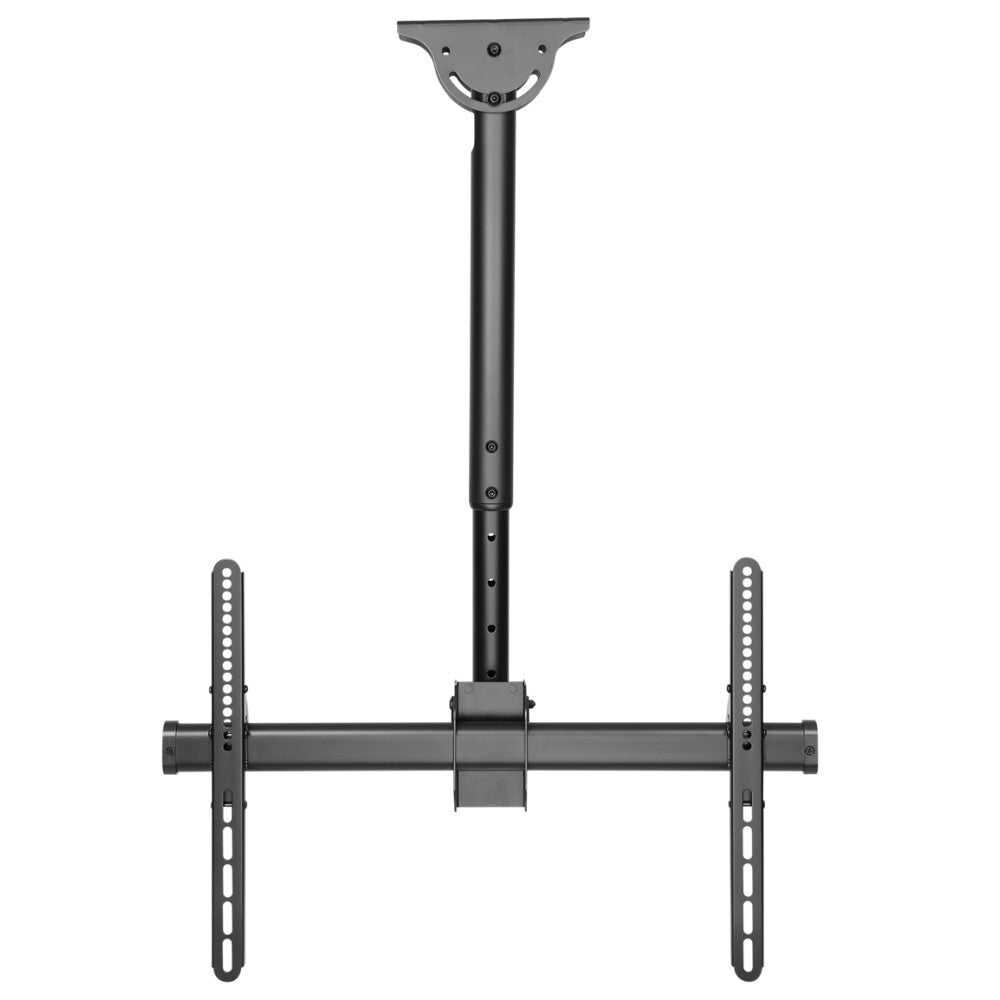

  • ICA CPLB-946L is a telescopic bracket ceiling full-motion designed to offer the ultimate in versatility and universal compatibility

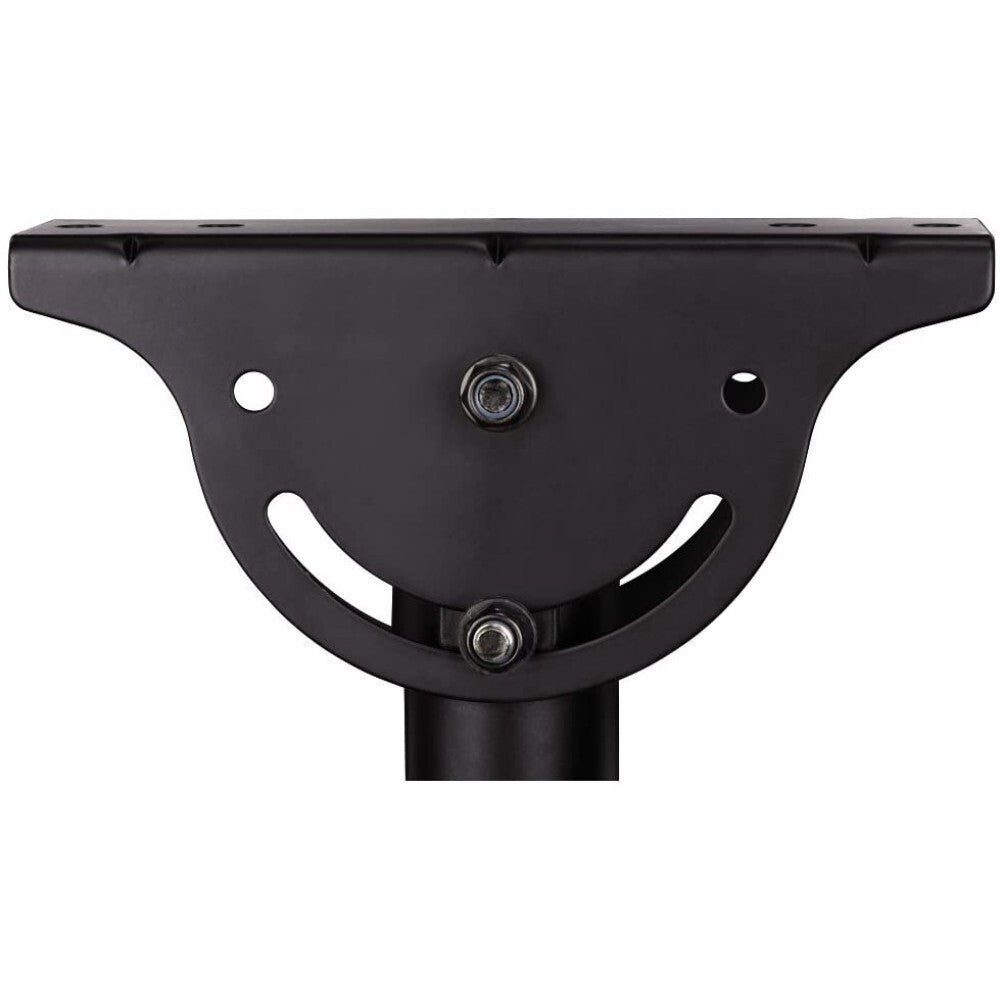

  • Tilting plate for ceiling applications and sloping floor
  • It allows screens to be tilted down or rotated without tools
  • Includes VESA plate for any LCD TV 37 "- 70" or monitors up to 50 kg

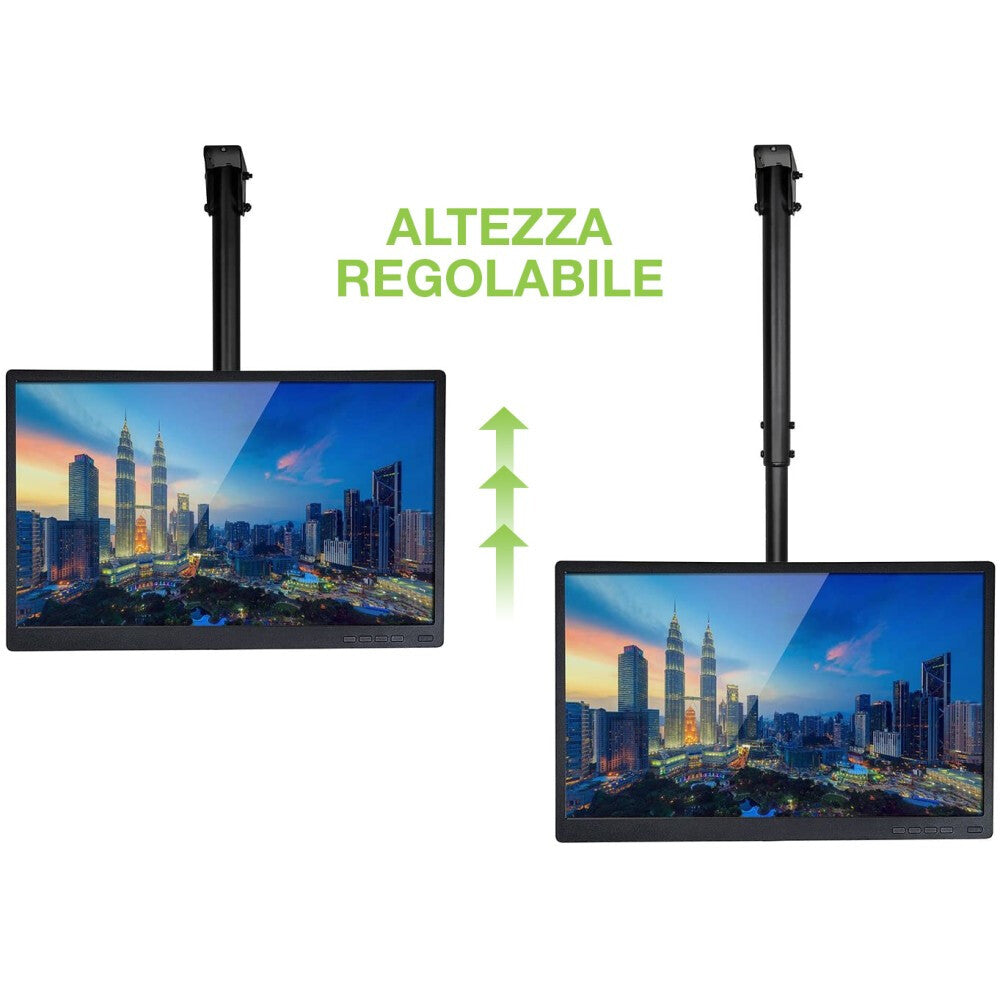

  • Adjustable height for perfect TV placement
  • A flume cable management keeps cables concealed and organized
  • Maximum length of the arm: 1778 mm
  • SKU:BES/HO/CPLB-946L
  • GTIN/EAN:8057685309357
  • MPN:ICA-CPLB 946L
Add To Favorite

You need to login to view the price.

View full details

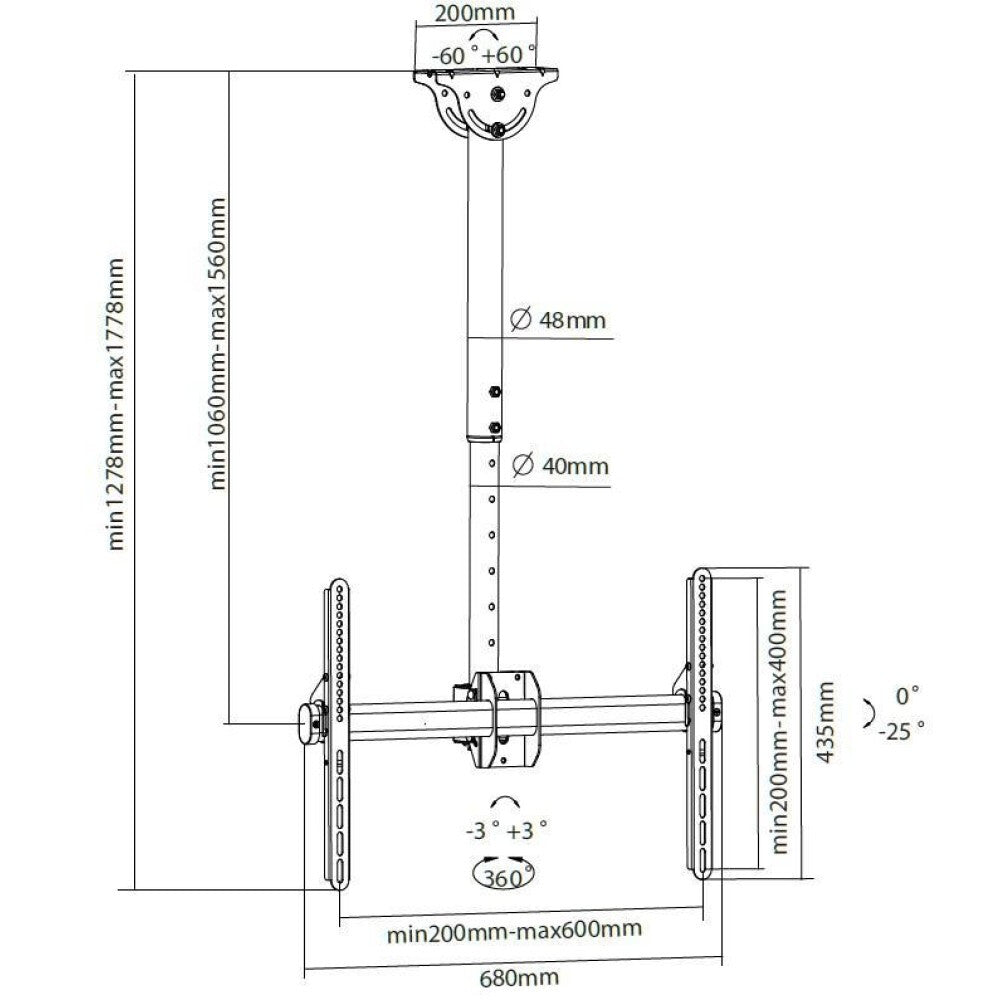

Techly 37-70 Telescopic Ceiling Long Support LED TV LCD" ICA-CPLB 946L. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 1060 - 1560 mm, Tilt angle range: -25 - 0°, Swivel angle: 180°. Product colour: Black

- ICA CPLB-946L is a telescopic bracket ceiling full-motion designed to offer the ultimate in versatility and universal compatibility
- Tilting plate for ceiling applications and sloping floor
- It allows screens to be tilted down or rotated without tools
- Includes VESA plate for any LCD TV 37 "- 70" or monitors up to 50 kg
- Adjustable height for perfect TV placement
- A flume cable management keeps cables concealed and organized
- Maximum length of the arm: 1778 mm

Mounting
Number of displays supported
1
Panel mounting interface
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Maximum VESA mount
600 x 400 mm
Minimum VESA mount
200 x 200 mm
Mounting type
Ceiling
Maximum screen size
177.8 cm (70")
Minimum screen size
94 cm (37")
Maximum weight capacity
50 kg
Ergonomics
Distance to the wall (max)
156 cm
Distance to the wall (min)
106 cm
Adjustable
Y
Built-in spirit level
N
Ceiling mounting tube length (max)
1778 cm

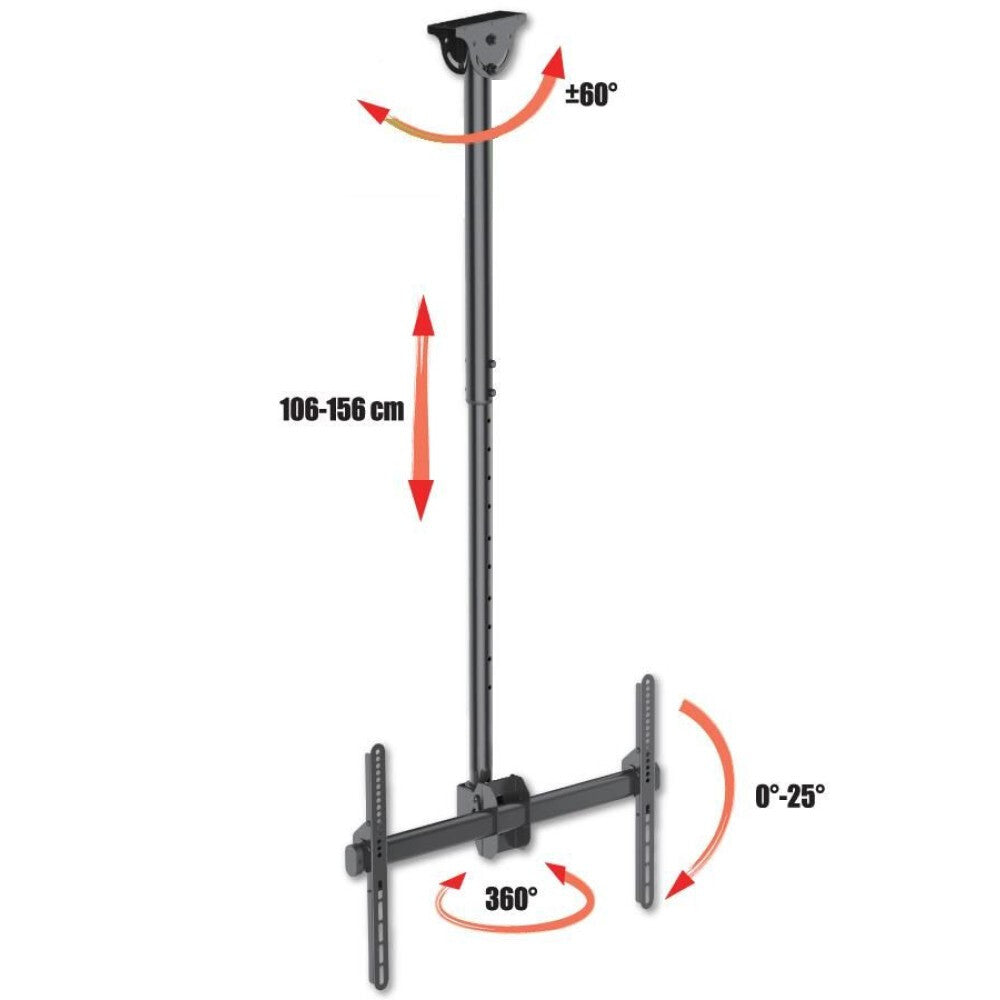

Pan range
-180 - 180°
Pivot angle
-60 - 60°
Swivel angle
180°

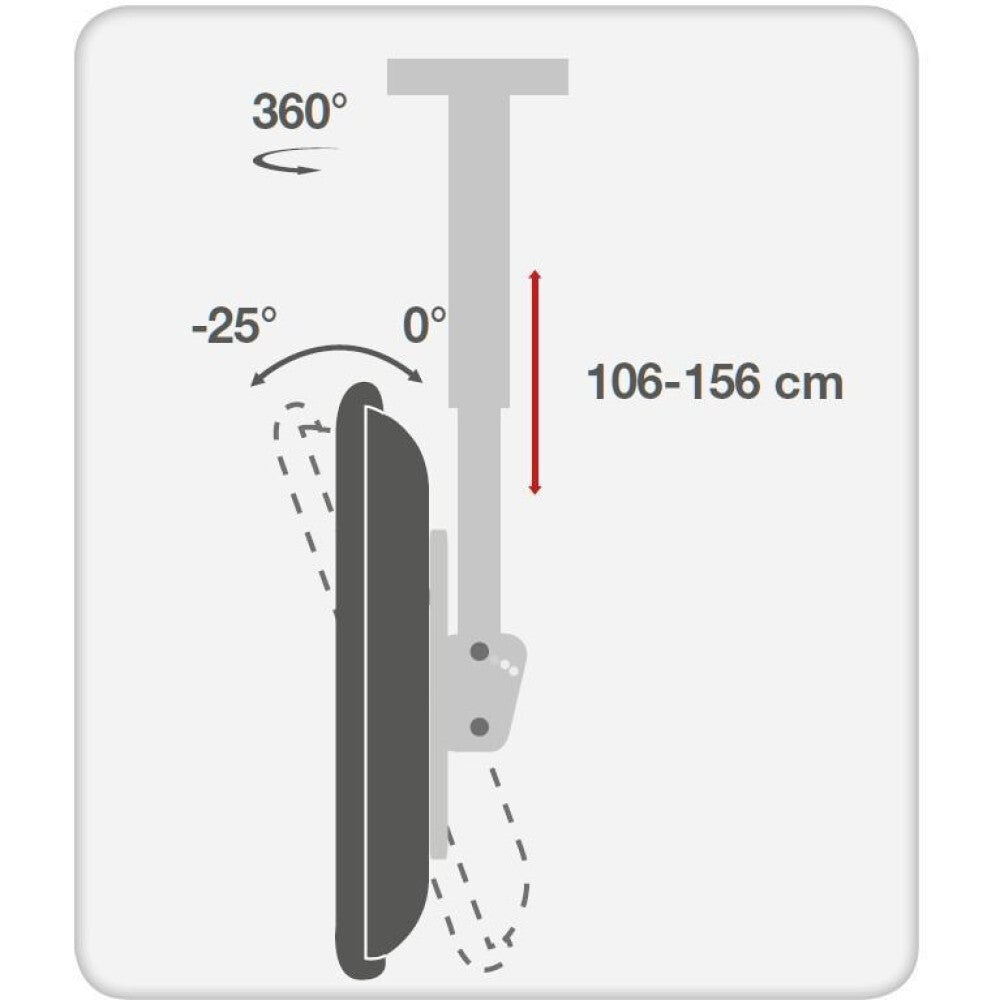

Tilt angle range
-25 - 0°
Height adjustment range
1060 - 1560 mm
Height adjustment
Y
Design
Anti-theft function
N
Housing material
Steel
Product colour
Black
Weight & dimensions
Weight
8.67 kg
Height
1778 mm
Depth
435 mm
Width
680 mm
Packaging content
Mounting kit
Y
Manual
Y
Technical details
Warranty period
10 year(s)
Logistics data
Harmonized System (HS) code
85299097
