SoundTube Entertainment CM31-EZ-WH

SoundTube Entertainment CM31-EZ-WH

SoundTube 3" In Ceiling Speaker in White, IP54, 20 W, 8 Ω, 85 dB

  • 20 W
  • 115 - 22000 Hz 8 Ω
  • Acrylonitrile butadiene styrene (ABS), Aluminium
  • Aluminium, White
  • SKU:CM31-EZ-WH
  • GTIN/EAN:
  • MPN:CM31-EZ-WH
Add To Favorite

You need to login to view the price.

View full details

SoundTube Entertainment CM31-EZ-WH. Recommended usage: Universal. Connectivity technology: Wired. RMS rated power: 20 W, Frequency range: 115 - 22000 Hz, Impedance: 8 Ω, Sensitivity: 85 dB. Product colour: Aluminium, White

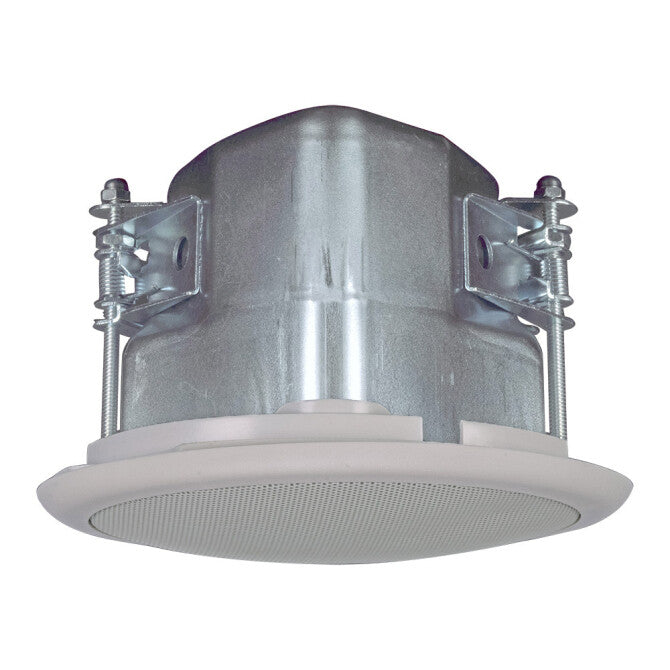

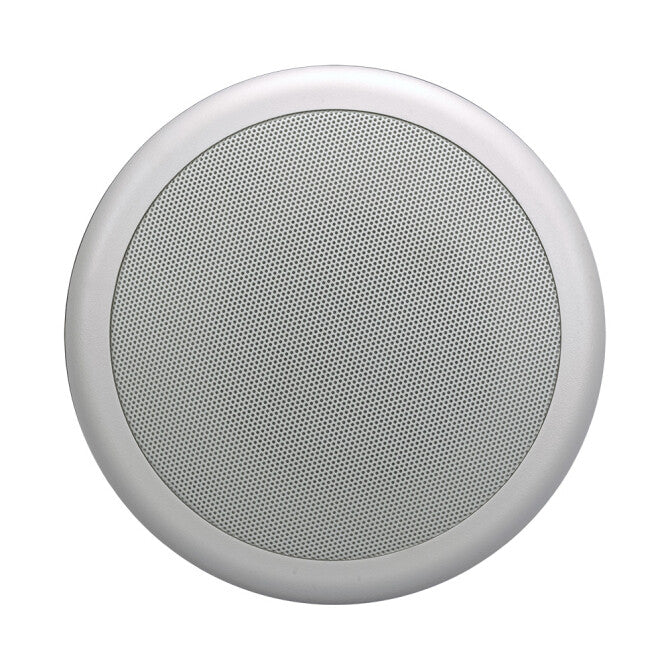

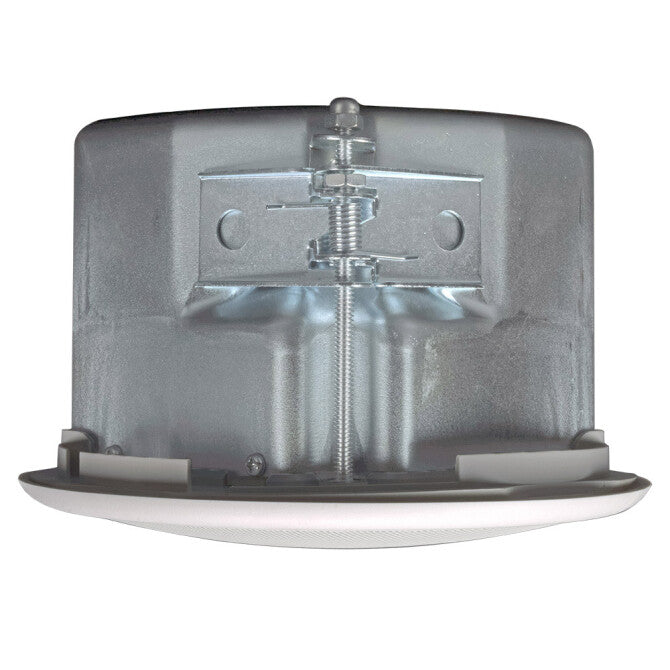

3 inch PREMIUM FULL-RANGE IN-CEILING SPEAKERS. One 3 inch (76.2 mm) full-range high-extrusion, high-fidelity polypropylene driver with butyl rubber surround. Weatherized components for indoor/outdoor applications. Shallow 3.5 inch (88.9 mm) deep all-steel backcan with integrated driver and baffle configuration. Ultra-compact design with a total visible footprint of less than 6.3 inch (160.6 mm)diameter. Rapid installation, blind-mount, fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1 in. (2.5 mm) to 1.5 in. (38.1 mm). Corrosion-resistant, powder-coated aluminum grille with snap fit attachment. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. UL 1480 (UEAY) and 2043 approved. Included accessories: Choose between a Tile bridge or a Pre-Construction Bracket. IP-Rating: IP54.

Loudspeakers
Tweeter diameter (imperial)
7.62 cm (3")
Tweeter
Yes
Speaker placement
In-wall/in-ceiling
Audio
Sensitivity
85 dB
Impedance
8 Ω
Frequency range
115 - 22000 Hz
RMS rated power
20 W
Performance
Certification
CE, RoHS, UL1480A, UL2043
International Protection (IP) code
IP54
Housing material
Acrylonitrile butadiene styrene (ABS), Aluminium
Recommended usage
Universal
Product colour
Aluminium, White
Amplifier
Amplifier
No
Ports & interfaces
Bluetooth
No
Connectivity technology
Wired
Weight & dimensions
Weight
1.4 kg
Packaging data
Package weight
1.68 kg
Package height
209.6 mm
Package type
Box
Packaging data
Package depth
203.2 mm
Package width
184.2 mm
Packaging content
Manual
Yes
Quantity per pack
1 pc(s)
Sustainability
Sustainability certificates
CE, RoHS
