SoundTube Entertainment CM500I-WH

SoundTube Entertainment CM500I-WH

SoundTube 5.25" In Ceiling Speaker in White with a BroadBeam Tweeter, 86 Hz - 22 kHz, 75 W, 4 Ω, 83 dB

  • 75 W
  • 75 - 22000 Hz 8 Ω
  • Acrylonitrile butadiene styrene (ABS), Aluminium
  • Aluminium, White
  • SKU:CM500I-WH
  • GTIN/EAN:
  • MPN:CM500I-WH
Add To Favorite

You need to login to view the price.

View full details

SoundTube Entertainment CM500I-WH. Recommended usage: Universal. Connectivity technology: Wired. RMS rated power: 75 W, Frequency range: 75 - 22000 Hz, Impedance: 8 Ω, Sensitivity: 86.5 dB. Product colour: Aluminium, White

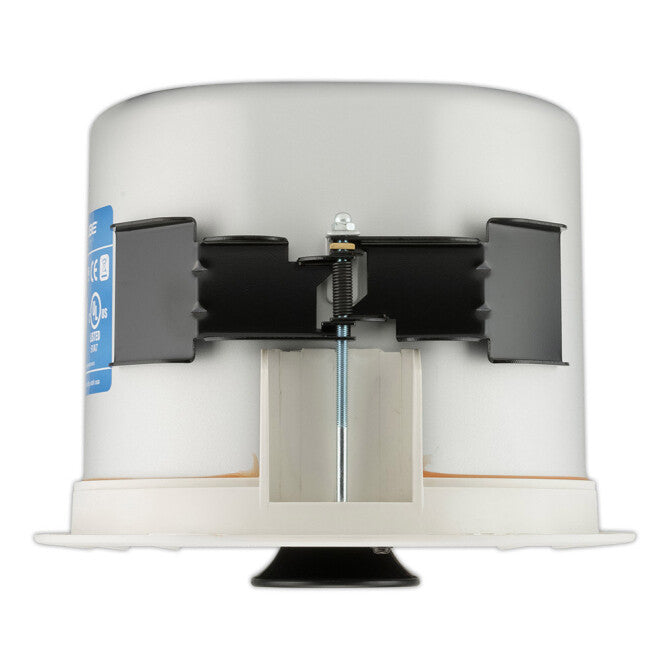

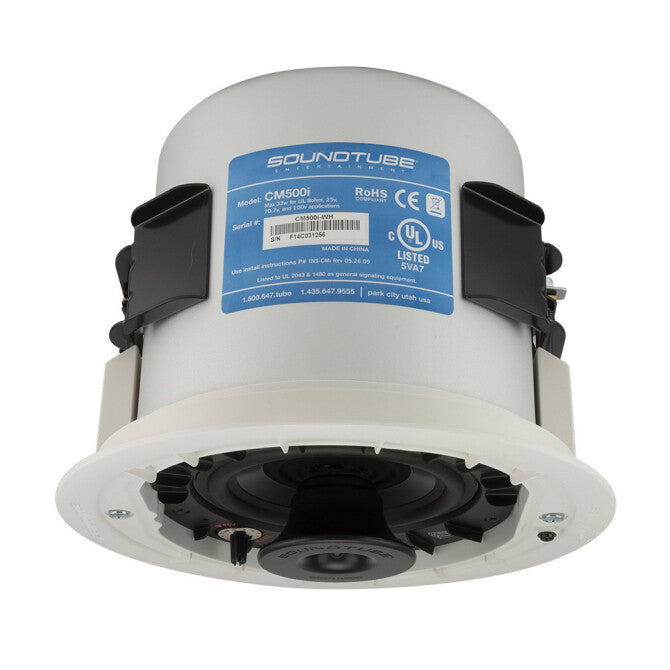

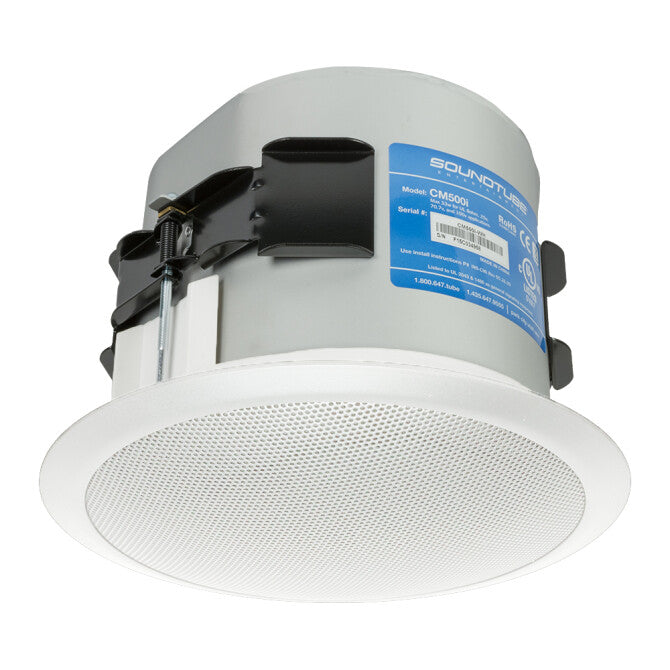

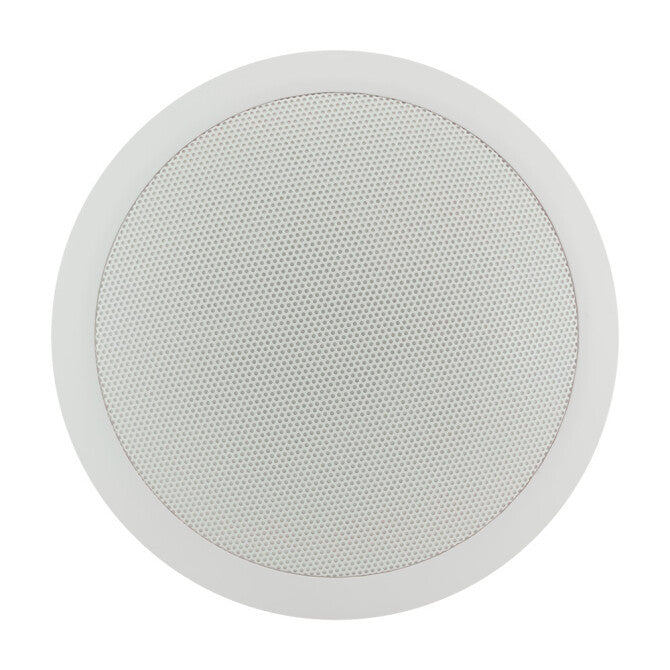

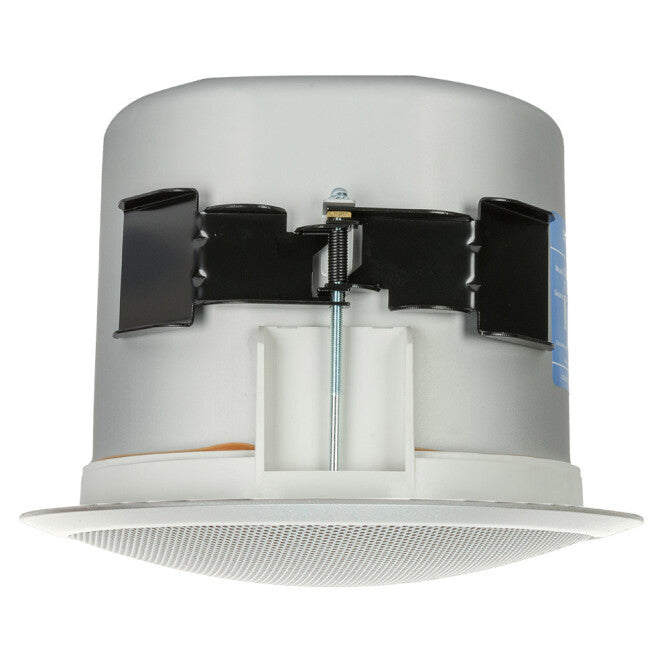

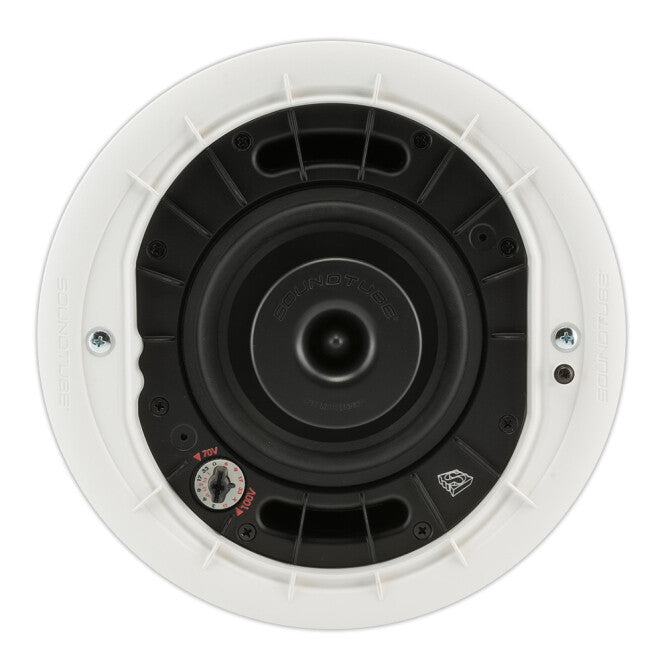

One 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Patented BroadBeam® waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. Rapid-installation, blind-mount, fixed wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 86.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask.

Loudspeakers
Woofer diameter (imperial)
13.3 cm (5.25")
Woofer
Yes
Tweeter diameter (imperial)
2.54 cm (1")
Tweeter
Yes
Speaker placement
In-wall/in-ceiling
Audio
Crossover frequency
3000 Hz
Sensitivity
86.5 dB
Impedance
8 Ω
Frequency range
75 - 22000 Hz
RMS rated power
75 W
Performance
Certification
CE, RoHS, UL1480A, UL2043
Housing material
Acrylonitrile butadiene styrene (ABS), Aluminium
Recommended usage
Universal
Product colour
Aluminium, White
Amplifier
Amplifier
No
Ports & interfaces
Bluetooth
No
Connectivity technology
Wired
Weight & dimensions
Weight
3.4 kg
Packaging data
Package weight
11.5 kg
Package height
387.4 mm
Package type
Box
Packaging data
Package depth
660.4 mm
Package width
355.6 mm
Packaging content
Manual
Yes
Quantity per pack
1 pc(s)
Sustainability
Sustainability certificates
CE, RoHS
