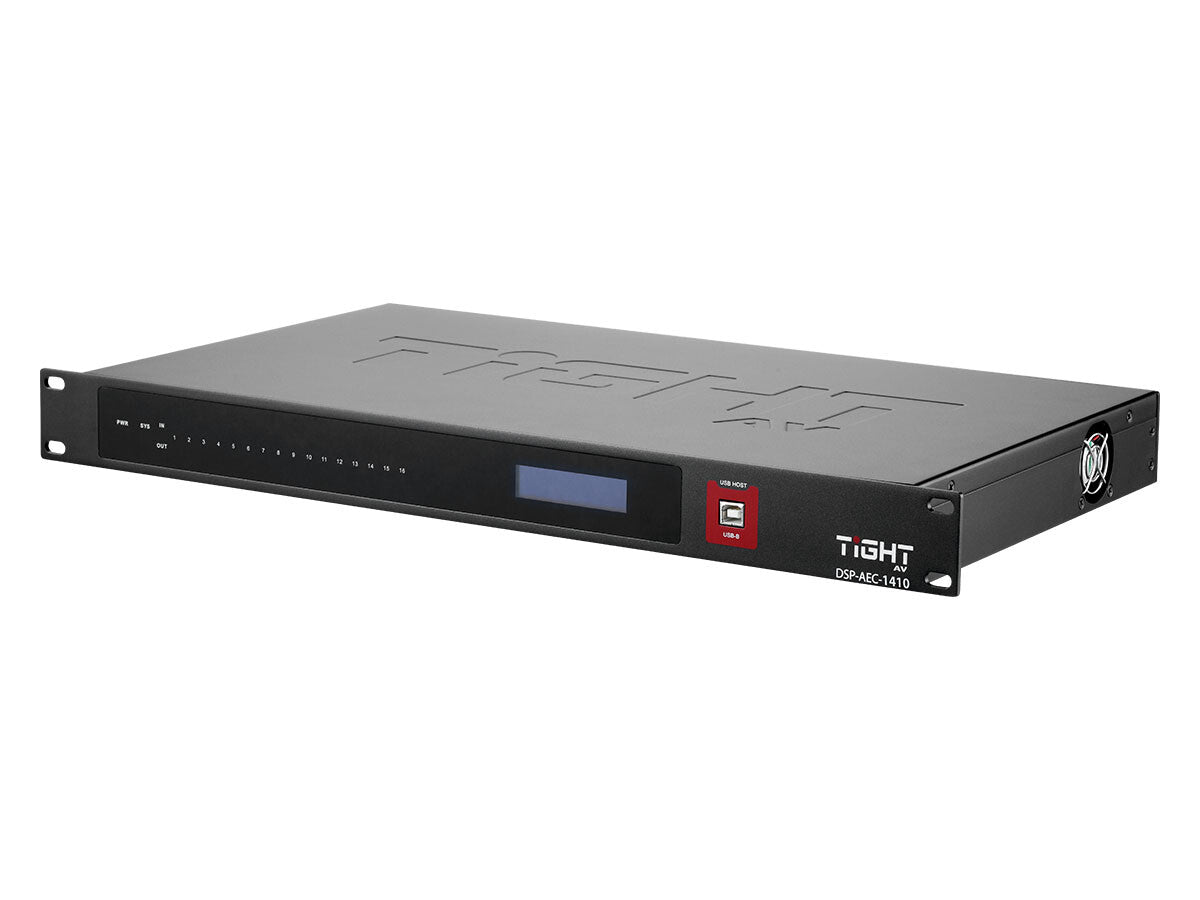

14X10 DSP WITH GPIO

Advanced DSP with freely assigned processing blocks, GPIO and camera control

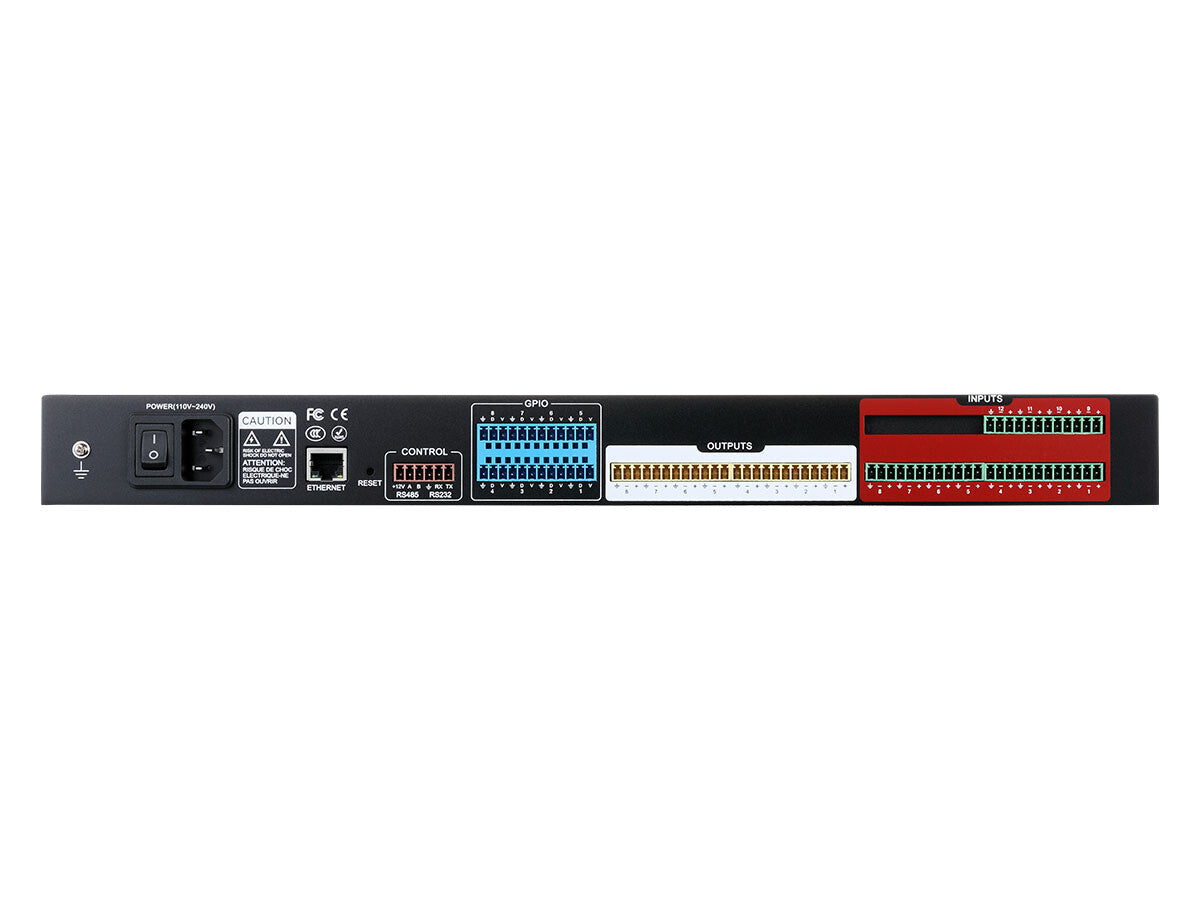

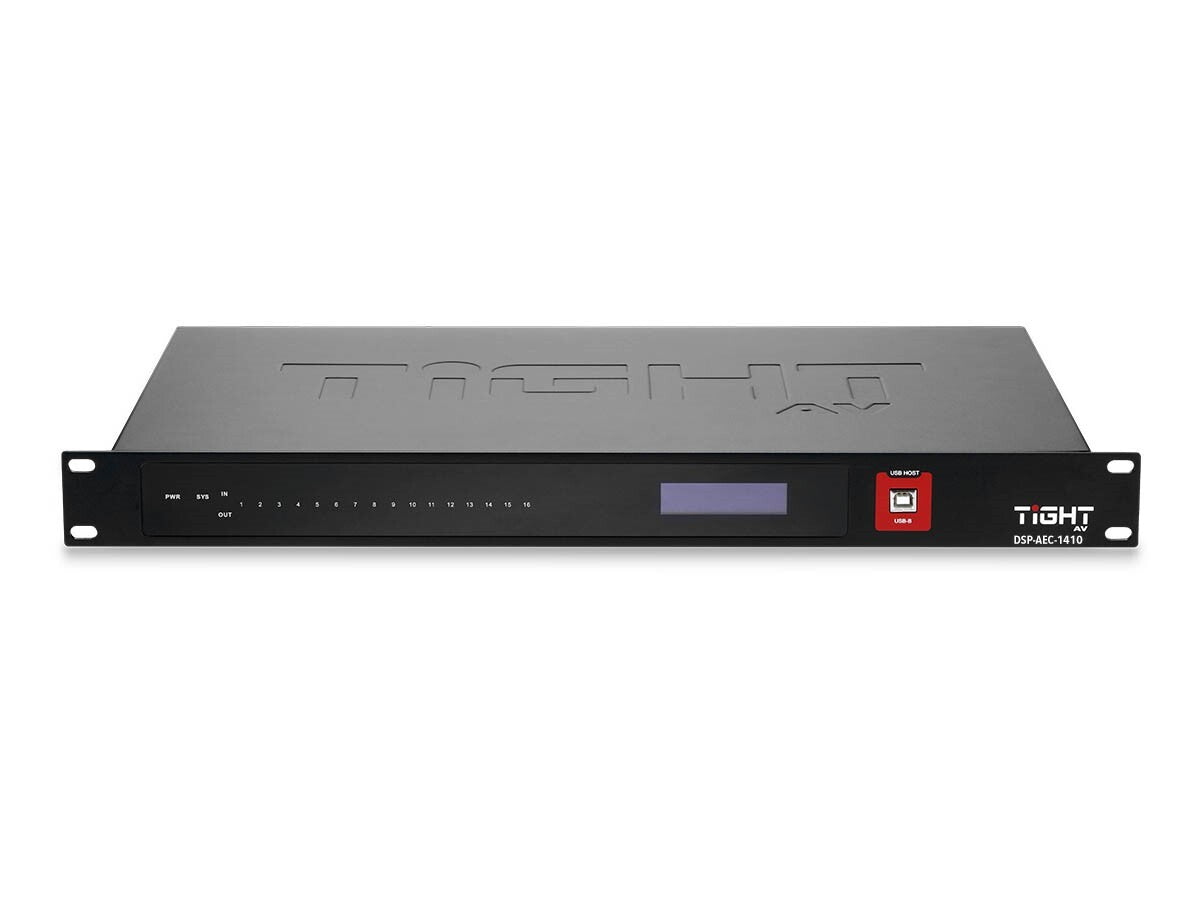

Sometimes you need to go big. The DSP-AEC-1410 offers 12 analog ins and 8 analog outs, as well as 8 GPIO ports plus RS232 and RS485 control. The front panel USB port can operate as a two-channel USB record/playback channel, giving the unit a total of 14 inputs and 10 outputs.

As the name suggests, the DSP-AEC-1410 is equipped with advanced acoustic echo cancellation, making it ideal as a centerpiece in web conference installations to eliminate unwanted feedback. Other DSP facilities include EQ, dynamics, mixer, and matrix, which can be freely configured via five processing blocks per channel. PTZ camera control is also supported, allowing you to choose which channel’s thresholds should trigger the camera’s presets.

For critical applications, two parallel-wired 1410s can be set up in Redundancy Mode, for automatic changeover in case of power or component failure.

As an option, programmable control panels (sold separately) offer the end user hands-on control to parameters set by the integrator.

KEY FEATURES

• 12x8 analog inputs and outputs
• 2x2 USB channels with processing for computer audio playback and recording
• Powerful DSP processing with matrix and mixer
• AEC (Acoustic Echo Cancellation)
• Ducker and AFS (Adaptive Feedback Suppression)
• Camera tracking feature • Easy to use GUI with configurable processing modules layout
• 16 user configurable presets for easy recall • Device snapshot export and mass import
• Light or dark theme selections • Admin and user account support • Redundancy mode for critical applications
• Open API for external control via ethernet (UDP) or RS-232/485
• External control from custom software or 3rd party control systems
