TV wall mount Basic TILT (XL)

TV wall mount Basic TILT (XL)

TV wall mount Basic TILT (XL), 43" - 100", 75 kg

  • Recommended screen size XL (109-254cm / 43-100")
  • maximum load 75 kg
  • wall distance 45
  • VESA (FDMI) 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 800 x 400 mm
  • SKU:49743
  • GTIN/EAN:4040849497438
  • MPN:49743
Add To Favorite

You need to login to view the price.

View full details

TV wall mount Basic TILT (XL). Maximum weight capacity: 75 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 800 x 400 mm. Tilt angle range: 0 - 10°. Product colour: Black

for TVs from 43" to 100" (109-254 cm), tiltable up to 75kg

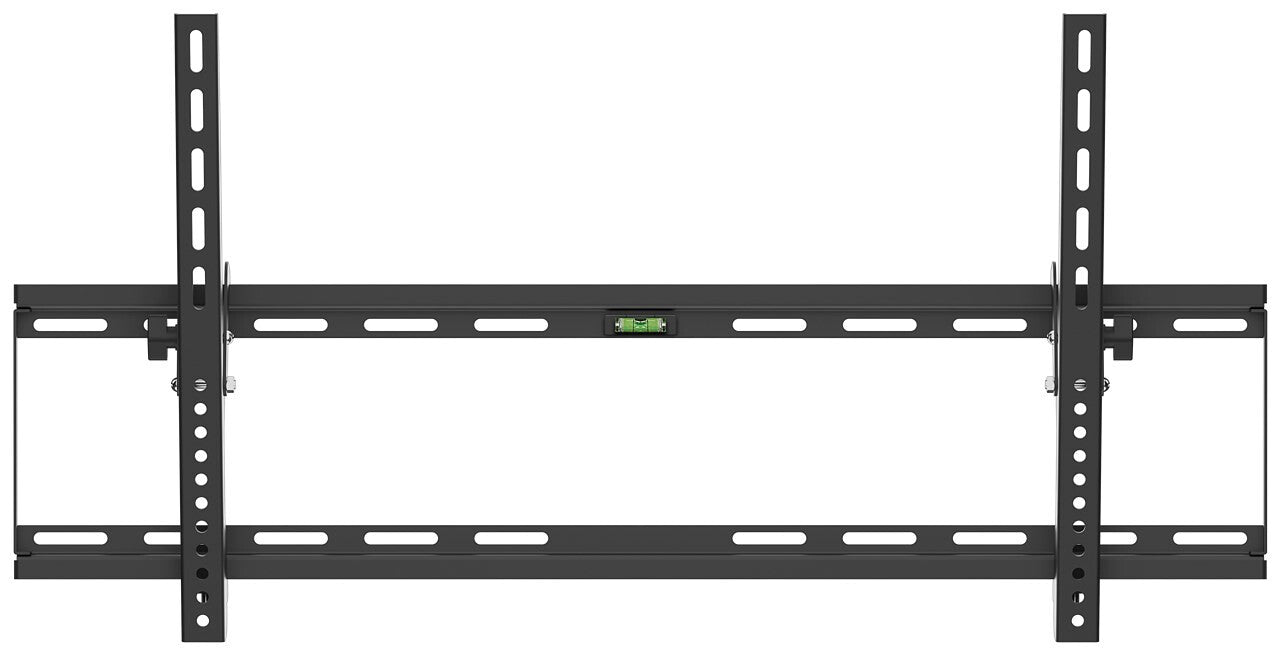

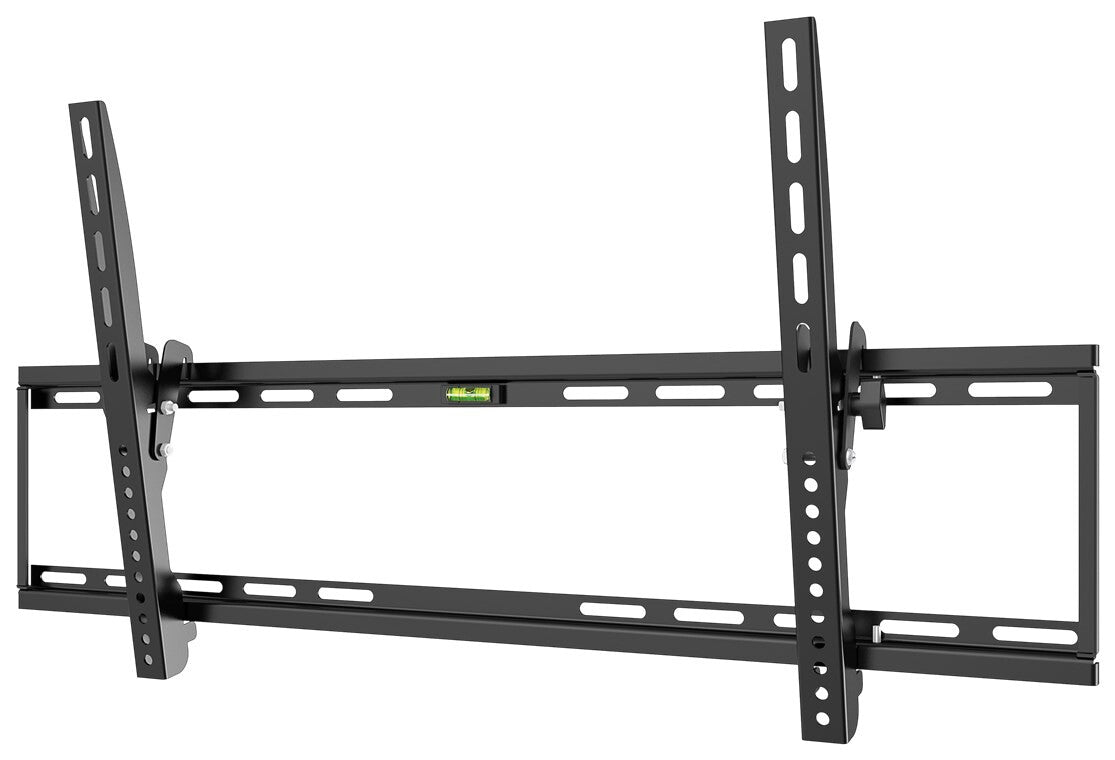

The tilting TV wall mount for every 43 to 100 inches (109-254 cm) TV with up to 75 kg. It can be tilted from 0 ° to 10 °. The super slim design is only 45 mm away from the wall and complements the sleek look of ultra-thin TVs. It is characterized by an open design that maximizes airflow to the devices and provides easy access to the rear of the components. The TV can be moved to the left and right on the wall plate to position it precisely.

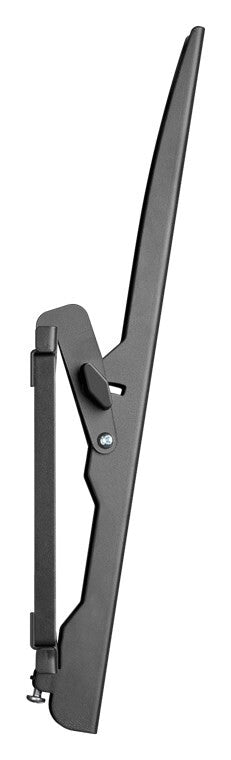

The flat wallmount keeps the TV elegantly flat and space-saving on the wall with only 45mm and can also be tilted up to 10°.
The open frame structure supports ventilation of the TV and allows access to the rear connections.

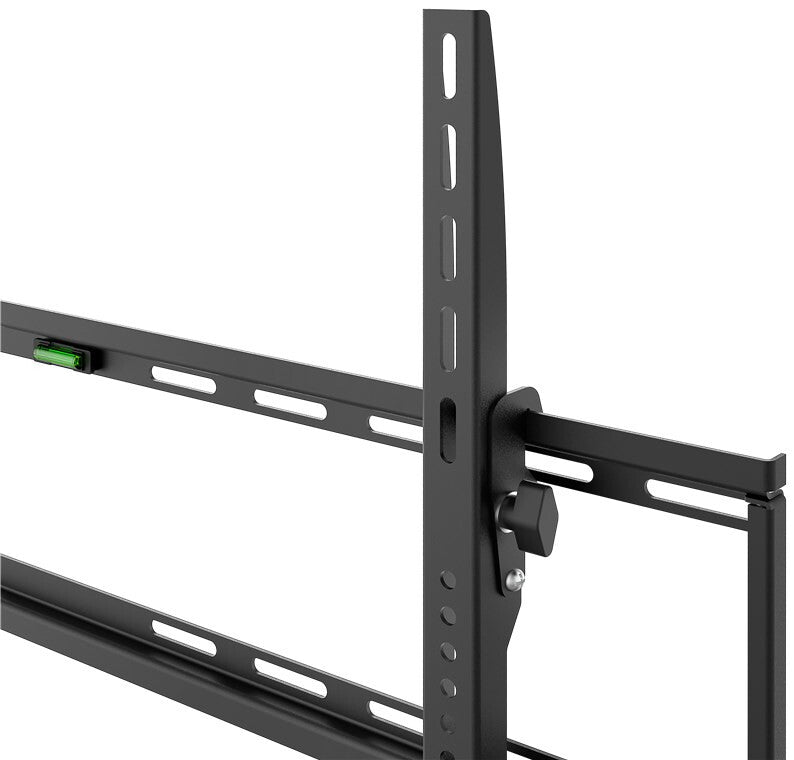

The integrated spirit level ensures easy alignment of the installation.
suitable wall bracket for most flat and curved televisions of all popular brands (e.g. Samsung (also QLED and LED), Sony, Philips, LG) and sizes (e.g. 50", 55", 58", 65", 75", 85")
Easy mounting and compatible with VESA standards 200x200, 300x300, 400x200, 400x400, 600x400, 800x400.

Warranty: 5 years

Mounting
Number of displays supported
1
Panel mounting interface
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400
Maximum VESA mount
800 x 400 mm
Minimum VESA mount
200 x 200 mm
Mounting type
Wall
Maximum screen size
2.54 m (100")
Minimum screen size
109.2 cm (43")
Maximum weight capacity
75 kg
Ergonomics
Tilt adjustment
Y
Design
Housing material
Steel
Product colour
Black
Technical details
Quantity per pack
1 pc(s)
Weight & dimensions
Weight
2.9 kg
Height
440 mm
Depth (max)
4.5 cm
Width
864 mm
