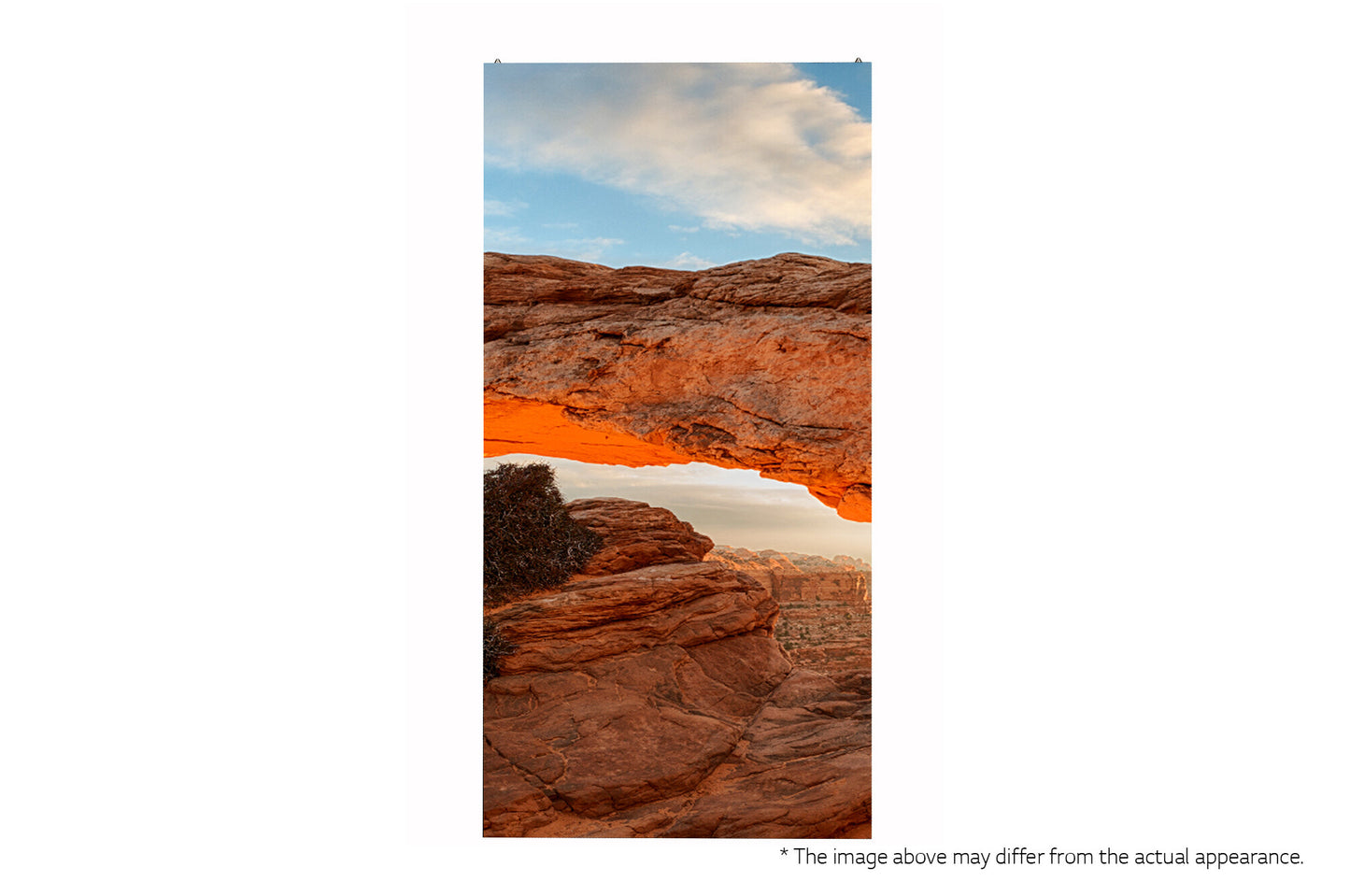

GSCA046 Outdoor LED, 4.63 mm Pixel Pitch

Fast Installation

Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.

Easy Maintenance

The GSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

Two Cabinet Options

The GSCA series offers two sizes of cabinets enabling a screen size configuration that fits perfectly with customer's demands.

IP Rated Weatherproof & 90° Corner Design

The cabinet is IP65 certified, allowing stable operation unaffected by weather and harsh outdoor environments. Also, if you add a 90° corner option, the GSCA series can deliver flawless content even when installed on the corners.

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.

Explore more about LG Virtual Showroom

Tech Spec

• Physical Parameter

  Pixel Configuration	3 in 1 SMD
  Pixel Pitch (mm)	4.63
  Module Resolution (W x H)	54 × 108
  Module Dimensions (W x H, mm)	250 × 500
  Weight per Module (kg)	1.40
  No. of Modules per Cabinet (W × H)	2 × 2 / 2 × 1 (Half-sized)
  Cabinet Resolution (W × H)	108 × 216 / 108 × 108 (Half-sized)
  Cabinet Dimensions (W × H × D, mm)	500 × 1,000 × 67.2 500 × 500 × 67.2 (Half-sized)
  Cabinet Surface Area (m²)	0.500 / 0.250 (Half-sized)
  Weight per Cabinet (kg/cabinet)	12.7 / 8.1 (Half-sized)
  Weight per Square Meter (kg/m²)	25.4 / 32.2 (Half-sized)
  Physical Pixel Density (pixels/m²)	46,656
  Flatness of Cabinet	±0.3 mm
  Cabinet Material	Die-casting Magnesium
  Service Access	Front or Rear (One Option Only)

• Optical Parameter

  Min. Brightness (After Calibration)	5,000
  Color Temperature	3,500 ~ 9,000
  Visual Viewing Angle (Horizontal/Vertical)	160 / 135
  Brightness Uniformity	97%
  Color Uniformity	±0.003CxCy
  Contrast Ratio	11,000
  Processing Depth (bit)	14

• Electrical Parameter

  Power Consumption (W/Cabinet, Max.)	300 / 150 (Half-sized)
  Power Consumption (W/Cabinet, Avg.)	100 / 50 (Half-sized)
  Power Consumption (W/m², Max.)	600
  Heat Dissipation (BTU/h/Cabinet, Max.)	1024 / 512
  Heat Dissipation (BTU/h/Cabinet, Avg.)	341 / 171
  Heat Dissipation (BTU/h/㎡, Max.)	2047
  Power Supply (V)	100 to 240
  Frame Rate (Hz)	50 / 60
  Refresh Rate (Hz)	3,840

• Operation Conditions

  Lifetime (Hours to Half Brightness)	100,000
  Operating Temperature (°C)	-20℃ to +45℃
  Operating Humidity	10-99%RH
  IP rating Front / Rear	IP65 / IP65

• Certification

  Certification	CE,FCC,ETL

• Environment

  Environment	RoHS

• Controller

  Controller	LCIN006
