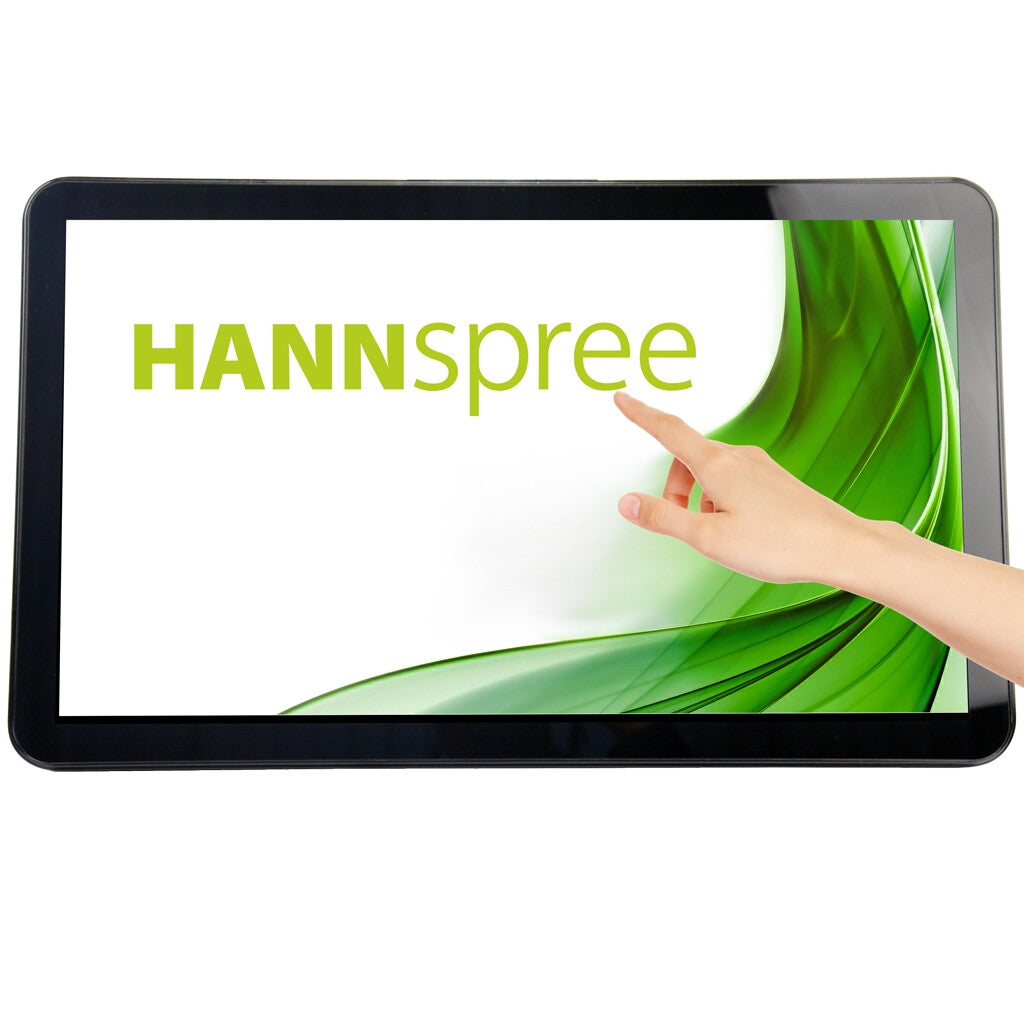

Hannspree HO 430 HTB

Hannspree HO 430 HTB

43" FHD TFT LED, Touch, 1200:1, 300 cd/m², 8 ms, 178°/178°, IP 54, VGA, HDMI, USB, 100-240 V, VESA

  • 1920 x 1080 Full HD 1080P Resolution
  • 10-Point Touch P-Cap Technology
  • 178° / 178° Ultra Wide Viewing Angle
  • 1200:1 High Contrast Ratio
  • IP54 (front) Rating Level
  • Multiple Mounting Options
  • ≥6H Toughened Hard Panel
  • Slim Profile with Narrow Edges
  • SKU:4711404022630
  • GTIN/EAN:4711404022630
  • MPN:HO430HTB
Add To Favorite

You need to login to view the price.

View full details

Limitless Possibilities with Open Frame

Designed for demanding environments, the HANNspree Open Frame series delivers a long life cycle, high resolution experience to a wide range of commercial and industrial applications. Featuring a molded metal casing to extra protection, these open-frame monitors have a long-lasting product life cycle, Digital video inputs along with VESA and or flange mount capability, the HANNspree Industrial Open-Frame family make the most of your digital world.

Choose from standard or touch screen high performance displays ranging from 10.1" up to 55" and the right aspect ratio to best fit your application.

AVAILABLE FOR MULTIPLE APPLICATIONS AND SYSTEMS INTEGRATION

With the support of highly experienced, vertical manufacturing capabilities, our Open Frame monitor business is designed to provide a cost effective, "one stop solution" for project requirements. We already supply Open Frame solutions for a number of large gaming tenders across Europe.

Offering a completely flexible, personal service HannsG by Hannspree delivers customised solutions to fulfil the specific demands of both OEMs and System Integrators.

Available for multiple applications and systems integration

Our display supports rear and VESA mount for multiple mounting options and together with integrated brackets provides the benefits of easy installation, and flexibility for different applications.

The HANNspree open frame display employs the latest LCD technology to ensure high reliability and the best user experience.

Display
Horizontal scan range
30 - 80 kHz
Vertical scan range
55 - 75 Hz
Supported graphics resolutions
1920 x 1080 (HD 1080)
Panel type
TFT
Panel life
30000 h
Display diagonal (metric)
109.22 cm
Active display area (W x H)
940.89 x 529.25 mm
Pixel pitch
0.49 x 0.49 mm
Display number of colours
16.78 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Dynamic contrast ratio marketing name
High Contrast
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Multi-touch
Yes
Touchscreen
Yes
HD type
Full HD
Display brightness
300 cd/m²
Display resolution
1920 x 1080 pixels
Display technology
LED
Display diagonal
109.2 cm (43")
Ports & interfaces
Wi-Fi
No
Ethernet LAN
No
USB port
Yes
VGA (D-Sub) input ports
1
DVI port
No
HDMI ports quantity
1
Audio
Built-in speaker(s)
No
Design
Panel mounting interface
400 x 400 mm
VESA mounting
Yes
Product colour
Black
Product design
Totem design
Performance
Mean time between failures (MTBF)
50000 h
International Protection (IP) code
IP54
On Screen Display (OSD)
Yes
Number of OSD languages
5
TV tuner integrated
No
Power
Energy efficiency scale
A to G
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
33 kWh
Energy efficiency class (SDR)
D
Power consumption (off)
0.5 W
Power consumption (standby)
0.5 W
Power consumption (typical)
45 W
Computer system
Computer system
No
Packaging content
Cables included
AC, USB, VGA
Certificates
Certification
CE
Algemeen
Productfamilie
Open Frame
Technical details
AC power supply
Y
Sustainability certificates
RoHS
Compliance certificates
RoHS
Other features
Other features
≥6H Toughened hard panel surface / ≥85%
