iiyama TF1734MC-B6X

iiyama TF1734MC-B6X

17’’, 1280 x 1024, 350 cd/m², 5:4, 5ms, IP65

  • Touchscreen 43.2 cm (17") LED
  • 1280 x 1024 pixels 5:4
  • 5 ms 1000:1
  • 13 W
  • SKU:4948570116836
  • GTIN/EAN:4948570116836
  • MPN:TF1734MC-B6X
Add To Favorite

You need to login to view the price.

View full details

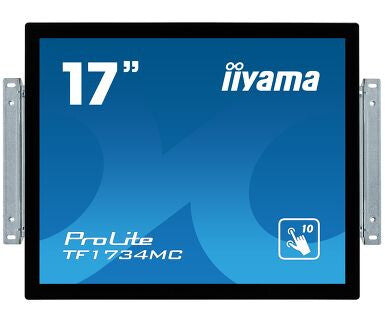

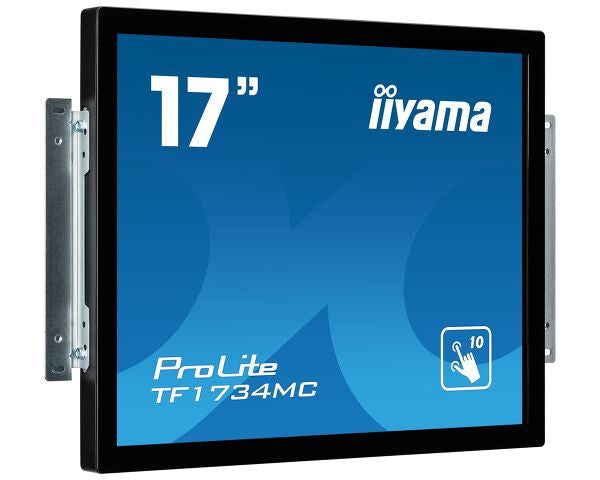

The ProLite TF1734MC 17" multi touch screen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The screen is IP65 rated which means it is dust and water resistant. For ease of installation in any environment the ProLite TF1734MC comes equipped with external mounting brackets making it an ideal solution for kiosk integrators and Instore Retail.

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Display
Viewable size, vertical
27.1 cm
Viewable size, horizontal
33.8 cm
Display number of colours
16.78 million colours
Contrast ratio (typical)
1000:1
Aspect ratio
5:4
Screen shape
Flat
Display surface
Matt
Display brightness
315 cd/m²
Response time
5 ms
Touchscreen technology
Projected capacitive system
Display resolution
1280 x 1024 pixels
Display diagonal
43.2 cm (17")
Performance
Linux operating systems supported
Yes
Windows operating systems supported
Yes
AMD FreeSync
No
NVIDIA G-SYNC
No
Design
Certification
CB, CE, TÜV, CU, cULusREACH
International Protection (IP) code
IP65
Product colour
Black
Ergonomics
LED indicators
Yes
Plug and Play
Yes
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
Wall mountable
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Power supply type
AC
Power consumption (off)
2 W
Power consumption (standby)
2 W
Power consumption (typical)
13 W
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (without stand)
3.6 kg
Height (without stand)
47.5 mm
Depth (without stand)
47.5 mm
Width (without stand)
369 mm
Packaging data
Quick start guide
Yes
Cables included
AC, DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code
85285210
Other features
AC adapter included
Yes
Surface hardness
HDCP
Yes
Display diagonal (metric)
43 cm
Built-in microphone
No
Pixel pitch
0.264 x 0.264 mm
Viewing angle, vertical
160°
Viewing angle, horizontal
170°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Touch port
Yes
Number of simultaneous touchpoints
10
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
5:4
Touchscreen
Yes
