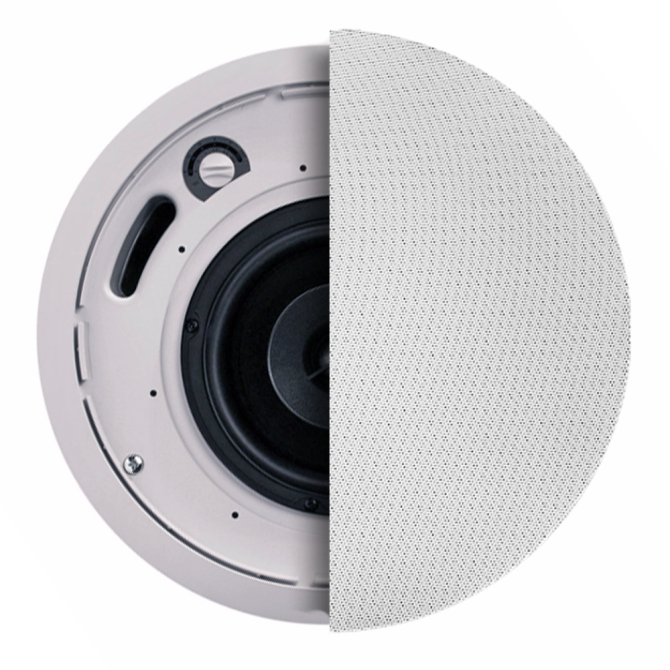

IPD-CM82-BGM-II-WH 8" IP-Addressable, Dante-Enabled In-Ceiling Speaker with Seamless Magnetic White Grille.

IPD-CM82-BGM-II-WH 8" IP-Addressable, Dante-Enabled In-Ceiling Speaker with Seamless Magnetic White Grille.

  • STNet IP-Addressable and Dante Series
  • SKU:IPD-CM82-BGM-II-WH
  • GTIN/EAN:
  • MPN:IPD-CM82-BGM-II-WH
Add To Favorite

You need to login to view the price.

View full details

SoundTube IPD-CM82-BGM-II IP-Addressable Speaker in White

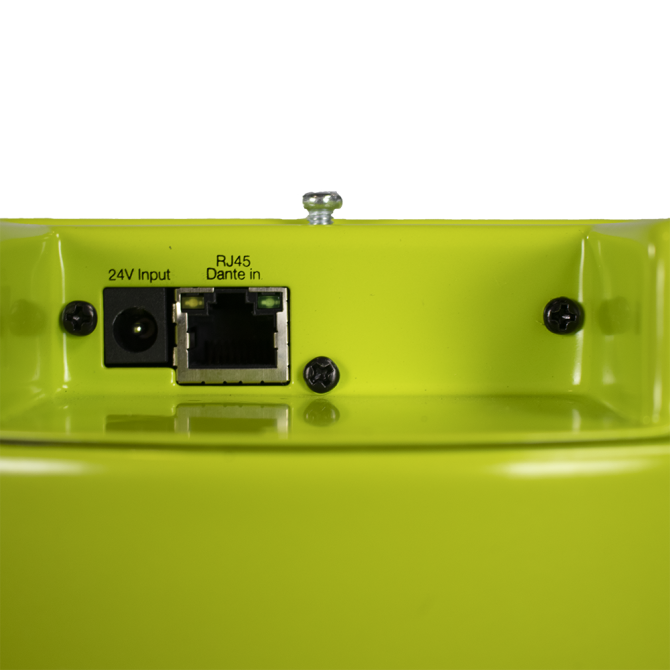

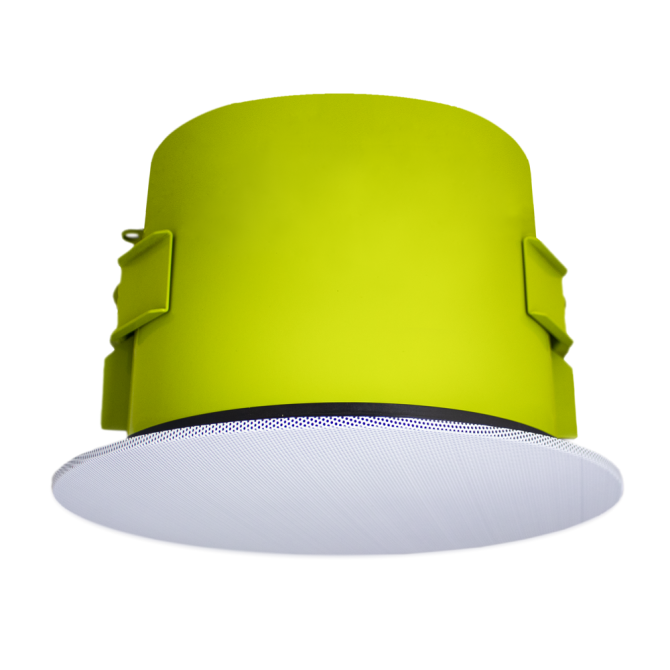

Dante®-enabled coaxial in-ceiling speaker incorporating one 8.0 inch (203 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 55 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 2.38 in (60.4 mm). UL 60065 and 2043 listed. Color-coded (green) tile bridge, UL listed conduit clamp and paint shield are included.

Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)

Owner's Manual | Tech Sheet | Drawing Top | Drawing Side | GLL | DWG | Applications Guide | A&E Specs | CE Certification | UL Certificate |  STNet Control Center Software User Manual |  STNet/Dante Firmware Download

Loudspeakers
Woofer
8" Polypropylene Cone w/ Butyl Rubber Surround
Tweeter
1" Silk Dome w/ BroadBeam Ring®
Speaker type
In-Ceiling IP/Dante
Performance
Product colour
White
Ports & interfaces
Connectivity technology
STNet IP-Addressable and Dante Series
