JWIPC K105 i7-1255U

JWIPC K105 i7-1255U

  • 24/7 Operation
  • Intel i7-1255U
  • 8GB DDR4
  • 250GB NVME
  • Windows 10 LTSC (Windows 11 LTSC optional)
  • 2 x HDMI + 1 x Displayport
  • SKU:PC/JW/B/K105-I71255U
  • GTIN/EAN:
  • MPN:K105-I71255U
Add To Favorite

You need to login to view the price.

View full details

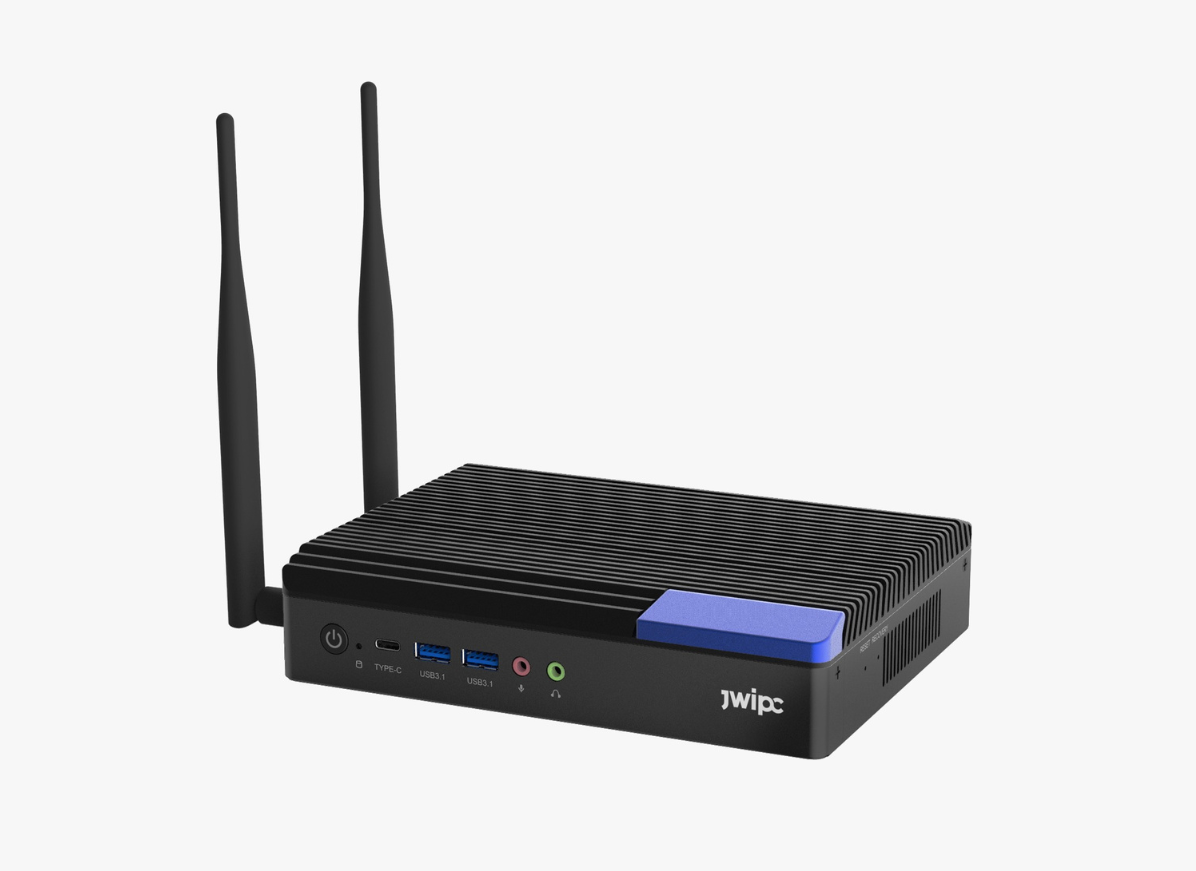

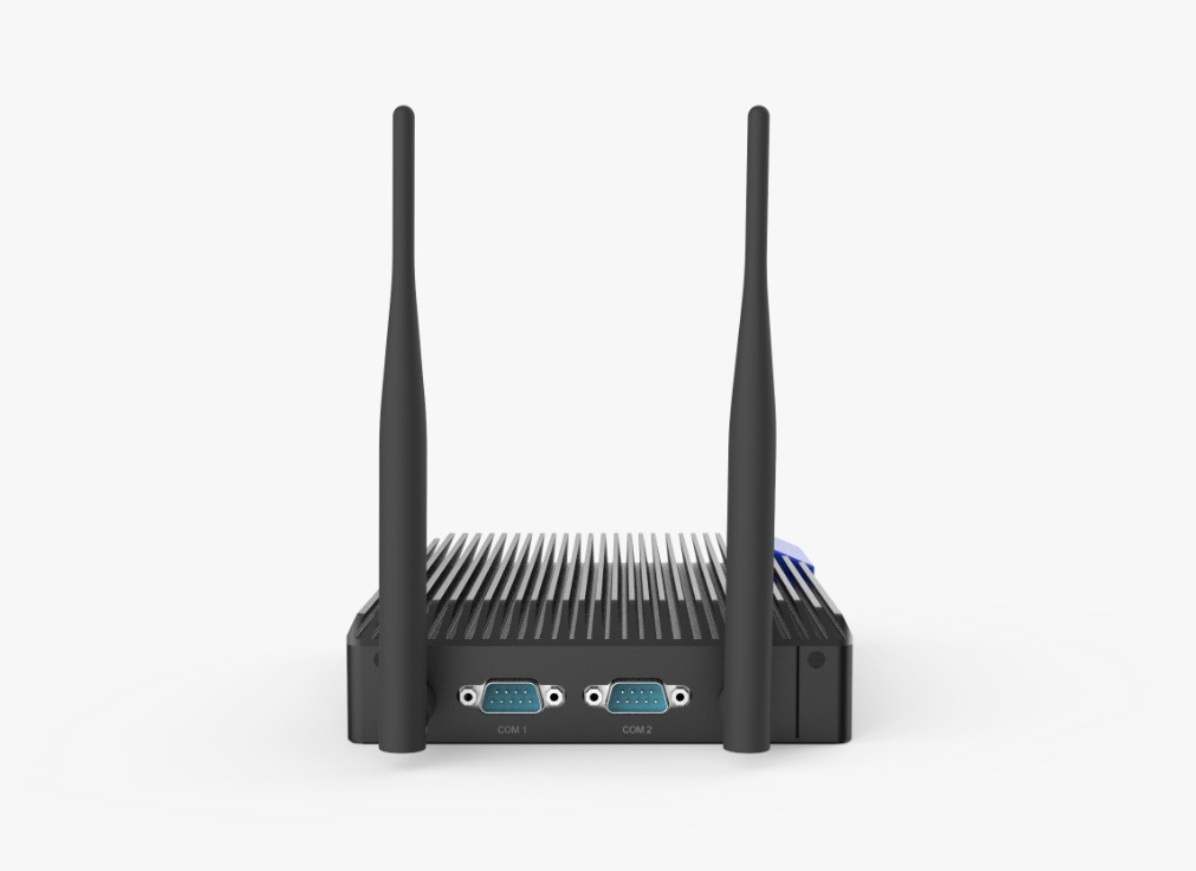

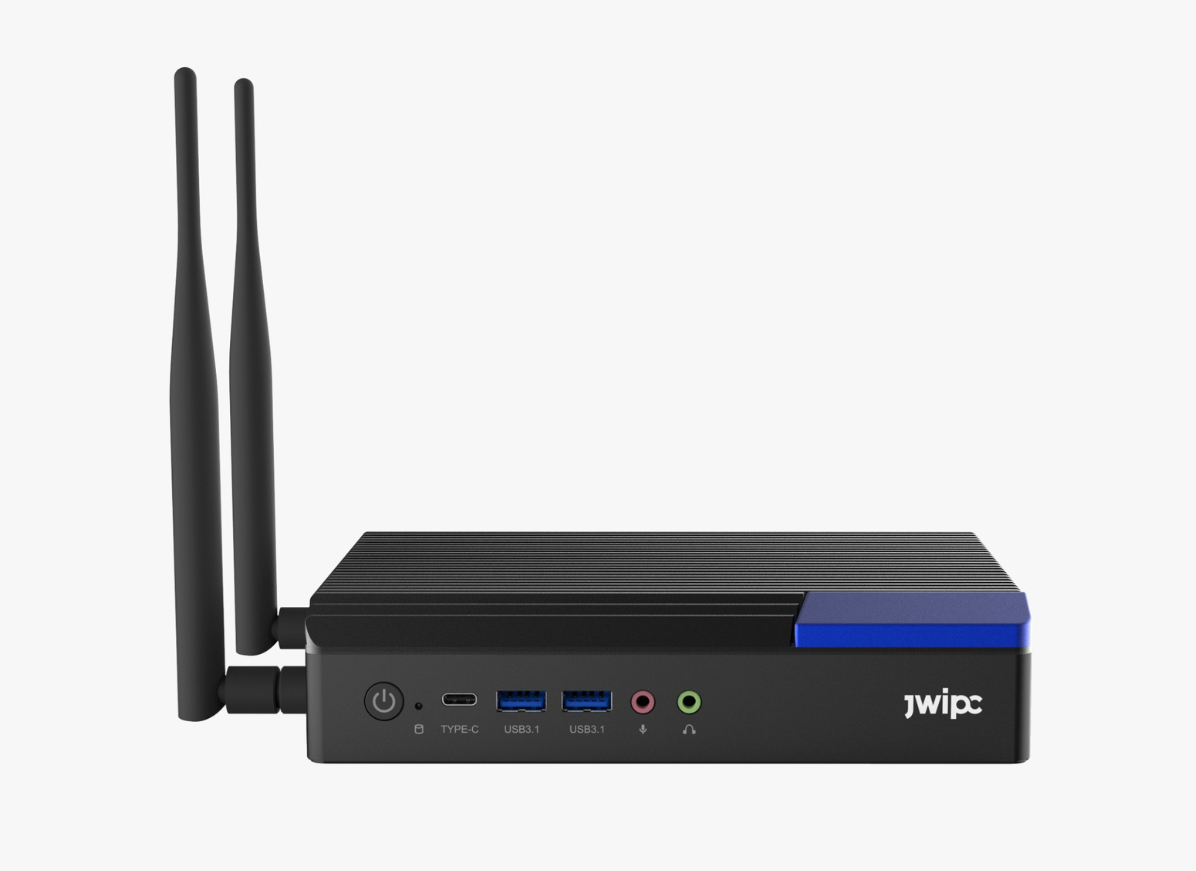

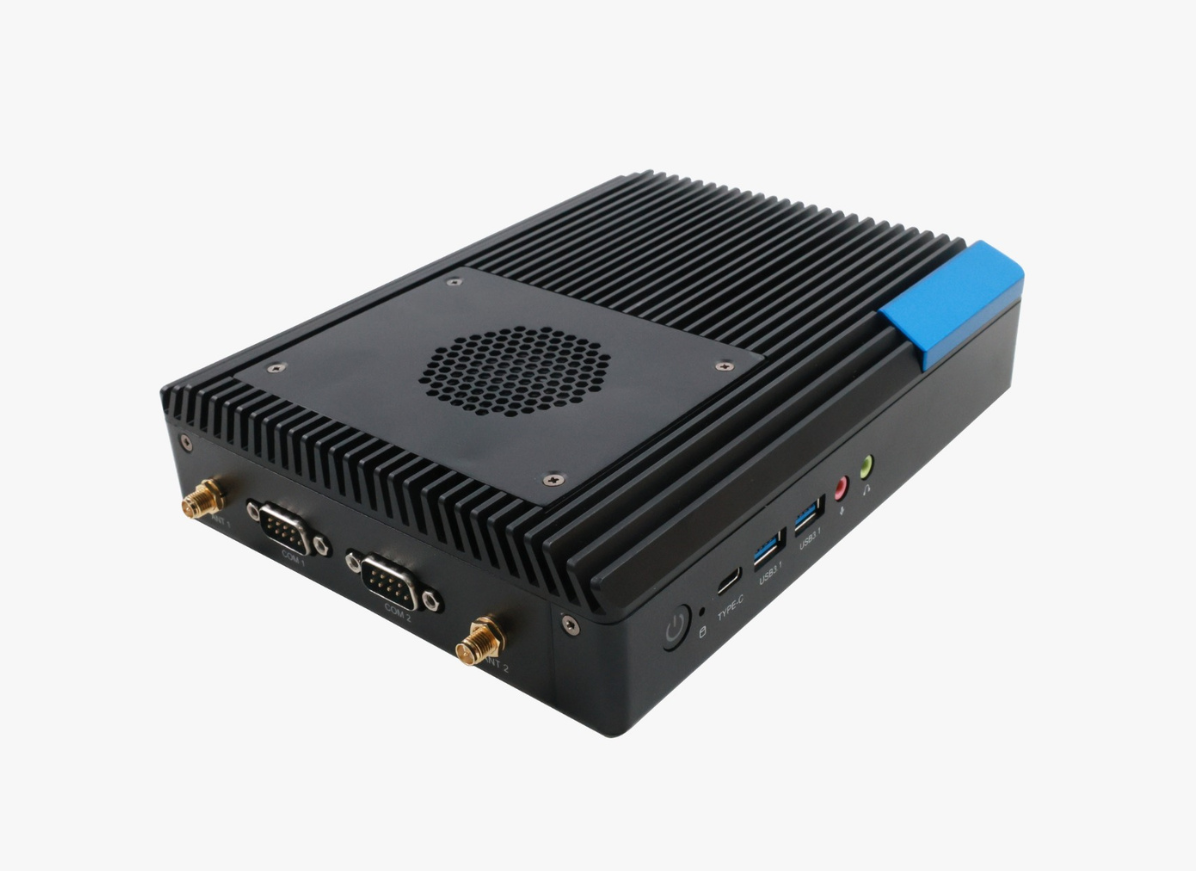

JWIPC K105 is powered by Intel Alder Lake-P platform, which equips with Intel Hybrid Technology Architecture E+P Cores performance. With efficient performance and superior display capabilities, it is the ideal digital signage solution for shopping malls, airport or service centers.

Core Performance

Equipped with Intel Alder Lake-P Processors, the k105 achieves an optimal balance between power consumption and performance. It integrates the new generation Xe architecture GPU, delivering excellent image processing capabilities and AI acceleration functions.

8K UHD Display

Supporting triple display output including dual HDMI 2.0 4K@60Hz and DP1.4 8K@30Hz, it offers a more stunning visual experience.

Fast Data Transfer
Support WIFI6, 4G/5G and double gigabit networks, to meet different types of network data fast transmission.

7*24 Operation

With 24/7 unattended operation, power-on boot and RTC functionality, it facilitates easy application of emergency situations, helping to restore normal operation.

Supporting watchdog and TPM 2.0, it ensures stable operation while safeguarding data security.

Rich Interface

Storage
SSD interface
1 x M.2 Key M slot for 2242/2280 size SSD
Performance
Trusted Platform Module (TPM) version
Physical TPM2.0 chip
Motherboard chipset
SOC
Product type
Dual Channel So DIMM DDR4, Max. 3200MHz
Processor special features
CPU configuration (max)
Intel® Alder Lake Processor Max. TDP=28w
Operational conditions
Storage temperature (T-T)
-20~70℃
Operating temperature (T-T)
-5~45℃
Weight & dimensions
Height
45 mm
Width
148 mm
