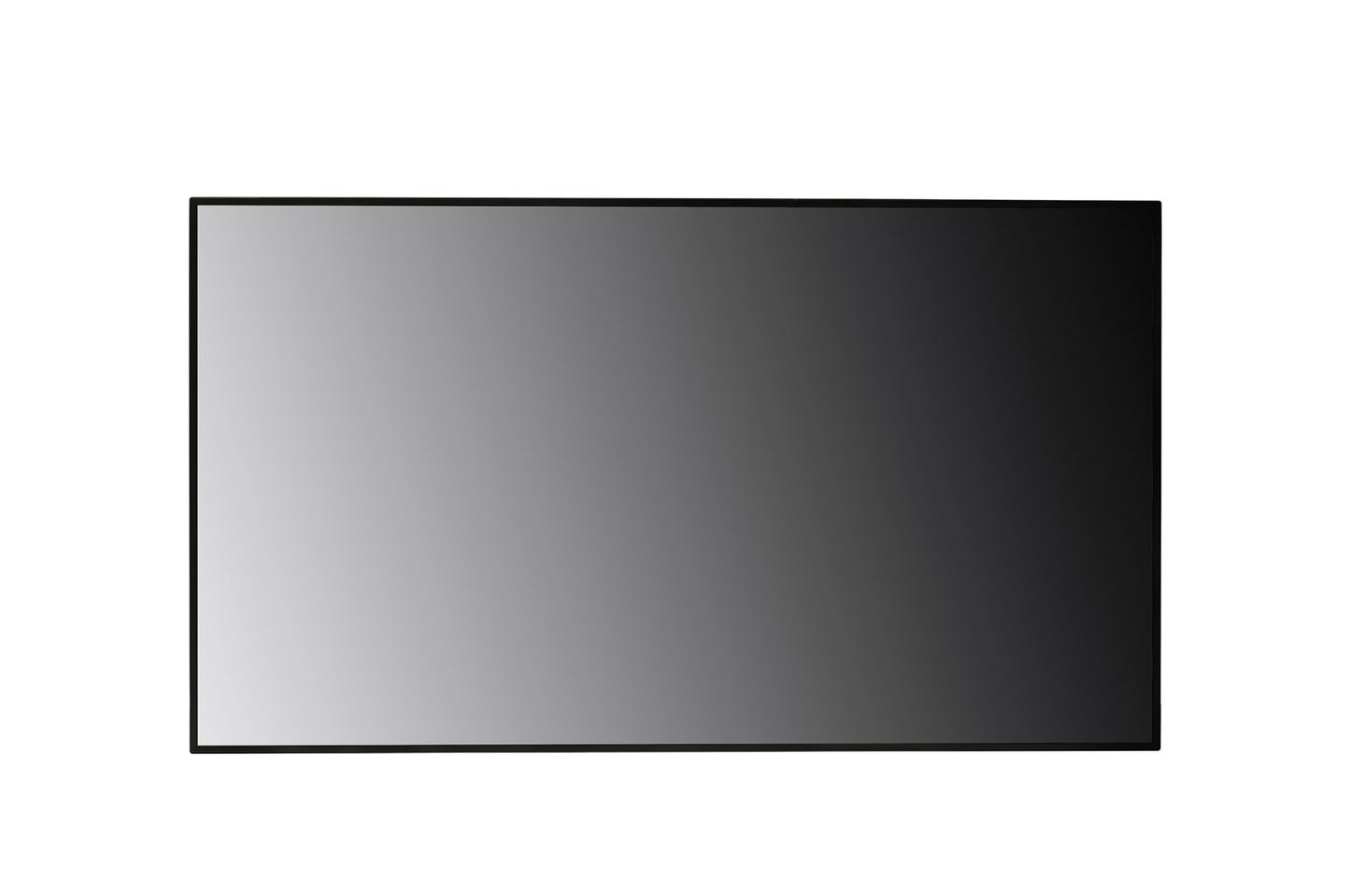

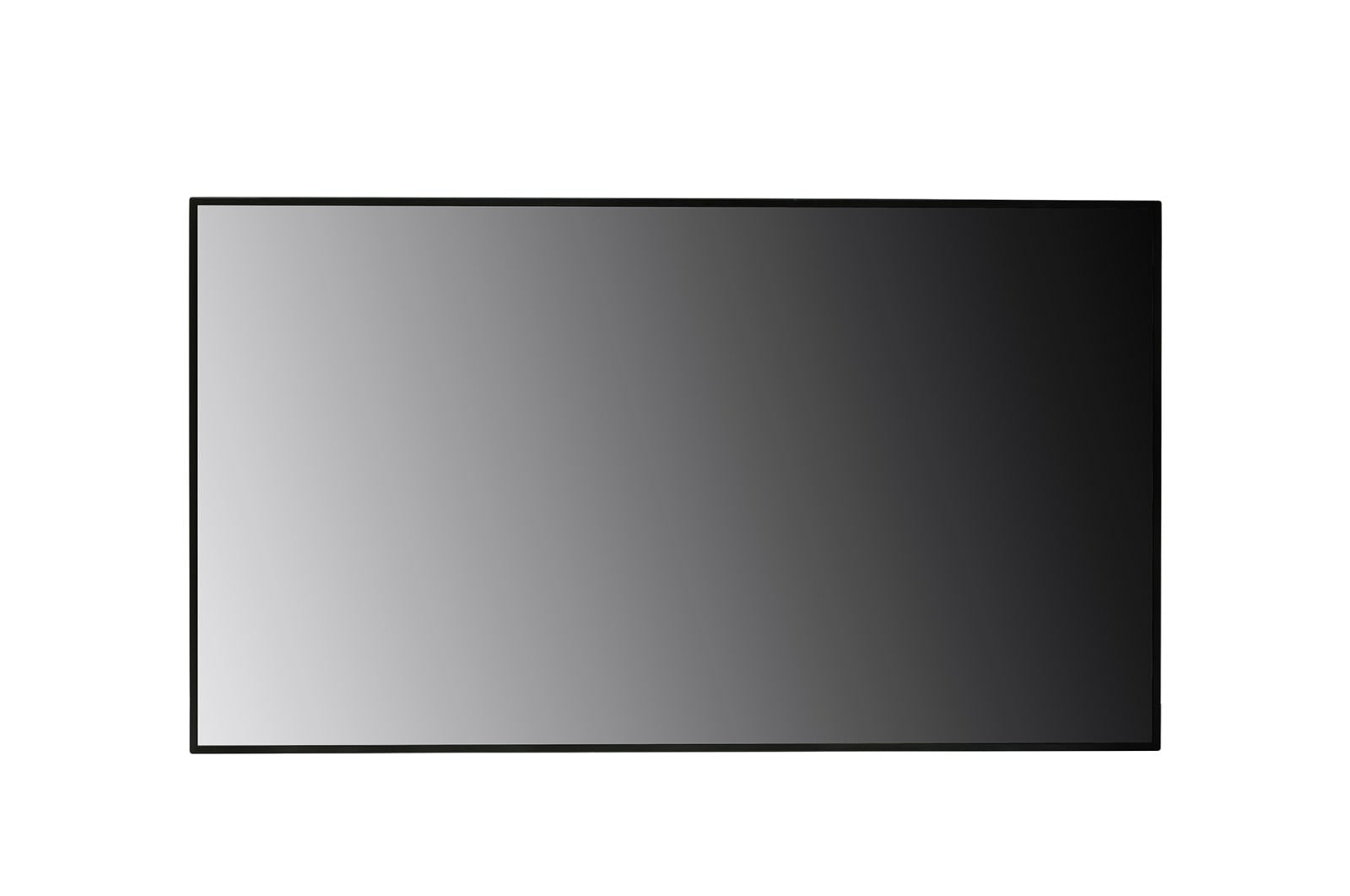

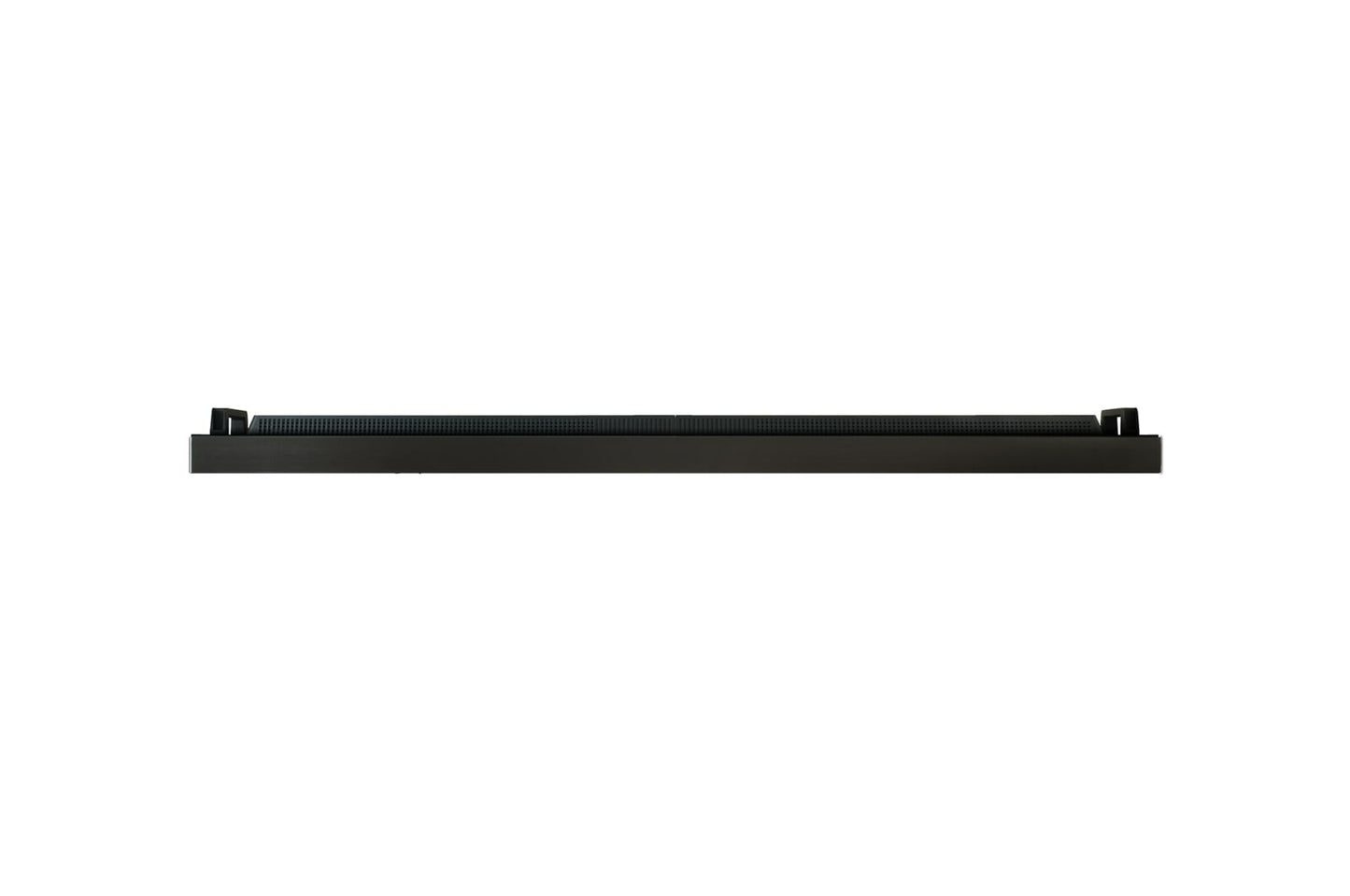

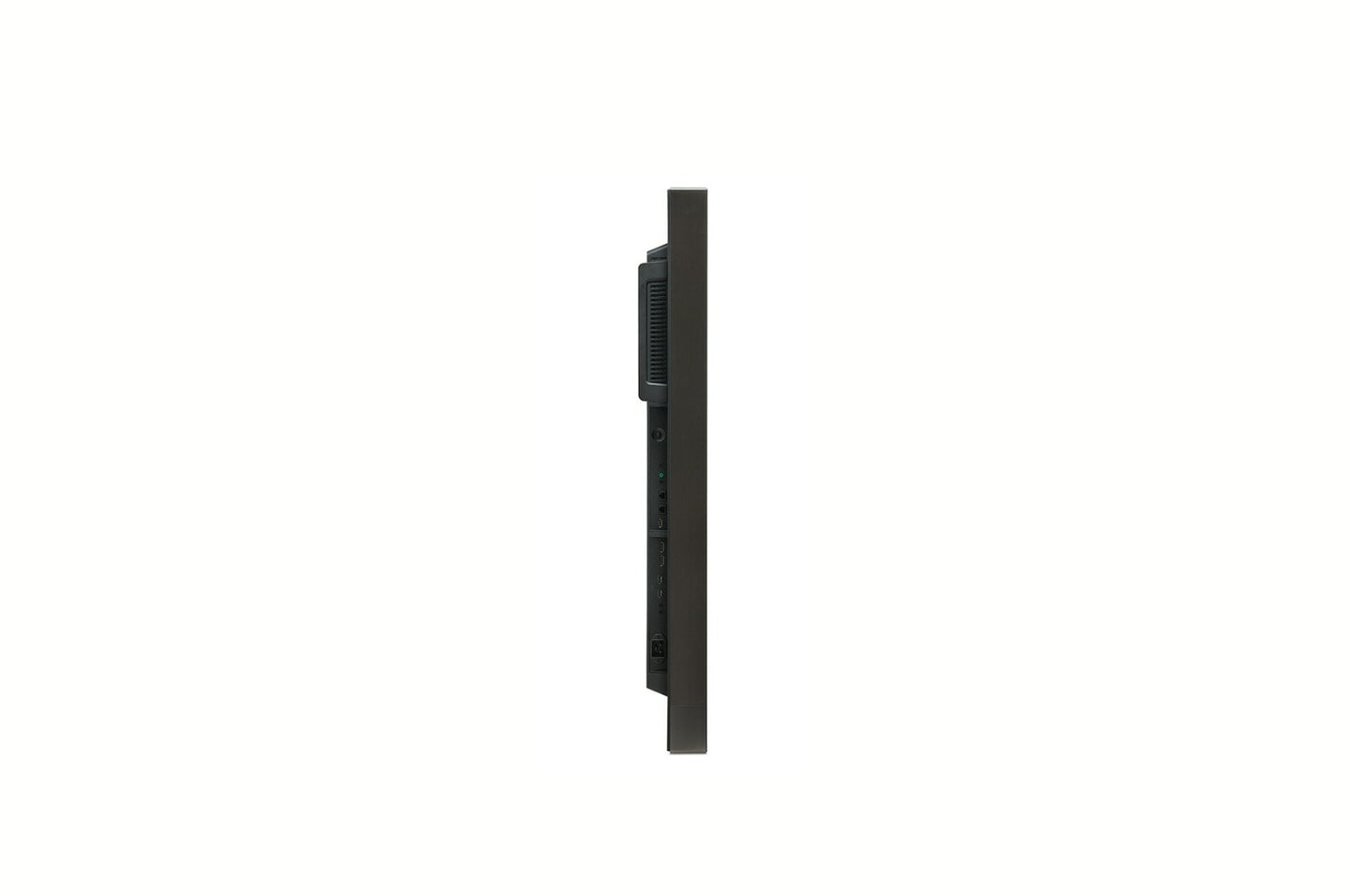

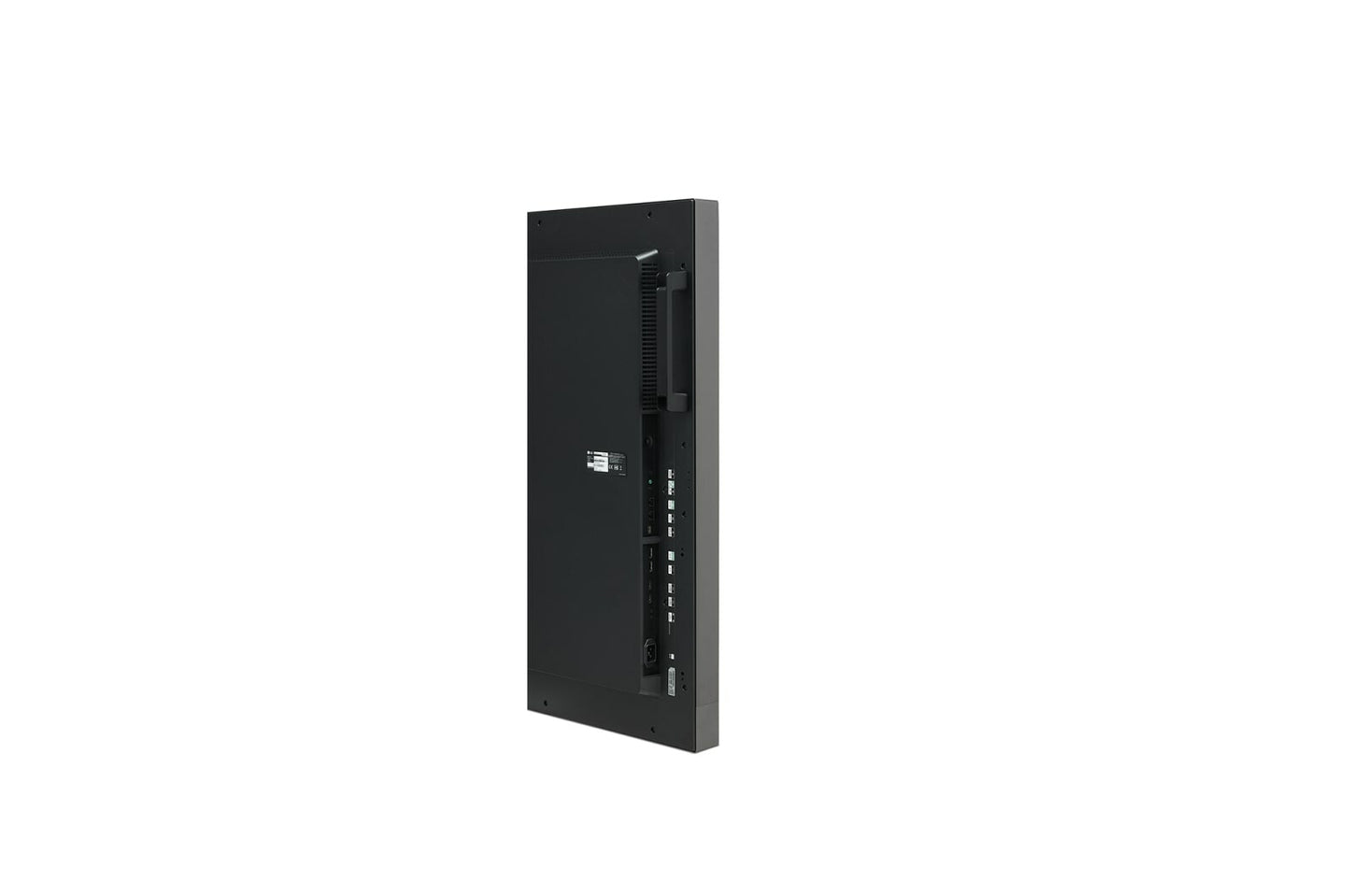

LG 75XS4G-B

LG 75XS4G-B

75'' UHD 4,000nits Window-facing Display, IPS, 3840 x 2160 px, 16:9, 178°/178°, HDMI, DisplayPort, RJ-45, RS-232C, USB, black

  • Brightness : 4,000 nits (Typ.) / 3,200 nits (Min.)
  • Resolution : ULTRA HD (3,840 x 2,160)
  • Bezel : 13.8 mm (Even Bezel)
  • Double-sided Usage with Dedicated Bracket
  • Built-in Wi-Fi & Bluetooth
  • Web-based Monitoring Solution
  • SKU:8806091087324
  • GTIN/EAN:8806091087324
  • MPN:75XS4G-B
Add To Favorite

You need to login to view the price.

View full details

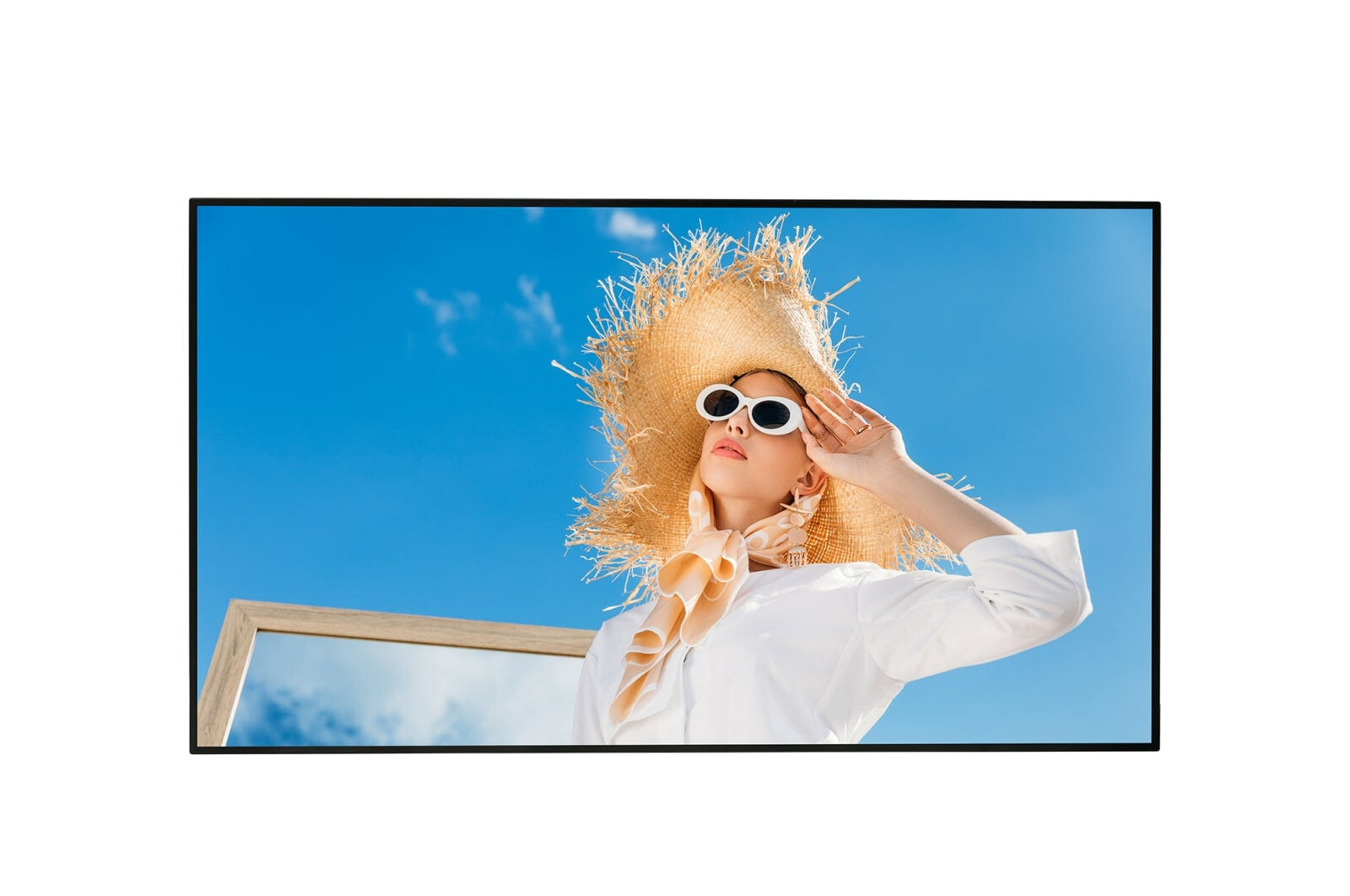

Deliver Your Message with High Visibility Even Under the Strong Sunlight
With a great brightness of 4,000 nits and UHD picture quality, 75XS4G clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility. QWP enables clear visibility even when the viewer is wearing polarized sunglasses.

High Energy Efficiency
The 75XS4G is energy efficient, allowing for an efficient total cost management while showing content in UHD resolution even with 4,000 nits of high brightness.

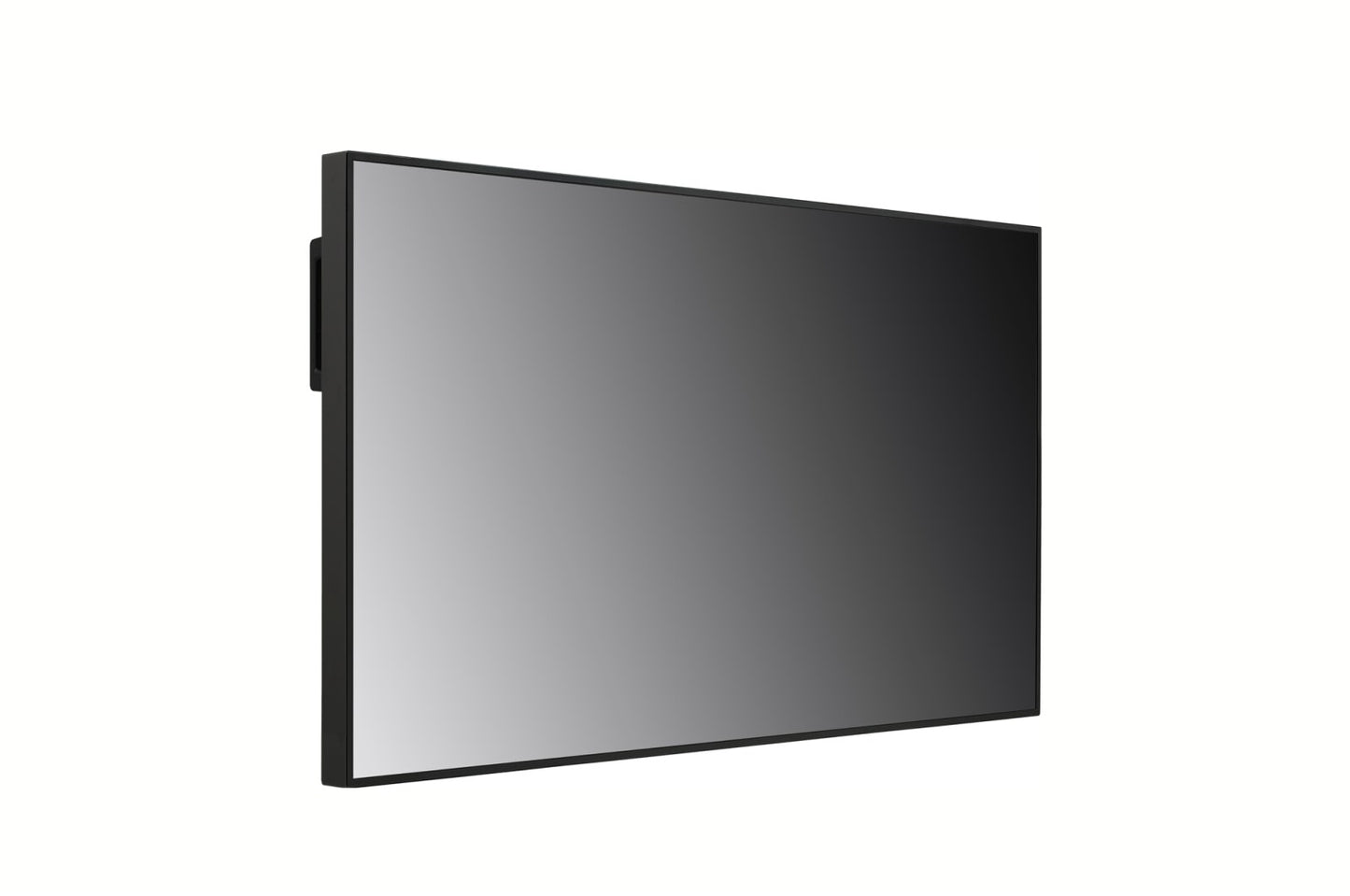

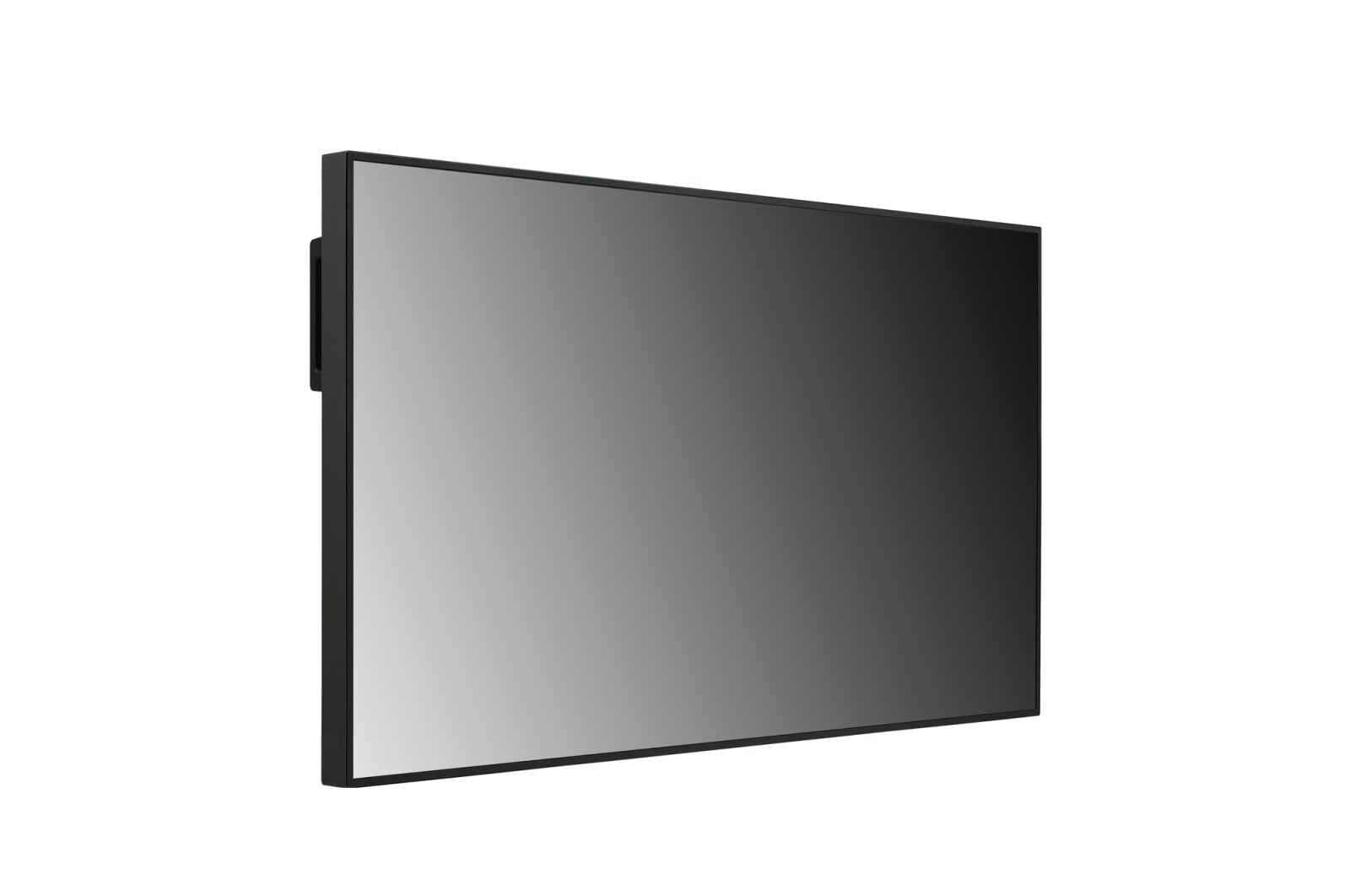

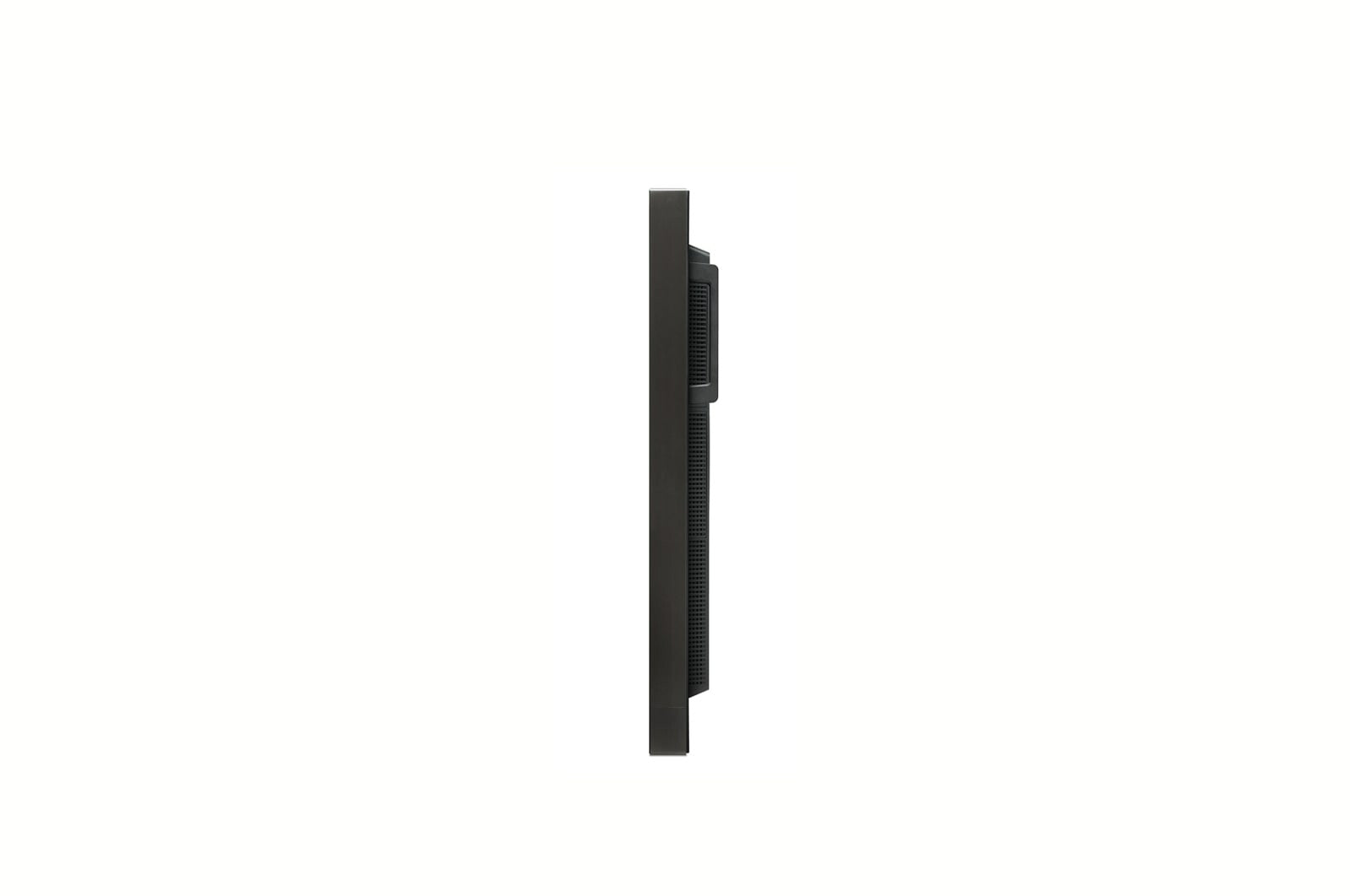

Space Blending Slim Design
Given that window-facing displays are usually installed indoors close to the window, 75XS4G's slim design is useful as it can blend naturally inside the store.

Double-sided Usage with Dedicated Bracket

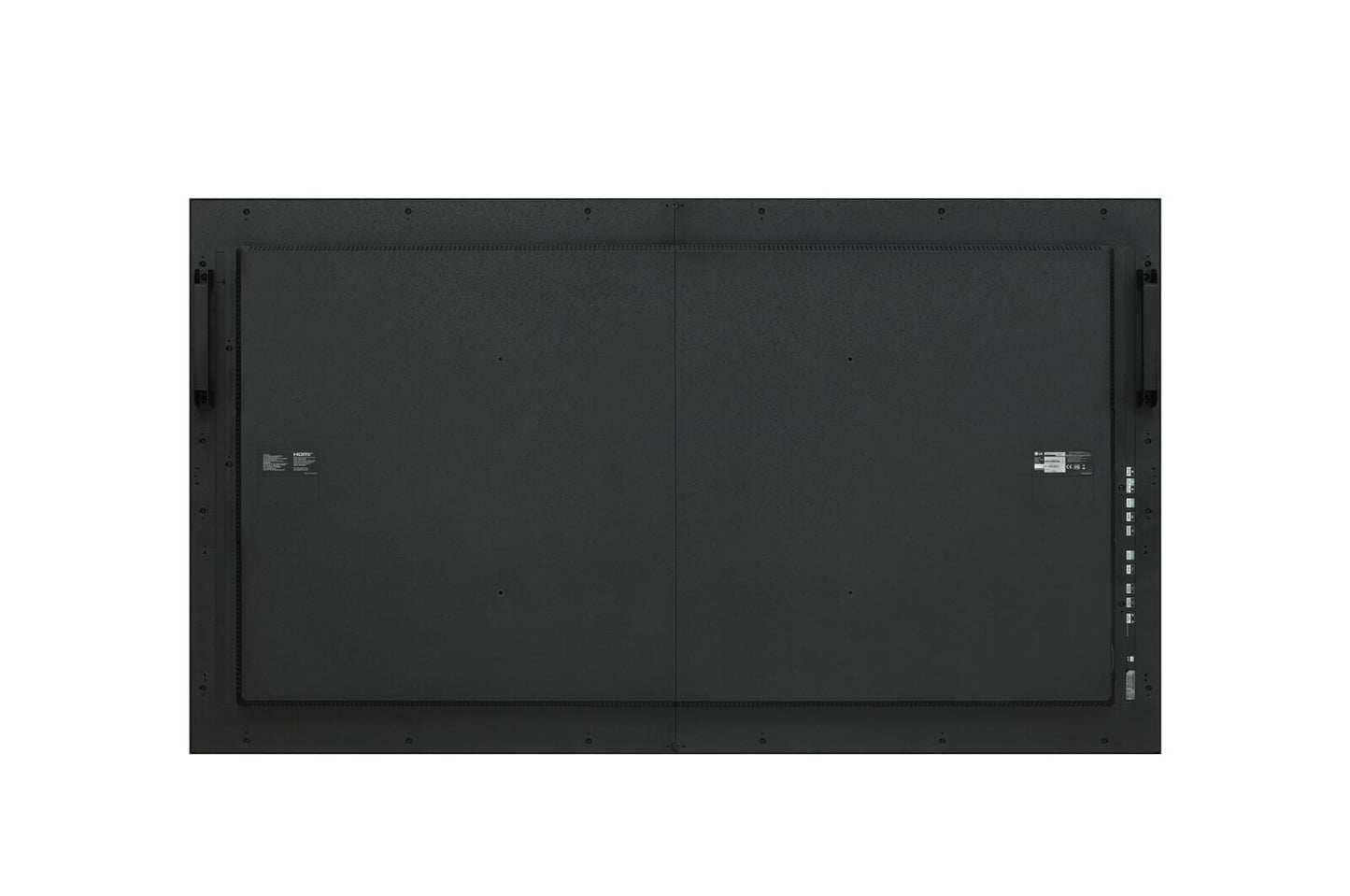

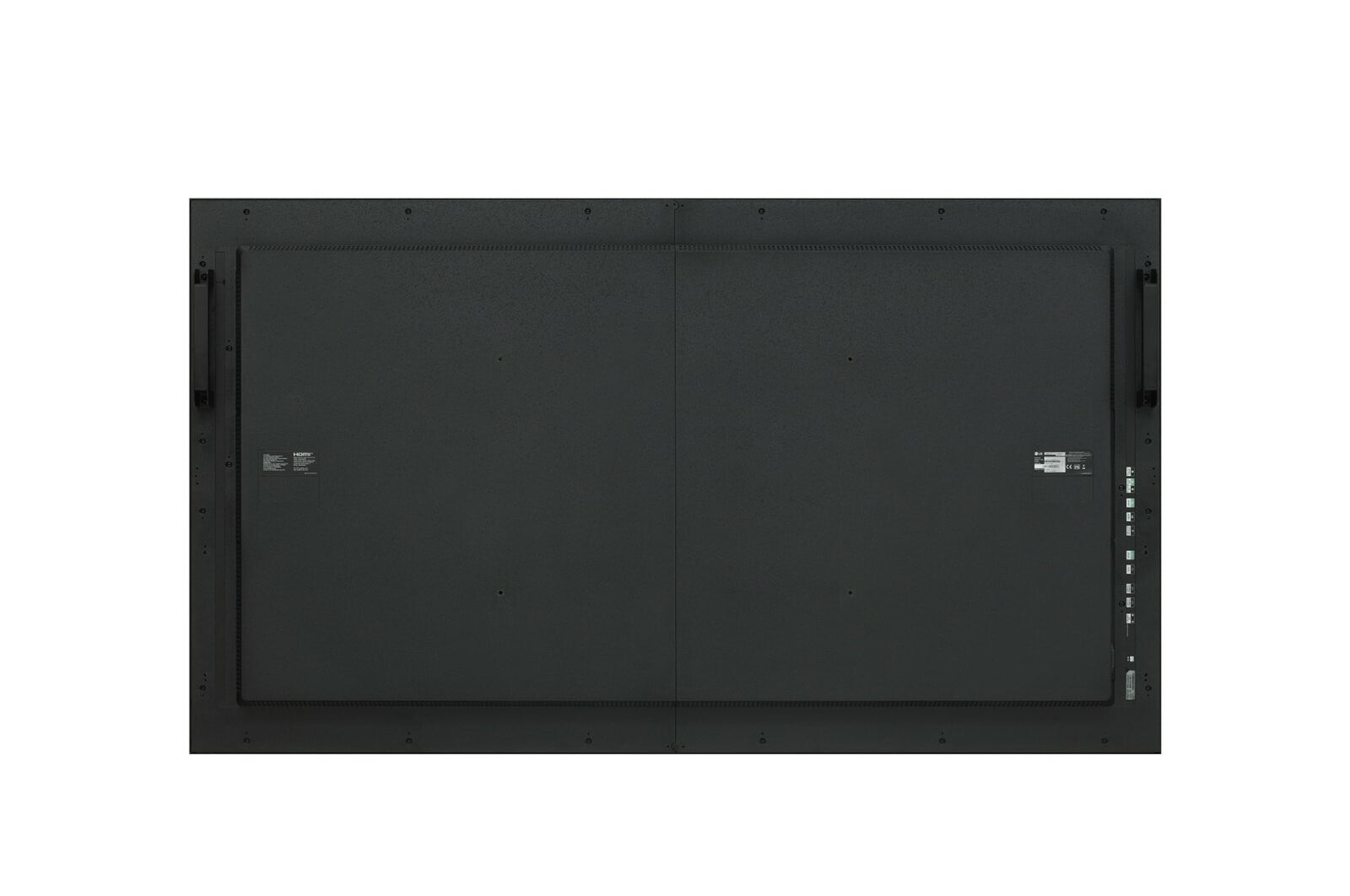

Due to the 75XS4G flat-back design and dedicated bracket, store owner can attach LG’s UHD display to the back for the purpose of displaying a variety of content for both external and internal customers.

Wide Operating Temperature Range
75XS4G can operate at various temperatures of 0-40°C.

Conformal Coating
Conformal Coating improves reliability of the circuit board, power board by protecting it against dust, iron powder, humidity, etc.

High Performance with webOS
Quad Core SoC can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

Multiple Display Control with a Remote Control
Multiple device controls are available through the RJ45 & RS-232C ports. It means that even double-sided displays can be easily controlled simultaneously with a remote control.

Easy Content Distribution & SW Update
75XS4G features embedded Wi-Fi, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy), Shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

Web Monitoring (Control Manager)
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

Precise Installation Using Leveler Tool
The 75XS4G is equipped with a "Leveler Tool" which shows users how the device is tilt, so the display can be precisely installed.

Alert for Right Direction
The 75XS4G is equipped with a "horizontal sensor", so the display can be installed accurately.

Display
Haze rate
3%
Rated lifetime
50000 h
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Native aspect ratio
16:9
HD type
4K Ultra HD
Display brightness
4000 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
IPS
Display diagonal
190.5 cm (75")
Ports & interfaces
RS-232C
Yes
Audio (L/R) out
1
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
1
USB port
Yes
DisplayPorts out
1
DisplayPorts in
1
DisplayPorts quantity
2
HDMI ports quantity
2
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
1.38 cm
Bezel width (side)
1.38 cm
Bezel width (top)
1.38 cm
Panel mounting interface
600 x 400 mm
VESA mounting
Yes
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
HDCP
Yes
HDCP version
1.4/2.2
Operating hours (hours/days)
24/7
Purpose
Universal
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (typical)
750 W
Weight & dimensions
Display weight
39.6 kg
Display height
957.6 mm
Display depth
104 mm
Display width
1679.2 mm
Packaging data
Package weight
50 kg
Packaging content
Cables included
AC, HDMI
Remote control included
Yes
Features
Harmonized System (HS) code
85285210
