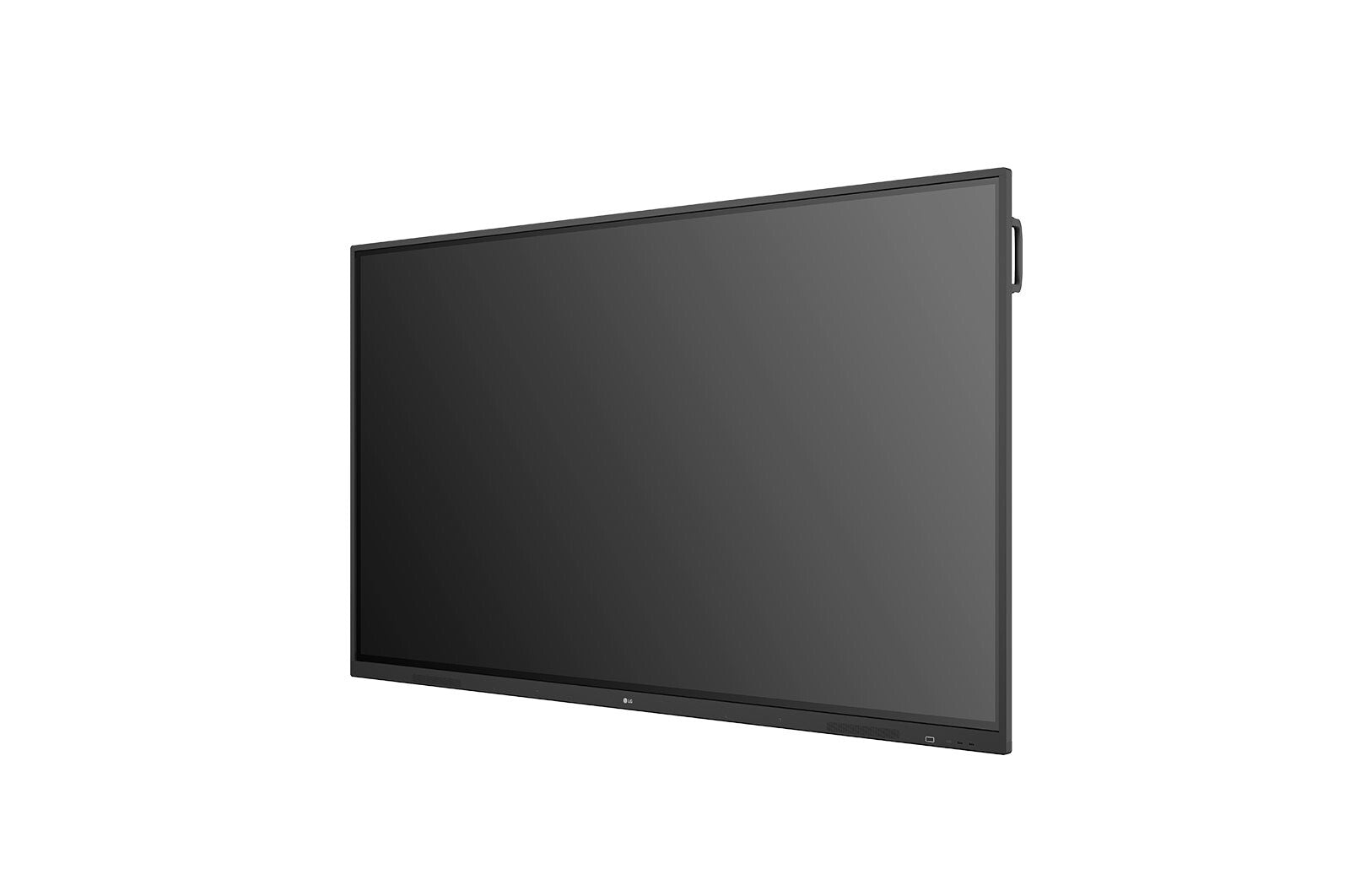

LG 75TR3DJ-B

LG 75TR3DJ-B

75”, IPS, UHD, Multi Touch, 1200:1, 30000 Hrs, HDMI x 4, USB x 6, 1709 × 1020 × 86 mm, 100 - 240V, 175 W

  • UHD (3,840x2,160) IPS Display
  • IR Multi touch point (Max 20 points/Max 10 writing)
  • Dual Pen and Dual Color
  • AirClass, ScreenShare Pro, & Bluetooth Connectivity
  • Integrated OPS slot (PC not included)
  • SKU:8806091331991
  • GTIN/EAN:8806091331991
  • MPN:75TR3DJ-B
Add To Favorite

You need to login to view the price.

View full details

Multi Touch Interactive Whiteboard
SMOOTH TOUCH & WRITING EXPERIENCE
Multi Touch

The TR3DJ series can have up to 20 points of touch simultaneously. This function offers a lifelike board touch experience and makes collaboration easier.

SMOOTH TOUCH & WRITING EXPERIENCE
Enhanced Visibility with Low Parallax

With 1mm gap between the screen and tempered glass, which supports low parallax, The TR3DJ series can offer precise touch and excellent writing experience.

Dual Pen & Dual Color
The dual pens allow for two colors to be used at the time to write or draw.

Easy Writing Experience
The TR3DJ series allows you to write and annotate on virtually any input source.

EASY CONNECTION & SHARING
Air Class

With Air Class you can connect up to 30 students. It offers interactive meetings for mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts. Air Class is easily installed from the TR3DJ's main toolbar.

Built-in OPS Slot
The TR3DJ series supports Open Pluggable Specification (OPS) slots, allowing you to easily and conveniently mount OPS device to the back of the digital board without the hassle of connecting to an external device.

ScreenShare Pro
ScreenShare Pro enables you to show up to six shared screens in real-time. It also allows users to share via Chromecast or with Apple device mirroring on the same network. This software can be used on IOS, Mac, Windows, Android, Chrome OS.

Bluetooth Connectivity
TR3DJ supports Bluetooth wireless connections to various devices such as speakers, a mouse or a keyboard. This is great for building a hybrid environment so that online and offline meetings and classes can proceed smoothly.

USER FRIENDLY EXPERIENCE
Web Browser

The TR3DJ series supports an embedded web browser, so you can search the web easily and quickly, without connecting to an external tablet or computer.

Toolbar
Easily find the tools that you need on the toolbar. The annotation feature works on virtually all file types, and you can highlight the section you wish to emphasize using the Spotlight function. It also features a countdown and stopwatch that can help you manage class time effectively.

Audio Experience
The TR3DJ series has built-in speakers in both sides of the front bezel which deliver high-quality sound and creates a clear audio experience.

USB Block
USB Block Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential for being used in spaces where security is critical.

Display
Touch response time
60 ms
Panel life
30000 h
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Multi-touch
Yes
Touchscreen
Yes
HD type
4K Ultra HD
Display brightness
330 cd/m²
Display resolution
3840 x 2160 pixels
LED backlighting type
Direct-LED
Display technology
IPS
Display diagonal
190.5 cm (75")
Ports & interfaces
RS-232C
Yes
RS-232 interface
Yes
Audio (L/R) out
1
Audio (L/R) in
1
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
6
USB port
Yes
HDMI output ports quantity
1
HDMI input ports quantity
3
HDMI ports quantity
4
Audio
RMS rated power
24 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
4.57 cm
Bezel width (side)
1.77 cm
Bezel width (top)
1.77 cm
Anti-glare screen
Yes
Panel mounting interface
800 x 400 mm
VESA mounting
Yes
Placement supported
Indoor
Product colour
Black
Product design
Interactive flat panel
Performance
Open Pluggable Specification (OPS)
Yes
Operating hours (hours/days)
16/7
Picture-in-Picture
Yes
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Energy efficiency class (SDR)
A
Power consumption (typical)
175 W
Computer system
Mac operating systems supported
MacOS
Windows operating systems supported
Windows 7, Windows 8, Windows XP
Computer system
No
Weight & dimensions
Display weight
53 kg
Display height
1020 mm
Display depth
86 mm
Display width
1709 mm
Packaging data
Package weight
85 kg
Package height
1266 mm
Package depth
285 mm
Package width
1950 mm
Packaging content
Cables included
AC, HDMI, USB
Remote control included
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 80%
Operating temperature (T-T)
0 - 40 °C
