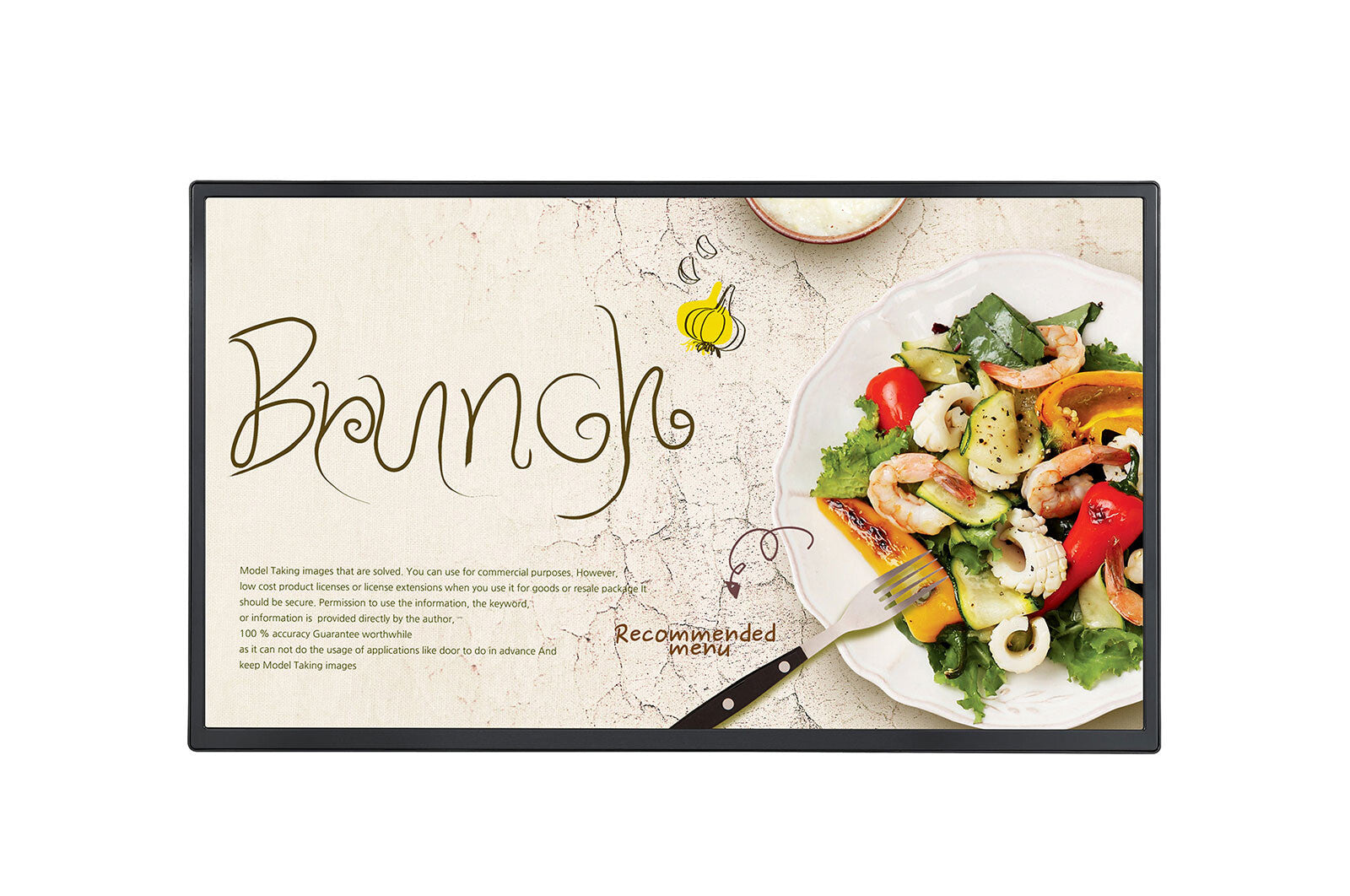

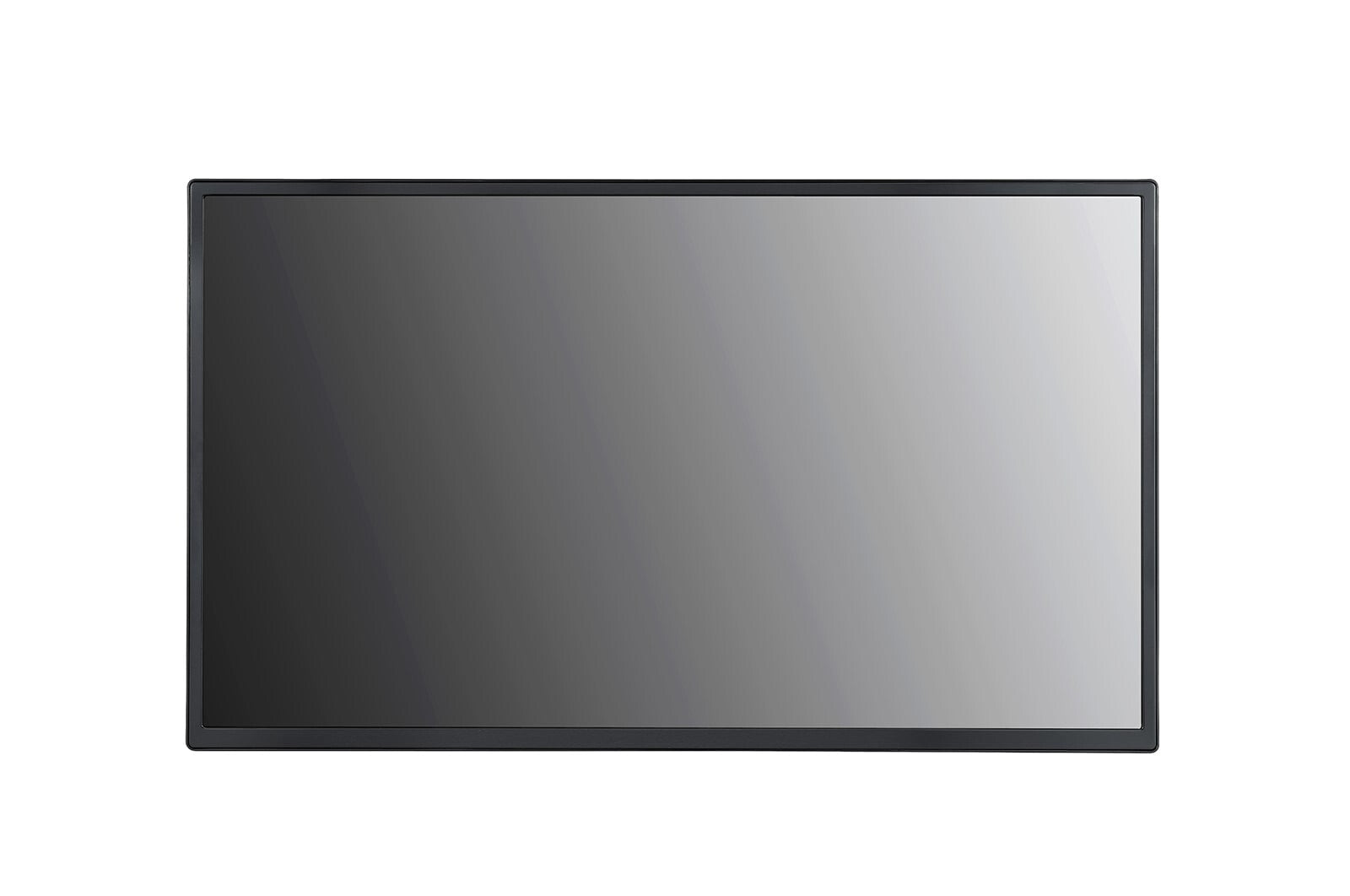

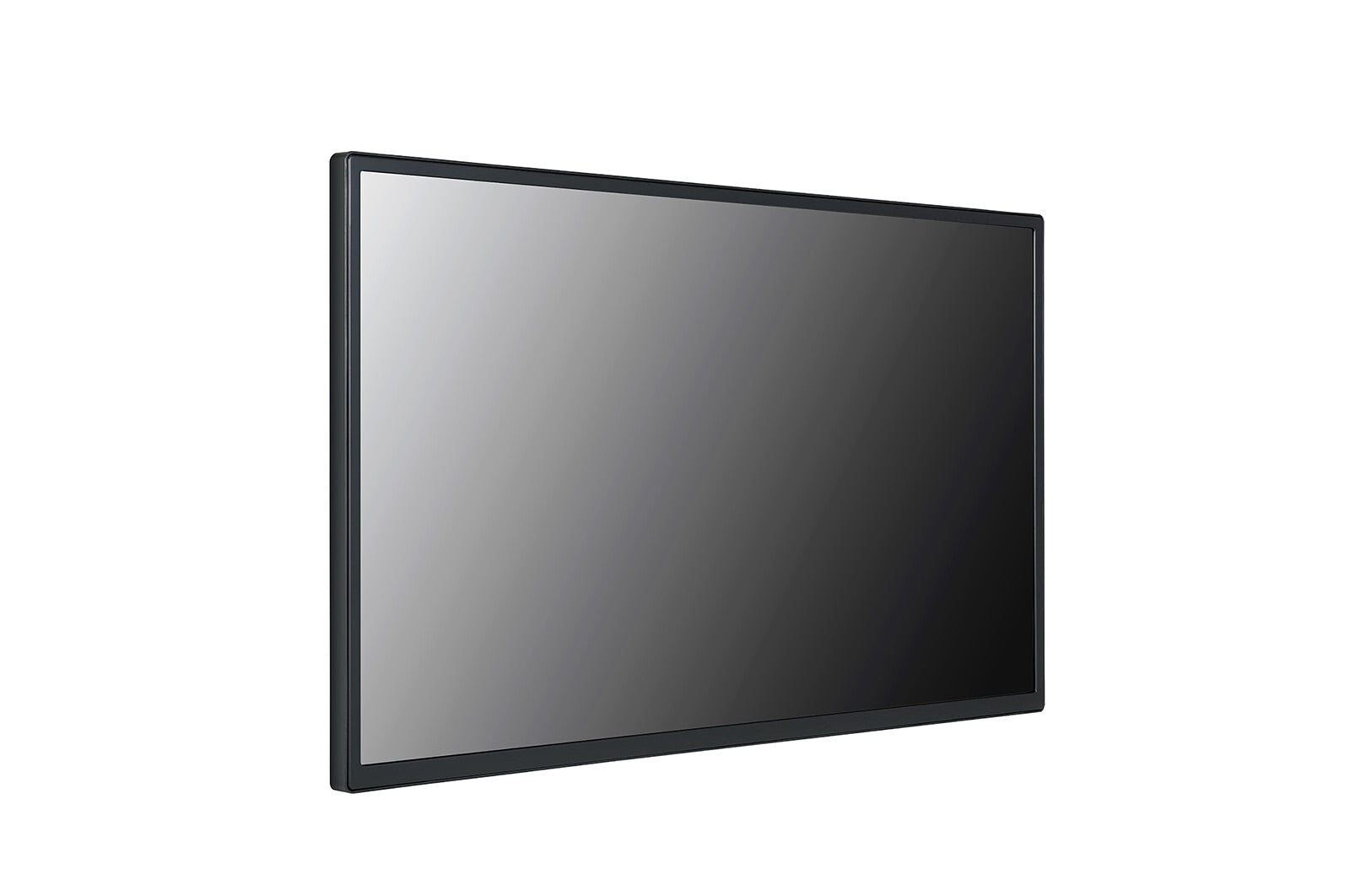

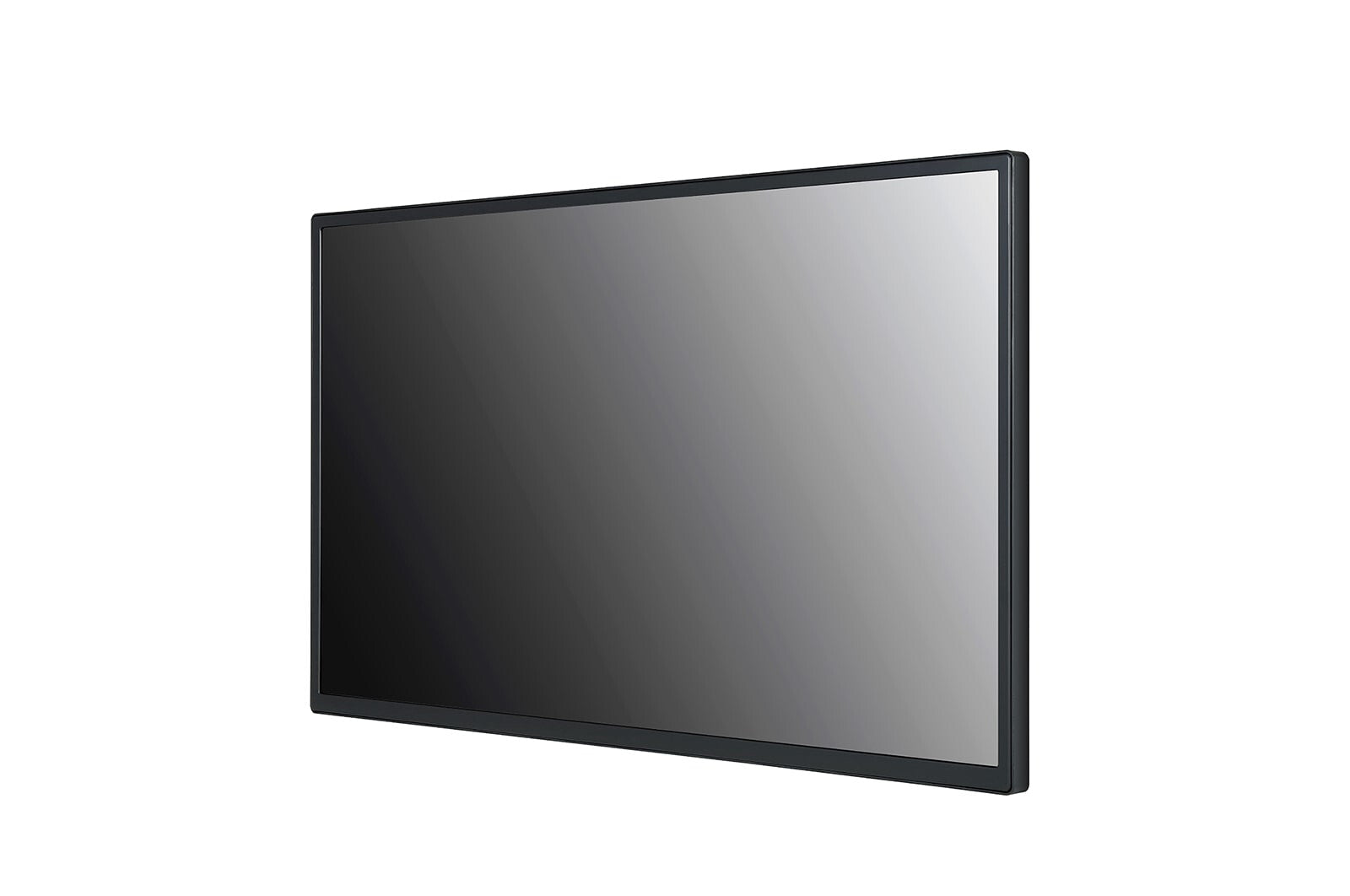

LG 32SM5J-B

LG 32SM5J-B

Full HD Standard Signage, 32", 1920 x 1080 px, IPS, 400 cd/m², 10 ms, 178°/178°, HDMI, USB, RJ-45, black

  • Brightness(Typ.) : 400 cd/m²
  • Bezel : 13 mm (T/R/L), 18 mm (B)

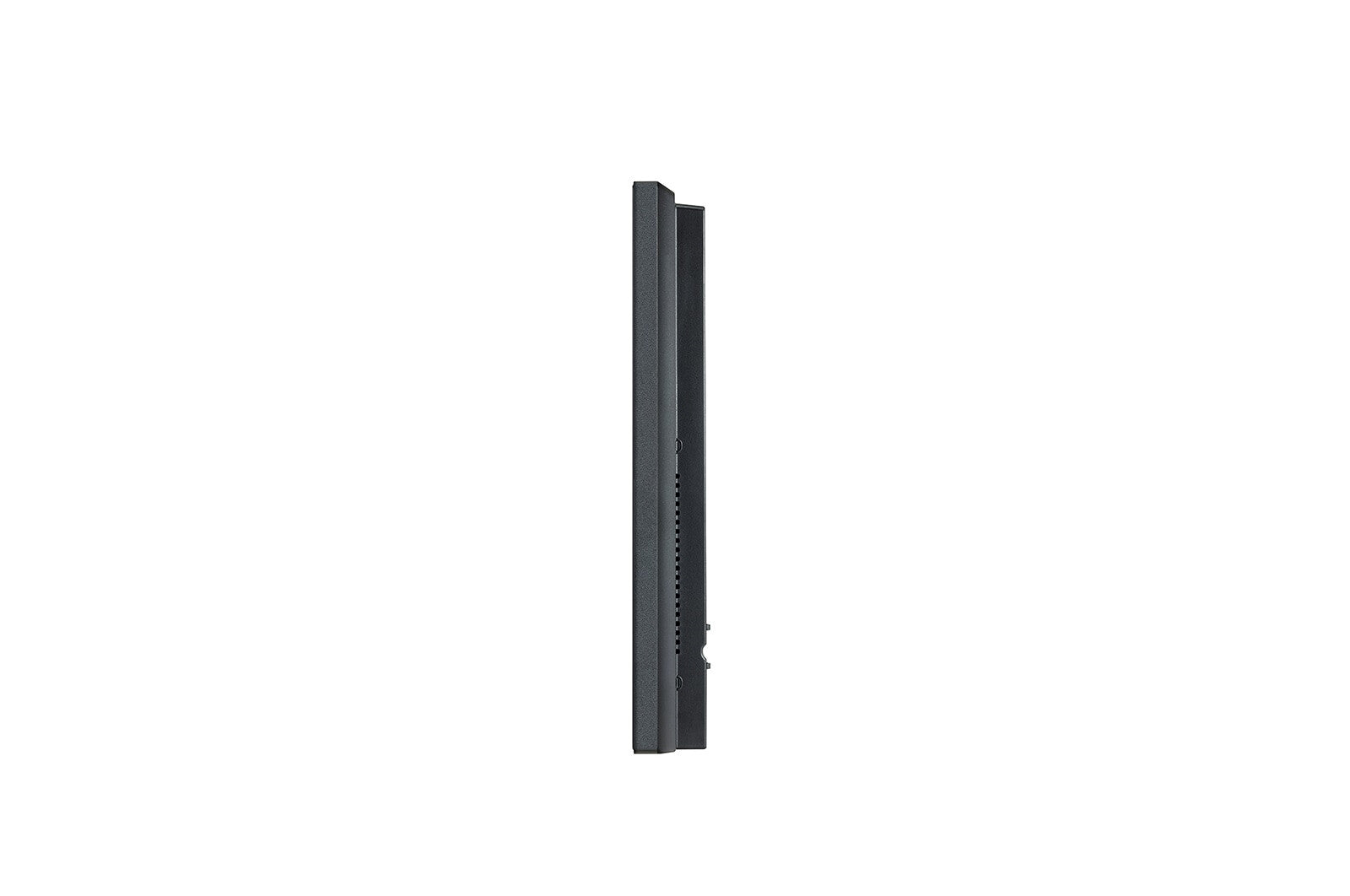

  • Depth : 55.5 mm

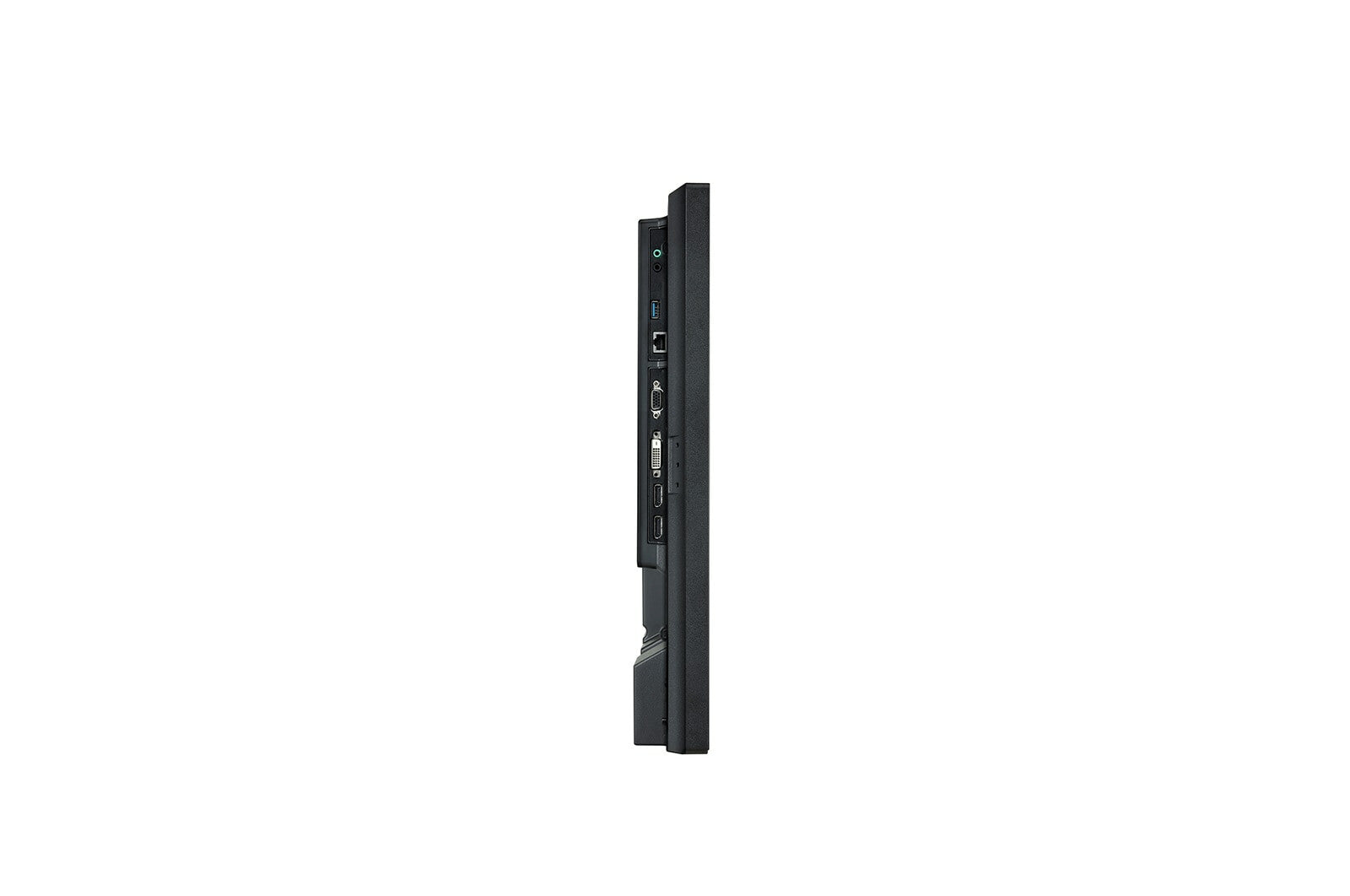

  • Interface : HDMI(3) / USB 2.0 / RS232C / RJ45 / IR / Audio Out
  • Built-in Speaker : 10W + 10W
  • SKU:8806091356611
  • GTIN/EAN:8806091356611
  • MPN:32SM5J-B
Add To Favorite

You need to login to view the price.

View full details

LG 32SM5J-B Digital signage display 81.3 cm (32') IPS Wi-Fi 400 cd/m² Full HD Black 24/7. Product design: Digital signage flat panel. Display diagonal: 81.3 cm (32"), Display technology: IPS, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Product colour: Black

Various Sensor Connection
LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

Mobile & Web Monitoring
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.

Compatible with AV Control System
The SM5J series supports Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

LG's Simple Advertisement Helper, Promota
Using LG's Promota application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more while recommending easy-to-use templates relevant to your industry.

Real-Time Promotion
With Beacon and Bluetooth Low Energy (BLE), shop managers can provide coupons and information in real-time.

Content Sharing
Content Mirroring among devices is available on a Wi-Fi network.

Wireless Access Point
The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.

Warranty: 2 year

Display
Haze rate
1%
Display number of colours
16.7 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
1000000:1
Contrast ratio (typical)
1100:1
Response time
10 ms
HD type
Full HD
Display brightness
400 cd/m²
Display resolution
1920 x 1080 pixels
Display technology
IPS
Display diagonal
81.3 cm (32")
Ports & interfaces
Remote (IR) input
1
RS-232C
Y
Wi-Fi
Y
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Y
USB version
2.0
USB port
Y
HDMI ports quantity
3
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Y
Design
Bezel width (bottom)
1.8 cm
Bezel width (side)
1.3 cm
Bezel width (top)
1.3 cm

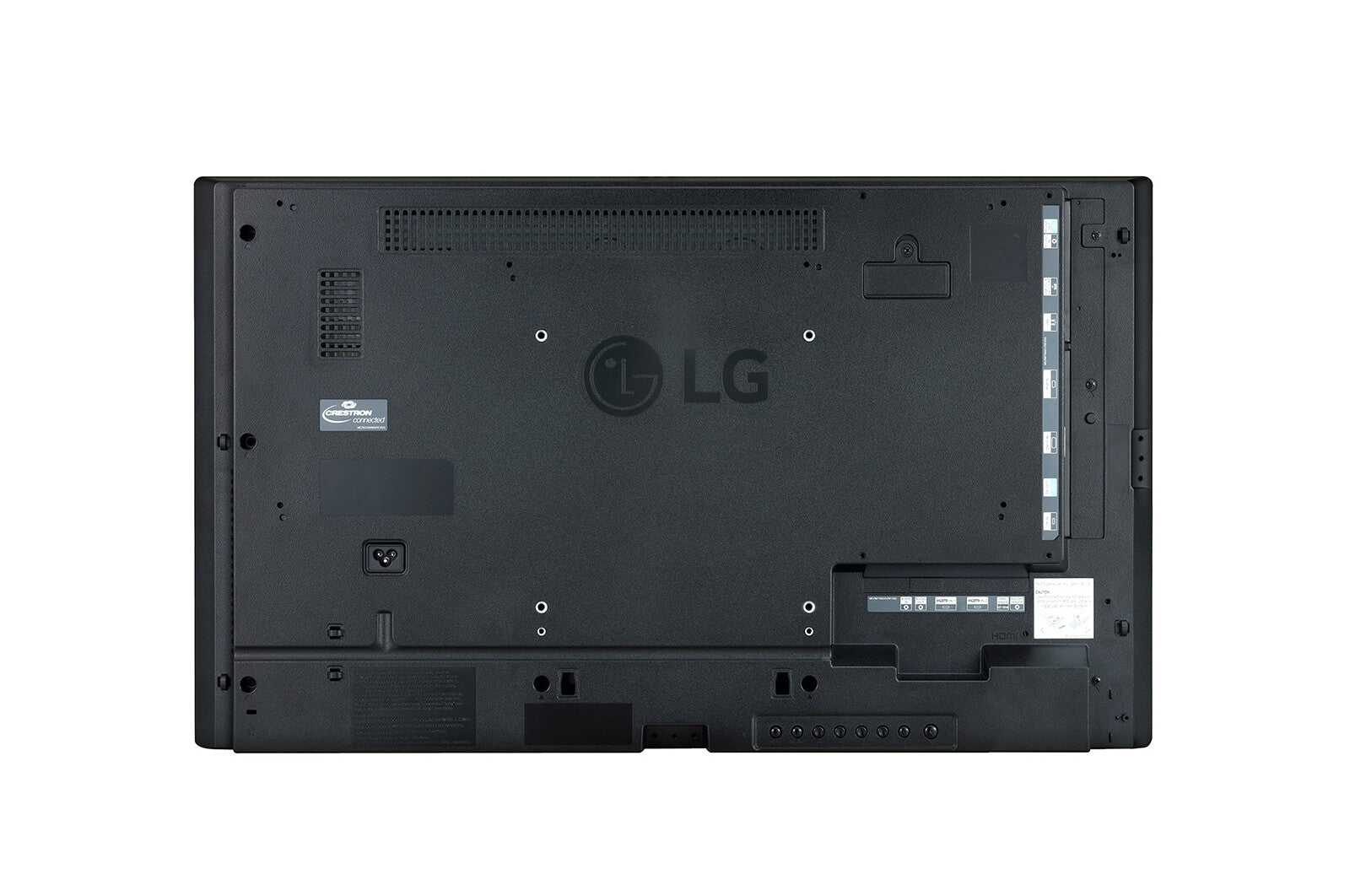

Panel mounting interface
200 x 200 mm
VESA mounting
Y
Orientation
Horizontal/Vertical
Product colour
Black
Product design
Digital signage flat panel
Performance
HDCP
Y
HDCP version
2.2
Operating hours (hours/days)
24/7
Ambient light sensor
Y
Purpose
Universal
Power
Heat dissipation
187.67 BTU/h
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (typical)
55 W
Computer system
Operating system installed
Web OS
Weight & dimensions
Weight (with stand)
6.5 kg
Height (with stand)
481 mm
Depth (with stand)
154.2 mm
Width (with stand)
729.4 mm
Display weight
5.7 kg
Display height
428.9 mm
Display depth
55.5 mm
Display width
729.4 mm
Packaging content
Cables included
AC, HDMI
Remote control included
Y
Operational conditions
Operating relative humidity (H-H)
10 - 80%
Operating temperature (T-T)
0 - 40 °C
Features
Harmonized System (HS) code
85285210
