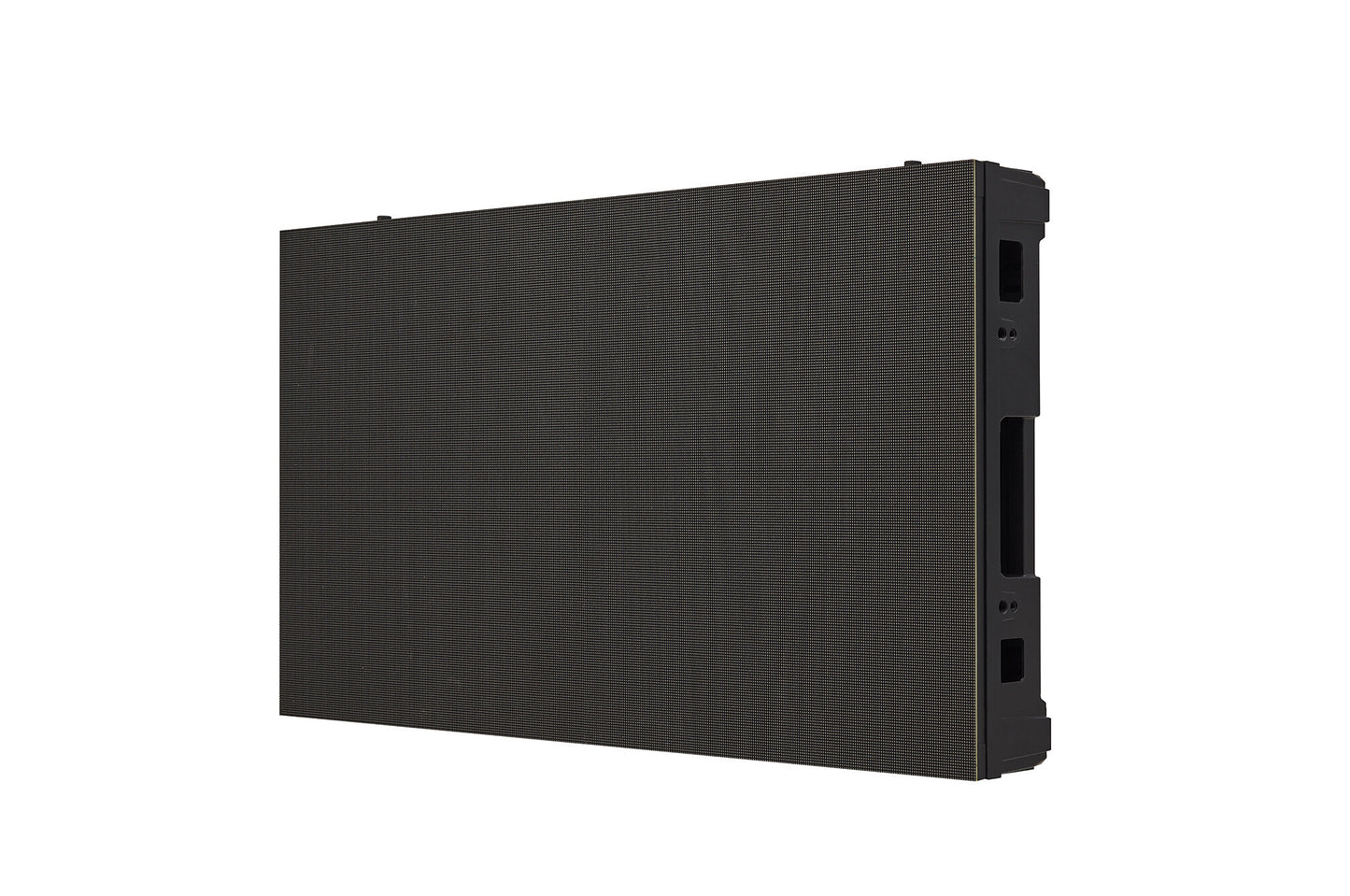

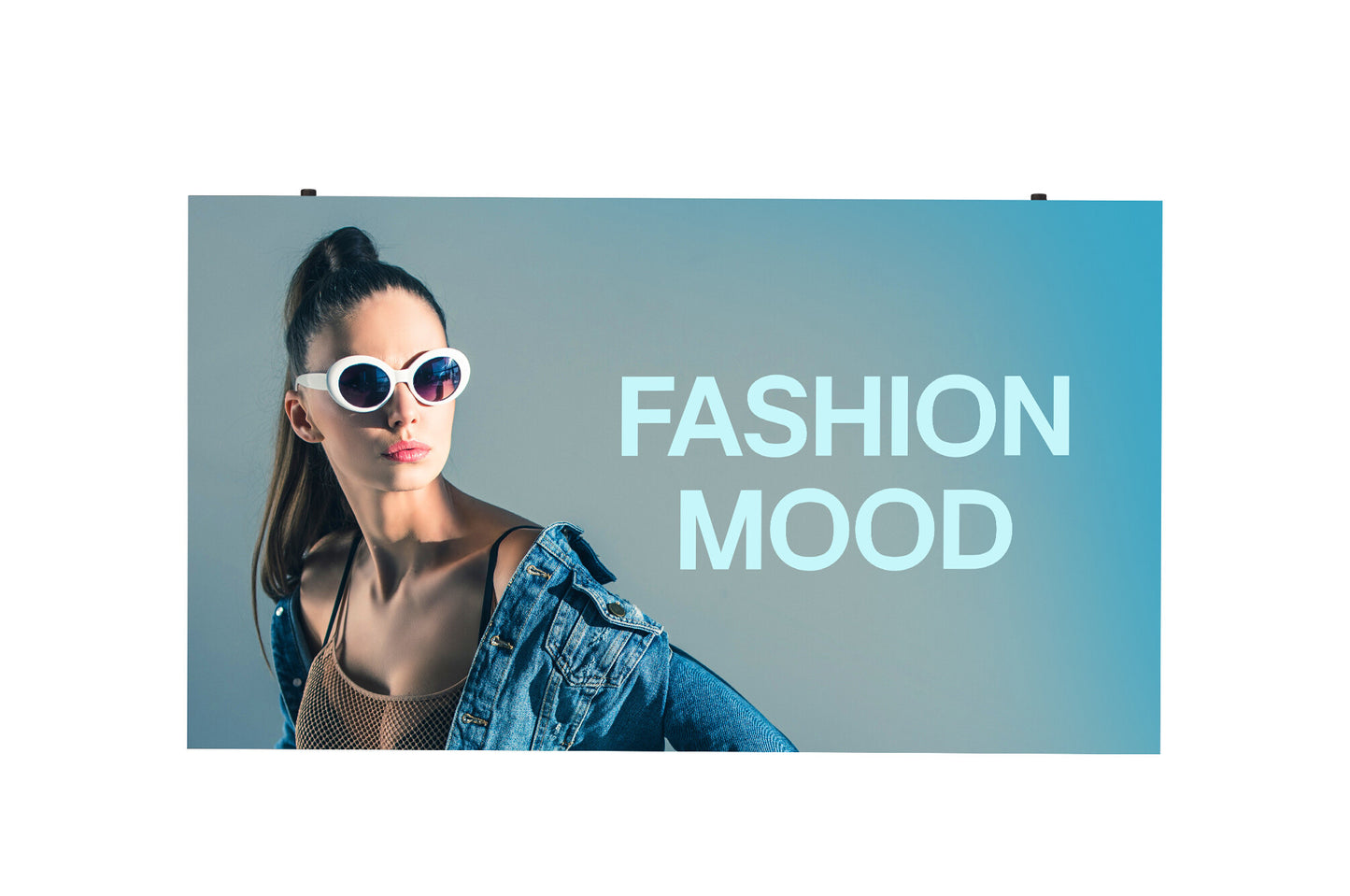

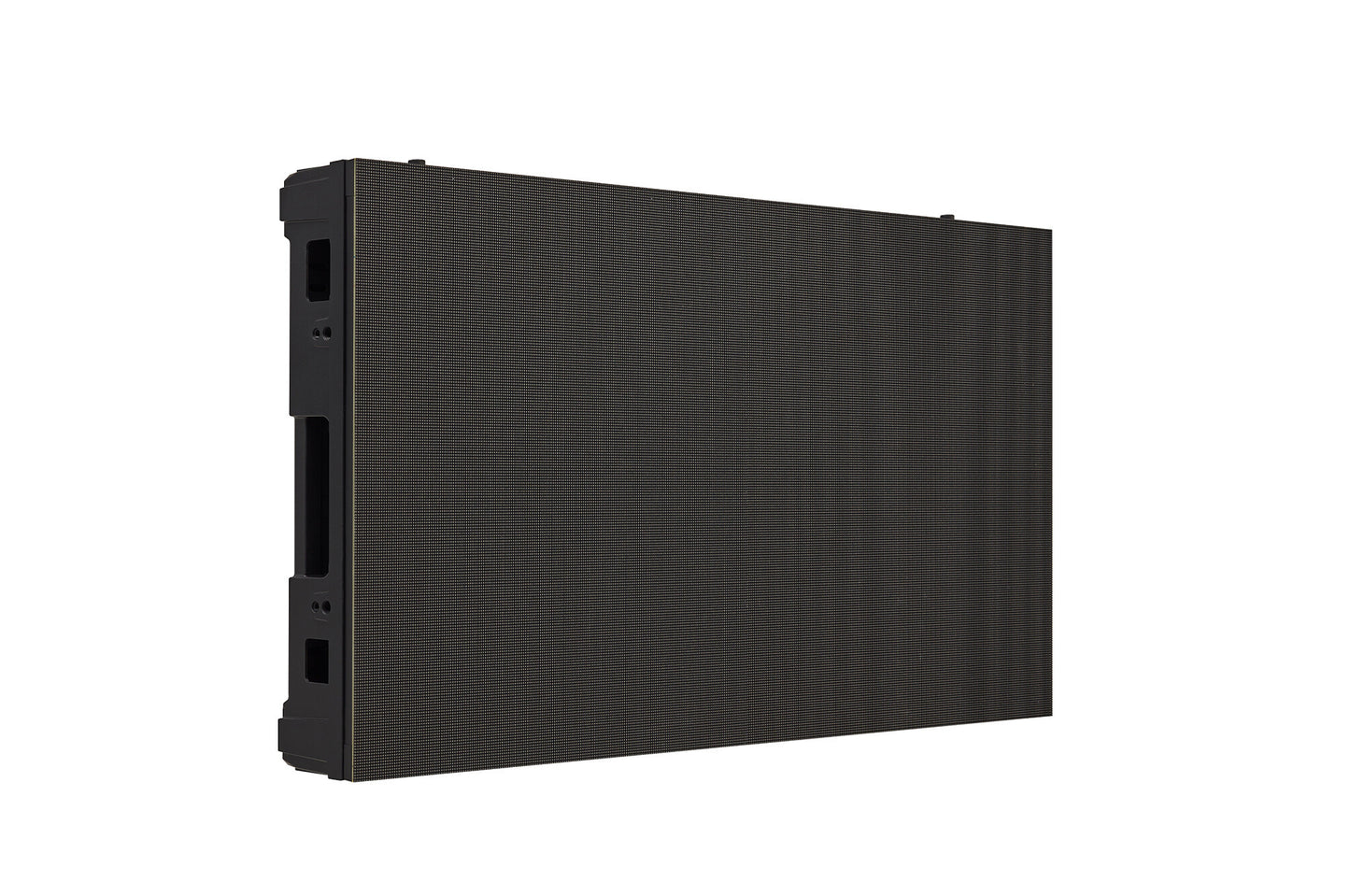

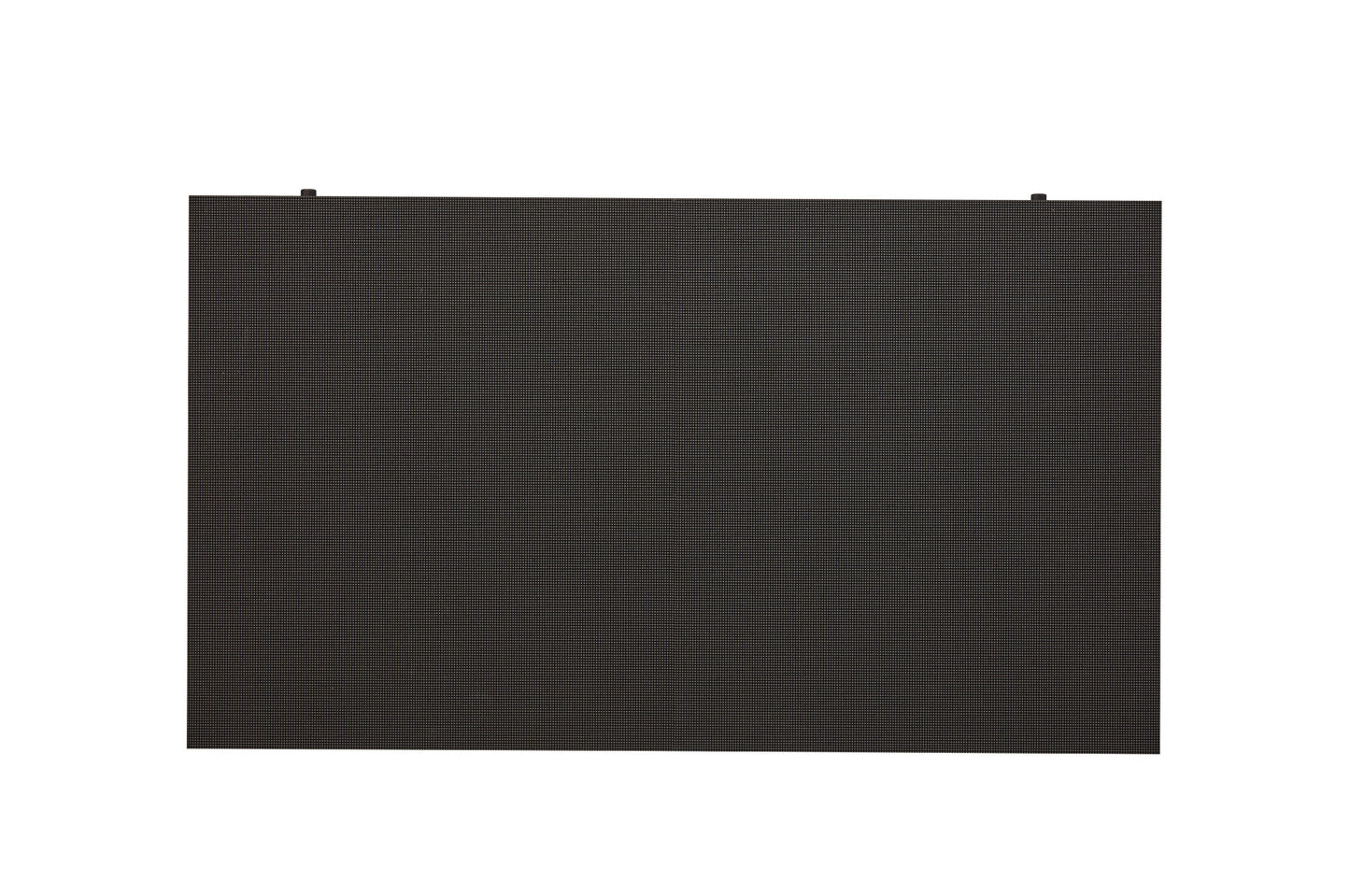

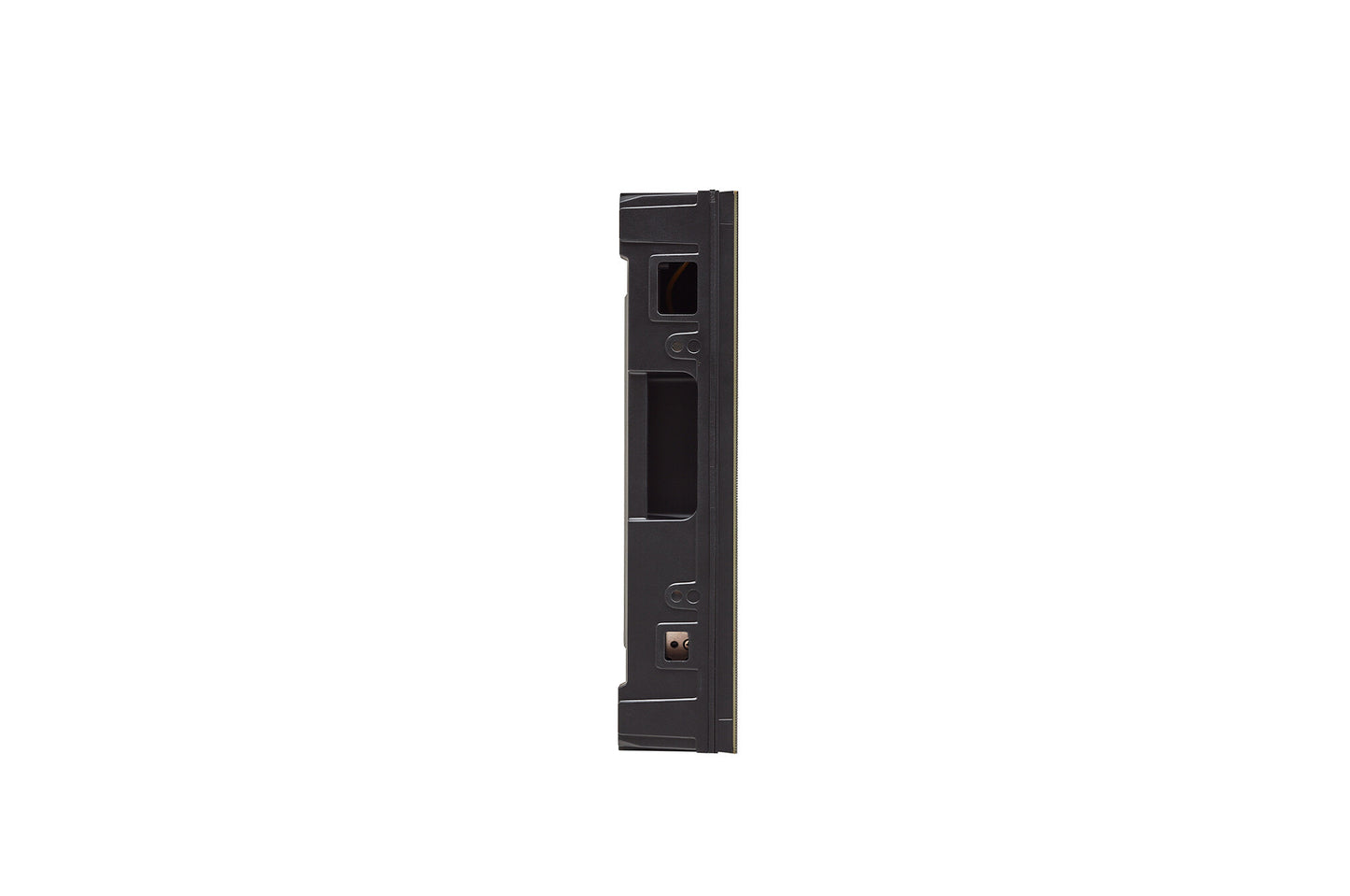

LSBE Indoor LED Series

Improved Flatness and Easy Maintenance

LSBE utilizes two modules to form a single cabinet, which helps minimize the gaps between modules compared to cabinets composed of multiple modules resulting in a smoother screen with fewer visible gaps. Moreover thanks to its structural advantage, LSBE allows for easy maintenance.

Durable Frame Design

LSBE incorporates an aluminum cabinet that enhances durability, and its high-strength frame, surpassing that of plastic, allows for stable operation.

Brightness

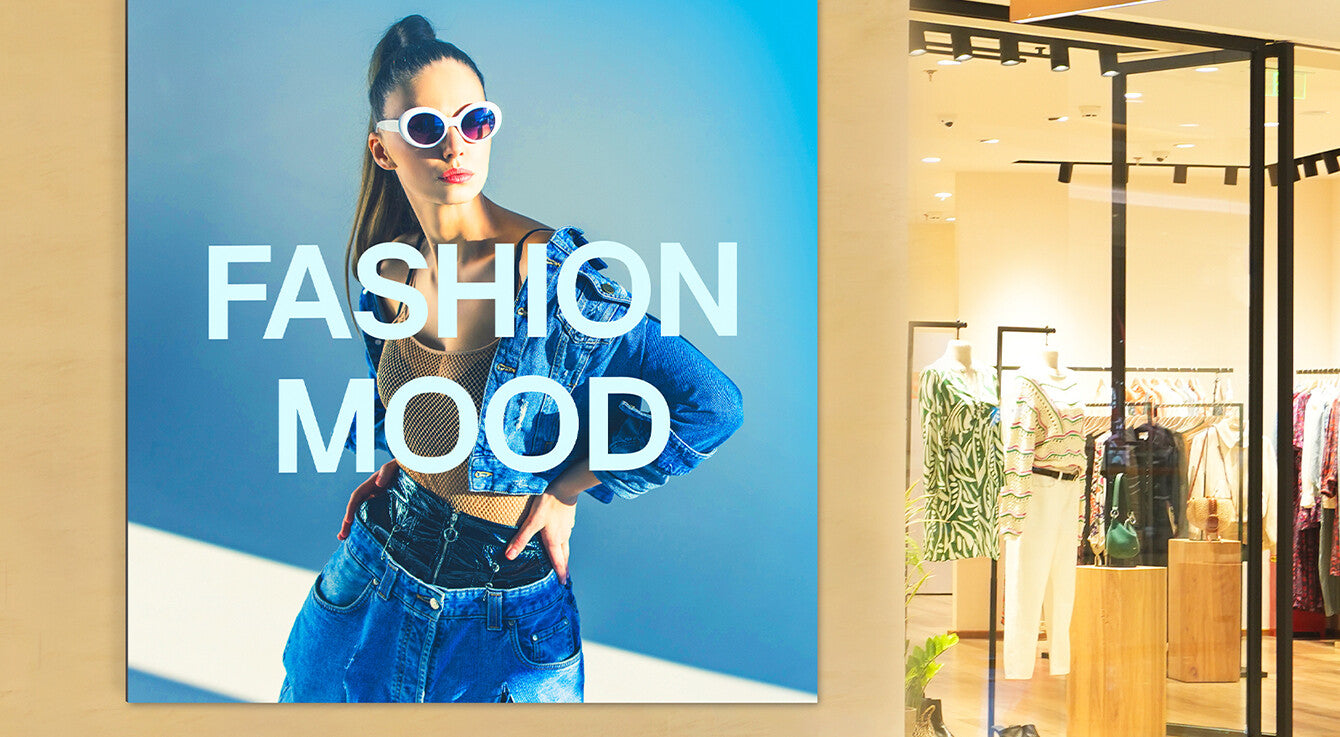

With a great brightness of 600 nits, it clearly delivers content and attracts public attention, making it ideal for achieving bright indoor visibility.

Compatibility with LG Software Solutions

When connected with LG's CVBA system controller, the LSBE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.

Tech Spec

• Physical Parameter

  Pixel Configuration	Single SMD
  Pixel Pitch (mm)	1.56
  Module Resolution (W x H)	192 × 216
  Module Dimensions (W x H, mm)	300 × 337.5 ×13
  Weight per Module (kg)	0.95
  No. of Modules per Cabinet (W × H)	2 × 1
  Cabinet Resolution (W × H)	384 × 216
  Cabinet Dimensions (W × H × D, mm)	600 × 337.5 × 72
  Cabinet Surface Area (m²)	0.203
  Weight per Cabinet (kg/cabinet)	6.5
  Weight per Square Meter (kg/m²)	32.0
  Physical Pixel Density (pixels/m²)	409,600
  Flatness of Cabinet	±0.3 mm
  Cabinet Material	Die-casting Aluminum
  Service Access	Front

• Optical Parameter

  Max. Brightness (After Calibration)	600
  Color Temperature (K)	3,200~9,300
  Visual Viewing Angle (Horizontal/Vertical)	160 × 150
  Brightness Uniformity	97%
  Color Uniformity	±0.003Cx,Cy
  Contrast Ratio (10 lux)	5,000:1
  Processing Depth (bit)	14

• Electrical Parameter

  Power Consumption (W/Cabinet, Max.)	107
  Power Consumption (W/Cabinet, Avg.)	45
  Power Consumption (W/m², Max.)	530
  Heat Dissipation (BTU/h/Cabinet, Max.)	365
  Heat Dissipation (BTU/h/Cabinet, Avg.)	153
  Heat Dissipation (BTU/h/㎡, Max.)	1,808
  Power Supply (V)	100 to 240
  Frame Rate (Hz)	50 / 60
  Refresh Rate (Hz)	3,840

• Operation Conditions

  Lifetime (Hours to Half Brightness)	100,000
  Operating Temperature (°C)	-20℃ to +40℃
  Operating Humidity	10-80% RH
  IP rating Front / Rear	IP50 / IP50

• Certification

  Certification	CE, FCC, cTUVus, CB, KC, CCC

• Environment

  Environment	RoHS, REACH

• Controller

  Controller	CVBA

• 90 Degree Corner Cut

  90 Degree Corner Cut	Yes
