AUDAC MFA208

"All-in-one audio solution."

This revolutionary award-winning amplifier is designed as a two-channel amplifier using class D amplifier technology. It can be used for powering low impedance stereo systems with a maximum power of 2 x 40 Watt, while bridging to a constant voltage (100V and 70V) is possible with a maximum output power of 80 Watt. A switch-mode power supply allows a wide variation of main voltages for global compatibility.

The integrated SourceCon™ module* slot allows the implementation of any available compatible module, offering a true all-in-one solution. Typical applications are the implementation of an audio streaming module or internet radio module. Additionally, a stereo line input allows connection for any kind of external audio sources.

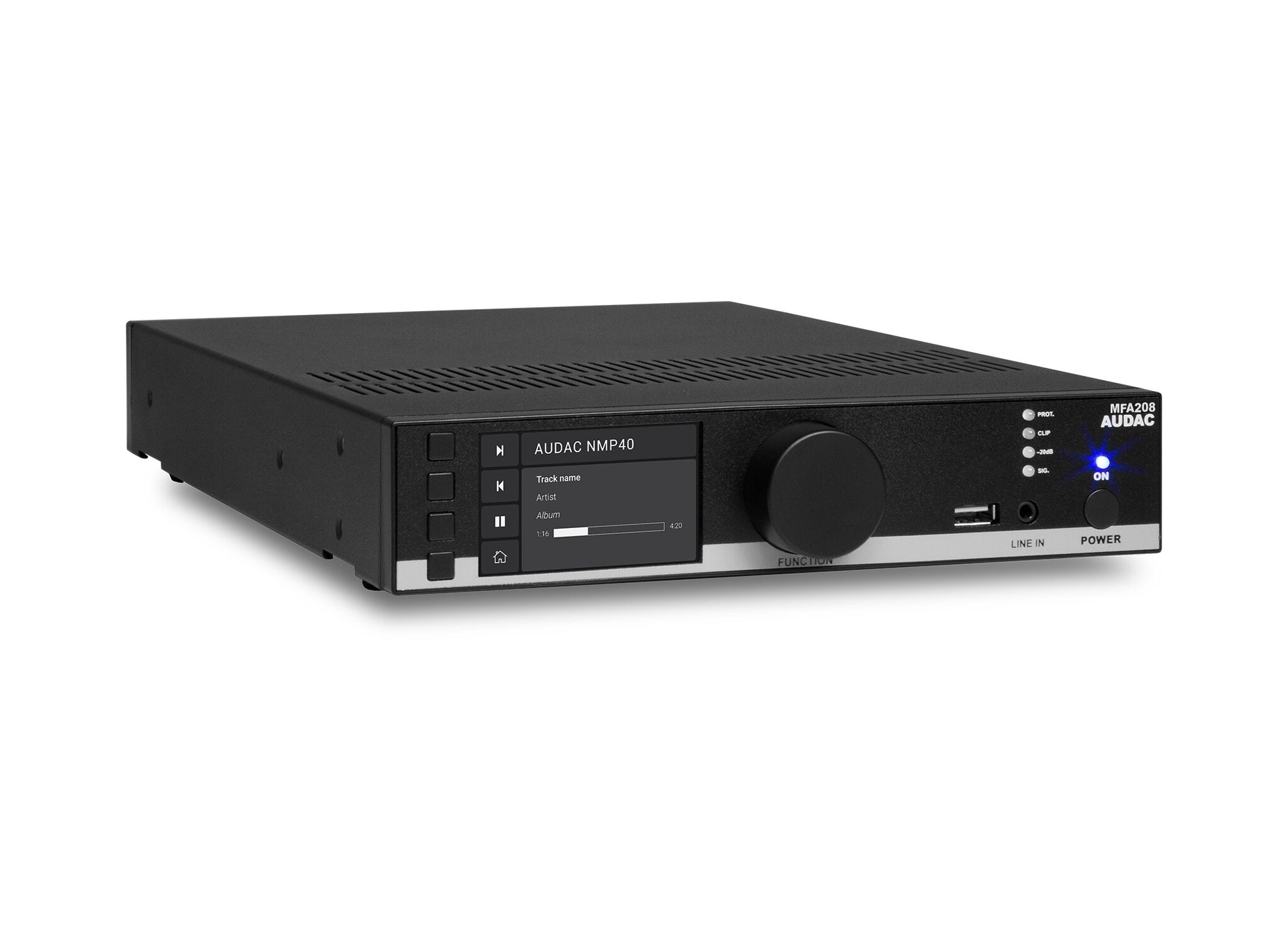

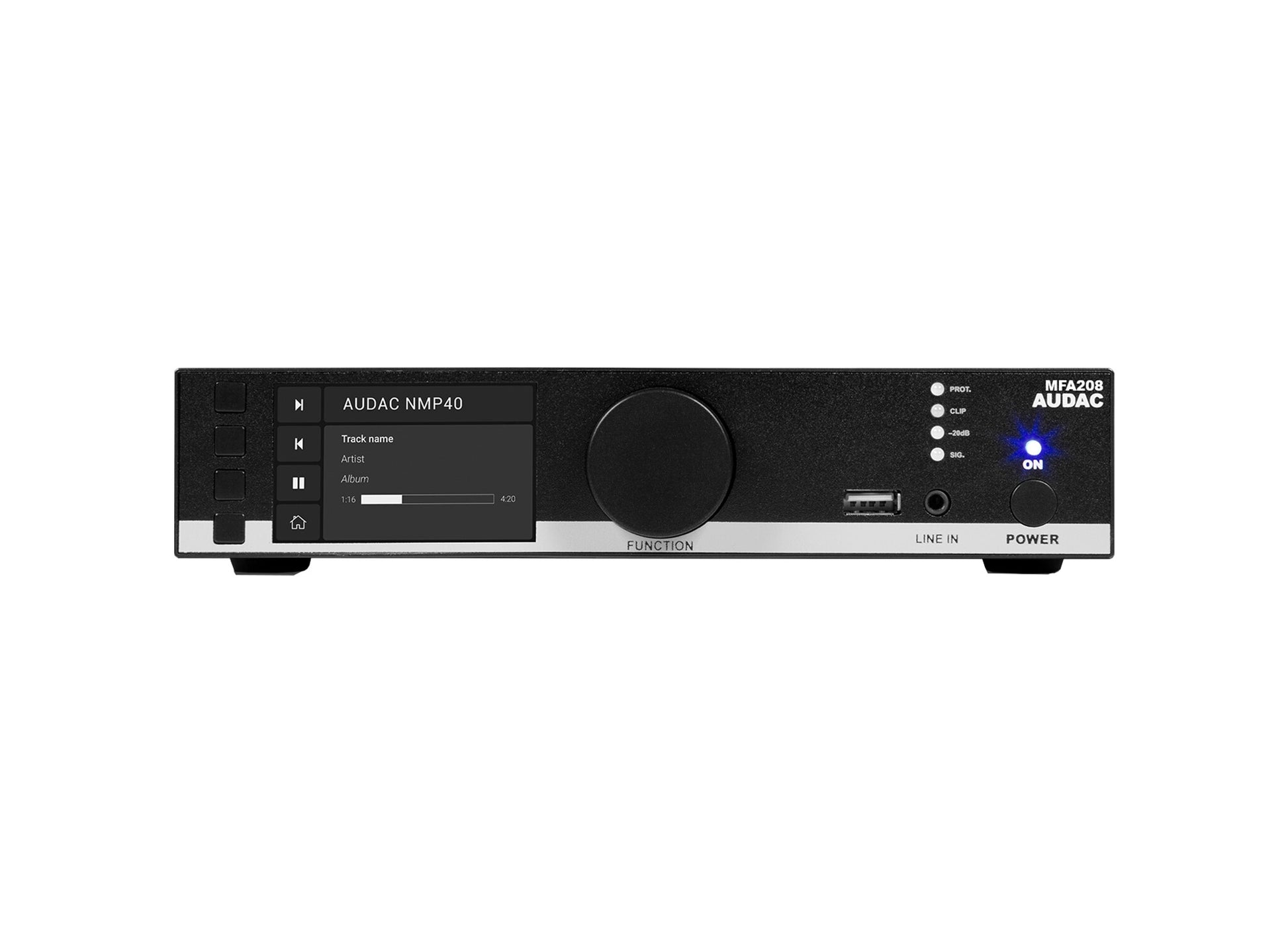

A balanced mic/line input allows connection for an announcement microphone with compatibility for condenser microphones using the integrated phantom power supply (15V). A priority switch overrides the background music when enabled and compatibility with line-level sources (e.g. voice file players) is guaranteed by wide gain adjustment (0 dB ~ +50 dB). This gain adjustment controls both the sensitivity of the line inputs on the rear as on the front. Thanks to the 2.8” TFT display and the push rotary dial on its front, an unmatched user experience is achieved.

Please pay attention the RCA input is combined with the line input at the back of the device, meaning the rear input is disabled when the front input is in use.

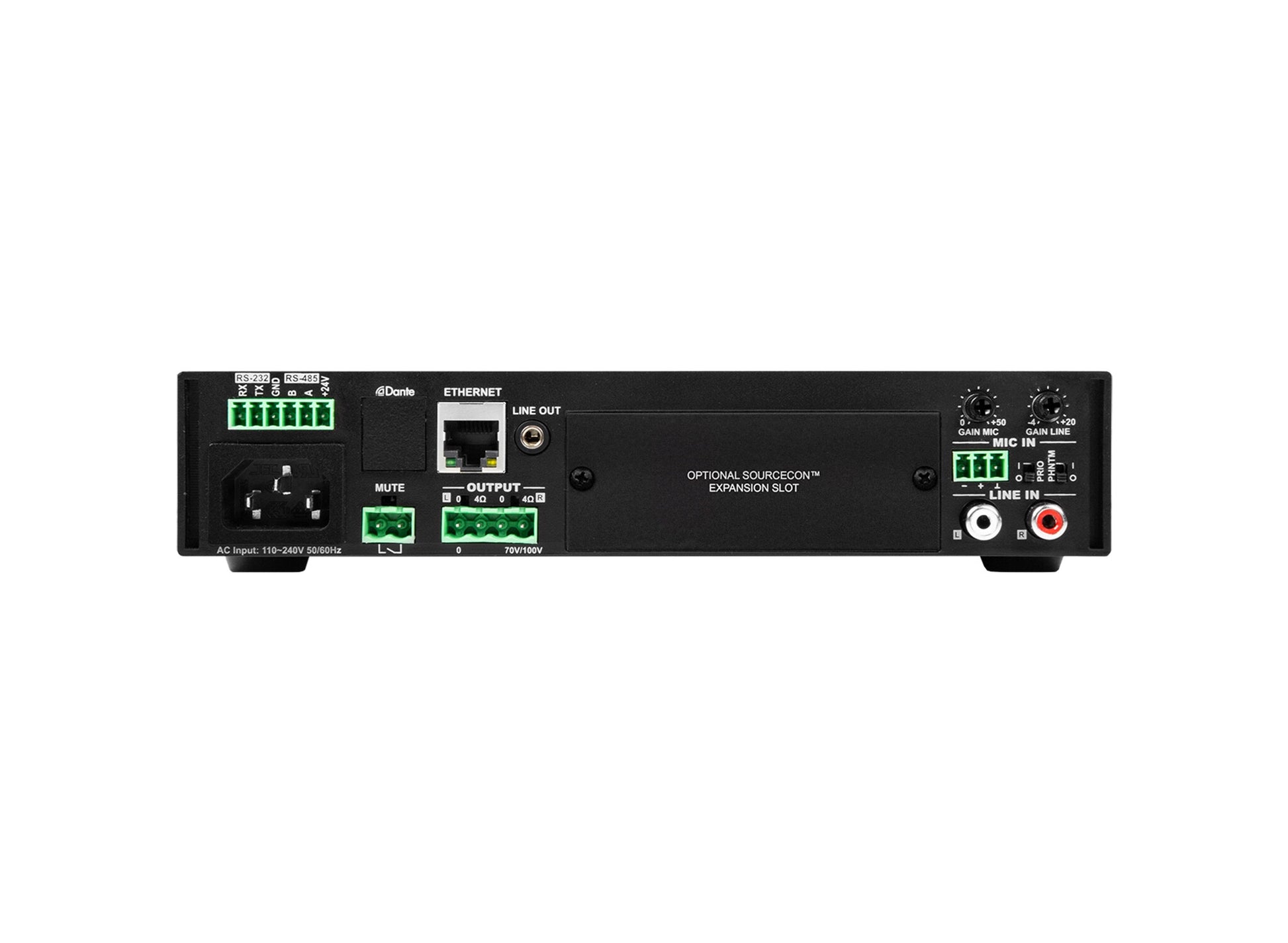

A line out connection at the back of the device is making the device even more versatile. This line out can be used as a preamp output, where the input and volume are the same as the internal amplifier or as a separate secondary stereo zone output, where both zones (inputs, volume control, and many more..) can be operated completely independently of each other.

A priority mute contact on the back of the device mutes the music at the presence of a contact closure between both terminals. Priority enabled on mic-in overrides the muting, allowing emergency announcements or voice messages.

The MFA series are both RS232, RS485 and TCP/IP controllable allowing implementation with home & industrial automation systems and peripheral devices. Using the freely available AUDAC Touch™ 2 application, control and configuration can be done from any portable or non-portable device on any location and at any time.

Desktop installation or mounting in an equipment rack using the MBS310 series mounting adapters is possible. The half 19” rackspace enclosure allows single installation in a 10.5” equipment rack, or side-by-side (two devices) in a 19” equipment rack.

When installed the (optional) ANI44XT Dante™ audio network interface, music from the installed SourceCon™ module or connected line input signal can be shared throughout your Dante™ audio network to other compatible devices or amplifiers. Using Dante™, you can even play priority messages with near-zero latency (100ms) to the audience.

*SourceCon™ modules are optionally available. MFA series does not come pre-installed with one of these modules.

*Automation tool: the MFA series does not have built-in relays, it will only be possible to send commands via AUDAC Touch™ to other TCP-IP products. 2-way communication between devices is not possible.

*NOTE: The powers shown for low impedance stereo mode may look strange to be equal for 4Ω, 8Ω and 16Ω loads, however, these figures are true and correct. The output voltage is increased at higher load impedances to guarantee the maximum output power is achieved. These figures are depending on a correct output setting configuration in the ‘Settings’ > ‘Amplifier’ > ‘Output’ and ‘Output type’ menu.

Optional modules available
SourceCon™ technology
The integrated SourceCon™ module* slot allows the implementation of any available compatible module, offering a true all-in-one solution.

Automation systems
Flexible controllability
The MFA series are both RS232, RS485 and TCP/IP controllable allowing implementation with home & industrial automation systems and peripheral devices. The freely available AUDAC Touch™ application enables you to control your MFA series from any device on any location and at any time.

Easy network configuration
Dante™ compatibility
When installed the (optional) ANI44XT Dante™ audio network interface, allows you share music from the installed SourceCon™ module or connected line input signal throughout your Dante™ audio network. In addition, all these Dante™ inputs are individually selectable per zone, allowing easy configuration. Using Dante™, you can even play priority messages with near-zero latency (100ms) to the audience.

Always on the latest firmware
Over-the-air update
In our eternal search for ways to increase installer convenience, we’ve introduced a new feature, where the MFA can be updated by the end user. When the MFA is connected to the internet, future updates are automatically pushed to the device.

Connect peripheral devices
Peripheral connectivity
A balanced mic/line input allows connection for an announcement microphone with compatibility for condenser microphones using the integrated phantom power supply (15V)

Suited for any type of installation
Decentralized multi-zone system
The MFA features a line out connection, creating the possibility for scaling the output power to meet both small and large scale project requirements. In case the internally available power turns out to be insufficient or in situations where future expansion is required, the line out connections offers the required solution.

Decentralize your audio solutions
TouchLink™ compatible
TouchLink™ is an ingenious system that can be used for creating virtual zones by linking multiple TouchLink™ compatible devices with each other. In AUDAC Touch™ you can select multiple devices or amplifier channels that should react to the user as one zone.

Lock your settings
Admin view
Don't want others to mess up your settings? The MFA series features a user level and a password-protected admin level. Users can only change the input and volume of the system, while admins can view and customize all settings.
