SolidDrive MSK-1G-T Actuator for Glass Surface
SolidDrive MSK-1G-T Actuator for Glass Surface
- Hidden planar-source audio technology evenly distributes sound masking signals throughout the listening space.
- Broad and even coverage of up to 15 feet per unit in a drywall installation means a few units cover a large area.
- Proprietary behind-surface mounting technologies ensure maximum visual appeal.
- 86 Max SPL (drywall) and 120° dispersion pattern across the upper registers of the frequency spectrum
- Drywall optional accessories: self-leveling, constant tension pre-construction bracket to ensure proper alignment & wall contact.
- SolidDrives operate in a virtually friction-free environment and are engineered for infinite life. SolidDrives come with an industry-leading 7-year warranty.
- SKU:MSK-1G-T
- GTIN/EAN:644216213009
- MPN:MSK-1G-T
SolidDrive MSK-1G-T Actuator for Glass Surface

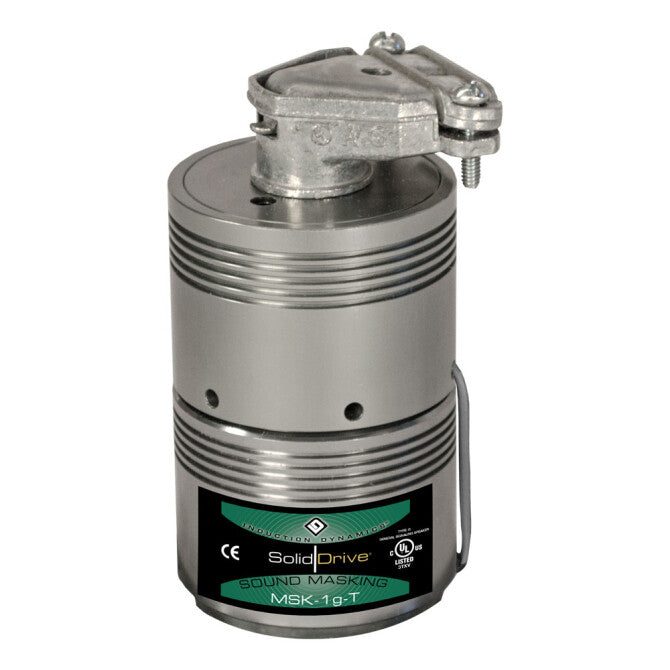

The MSK-1g-T is an economical hidden planar-source sound transducer designed for sound masking in glass-mount applications. Featuring a rugged aluminum enclosure with neodymium magnets, the MSK-1g-T uses technology similar to our patented SD1 transducers to transfer acoustic energy to the substrate. The result is extremely wide and even audio coverage and acoustical uniformity in the listening space. The unit incorporates a 10 watt transformer for use in 70 V installations and is mounted to glass using an adhesive disk.
Owner's Manual | Tech Sheet | Removal Instructions | UL Certificate
| Color | Titanium |
|---|---|
| UPC | 644216213009 |
| Manufacturer | SolidDrive |
| Manufacturer's Category | Sound Masking SolidDrive |
| Height | 4.75 in / 120.65 mm |
| Width/Diameter | 2.3 in / 58.42 mm |
| Shipping Weight | 2.10 lbs / 0.95 kg |
| Carton Height | 6.5 in / 165.1 mm |
| Carton Length | 5.5 in / 139.7 mm |
| Carton Width | 5.25 in / 133.35 mm |
| Certifications | UL1480, UL2043 |
| Enclosure Properties | Anodized Aluminum |
| Included Accessories | Conduit Clamp |
| Optional Accessories | Titanium Heat Sink (SD1-HS-TI)|Passive Equalization Module - Glass (PEM-G) |
| TAA Compliant (Trade America) | Yes |
| BAA Compliant (Made in USA) | Yes |
| Coverage Angle (±6dB @ 2kHz) | 120° |
| Cutout Width/Diameter | 3.5 in / 88.9 mm |
| Frequency Response (± 10 dB) | 80 Hz - 15 kHz |
| Frequency Response (± 3 dB) | 90 Hz - 10 kHz |
| Max. Continuous Power RMS | 30 W |
| Max. Program Power | 50 W |
| Transformer Options | 10 W Transformer |
Impedance
70/100 V
RMS rated power
30 W
