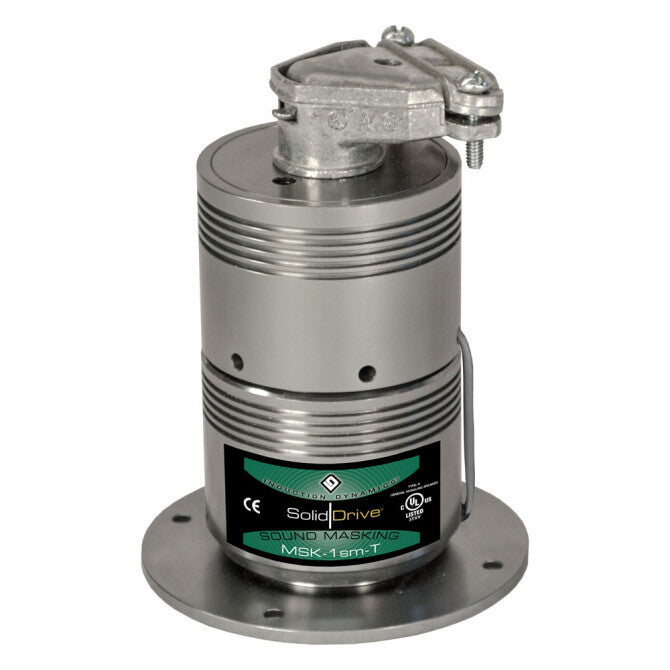

SolidDrive MSK-1SM-T Actuator and Transformer for Wood Surface
SolidDrive MSK-1SM-T Actuator and Transformer for Wood Surface
- Hidden planar-source audio technology evenly distributes sound masking signals throughout the listening space.
- • Broad and even coverage of up to 15 feet per unit in a drywall installation means a few units cover a large area.
- Proprietary behind-surface mounting technologies ensure maximum visual appeal.
- 86 Max SPL (drywall) and 120° dispersion pattern across the upper registers of the frequency spectrum.
- Drywall optional accessories: self-leveling, constant tension pre-construction bracket to ensure proper alignment & wall contact.
- SKU:MSK-1SM-T
- GTIN/EAN:644216213207
- MPN:MSK-1SM-T
SolidDrive MSK-1SM-T (Surface Mount Actuator and Transformer) for Wood Surface
The MSK-1sm-T is an economical hidden planar-source sound transducer designed for sound masking in wood-mount or other rigid-surface applications. Featuring a rugged aluminum enclosure with neodymium magnets, the MSK-1sm-T uses technology similar to our patented SD1 transducers to transfer acoustic energy to the substrate. The result is extremely wide and even audio coverage and acoustical uniformity in the listening space. The unit incorporates a 10 watt transformer for use in 70 V installations and is mounted directly to the surface using wood screws.
Owner's Manual | Tech Sheet | UL Certificate
| Color | Titanium |
|---|---|
| UPC | 644216213207 |
| Manufacturer | SolidDrive |
| Manufacturer's Category | Sound Masking SolidDrive |
| Height | 4.75 in / 120.65 mm |
| Width/Diameter | 2.3 in / 58.42 mm |
| Shipping Weight | 2.15 lbs / 0.98 kg |
| Carton Height | 6.5 in / 165.1 mm |
| Carton Length | 5.5 in / 139.7 mm |
| Carton Width | 5.25 in / 133.35 mm |
| Enclosure Properties | Anodized Aluminum |
| Included Accessories | Conduit Clamp |
| Optional Accessories | Titanium Heat Sink (SD1-HS-TI)|Passive Equalization Module - Wood/Surface Mount (PEM-W) |
| TAA Compliant (Trade America) | Yes |
| BAA Compliant (Made in USA) | Yes |
| Coverage Angle (±6dB @ 2kHz) | 120° |
| Frequency Response (± 10 dB) | 80 Hz - 15 kHz |
| Frequency Response (± 3 dB) | 90 Hz - 10 kHz |
| Max. Continuous Power RMS | 30 W |
| Max. Program Power | 50 W |
| Transformer Options | 10 W Transformer |
Impedance
70/100V
RMS rated power
30 W
