NEC E328

NEC E328

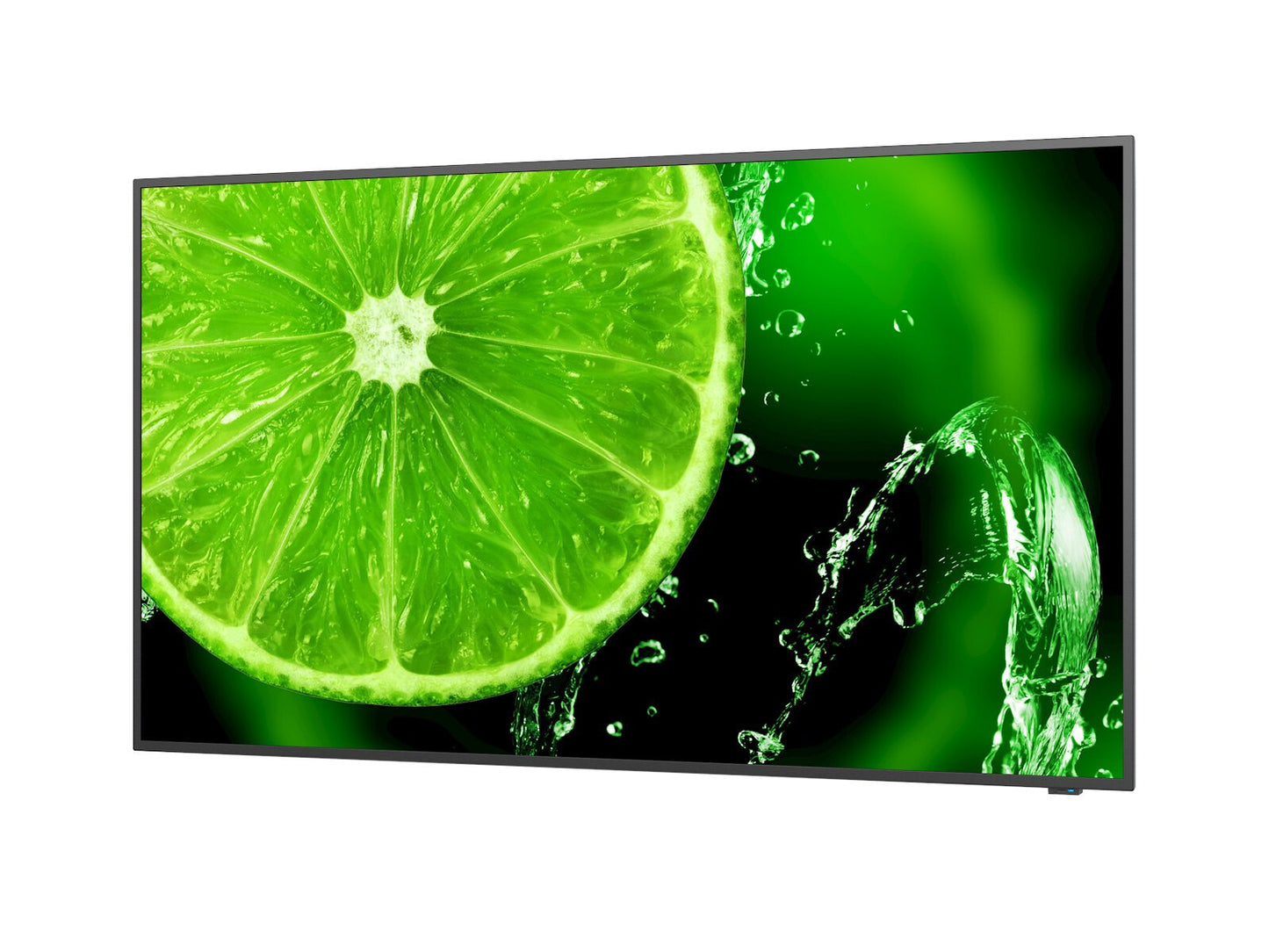

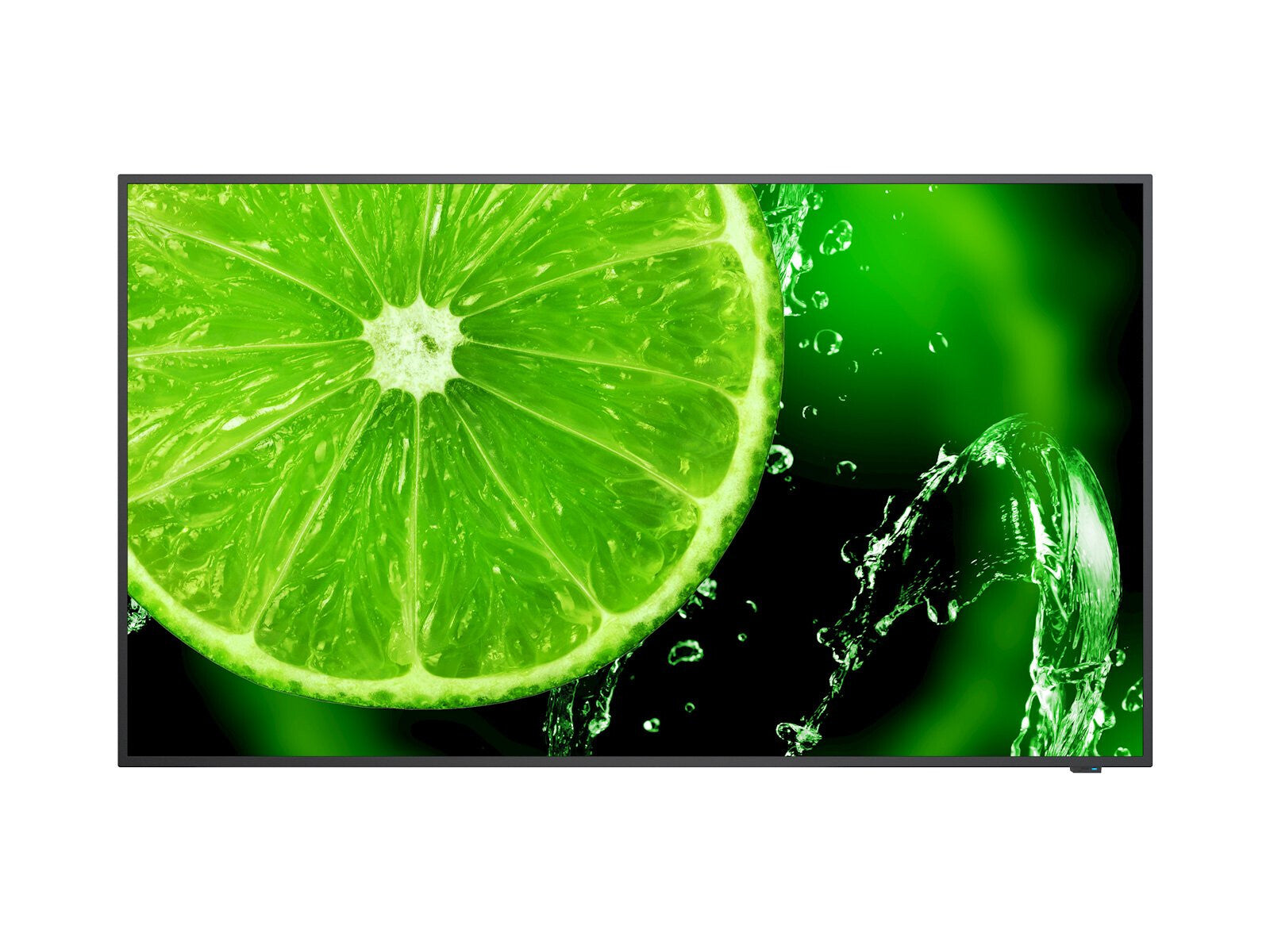

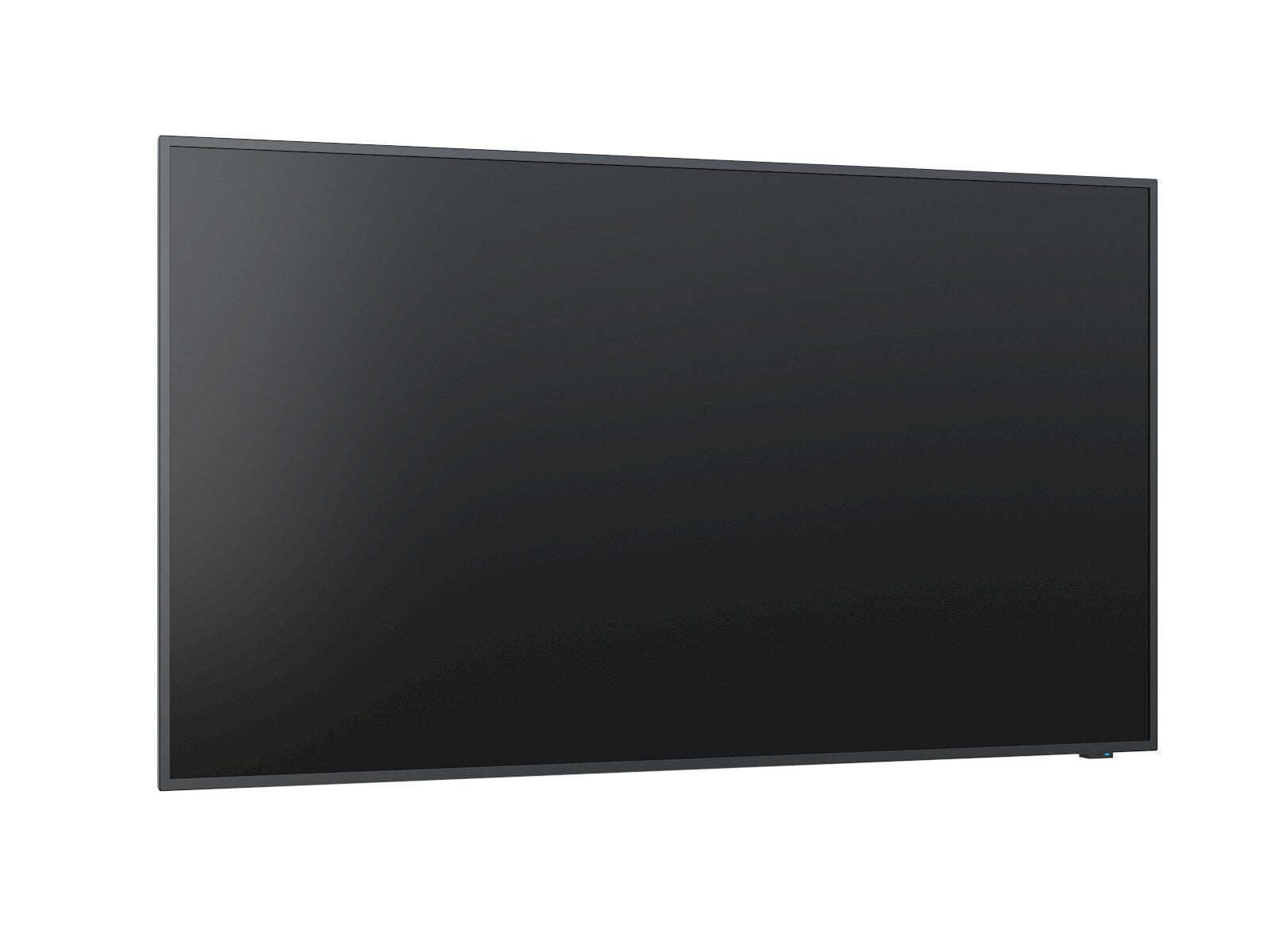

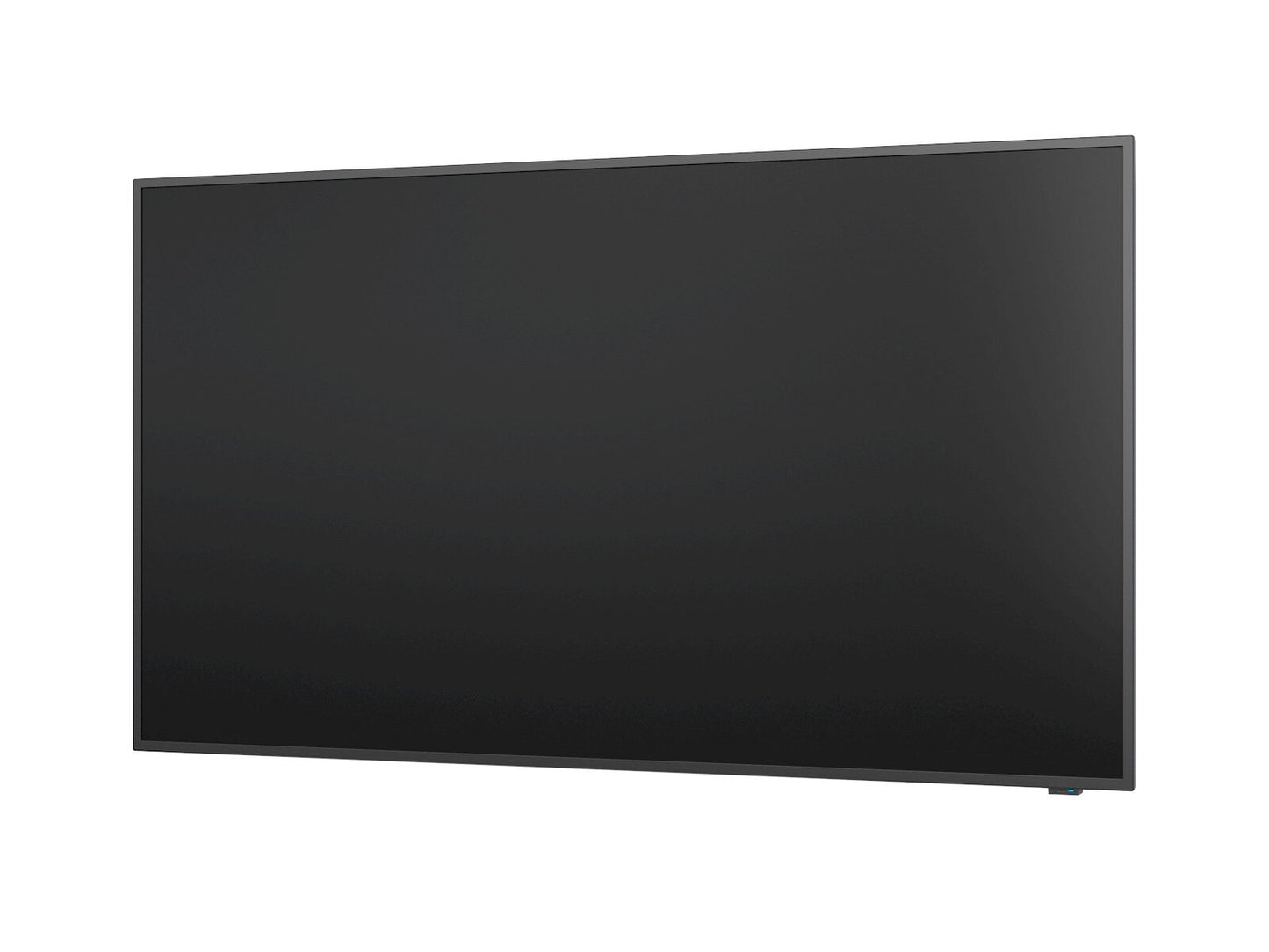

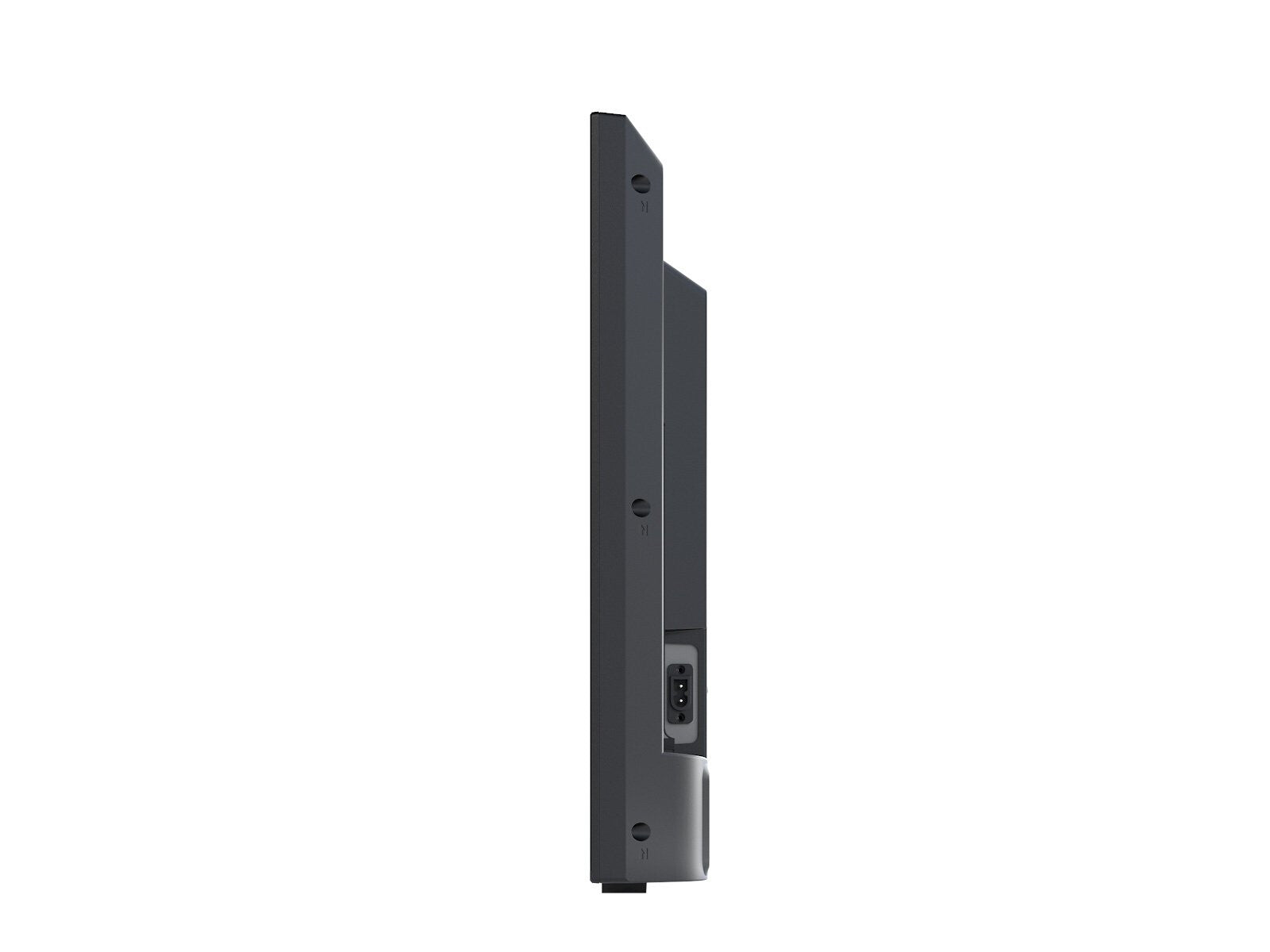

LCD 32" Essential Large Format Display, IPS, 1920 x 1080 px, 350 cd/m², 16:9, 8ms, 178°/178°, 60 Hz, HDMI, VGA, USB, RJ-45, 27 kWh, F

  • Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration
  • Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation
  • Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures
  • Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback
  • Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality
  • SKU:5028695120839
  • GTIN/EAN:5028695120839
  • MPN:60005270
Add To Favorite

You need to login to view the price.

View full details

Functionality you need, at the price you want

A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want.

An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required.

For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.

Display
Horizontal scan range
15 - 136 kHz
Vertical scan range
24 - 75 Hz
Panel type
IPS
Native refresh rate
60 Hz
Display diagonal (metric)
80 cm
Active display area (W x H)
698 x 393 mm
Pixel pitch
0.364 x 0.364 mm
Display number of colours
16.78 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
HD type
Full HD
Display brightness
350 cd/m²
Display resolution
1920 x 1080 pixels
LED backlighting type
Direct-LED
LED backlight
Yes
Display technology
LCD
Display diagonal
81.3 cm (32")

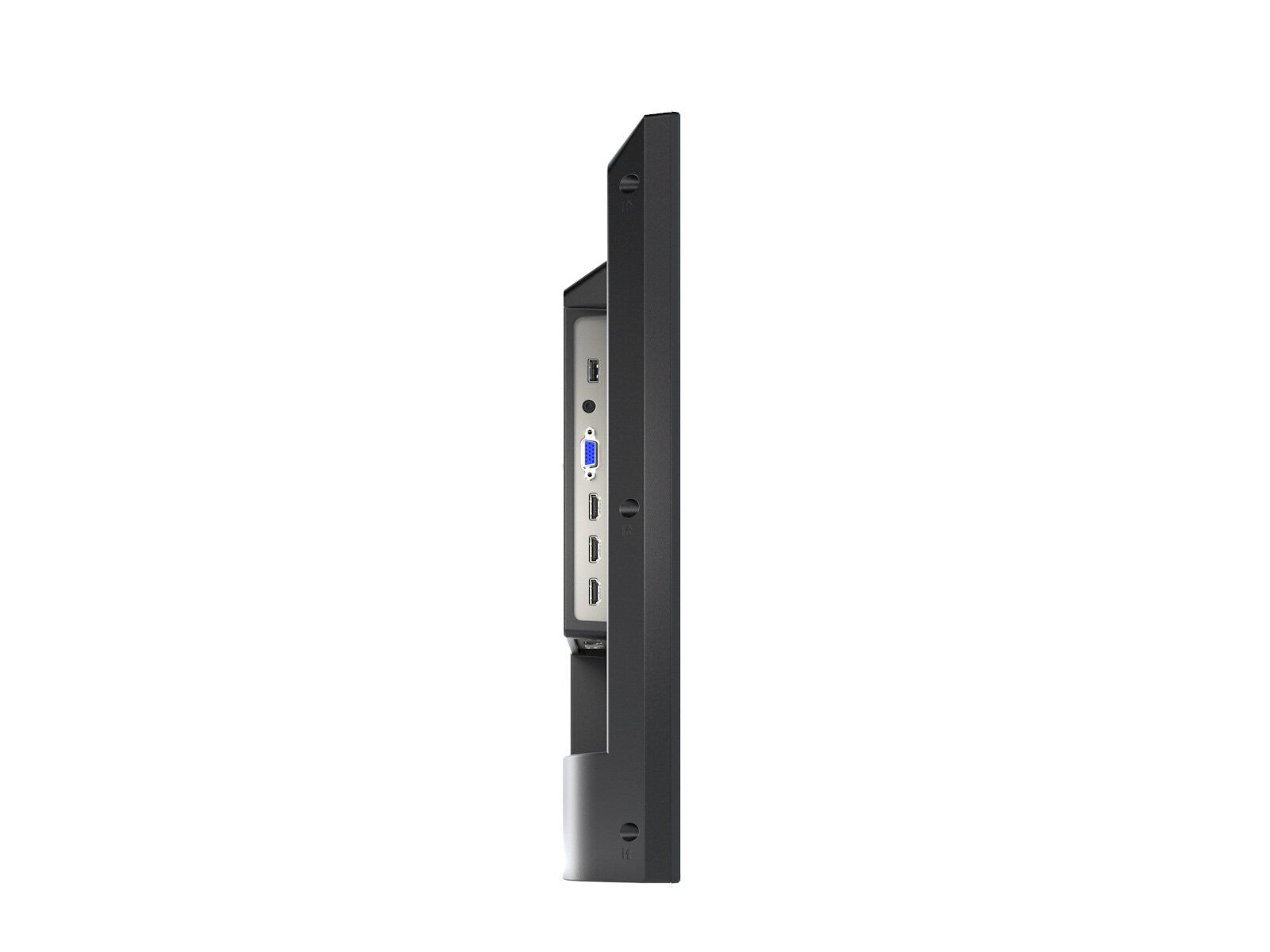

Ports & interfaces
Remote (IR) input
1
RS-232 interface
Yes
Number of speaker outputs
1
PC Audio in
Yes
Audio (L/R) out
1
Component video (YPbPr/YCbCr) in
1
Composite video in
1
Ethernet LAN data rates
100 Mbit/s
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
2
USB port
Yes
VGA (D-Sub) input ports
1
HDMI input ports quantity
3
HDMI ports quantity
3
Audio
RMS rated power
10 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
1.39 cm
Bezel width (side)
1.25 cm
Bezel width (top)
1.25 cm
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Orientation
Horizontal
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
Operating hours (hours/days)
16/7
Ambient light sensor
Yes
Purpose
Universal
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Energy consumption (HDR) per 1000 hours
27 kWh
Energy consumption (SDR) per 1000 hours
27 kWh
Energy efficiency class (HDR)
E
Energy efficiency class (SDR)
F
Power consumption (standby)
2 W
Power consumption (typical)
33 W
Computer system
Image formats supported
JPG
Audio formats supported
AAC, LPCM, MP3, WMA, WMA-PRO, WMV
Video formats supported
MP4, MPG, TS
Weight & dimensions
Display weight
5.3 kg
Display height
422.3 mm
Display depth
67.1 mm
Display width
726.6 mm
Packaging content
Cables included
AC, HDMI
Remote control included
Yes
Operational conditions
Storage relative humidity (H-H)
5 - 85%
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Operating temperature (T-T)
0 - 40 °C
Algemeen
Productfamilie
MultiSync
Features
Harmonized System (HS) code
85285210
Technical details
Sustainability certificates
ENERGY STAR
