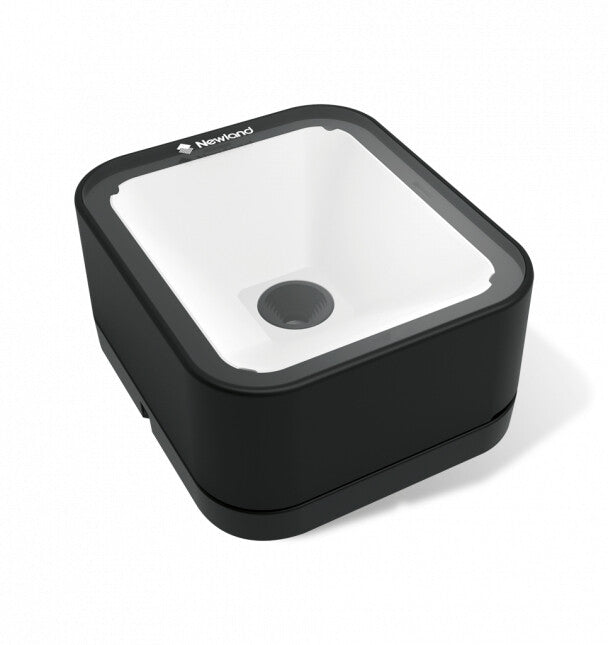

Newland FR27 Urchin

Newland FR27 Urchin

FR27 Urchin 2D CMOS Desktop Area Imager Reader, w / 1.5 meter direct USB cable

  • Fixed bar code reader Black, White
  • Scanner type: 1D/2D Sensor type: CMOS
  • Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
  • 640 x 480 pixels
  • Wired Standard interfaces: USB
  • Power source type: DC
  • SKU:5704174085928
  • GTIN/EAN:5704174085928
  • MPN:FR2780-B-20
Add To Favorite

You need to login to view the price.

View full details

Newland FR27 Urchin. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, White, International Protection (IP) code: IP42, Certification: VCCI. Power source type: DC, Power consumption (typical): 0.698 W, Input voltage: 5 V. Weight: 120 g, Width: 66.3 mm, Depth: 76.3 mm

The FR27 Urchin, Newlands smallest presentation scanner, strikes the perfect balance between performance and play. Its large scan window and outstanding motion tolerance makes self-service scanning a breeze. All whilst maintaining a small & sleek footprint, fit to enhance your countertop design. With the possibility to be mounted horizontally, vertically and to manipulate the cable, the FR27 Urchin can be installed to blend into its environment. This plug-and-go USB scanner just made your self-service scanning childsplay.

5 Years

Scanning
Pitch reading angle
-75 - 75°
Light levels (direct sunlight)
0 - 100000 lx
Optical sensor resolution (W x H)
640 x 480 pixels
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
Sensor type
CMOS
Scanner type
1D/2D
Type
Fixed bar code reader
Ports & interfaces
Standard interfaces
USB
Connectivity technology
Wired
Performance
Certification
VCCI
LED indicators
Yes
International Protection (IP) code
IP42
Product colour
Black, White
Power
Power consumption
140 mA
Input voltage
5 V
Power consumption (typical)
0.698 W
Power source type
DC
Weight & dimensions
Weight
120 g
Height
38 mm
Depth
76.3 mm
Width
66.3 mm
Packaging data
Cables included
USB
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Technical details
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
