Optoma W340UST

Optoma W340UST

4000 lum, DLP, 1280x800, 16:10, 240W, 26dB(A), 1 x HDMI 1.4a 3D support + MHL, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Composite video, 1 x Audio 3.5mm, 2 x USB-A reader/wireless, 1 x VGA, 1 x Audio 3.5mm, 1 x RS232, 1 x RJ45, 3.9kg, White

  • Bright WXGA projector - 4000 ANSI lumens
  • Ultra short throw lens - 100" image from less than half a metre away
  • Ultimate control - Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
  • Feature packed - Four corner adjustment, Office viewer, optional wireless presentations
  • SKU:5055387664463
  • GTIN/EAN:5055387664463
  • MPN:E1P1A1FWE1Z2
Add To Favorite

You need to login to view the price.

View full details

Optoma W340UST. Projector brightness: 4000 ANSI lumens, Projection technology: DLP, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 4000 h, Service life of light source (economic mode): 15000 h. Fixed focal length: 3.72 mm, Zoom type: Fixed, Throw ratio: 0:27:1. Analog signal format system: NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 4.43, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM,..., Supported 3D formats: Frame packing, Side by side, Top and bottom, Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232, HDMI connector type: Full-size, HDMI version: 1.4a

Ultra short throw projector
Beam bright, eye catching content with the W340UST projector. Perfect for meeting rooms and classrooms, this projector is designed to be used at any time of day.

Incorporating an ultra short throw lens means it can project a 100” image from less than 0.5m away. And having the projector installed so close to the wall avoids any shadows being cast across the screen from the presenter(s).

Installation and setup are simple with four corner adjustment.

Additionally, it provides a complete package for engaging learning with many new features, including two HDMI inputs, powered USB port, native office viewer and a powerful 16W built-in speaker.

Ultra Short Throw
With an ultra-short throw lens, you can project an impressive image greater than 100” from less than a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease; perfect for interactive applications.

Amazing colours
Give powerful presentations and educational lessons with stunning colours. Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

Superior contrast
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.

Native office viewer
Give presentations directly from your projector without the need of a laptop or PC using the built-in office viewer. Simply copy your Word, Excel, PowerPoint, PDF or JPEG files to a USB stick, SD card or microSD (depending on the projector input*) and display them on the big screen.

USB display
Connect your projector directly to a laptop and display the desktop using a USB cable. No need for a bulky VGA lead.

Control
Featuring a wide range of options you can control and monitor the projector remotely.

Wireless presentations
Instantly connect and present wirelessly from your PC, Mac or mobile device using the free App HDCast Pro* and optional wireless USB dongle. The app gives you the freedom to wirelessly share and present documents, photos and your devices camera turning it into a document camera. Creating a more connected and collaborative experience for everyone.

Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for uneven walls or where projector placement is awkward and needs to be installed at an angle.

Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.

Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.

USB-Power
Use the USB-A port to power an HDMI dongle, such as Google Chromecast.

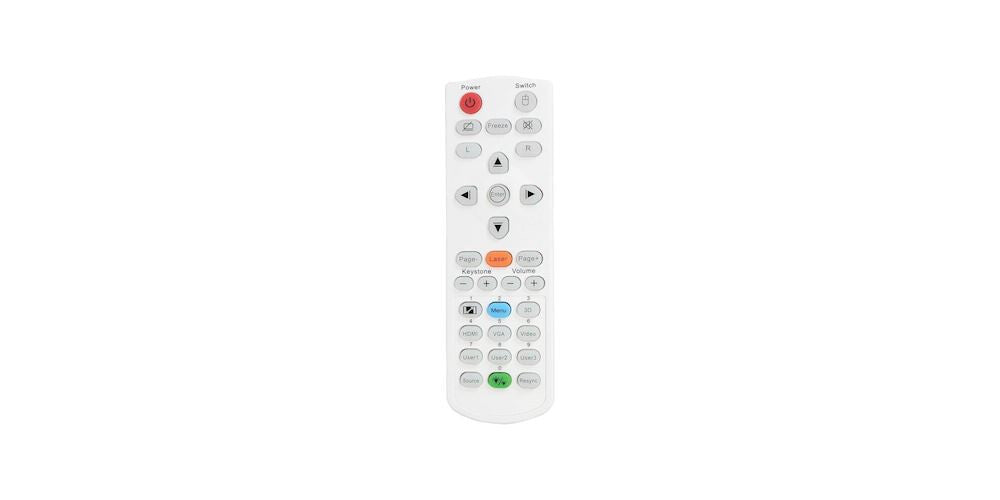

Remote mouse with built-in laser pointer
Keep your audience’s attention focused on the right things using the simple, yet powerful remote with mouse control and built-in laser pointer.

Eco+
Eco+ technology brings together high contrast, improved lamp life and energy saving features that are easy to use while reducing power consumption.

Energy saving
Using the specially designed lamp modes, you can reduce the power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while lowering the total cost of ownership and reducing maintenance.

Eco AV mute
Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen by blanking the image when no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.

Quick resume
This feature allows the projector to be instantly powered on again, if it is accidentally switched off.

Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.

Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.

24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.

Projector
Keystone correction, horizontal
Keystone correction, vertical
Horizontal scan range
15.375 - 91.147 kHz
Vertical scan range
24 - 85 Hz
Uniformity
80%
Projection distance
0.49 - 0.66 m
Screen size compatibility
2159 - 2921 mm (85 - 115")
Supported aspect ratios
4:3, 16:10, 16:9
Native aspect ratio
16:10
Contrast ratio (typical)
22000:1
Projector native resolution
WXGA (1280x800)
Projection technology
DLP
Projector brightness
4000 ANSI lumens
Light source
Lamps quantity
1 lamp(s)
Lamp power
240 W
Service life of light source (economic mode)
15000 h
Service life of light source
4000 h
Light source type
Lamp
Lens system
Offset
118%
Throw ratio
0:27:1
Zoom type
Fixed
Zoom capability
Yes
Fixed focal length
3.72 mm
Video
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported 3D formats
Frame packing, Side by side, Top and bottom
3D
Yes
Full HD
No
Analog signal format system
NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 4.43, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM 4.25/4.4, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
Ports & interfaces
AC (power) in
Yes
Mobile High-Definition Link (MHL)
Yes
PC Audio out
Yes
PC Audio in
Yes
Serial interface type
RS-232
USB 2.0 ports quantity
2
Composite video in
1
Component video (YPbPr/YCbCr) in
1
DVI port
No
HDMI version
1.4a
HDMI connector type
Full-size
HDMI ports quantity
2
VGA (D-Sub) ports quantity
1
Network
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
Smart TV
No
Storage
Card reader integrated
No
Features
Number of OSD languages
25
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Farsi, Finnish, French, Greek, Hungarian, Italian, Japanese, Norwegian, Portuguese, Romanian, Russian, Swedish, Turkish, Vietnamese
On Screen Display (OSD)
Yes
Noise level
26 dB
Multimedia
Number of built-in speakers
1
RMS rated power
16 W
Built-in speaker(s)
Yes
Design
Cable lock slot
Yes
Cable lock slot type
Kensington
Placement
Desktop
Product colour
White
Market positioning
Short throw
Product type
Ultra short throw projector
Display
Built-in display
No
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
275 W
Power consumption (standby)
0.5 W
Power consumption (typical)
200 W
Power source
AC
Supplier features
Harmonized System (HS) code
85286200
Weight & dimensions
Package weight
5.7 kg
Height
112 mm
Depth
383 mm
Width
343 mm
Weight
3.9 kg
Packaging content
Manual
Yes
Cables included
AC
Batteries included
Yes
Remote control type
IR
Remote control included
Yes
