RS82-EZ-WH 8" Hanging Speaker in White

RS82-EZ-WH 8" Hanging Speaker in White

  • 25 / 70.7 / 100 V, 16 Ohm direct
  • Hanging hardware, terminal weather boot, and cover plate are included.
  • SKU:RS82-EZ-WH
  • GTIN/EAN:
  • MPN:RS82-EZ-WH
Add To Favorite

You need to login to view the price.

View full details

SoundTube RS82-EZ Hanging Speaker in White

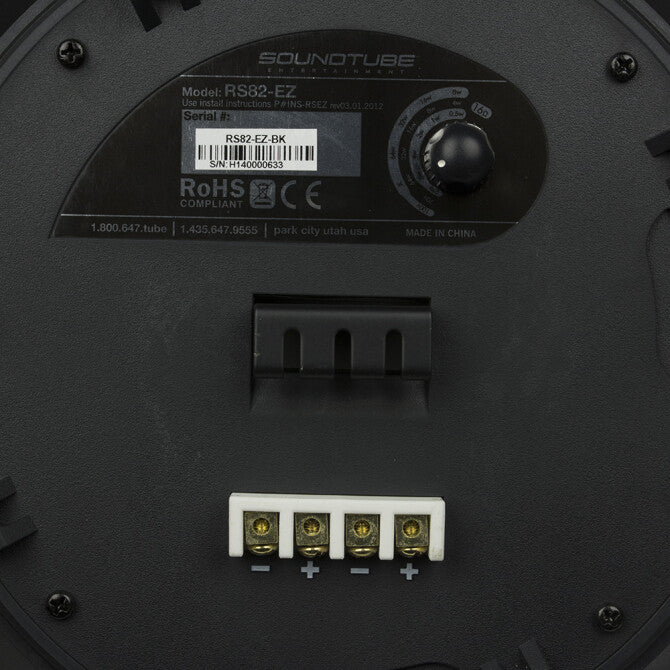

The RS82-EZ is an 8-inch, coaxial speaker with BroadBeam Ring™ technology for consistently smooth high frequency sound, designed for open ceiling applications. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications and has an aluminum grille with a protective powder coated finish. Hanging hardware with galvanized steel cables is included and features a built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be hung or mounted direct-to-conduit via the locking cover plate. The RS82-EZ speaker includes a ceramic terminal input accepting up to 10 gauge plenum rated signal wire and a 6 position tap switch with transformer bypass position, as well as a 16 ohm impedance for easy daisy chaining in low voltage systems. The RS82-EZ is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Hanging hardware, terminal weather boot, and cover plate are included.

Owner's Manual | Tech Sheet | Mechanical Drawing |  Revit |  GLL |  A&E Specs | UL Certificate

About SoundTube

Loudspeakers
Woofer
8" Polypropylene Cone w/ Butyl Rubber Surround
Tweeter
1" Silk Dome w/ BroadBeam Ring®
Speaker type
Pendant
Audio
Impedance
25 / 70.7 / 100 V, 16 Ohm direct
