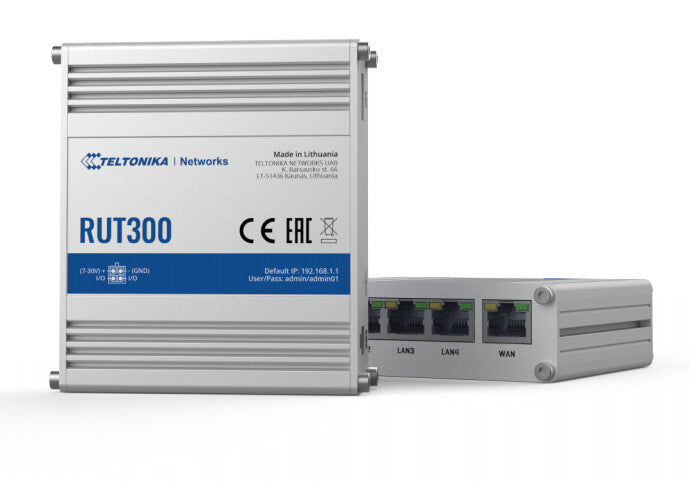

Teltonika RUT300

Teltonika RUT300

5 x RJ45 ports, 10/100 Mbps, 1 x USB A port for external devices, VPN, VLAN, RMS, Reboot/User default reset/Factory reset button, Euro PSU

  • The RUT300 is a small, but powerful Ethernet router perfect for challenging industrial networking tasks as well as general networking applications
  • Five Ethernet ports, two configurable digital Inputs/Outputs, and a USB port to easily connect the various equipment to the internet
  • Preconfigured Firewall for immediate security and multiple top-rated VPNs
  • Passive PoE helps to reduce deployment complexity
  • Economical but a feature-rich industrial device that comes with all the benefits of RutOS and Remote Management System (RMS)
  • SKU:RUT300000000
  • GTIN/EAN:
  • MPN:RUT300000000
Add To Favorite

You need to login to view the price.

View full details

Teltonika RUT300. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, Ethernet interface type: Fast Ethernet. Management protocols: FOTA, SSH, OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech,..., VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, PPPoE,.... Security algorithms: HTTPS, Firewall security: Port forwards, traffic rules, NAT rules, custom rules, VPN support: OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC,.... Processor model: Qualcomm Atheros QCA9531, Processor frequency: 650 MHz, Flash memory: 16 MB. Product colour: Blue, Metallic, Housing material: Aluminium

INTERFACES

5 x Fast Ethernet ports (10/100 Mbps). 2 x Configurable digital Inputs/Outputs and USB 2.0


DURABILITY

Aluminum housing, which is capable to withstand harsh environments


FIREWALL

Unlimited firewall configuration via CLI; DMZ; NAT; NAT-T


VPN

Numerous VPN services including OpenVPN, IPsec, PPTP, L2TP & DMVPN, L2TP, DMVPN, Stunnel and others


VLAN

Supports up to 4096 VLAN IDs for VLAN tagging and port based VLANS


RMS

Compatible with Teltonika Remote Management System

2 year

WAN connection
3G/4G USB modem compatibility
No
SIM card slot
No
Ethernet WAN
Yes
Network
Auto MDI/MDI-X
Yes
VLAN support
Yes
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Management features
Reset button
Yes
Quality of Service (QoS) support
Yes
Ports & interfaces
USB ports quantity
1
USB version
2.0
Ethernet LAN (RJ-45) ports
5
Protocols
Supported network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP (planned), MQTT (planned), Wake on LAN (WOL) (planned)
VoIP protocols
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Management protocols
FOTA, SSH, OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem, MQTT Broker, MQTT publisher, SNMP, JSON-RPC, RMS
Security
VPN support
OpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBCIPSecIKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)GREGRE tunnelPPTP, L2TPClient/Server instances can run simultaneously, L2TPv3 support (planned)Stunnel (planned)Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s codeDMVPN (planned_Method of building scalable IPsec VPNsSSTP (planned)SSTP client instance supportZeroTier (optional)ZeroTier VPN client support (not available in standard FW)WireGuard (optional)WireGuard VPN client and server support (not available in standard FW)
Access Control List (ACL)
Yes
ARP attack prevention
Yes
ICMP attack prevention
Yes
DoS attack prevention
Yes
MAC address filtering
Yes
Firewall security
Port forwards, traffic rules, NAT rules, custom rules
Firewall
Yes
Security algorithms
HTTPS
Features
Internal memory type
DDR2
Internal memory
64 MB
Flash memory
16 MB
Processor frequency
650 MHz
Processor model
Qualcomm Atheros QCA9531
Built-in processor
Yes
Design
Housing material
Aluminium
Product colour
Blue, Metallic
Power
Power source type
DC, PoE
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-40 - 75 °C
Weight & dimensions
Weight
229 g
Height
30 mm
Depth
85 mm
Width
100 mm
