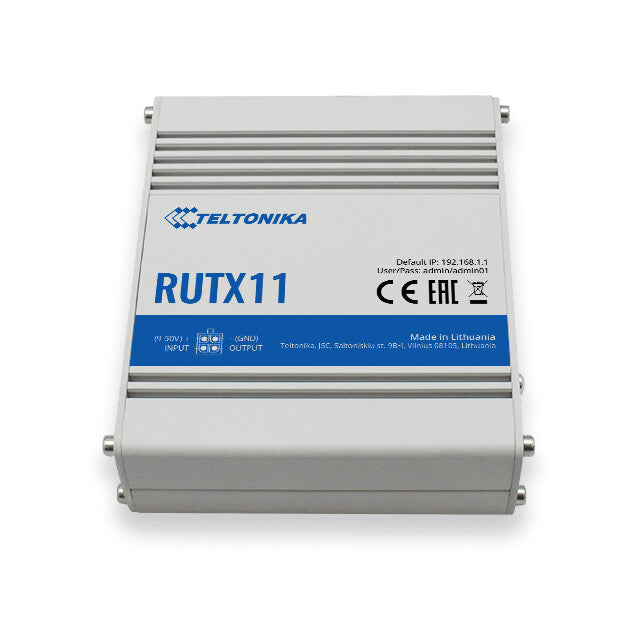

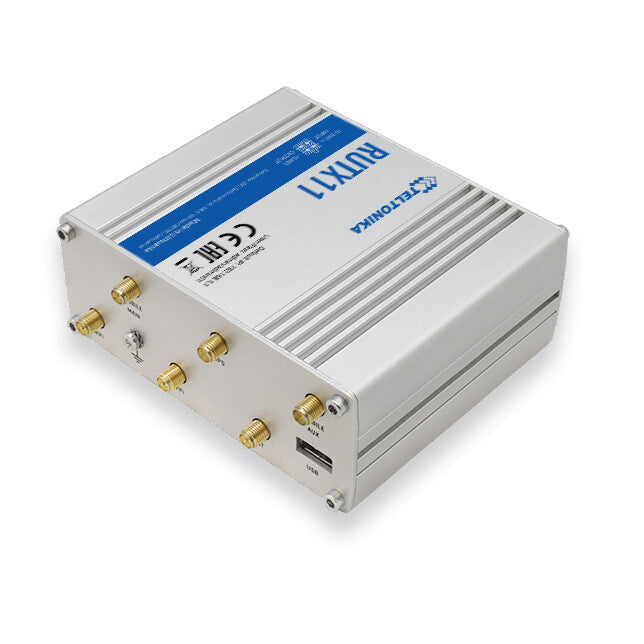

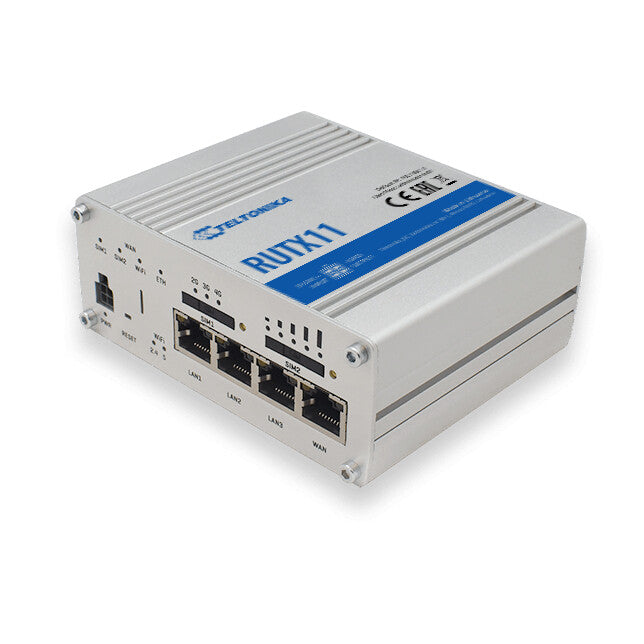

Teltonika RUTX11

Teltonika RUTX11

Quad Core ARM Cortex A7 717 MHz CPU, 4 x 1 Gbit Ethernet ports, 2 SIM card slots

  • LTE Cat 6 with speeds up to 300 Mbps
  • Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
  • Dual-SIM with auto Failover, Backup WAN and other SW features
  • Gigabit Ethernet with speeds up to 1000 Mbps
  • Teltonika Remote Management System compatible
  • RutOS – easy to use, secure and feature rich Operating System
  • SKU:RUTX11000000
  • GTIN/EAN:
  • MPN:RUTX11000000
Add To Favorite

You need to login to view the price.

View full details

Teltonika RUTX11. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Mobile network generation: 4G, 3G standards: DC-HSDPA, WCDMA, 4G standard: LTE. Security algorithms: SSH, SSL/TLS

RUTX11 is the most feature rich among all the RUTX series devices. Wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. 4G (LTE) – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows seamless data transfer experience.


Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.

2 year

WAN connection
WAN connection type
RJ-45
SIM card slot
Yes
Ethernet WAN
Yes
Wireless LAN features
WLAN data transfer rate (max)
867 Mbit/s
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN
Yes
Mobile network
4G standard
LTE
3G standards
DC-HSDPA, WCDMA
3G
Yes
4G
Yes
Mobile network generation
4G
Ports & interfaces
DC-in jack
Yes
USB 2.0 ports quantity
1
USB port
Yes
Ethernet LAN (RJ-45) ports
4
Management features
Reset button
Yes
Security
Firewall
Yes
Security algorithms
SSH, SSL/TLS
Protocols
Supported network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet
Universal Plug and Play (UPnP)
Yes
DHCP client
Yes
Design
LED indicators
Power, Status, WLAN
Indication light
Yes
Product colour
Grey
Packaging content
Quick start guide
Yes
Quick installation guide
Yes
Manual
Yes
Antenna
Antenna design
External
Features
Certification
CE, EAC
Flash memory
256 MB
Internal memory
256 MB
Processor frequency
717 MHz
Processor architecture
ARM Cortex A7
Built-in processor
Yes
Power
Power source type
DC
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Weight & dimensions
Width
115 mm
Depth
95 mm
Height
44 mm
Weight
456 g
Logistics data
Harmonized System (HS) code
85176990
