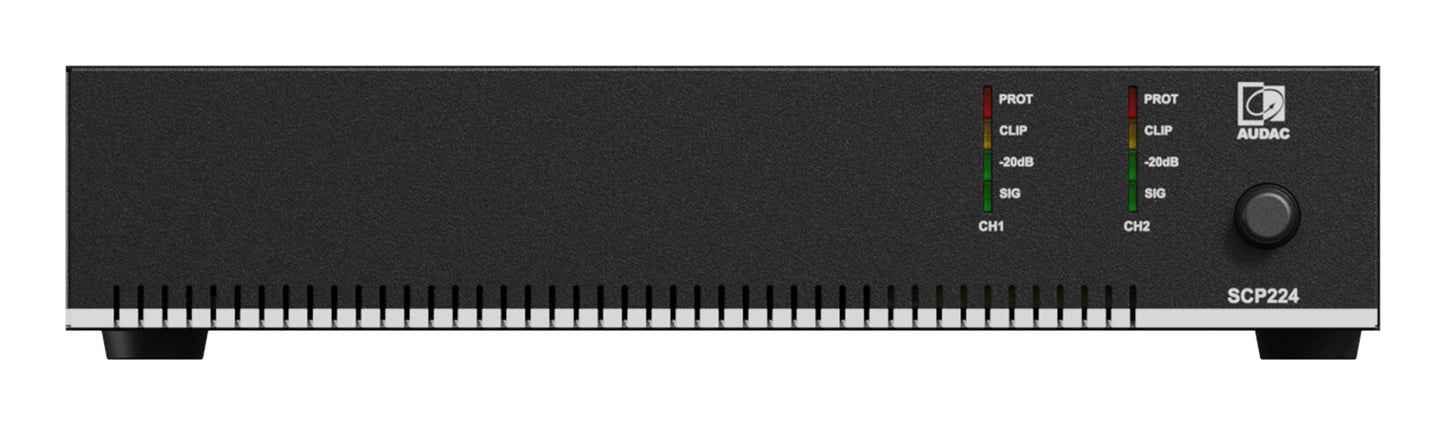

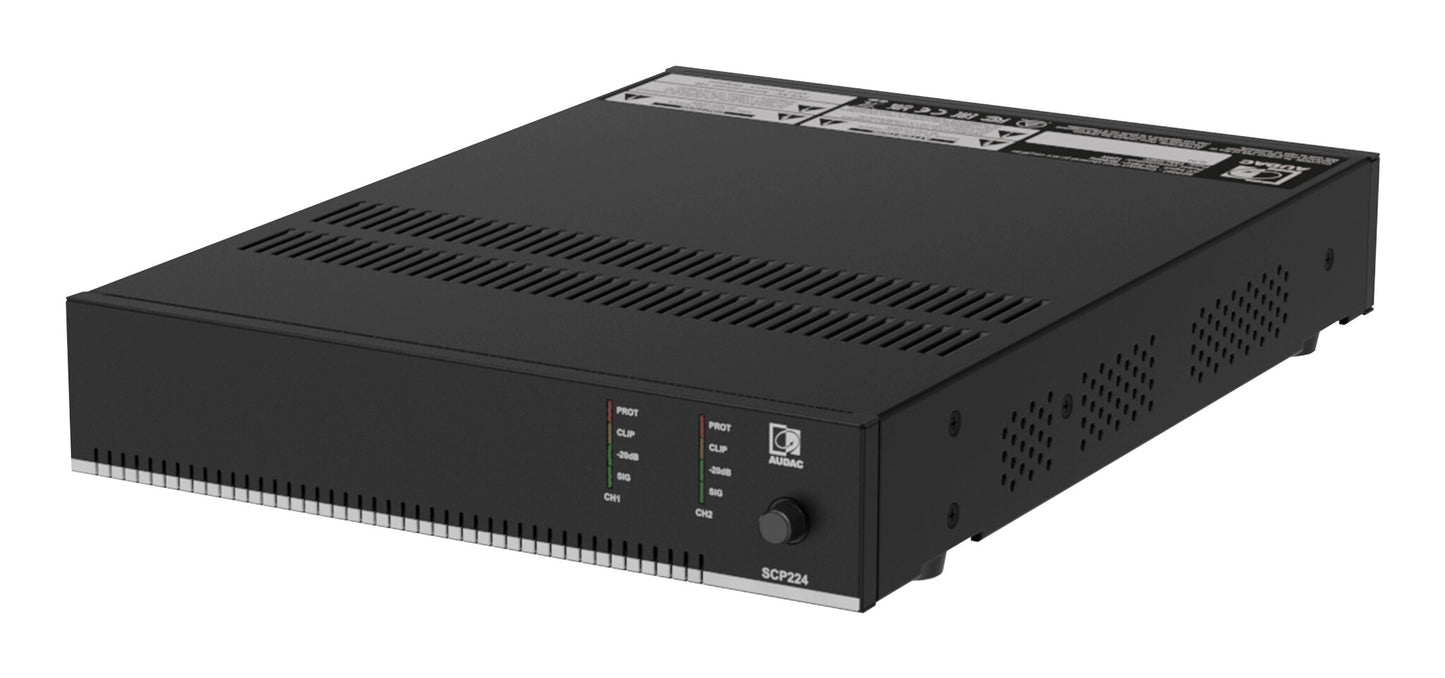

AUDAC SCP224

AUDAC SCP224. Audio output channels: 2.0 channels, Peak power per channel: 240 W, Amplifier class: D. Speakers connectivity type: Euroblock. Power source type: AC, AC input voltage: 100-240 V, AC input frequency: 50/60 Hz. Width: 217.5 mm, Depth: 300 mm, Height: 44 mm

The SCP series are a range of extremely powerful compact dual-channel power amplifiers for commercial use. These half 19” devices can be used in stereo low impedance or 70/100V bridge mode. There are 5 different models to serve a wide range of applications with power ratings that vary between 120W up to 1000W in a half 19” rack space housing.

The compact and elegant design of the half 19” rack space enclosure allows for single installation in a 10.5” equipment rack, or side-by-side (two devices) in a 19” equipment rack. Of course, desktop installation or mounting in an equipment rack using the MBS310 series mounting adapters is possible.

You may wonder if so much power in such a small enclosure could cause some heating issues? Not at all, the SCP series are designed in a unique way so that optimal cooling is established, this by passive cooling on the SCP206 and SCP212 and active cooling on the SCP224, SCP230 and SCP250 in order to improve thermal comfort without the need for additional actions.

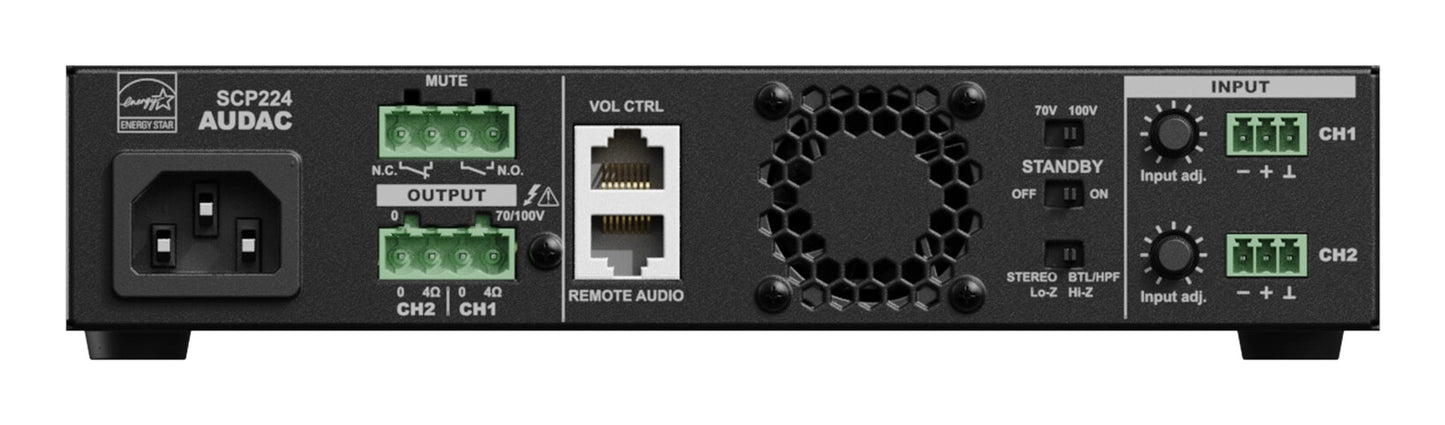

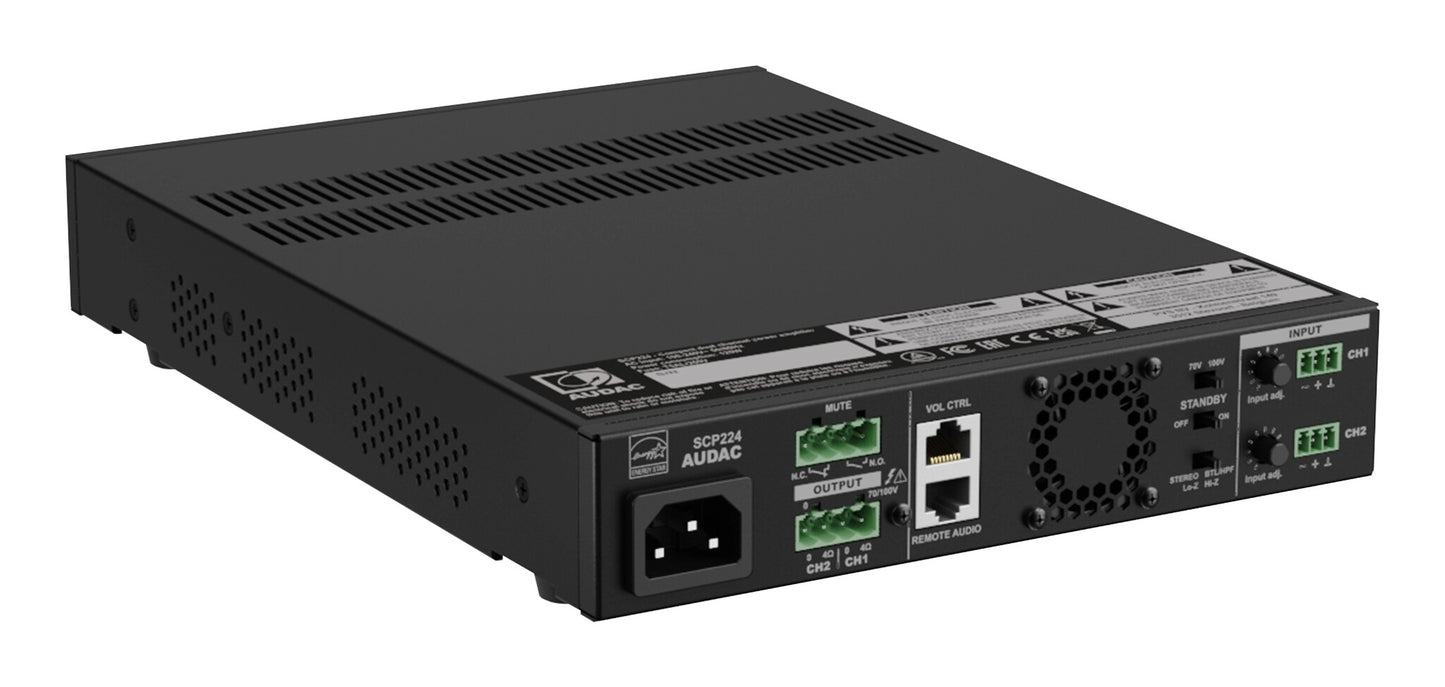

A connection to the WP2xx series input wall panels (see page 76) or volume controllers can be made via the RJ45 connector on the back of the SCP. This allows for a cost-effective plug & play solution to extend or introduce brand new input possibilities and control options.

Equipped with a standby mode switch, the SCP series will enter an energy-saving standby mode after a period of inactivity making it unique in the market. This feature together with the overall energy efficient design makes the SCP meet the high standards of the Energy star certification.

When you combine the SCP series with a suitable pre-amplifier or wall-mounted input panel you create a relatively powerful and complete solution for background music installations.

Plug-and-play compatible
WP2xx series
These network input & output panels can be connected via an RJ45 connector on the back of the SCP. A cost-effective plug-and-play solution to extend or introduce brand-new input possibilities and control options.

Passive & active cooling
Optimal cooling
So much power in such a small enclosure could cause some heating issues? Not at all, the SCP series aisre designed in a unique way so that optimal cooling is established, passive cooling on the SCP206 and SCP212 and active cooling on the SCP224, SCP230 and SCP250.

ENERGY STAR® certified
Same power, less energy
Optimal power consumption with ENERGY STAR® compliant standby-functionality, easy controllable with a switch on the back of the device. Enable or disable the 'Auto standby mode' whenever you like.

5 years
