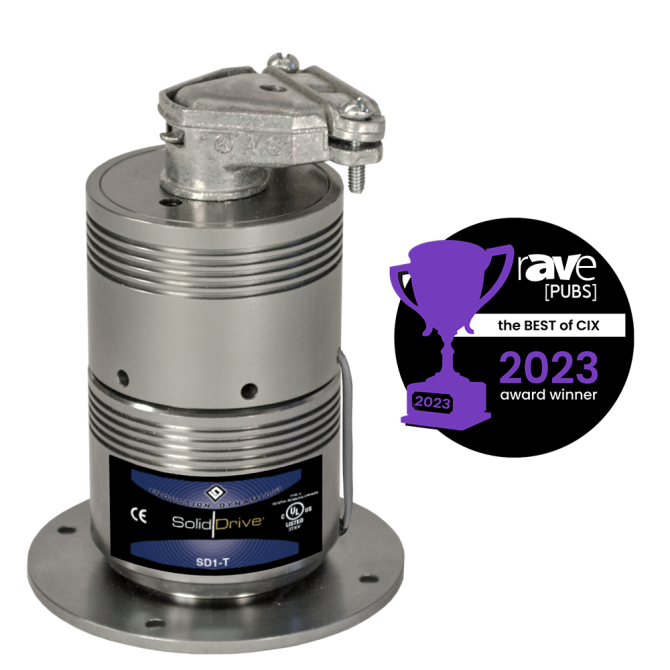

SolidDrive SD1-T Surface Mount Actuator with Transformer in Titanium
SolidDrive SD1-T Surface Mount Actuator with Transformer in Titanium
- SolidDrive is a patented technology that utilizes neodymium magnets and dual symmetrically opposed motors to convert audio signals into acoustical energy in a wide variety of substrates.
- Includes an integrated transformer for 70.7V and 100V applications.
- With direct contact to glass, drywall and tabletops, SolidDrive-T units radiate full-range sound across the entire surface.
- Full-frequency sound can be delivered from 60 Hz – 15 kHz with a max SPL of 85 dB and a coverage angle greater than 120º (60 Hz – 3 kHz).
- With transformer taps between 2.5 – 10 W, SolidDrive-T units can deliver single to multichannel audio for distributed audio applications.
- Patented balanced cantilever spring bracket for behind-wall mounting allows for a completely hidden speaker system in drywall applications.
- SolidDrives operate in a virtually friction-free environment and are engineered for infinite life. Induction Dynamics SolidDrives come with a 7-year warranty.
- SKU:SD-1-T
- GTIN/EAN:644216215102
- MPN:SD-1-T
SolidDrive SD1-T Surface Mount Actuator with Transformer in Titanium
The SD1-T can be installed into walls and ceilings using our patented cantilever spring mounting bracket. For best results, our engineers recommend testing the SolidDrive unit on the desired surface before installing. Each SD1-T is designed for one channel of audio. SolidDrive utilizes patent-pending dual-voice coil technology in an aluminum enclosure to transfer acoustic energy to any substrate. Using high-powered neodymium magnets and dual symmetrically opposed motors, SolidDrive converts audio signals into vibrations that transfer into solid surfaces through direct contact. The result is high-quality, full-range sound that radiates from the entire surface with a frequency response of 70 Hz to 15 kHz. The symmetrically opposed neodymium magnets and specifically engineered mounting hardware provide hidden planar-source acoustics and uniformity throughout the listening space.
Owners Manual | Tech Sheet | Mechanical Drawing
| Color | Titanium |
|---|---|
| UPC | 644216215102 |
| Manufacturer | SolidDrive |
| Manufacturer's Category | The Original SolidDrive |
| Depth | 2.28 in | 57.9 mm |
| Height | 4.8 in | 121.92 mm |
| Width/Diameter | Mounting Plate: 3.5 in | 88.9 mm |
| Shipping Weight | 2.25 lbs | 1.02 kg |
| Certifications | UL1480, UL2043 |
| Optional Accessories | Titanium Heat Sink (SD1-HS-TI)|12" On-Center Bracket Assembly (SD1-BR12)|16" On-Center Rear-Install Drywall Bracket assembly for SolidDrive (SD1-BR16-R)|16" On-Center Bracket Assembly (SD1-BR16)|24" On-Center Bracket Assembly (SD1-BR24)|Passive Equalization Module - Drywall (PEM-DW) |
| TAA Compliant (Trade America) | Yes |
| BAA Compliant (Made in USA) | Yes |
| Transformer Options | 10 W Transformer |
