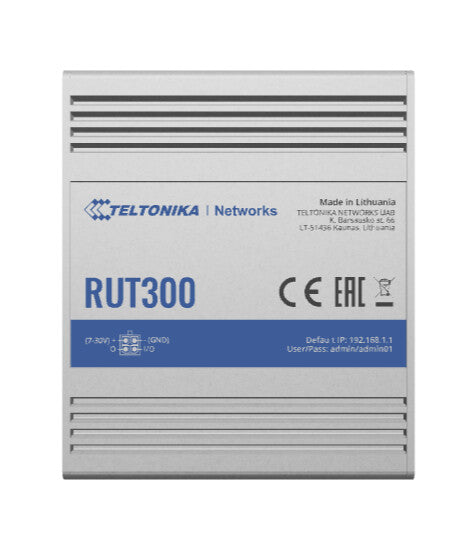

Teltonika RUT300

Teltonika RUT300

5x RJ45, 10/100 Mbps, Firewall, VPN, VLAN, RMS, USB A, 100 x 30 x 85 mm

  • Ethernet WAN
  • IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
  • Fast Ethernet
  • HTTPS
  • SKU:NET/TT/RUT300
  • GTIN/EAN:4779027312903
  • MPN:7535256
Add To Favorite

You need to login to view the price.

View full details

Teltonika RUT300. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, Ethernet interface type: Fast Ethernet. Management protocols: FOTA, SSH, OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech,..., Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, PPPoE,.... Security algorithms: HTTPS, VPN support: OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC,.... Processor model: Qualcomm Atheros QCA9531, Processor frequency: 650 MHz, Flash memory: 16 MB. Product colour: Blue, Metallic, Housing material: Aluminium

INTERFACES
5 x Fast Ethernet ports (10/100 Mbps). 2 x Configurable digital Inputs/Outputs and USB 2.0

DURABILITY
Aluminum housing, which is capable to withstand harsh environments

FIREWALL
Unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

VPN
Numerous VPN services including OpenVPN, IPsec, PPTP, L2TP & DMVPN, L2TP, DMVPN, Stunnel and others

VLAN
Supports up to 4096 VLAN IDs for VLAN tagging and port based VLANS

RMS
Compatible with Teltonika Remote Management System

- The RUT300 is a small, but powerful Ethernet router perfect for challenging industrial networking tasks as well as general networking applications.
- Five Ethernet ports, two configurable digital Inputs/Outputs, and a USB port to easily connect the various equipment to the internet.
- Preconfigured Firewall for immediate security and multiple top-rated VPNs.
- Passive PoE helps to reduce deployment complexity.
- Economical but a feature-rich industrial device that comes with all the benefits of RutOS and Remote Management System (RMS).

WAN connection
3G/4G USB modem compatibility
N
SIM card slot
N
DSL WAN
N
Ethernet WAN
Y
Network
Auto MDI/MDI-X
Y
VLAN support
Y
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Management features
Reset button
Y
Quality of Service (QoS) support
Y
Ports & interfaces
USB ports quantity
1
USB version
2.0
Fast Ethernet (copper) ports quantity
5
Ethernet LAN (RJ-45) ports
5
Protocols
Supported network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP (planned), MQTT (planned), Wake on LAN (WOL) (planned)
Management protocols
FOTA, SSH, OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem, MQTT Broker, MQTT publisher, SNMP, JSON-RPC, RMS
Security
VPN support
OpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBCIPSecIKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)GREGRE tunnelPPTP, L2TPClient/Server instances can run simultaneously, L2TPv3 support (planned)Stunnel (planned)Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s codeDMVPN (planned_Method of building scalable IPsec VPNsSSTP (planned)SSTP client instance supportZeroTier (optional)ZeroTier VPN client support (not available in standard FW)WireGuard (optional)WireGuard VPN client and server support (not available in standard FW)
Access Control List (ACL)
Y
ARP attack prevention
Y
ICMP attack prevention
Y
DoS attack prevention
Y
MAC address filtering
Y
Firewall
Y
Security algorithms
HTTPS
Features
Internal memory type
DDR2
Internal memory
64 MB
Flash memory
16 MB
Processor frequency
650 MHz
Processor model
Qualcomm Atheros QCA9531
Built-in processor
Y
Design
Housing material
Aluminium
Product colour
Blue, Metallic
Power
Power source type
DC, PoE
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-40 - 75 °C
Weight & dimensions
Weight
229 g
Height
30 mm
Depth
85 mm
Width
100 mm
