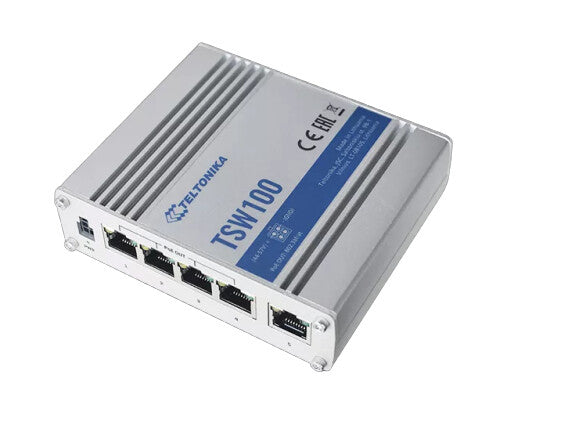

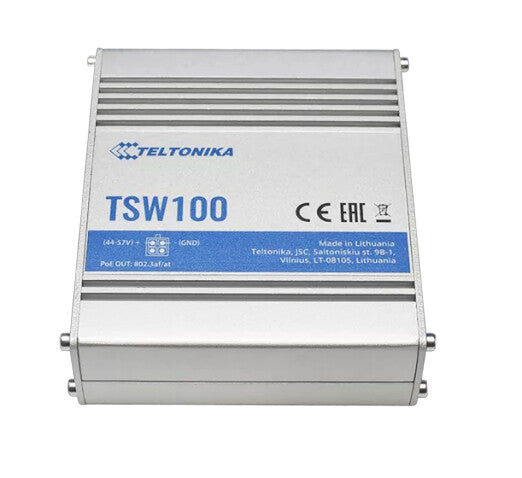

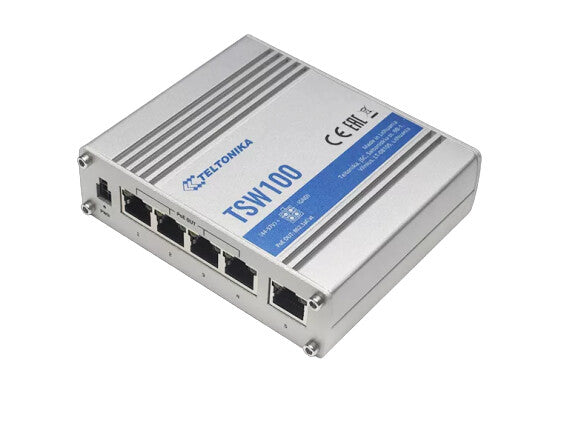

Teltonika TSW100

Teltonika TSW100

5 x LAN port, 10/100/1000 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az, PoE ports 1- 4, 2 W/9 W/129 W

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • MAC address table: 2000 entries
  • Power over Ethernet (PoE)
  • SKU:TSW100000000
  • GTIN/EAN:
  • MPN:TSW100000000
Add To Favorite

You need to login to view the price.

View full details

Teltonika TSW100. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. DC input voltage: 7 - 58 V. Power over Ethernet (PoE)

TSW100 – 5-port, unmanaged full Gigabit Ethernet switch supporting Power-over-Ethernet (802.3af and 802.3at standards). This device is classified as power source equipment (PSE), and when used in this way, TSW100 switch enables centralization of the power supply, providing up to 30 watts of power per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.

2 year

Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
5
Network
Auto MDI/MDI-X
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Data transmission
Packet buffer memory
0.128 MB
Jumbo frames
9216
MAC address table
2000 entries
Design
LED indicators
Power, Status
Housing material
Aluminium
Product colour
Blue, Metallic
Power
Power consumption (max)
129 W
DC input voltage
7 - 58 V
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE)
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-40 - 75 °C
Weight & dimensions
Height
32 mm
Depth
95 mm
Width
115 mm
Certificates
Certification
CE/RED, EAC, RoHS, WEEEDraft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0EN 61000-4-2:2009EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2EN 61000-4-3:2006 + A1:2008 + A2:2010EN 61000-4-4:2012EN 61000-4-5:2014EN 61000-4-6:2014EN 61000-4-11:2004
Logistics data
Harmonized System (HS) code
85176990
