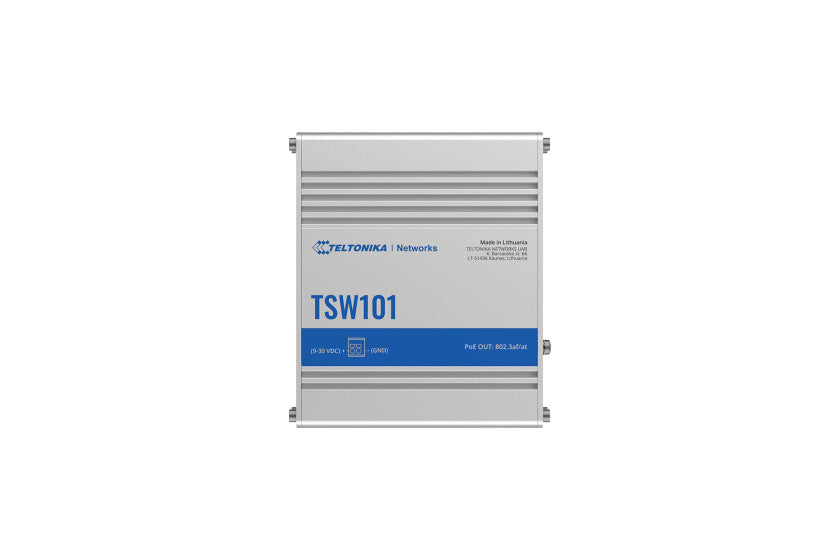

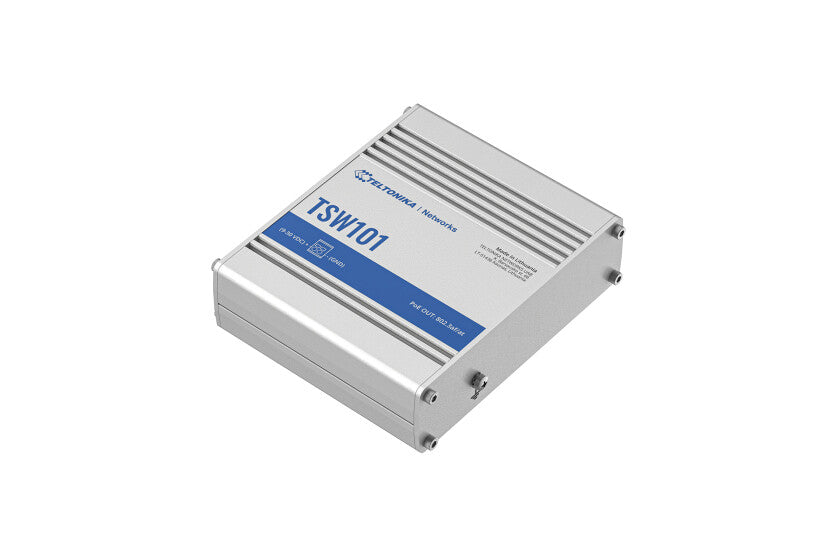

Teltonika TSW101

Teltonika TSW101

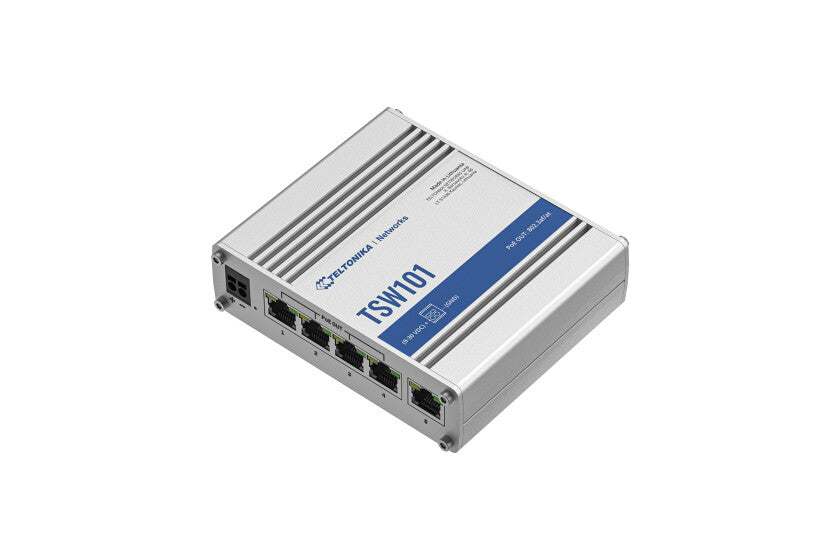

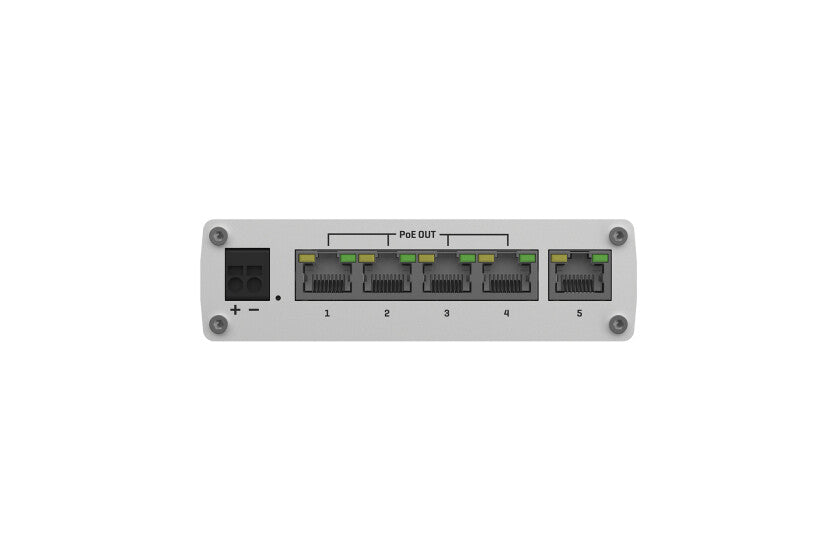

4 x PoE+ ports with 802.3af and 802.3at support, 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps, Rugged aluminum housing

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • MAC address table: 2000 entries Switching capacity: 10 Gbit/s
  • DC Power over Ethernet (PoE)
  • SKU:TSW101000020
  • GTIN/EAN:4779051840113
  • MPN:TSW101000020
Add To Favorite

You need to login to view the price.

View full details

Teltonika TSW101. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Power connector: Terminal block (2-pin). Power over Ethernet (PoE)

AUTOMOTIVE POE+ SWITCH

Our first-ever switch for the automotive industry features five Gigabit Ethernet ports with PoE+ support to connect multiple devices to the network and power them up using the same interfaces. Enjoy reliable high bandwidth connectivity in a simple, economical, and easy-to-install solution.

Ports & interfaces
Power connector
Terminal block (2-pin)
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
5
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Networking standards
IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Data transmission
Jumbo frames
9216
Jumbo frames support
Yes
Switching capacity
10 Gbit/s
MAC address table
2000 entries
Design
International Protection (IP) code
IP30
LED indicators
Power, Status
Housing material
Aluminium
Product colour
Metallic
Power
Power consumption (max)
2.31 W
Power consumption (typical)
0.64 W
Input voltage
9 - 30 V
Power source
DC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE) type supported
Passive PoE
Power over Ethernet (PoE)
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-40 - 75 °C
Weight & dimensions
Weight
354 g
Height
95 mm
Depth
32 mm
Width
115 mm
Certificates
Certification
CE, REACH, RoHS, WEEETSW101 CETSW101 UKCATSW101 FCCTSW101 ICTSW101 CBTSW101 RCME-Mark
Logistics data
Harmonized System (HS) code
851762
