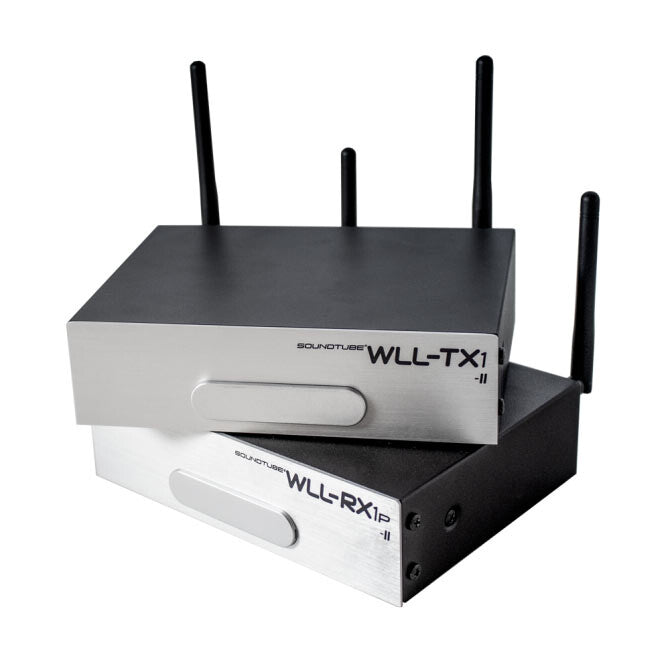

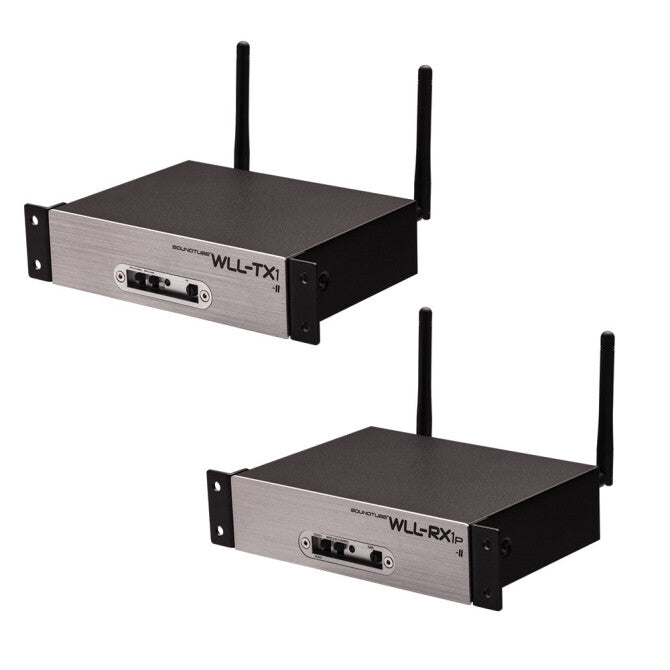

WLL-TR-1P-II Amp, Wireless Transmitter and Receiver

SoundTube WLL Tri-band Uncompressed Wireless Transmitter and Receiver System

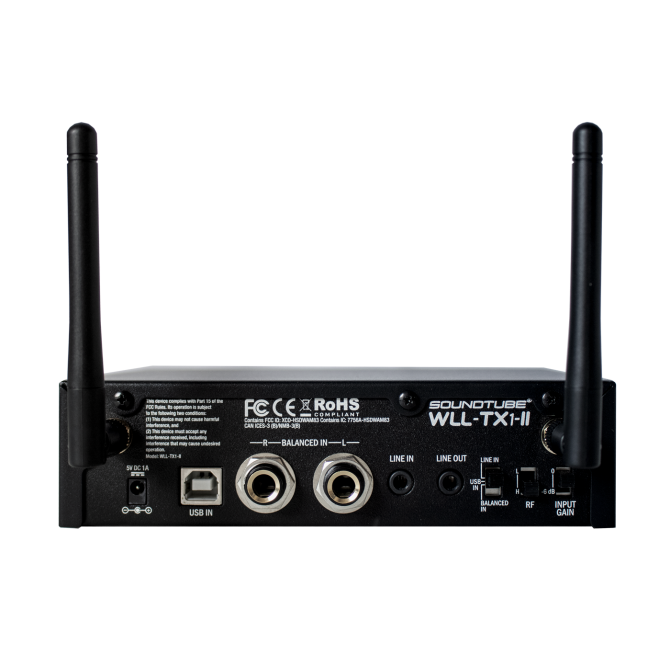

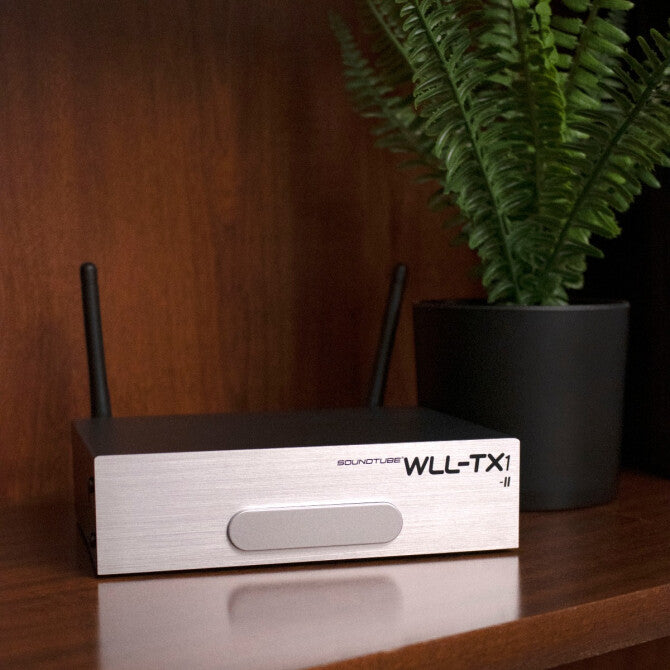

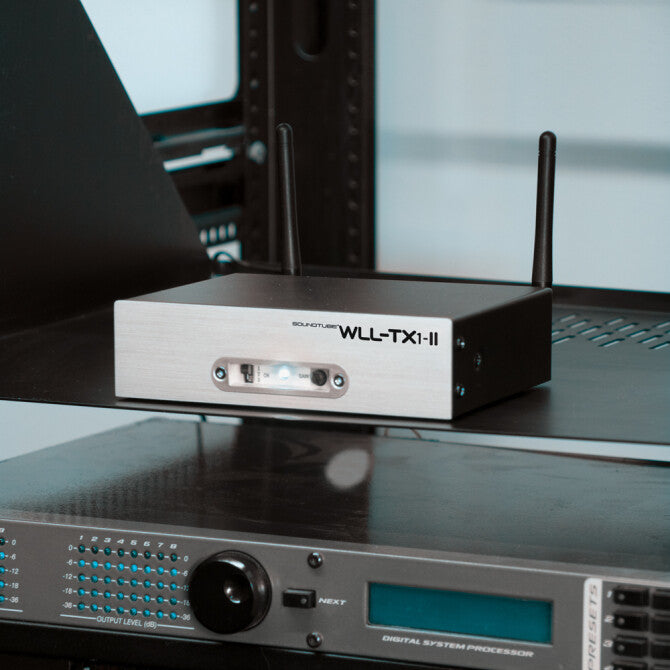

The WLL-TX1 wireless transmitter unit transmits uncompressed stereo audio wirelessly for maximum fidelity. Audio input options for the transmitter unit include USB, stereo mini or 1/4" balanced input connections at the transmitter. A High/Low power selector switch on transmitter limits RF range where needed.

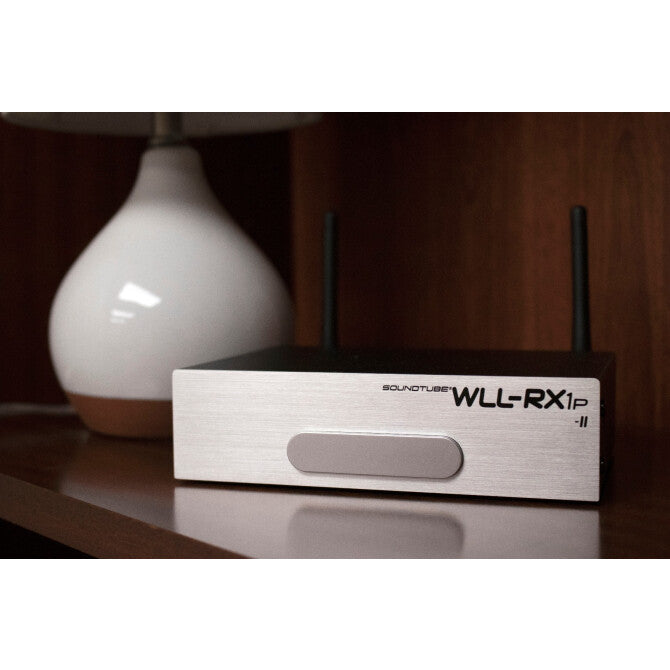

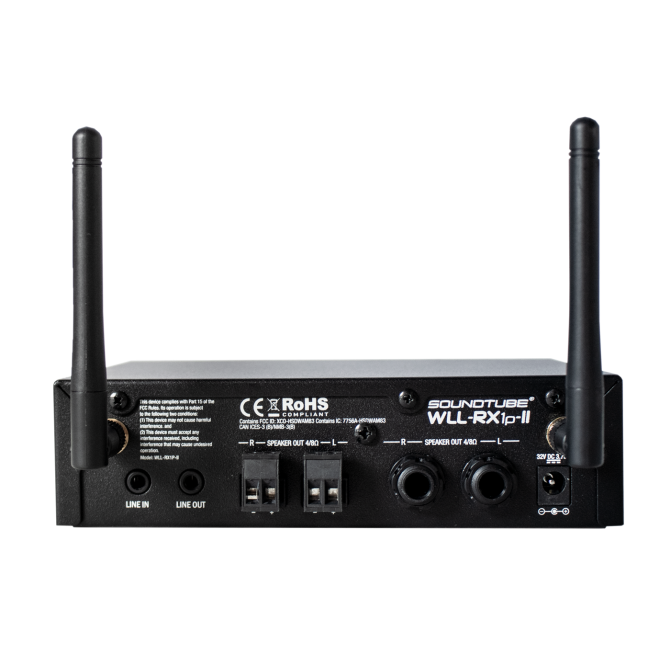

The WLL-RX1p wireless receiver unit contains a 2-channel 50W/ch Class D amplifier which will power up to two speakers. Receiver output options include Push-On phoenix connectors or 1/4" connections. The WLL-RX1P also includes stereo line output for connecting auxiliary audio components. A Local Audio source may also be used at the receiver via stereo mini which mutes the wireless signal when connected.

An additional 5 receivers (for a total of 6) may be ordered to accompany a single transmitter. Two additional transmitters can be used with separate frequencies with a total of up to 18 receiver units. Each transmitter/receiver contains 3 RF channels to minimize interference from other devices. Each channel contains 3 bands, alternating between them to preemptively counteract interference, keeping the signal clear and latency less than 20ms.

• RF Band: 2.4 GHz
• Operating Range (full power): 150 ft indoors / 210 ft line of sight
• Operating Range (low power): 50 ft indoors / 70 ft line of sight
• Modulation: Digital
• Dynamic Range: 90 dB
• Antenna Impedance: 50 ohm
• Housing Material: Powder Coated Metal

Owner's Manual | Tech Sheet | A&E Specs
