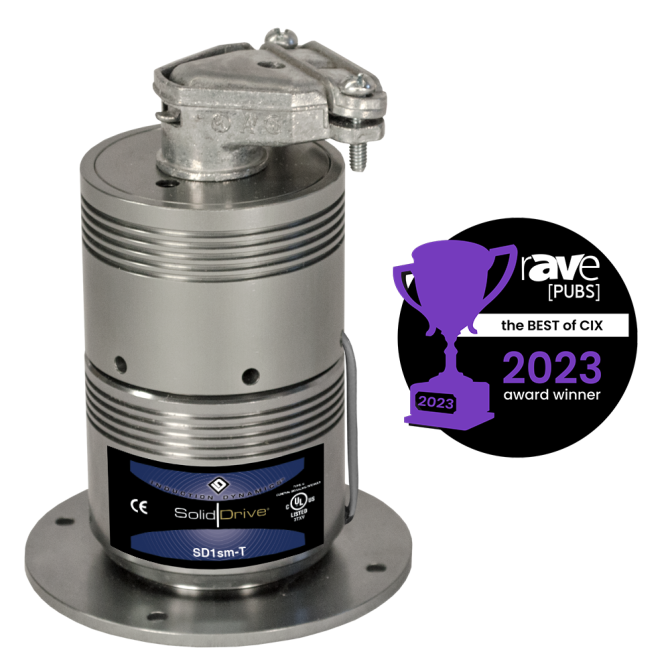

SolidDrive SD1sm-T Wood Surface Mount Actuator with Transformer in Titanium
- SolidDrive is a patented technology that utilizes neodymium magnets and dual symmetrically opposed motors to convert audio signals into acoustical energy in a wide variety of substrates.
- Includes an integrated transformer for 70.7V and 100V applications.
- With direct contact to glass, drywall and tabletops, SolidDrive-T units radiate full-range sound across the entire surface.
- Full-frequency sound can be delivered from 60 Hz – 15 kHz with a max SPL of 85 dB and a coverage angle greater than 120º (60 Hz – 3 kHz).
- With transformer taps between 2.5 – 10 W, SolidDrive-T units can deliver single to multichannel audio for distributed audio applications.
- Patented balanced cantilever spring bracket for behind-wall mounting allows for a completely hidden speaker system in drywall applications.
- SolidDrives operate in a virtually friction-free environment and are engineered for infinite life. Induction Dynamics SolidDrives come with a 7-year warranty.
- SKU:SD-1SM-T
- GTIN/EAN:644216227303
- MPN:SD-1SM-T
SolidDrive SD1sm-T Wood Surface Mount Actuator with Transformer in Titanium
The SD1sm-T can be installed onto wood and other hard surfaces. For best results, our engineers recommend trying out the SolidDrive on the desired surface before installing. Each SD1sm-T is designed for one channel of audio. SolidDrive utilizes patent-pending dual-voice coil technology in an aluminum enclosure to transfer acoustic energy to any substrate. Using high-powered neodymium magnets and dual symmetrically opposed motors, SolidDrive converts audio signals into vibrations that transfer into solid surfaces through direct contact. The result is high-quality, full-range sound that radiates from the entire surface with a frequency response of 70 Hz to 15 kHz. The symmetrically opposed neodymium magnets and specifically engineered mounting hardware provide hidden planar-source acoustics and uniformity throughout the listening space.
Owners Manual | Tech Sheet | Mechanical Drawing
| Color | Titanium |
|---|---|
| UPC | 644216227303 |
| Manufacturer | SolidDrive |
| Manufacturer's Category | The Original SolidDrive |
| Depth | 2.28 in | 57.9 mm |
| Height | 4.8 in | 121.92 mm |
| Width/Diameter | Mounting Plate: 3.5 in | 88.9 mm |
| Shipping Weight | 2.25 lbs | 1.02 kg |
| Certifications | UL1480, UL2043 |
| Optional Accessories | Titanium Heat Sink (SD1-HS-TI)|12" On-Center Bracket Assembly (SD1-BR12)|16" On-Center Bracket Assembly (SD1-BR16)|24" On-Center Bracket Assembly (SD1-BR24)|Passive Equalization Module - Drywall (PEM-DW) |
| TAA Compliant (Trade America) | Yes |
| BAA Compliant (Made in USA) | Yes |
| Transformer Options | 10 W Transformer |
